Assignment 6-Frontal Crash Simulation Challenge

Frontal Crash Simulation Challenge

Intention:

Frontal vehicle crash simulation of sidestepping Neon BIW the use of RADIOSS solver and Preprocessing the use of HyperMesh / HyperCrash.

objective:

the subsequent are the necessities for this challenge:

Set the version of the Neon to keep away from ie, the FEA model, so that the required output requests may be submit-processed from it.
Sectional force in the rails at the location of indicated node 174247.
The axial pressure is obtained at the rails from the bumper.
Shotgun move-sectional forces.
A pillar cross-section.
Acceleration curve acquired on the accelerometer at base of B pillar (on B pillar rocker).
Intrusions on the dash wall 66695, 66244.

SETUP REQUESTS:

test the unit gadget and either follow [Mg mm s] or [Kg mm ms].
Create the appropriate interface, friction 0.2, and advocated parameters.
make sure of no penetrations and intersections.
correct rigid bodies if any troubles.
Create an inflexible wall with friction 0.1.
compare the model weight with the full-scale 300k nodes version and use brought hundreds to attain the target weight of 700kg at the same time as getting CG approximately the desired range.
initial speed 35 mph.

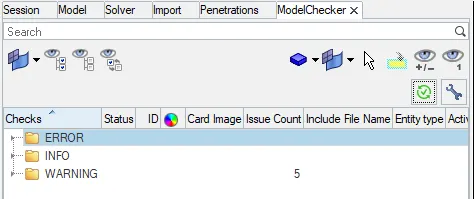

Use a version checker to make sure suitable nice.
Time-step: 0.5 to zero.1 microseconds.
Run eighty ms

OUTPUT REQUESTS:
The sectional force within the rails on the vicinity of indicated node 174247.
The axial force is obtained on the rails from the bumper.
Shotgun move-sectional forces.
A pillar cross-section.
Acceleration curve received at the accelerometer at base of B pillar (on B pillar rocker).

PROCEDURE OF OBJECTIVE 1: Checking the unit system and either following [Mg mm s] or [Kg mm ms].

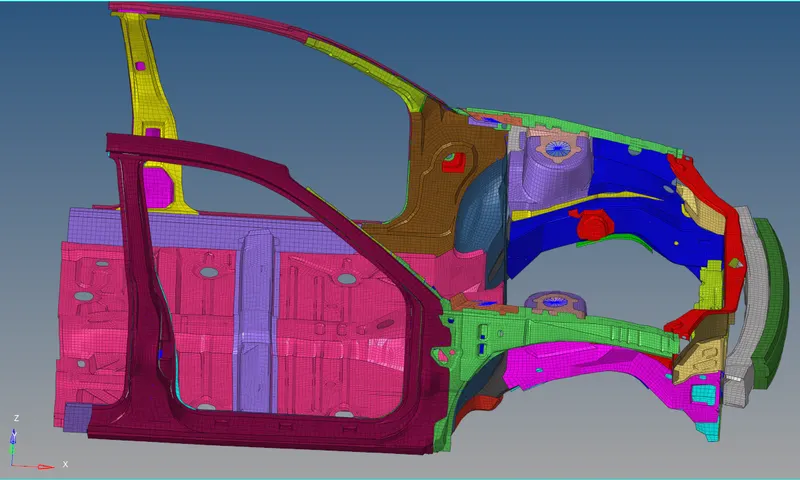

STEP 1: Open the starter file neon_front_000.rad file, go to-
*Menu bar>file>import>solver desk>select .rad file>import

STEP 2: Checking unit system of the model

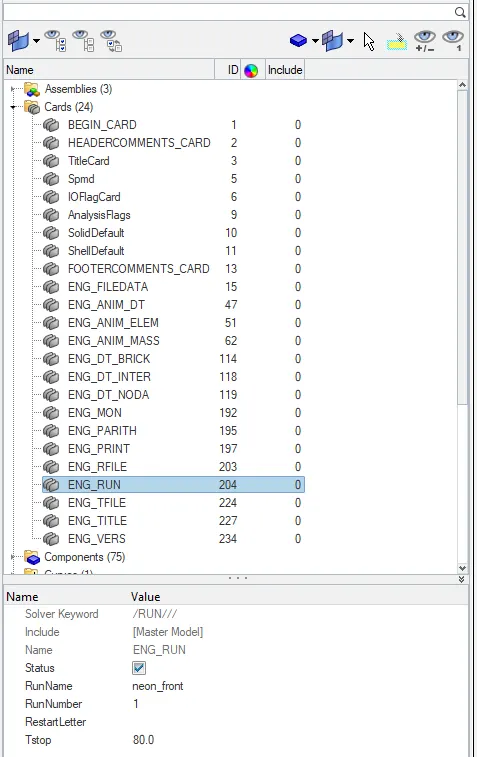

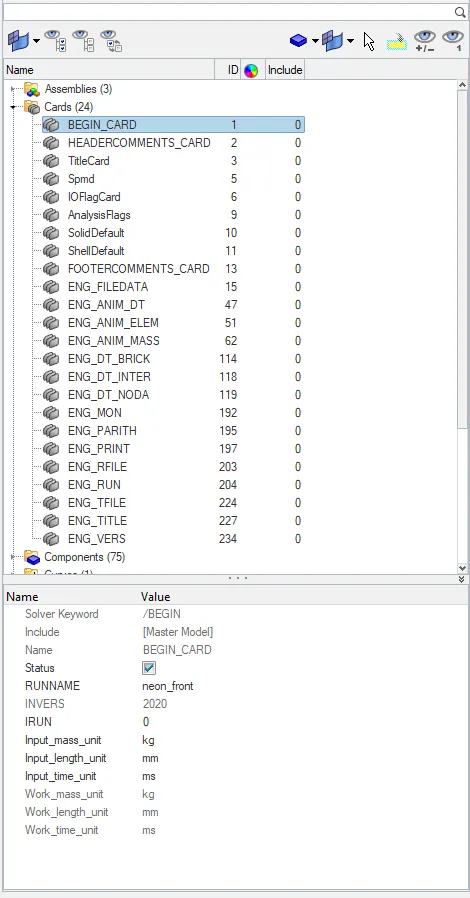

*Model browser>cards>begin card.

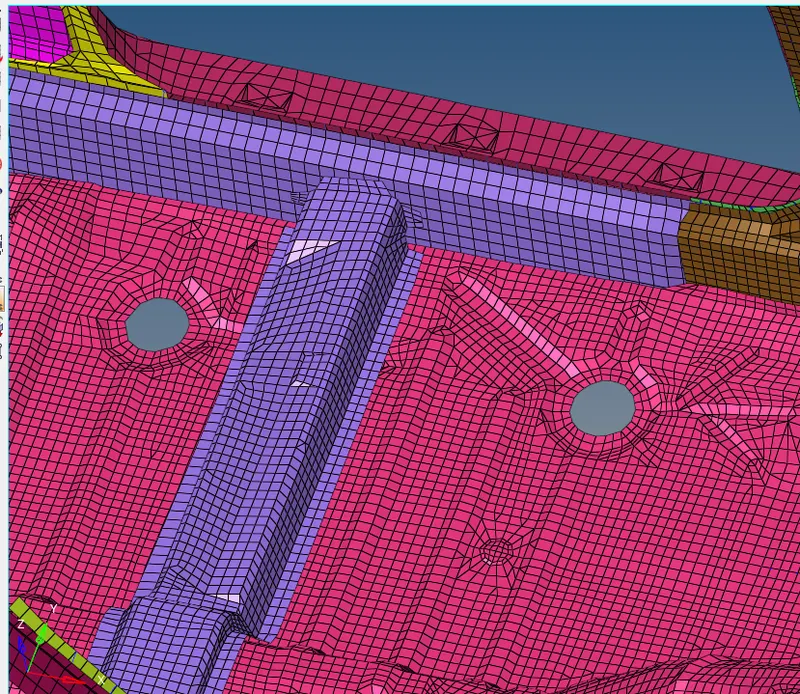

PROCEDURE OF OBJECTIVE 3: There should be no penetrations and intersections

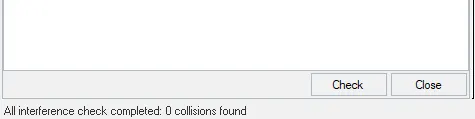

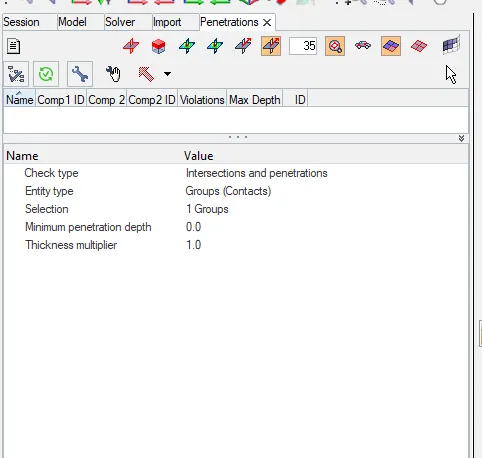

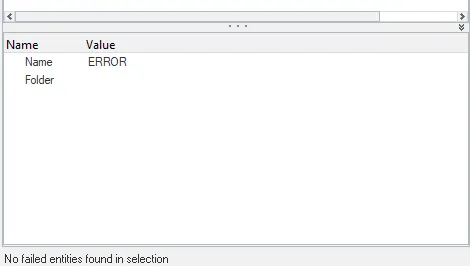

*Menubar>penetration check>select group>check

CREATE RIGID WALL:

A rigid wall is a nodal constraint applied to a set of slave nodes to avoid node penetration to the wall. If contact is detected, then the slave node acceleration and velocity are modified. Mainly to constrain the movement of a moving body after impact, we will be using a plane wall. An infinite plane wall is a plane that extends to infinity. It is defined with two points.
Rigid wall entities provide a method for treating a contact between a rigid surface and nodal points of a deformable body.

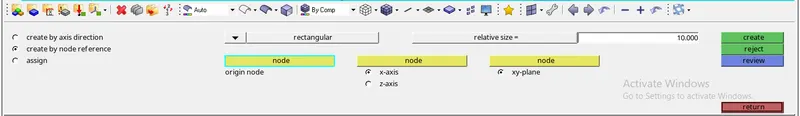

Initially, a node is created and it is translated to some distance, and using this node coordinate as a reference, the rigid wall is created.
The friction value is set as 0.1

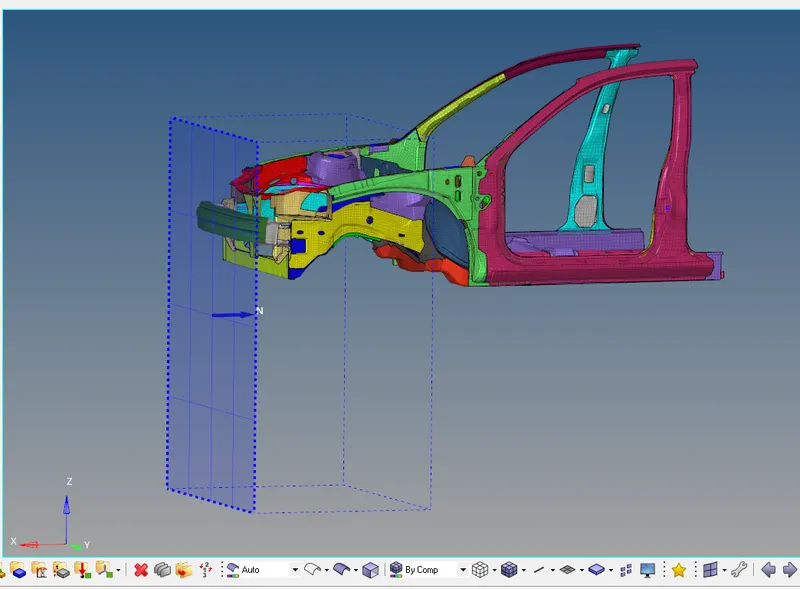

To create an RWALL

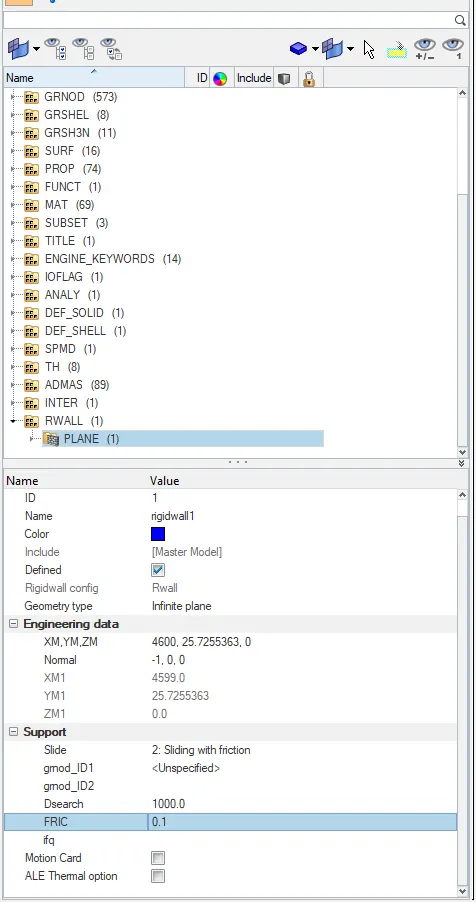

Go to Slover browser >> Create >> Rwall >> Plane .

PROCEDURE OF OBJECTIVE 5: Adding masses to reach target weight 700kg while getting CG about the required range.

STEP 1: Opening mass summary

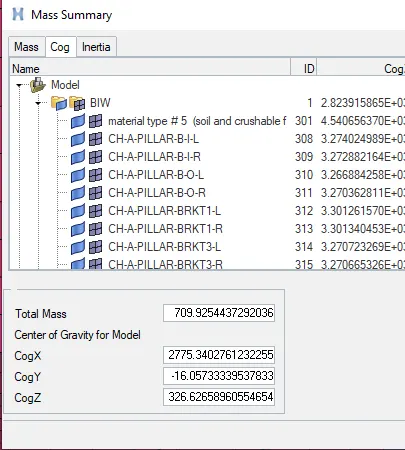

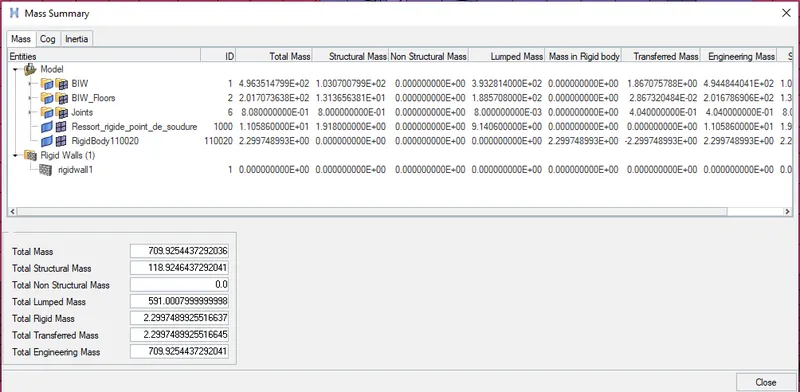

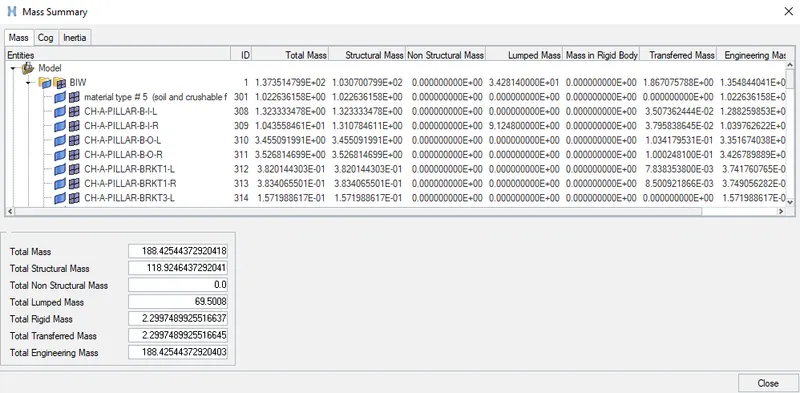

*Menu bar>tools>mass details>mass,cog,inertia.

• We can see that the mass is less as it should be around 700 kg.
•

STEP 5: Checking CoG

*Menu bar>tools>mass details>mass,cog,inertia

CREATE VELOCITY:

Initial velocity 35 mph.
Converting 35mph into ms
1mph = 0.447 ms
So, 35mph = 15.6464 ms
To create a velocity

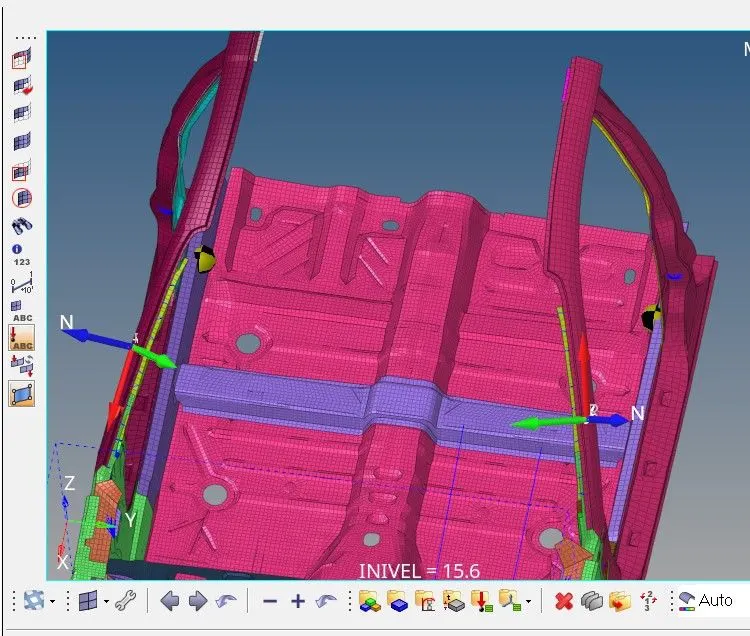

Go to solver browser >> Create >> Boundry conditions (BC) >> Inivel

PROCEDURE OF OBJECTIVE 8 : Time-step: 0.5 to 0.1 microseconds.

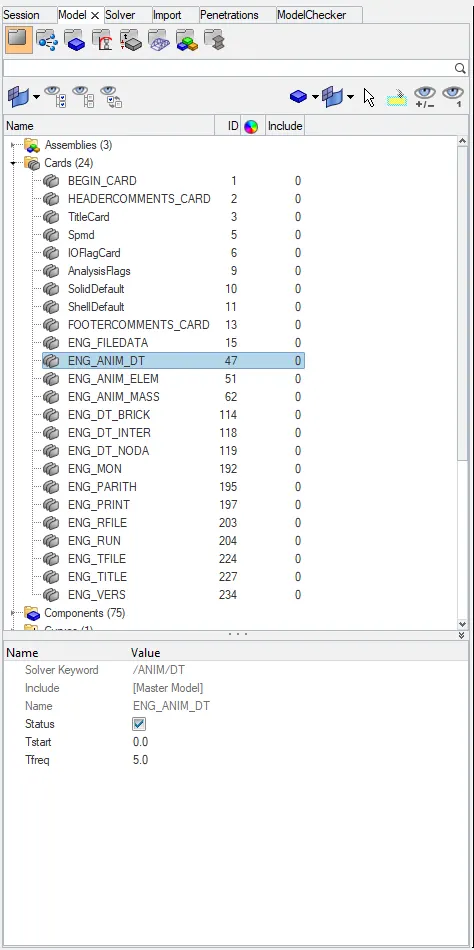

*Model browser>cards>eng_anim_dt>Tfreq=5.0

CREATE SECTIONAL FORCES:

Creation of Sections at A-Pillar, Shot Gun, rails, and the Bumper to Study the sectional forces
We have to know how the forces are transmitted from the Bumper to the Dashboard and the rate of deformation. It is done to ensure the safety of the passenger.
Certain components have to crash (deform) more than the other so that the forces are distributed correctly leaving very little force left to transmit inside the cabin.
We are creating sections for the following parts:

LEFT SIDE SECTION RAIL SHOTGUN A-PILLAR
RIGHT SIDE SECTION RAIL SHOTGUN A-PILLAR
To create a section and Frame

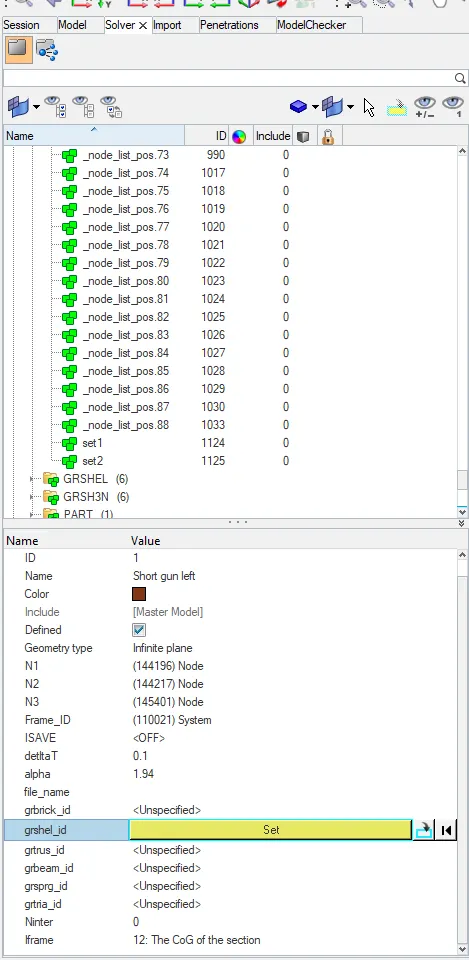

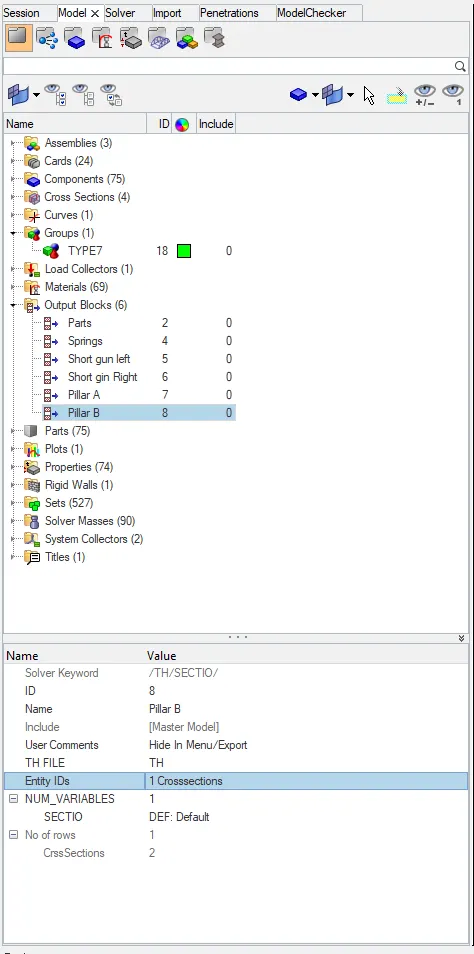

Go to Slover browser >> Create >> Section >> SEC >>

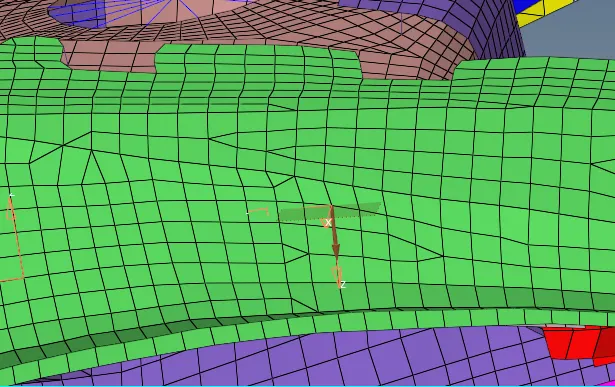

Initially, the section was created and the fixed frame is created and it is assigned to the respective section.
Similarly, the above-mentioned parts section was created.

CREATE ACCELERATION NODES:

Creating Accelerometer at both sides of the B pillar.
An accelerometer is a basic technology that converts mechanical motion into an electrical signal. It is an electromechanical device that measures acceleration forces, whether caused by gravity or motion.
To create accelerometer

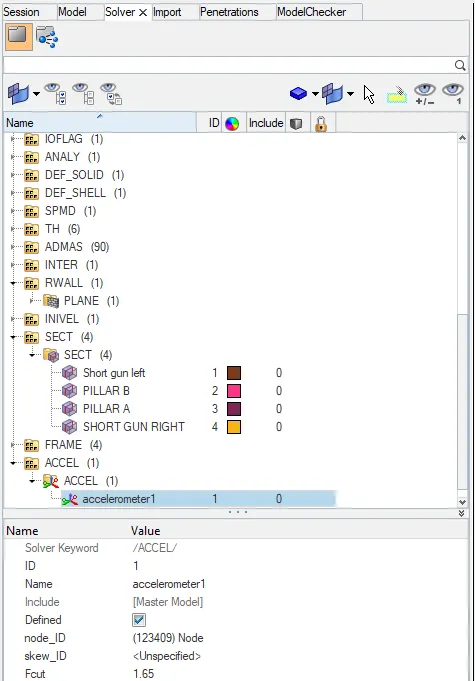

Go to Model browser >> Create >> Accelerometer >> Select Node_ID >> Select node >> Proceed.

CREATE SPRINGS:

We are planting Spring elements to study the intrusions (forces inside the cabin causing deformation/rupture).

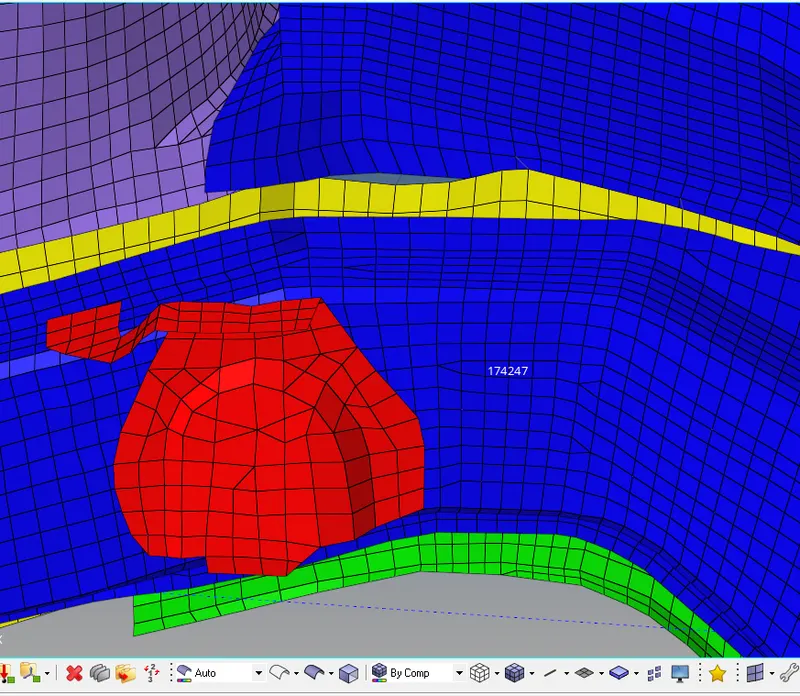

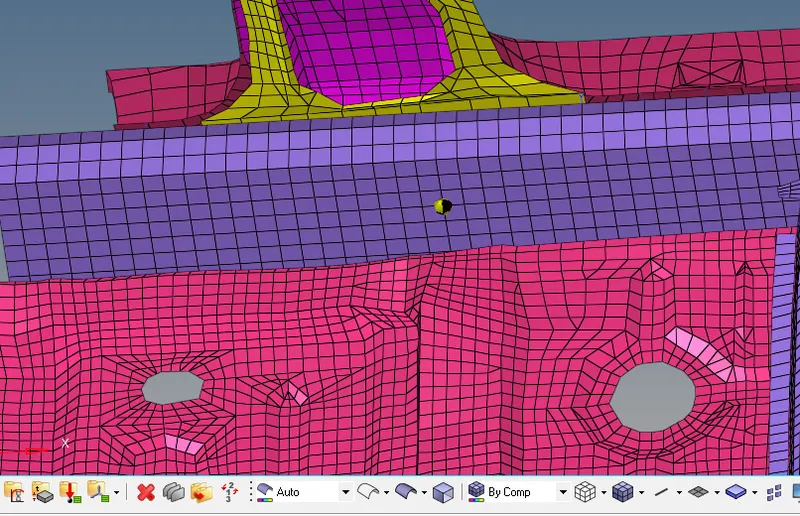

Create 2 parallel spring elements from the indicated nodes (66695,66244) till the Crossbeam.
Springs can be created from the 1D Panel > Springs

RUN THE ANALYSIS:

Analysis >> Radioss >> Input File: (File Location) >> Hit Radios

The input file is the same Started file (contains model information) that we had just imported.

The animation video along with the frames will be saved in the same folder where the starter file exists.

Review the Simulation

We have to import the animation file in HyperView first:

HyperView >> FIRST_RUN. h3d >> Apply

The tools to review the simulation are available on HyperView.
HyperView is a post-processing and visualization environment for FEA that gives the output of the analysis in a simulations format that is user-friendly to understand.
From the simulation, we can review how the impact force acts and causes deformations and points of rupture on the model.

Results after simulation:

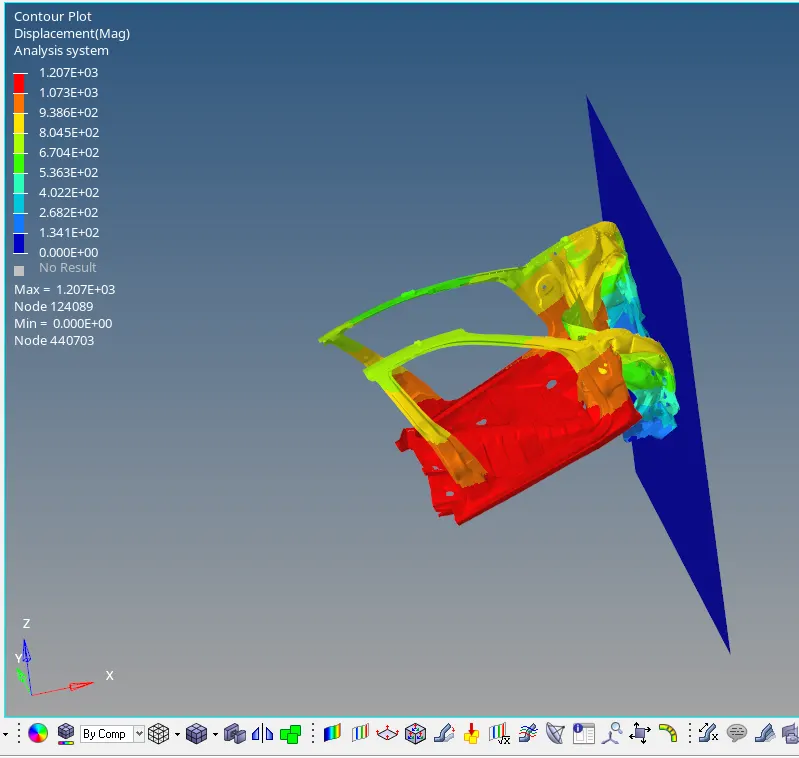

From the simulation, we can see that, Initially, the bumper starts crushing then the bumper forces are transferred to the left and right rail from the rail forces are transferred to A-Pillar LH and RH. In each stage, the forces are going to reduce because energy is absorbed in each stage. Because of no engine blocks, suspension systems, etc, the car BIW is going to go down at the end of the simulation.

1) Energy and Mass error:

At the end of the simulation, do the energy error and mass error checks and determine whether results would be acceptable
Open the save location file and click on the output file of the simulation to check for the Energy error and Mass error.
If the error is negative, it means that some energy has been dissipated.
In the case of under integrated elements (Belytschko shells, solids with 1 integration point), the Hourglass Energy can explain a negative Energy Error since it is not counted in the energy balance. The normal amount of Hourglass energy is about 10% to 15%.
If the error is positive, there is an energy creation.
In the case of using QEPH shell formulation or fully integrated elements, the Energy Error can be slightly positive since there is no Hourglass energy and the computation is much more accurate. An error of 1% or 2% will be acceptable.
In the case of a larger positive energy, the source of this energy has to be identified. Incompatible kinematic conditions can lead to such a situation.
If the error reaches ±99%, the computation has diverged; except in the first cycle of a run for which the initial energy of the system was null so that a relatively false energy balance often introduces large relative error.
After simulation run

Check the Starter Output File for Errors:

A starter Output file of .out format is generated after analysis.
The Output file contains the data during simulation, such as Cycle, Timestep, Energies, and Errors.
We have to check for energy and Mass error which means that the solver did not need to add mass onto the nodes to reduce the timestep to further avoid the Hourglass Error.

PLOT THE GRAPH AND COMPARE RESULTS:

The tools to plot the graph are available on Hypergraph.

Hypergraph 2D >> Data File >> FIRST_RUNT01 >> Apply

A hypergraph is a data analysis and plotting tool that represents the FEA from the simulation in graphs concerning the selected unit system.

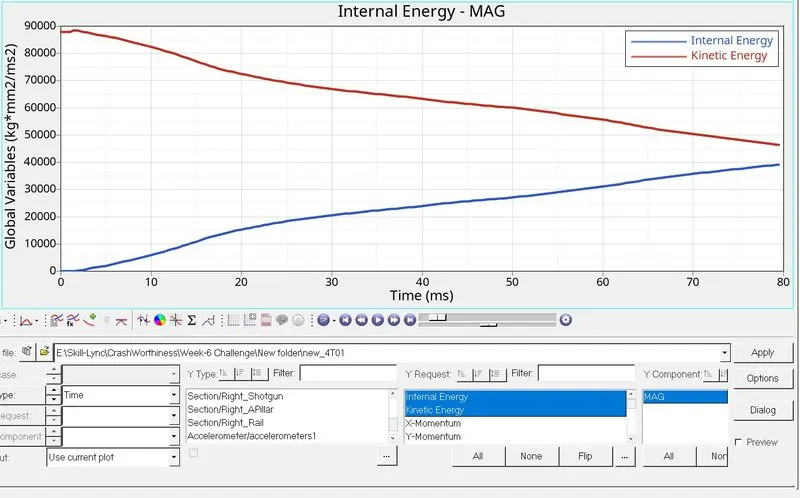

INTERNAL ENERGY AND KINETIC ENERGY:

Internal energy is nothing but distortion energy. When the Kinetic Energy is Decreases, the Energy absorbed by the system increases i.e we all know that Energy neither be created nor be destroyed. Once the vehicle is moving with a certain velocity (Say 15.646mm/ms for the Model), the initial kinetic Energy will be High (Refer to Above Graph). Once the car is hit by the rigid wall, the vehicle starts deforming results in absorbing the Surrounding Energy and Stored it. Thus, internal Energy starts increasing. At the Maximum deformation, the Velocity will become Zero and thus the kinetic energy will also be dropping down to zero resulting there is no energy to absorb in the system. Thus, Internal Energy Remains Constant thereafter.

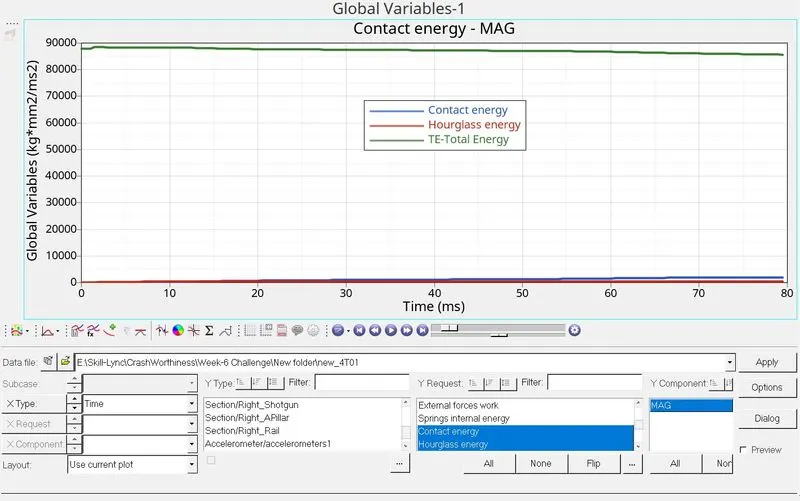

CONTACT ENERGY AND HOURGLASS ENERGY:

From the above graph, we can see that the Hourglass electricity is sort of negligible because we have used advanced incorporated detail formulation (QEPH).

preferably, all of KE has to be transformed into IE and the entire strength must continue to be consistent, however in our case, because we've Hourglass strength error, our total power is reducing. we will rectify this hourglass electricity using further decreasing the Timestep of the simulation and giving the ideal homes anyplace we will. Our Requirement from a great Simulation is that we have minimum contact power and maximum strength absorption/Deformation inside the elements. we can test the strength mistakes inside the Engine output record, which has maxed out at -1.four% to zero.8% which is within the limits. Our Mass blunders are likewise very minimal which means that that the solver did no longer want to feature mass onto the nodes to reduce the timestep to in addition keep away from the Hourglass blunders.

touch electricity is not anything but the contrary power generated from the device to keep away from Penetration. To avoid penetration, we've got determined the distance min value be zero. five. whilst the auto is shifting with a pace of 35mph and hits the inflexible wall, it starts deformation on the bumper segment and therefore the penetration of the factors happens, and for that reason, the opposite response force is also exerted to keep away from the penetration. hence the touch electricity increasing steadily from 0.

SECTIONAL FORCES:

1. On RAILS:

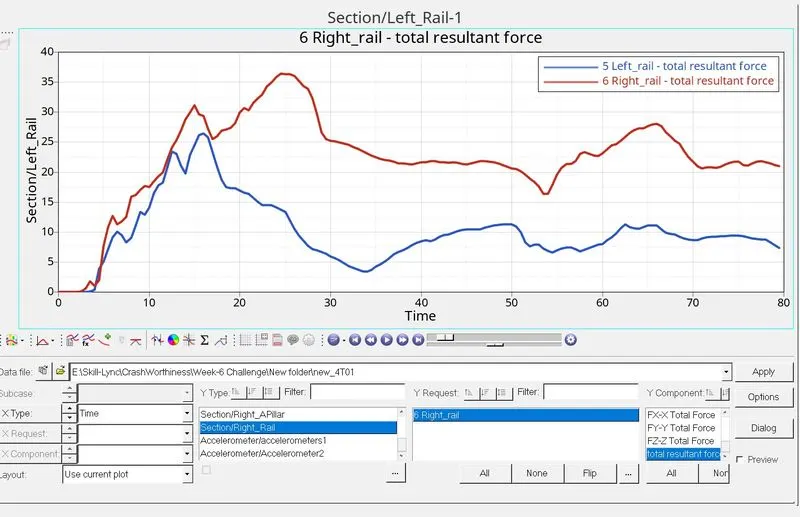

The maximum cross-sectional force at Left Rail is 26 kN/mm at t= 16ms whereas the maximum cross-sectional force at the Right rail is 36 kN/mm at t=25 ms. The force acting on the rail is the force transmitted by the bumper during the crash. The force transmitted by the bumper to the rail can be unequal due to which the force received at the LH rail may differ from the RH rail. During a crash, the rail will get into direct contact with the rigid wall which will increase the compressive force and then deform. Therefore, the compressive force drops down.

2. On Shotguns:

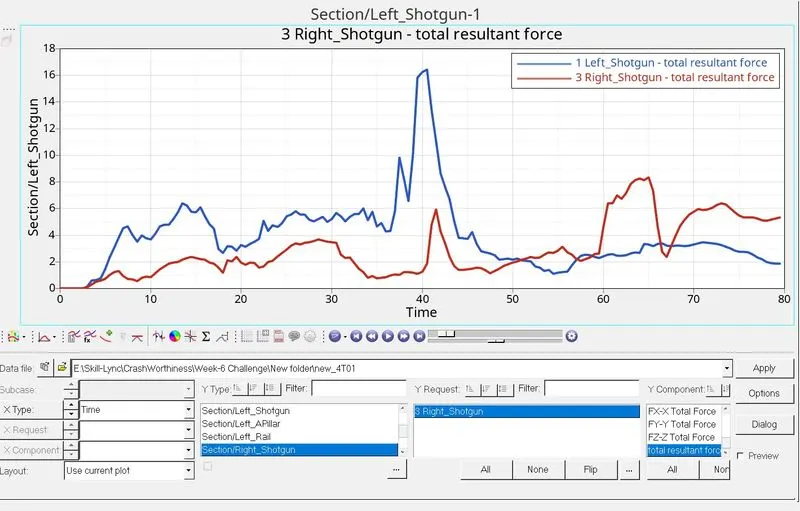

The maximum cross-sectional pressure at Left Shotgun is sixteen kN/mm at t=forty one ms while the most cross-sectional force at the right Shotgun is 8 kN/mm at t=65ms. The pressure that passed off at the shotgun is the force transmitted from the rail phase. The pressure propagation isn't identical at each of the rails and as a result, the amount of deformation at both the shotgun sections are different. once the Compressive force reaches its maximum cost it starts offevolved to deform unexpectedly. consequently, the Compressive force is decreasing as referred from the graph. as the crash show up continuously, the shotgun will come into contact with the rigid wall as located in Animation, the inflexible wall additionally exerts the force at once onto the shotguns, and subsequently, there may be a boom in the Sectional force as visible within the graph.

3. On A-Pillars:

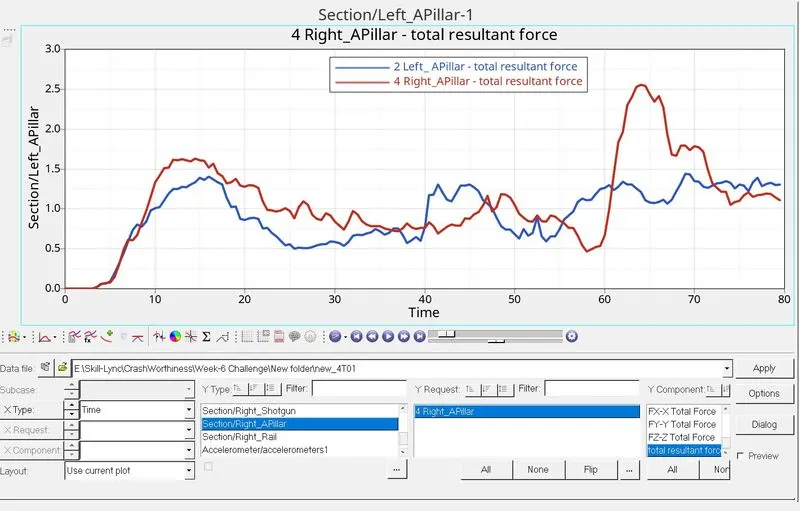

The most go-sectional force at Left A-Pillar is 1.5 kN/mm at t= 69 ms whereas the maximum move-sectional pressure at right A-Pillar is two. five kN/mm at t=sixty four ms whilst the auto hits the inflexible wall, there could be some amount of pressure getting into the A-pillar at each side. these forces coming to the A-pillar are not anything however the force transmitted from the rail and the shotgun. The force flowing into the LH and RH of the A-pillars will now not be the same and for this reason, the deformation of the factors will differ accordingly. during a frontal crash, the sectional force accomplishing the A-pillars is coming in from the rails and shotgun, therefore the pressure at the A-pillars can be much less whilst compared to the front sections. whilst the compressive pressure among the wall and car is most, the rail and shotgun get in touch with the inflexible wall which causes the shotgun and rail to exert greater pressure. This force then propagates to the A-pillars and hence the force achieving the A-pillar increases again.

INTRUSION SPRINGS:

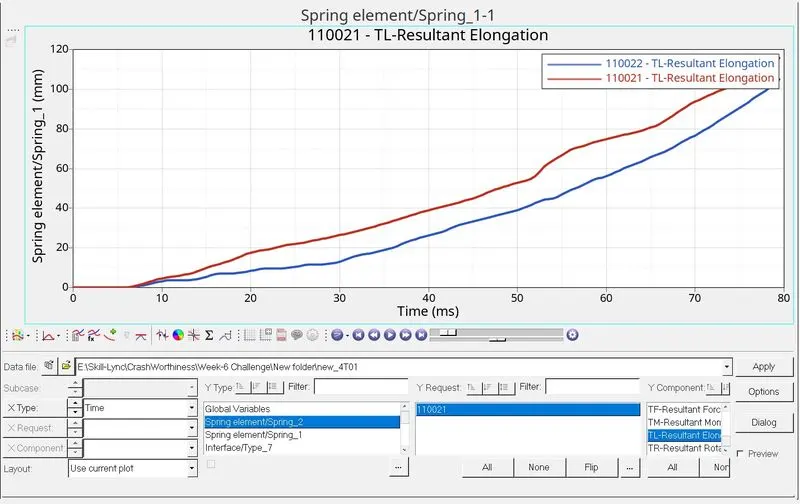

to check the Intrusion on the dash wall on the specifically given node, we've created the spring over the area. The intrusion at this specific node is calculated to check whether or not the crash will bring about the protection of the driving force due to the deformation that passed off on the front part of the vehicle. From the above graph, we will see that the most intrusion passed off inside the spring (Node 66695,121754) at some point of a crash is 102 mm and the most intrusion occurred within the spring (Node 66244,121868) for the duration of a crash is 112 mm. almost this elongation stated which quantity the foot pedal or the passenger's legs will move as soon as the crash is taking place. From the animation, we will notice that there is not plenty of deformation that occurred at this place and the elongation is also low. for this reason, we will finish that there are fewer accidents will take place to the Passenger/driving force.

ACCELEROMETER:

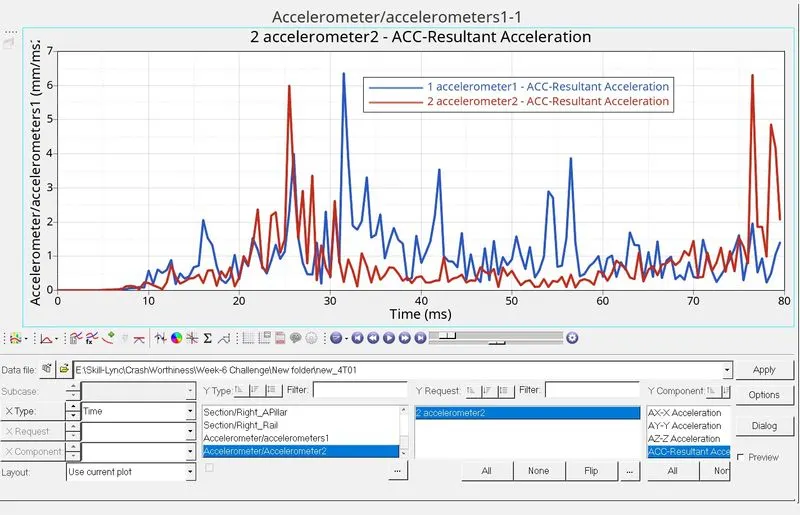

As we all recognize that an Acceleration is the charge of the exchange of pace. To measure the acceleration, we have placed the accelerometer close to the Rocker of B-Pillar on each facet. From the above graph, we will see that, to begin with, the acceleration is steady earlier than the automobile hitting the rigid wall. as soon as the auto hits the rigid wall with the initial velocity, The acceleration of the vehicle in the course of the crash isn't always constant across the shape. The front of the car slows down right now as it hits the rigid wall, whilst the rest of the shape decelerates at a slower rate as seen inside the graph. As visible from the graph there may be a sudden boom inside the acceleration, this is probably due to some vibration that occurs throughout the crash regarding the point in which the accelerometer is placed.

maximum acceleration at LH = 6.5 mm/ms2 at t=32 ms

maximum acceleration at RH = 6 mm/ms2 at t=25 ms

AXIAL FORCES ON RAIL OF BUMPER:

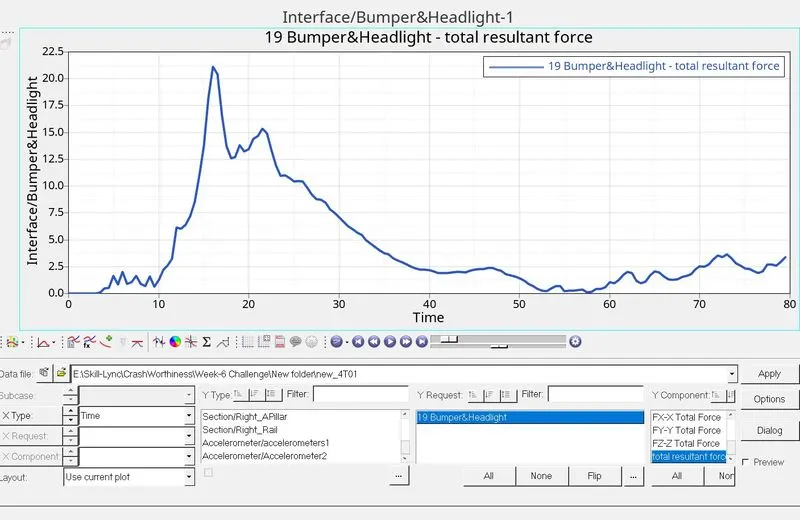

From the graph we will see that, to begin with, there may be no axial pressure is transmitted from the bumper to the Rail. once the automobile hits the rigid wall, first the Bumper will start deforming transmitting the stress strength to the rail sections. From the graph, we located that the maximum axial force obtained from the bumper to the rail is 21 KN at 16ms.

studying final results

1. learned how to set up a frontal crash test.
2. learned how the inflexible wall interface works and can result in incompatible Kinematic conditions.
3. found out how Sectional forces are generated.
4. learned how the distribution of forces a few of the additives at some point of a frontal crash.
5. found out how a few additives are designed to deform in this type of manner to make certain the safety of the passengers inside the cabin.
6. found out how to check for electricity, mass, and momentum balance.
7. learned how to Debugging mistakes to get the proper effects.

conclusion:

The given model became simulated for the frontal crash using Radios and the results acquired have been proven. The graphical outcomes have been plotted for all the check cases. From the simulation, it could be determined that there has been minimum deformation in the cabin, and also minimum intrusion was determined within the motive force’s seat region.
