Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

Drawing 1

Types of orientation

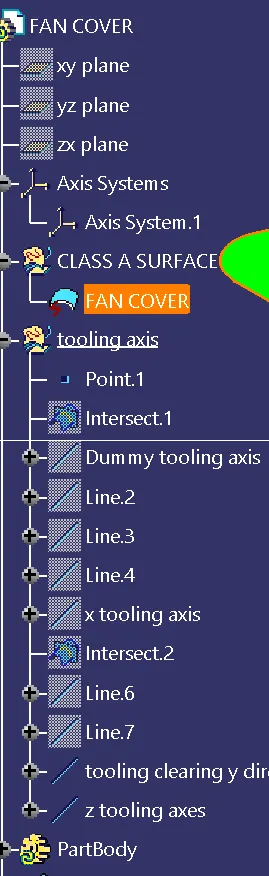

Tree structure

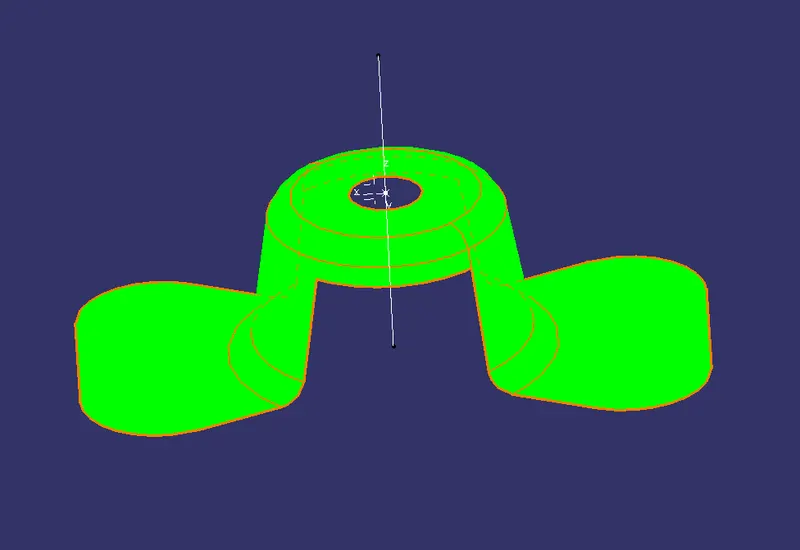

Report : First we create the main axis system then by using the Intersection command we intersect Axis and the part to form a line along the part Then by using Line command and using point to point option we click on the points to draw a line .Then by selecting the lines we bisect each other by creating a point then a line is formed along the X direction .Siilarly we draw Y and Z directions along the selected lines to bisect each other

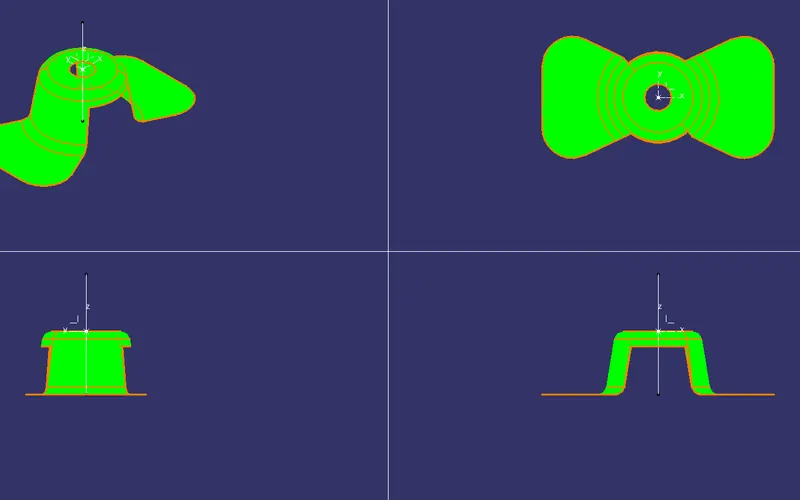

Now we coincide axis system in the part by using feature draft analysis and then use the lock mode on the draft tool then the part is ready for the drafting
