Assignment 4-RADIOSS Material Laws Challenge
Assignment 4
Objective:
Compare 7 cases as discussed in the slides,
Slide 1:
Slide 2:
Slide 3:
Compare 7 cases as discussed in last 3 slides, in a tabulated format on the basis of:
1. Total number of cycles, Energy error, mass error and simulation time.
2. Notice the animation of all 5 and describe the animations in brief on the
basis of whether the elements are being deleted or cracked.
3. Plot energies and notice any difference.
4. Based on all the results, which case would represent the on-field
scenario.
5. Prepare a ppt/docx and list down case by case result and your conclusion
as to why the failure happened.
Note:
- Refer video titled "Materials 7" for further information
- The 7th case is about LAW 36 and it is explained in the video.
DESCRIPTION:
4. Based on all the results, which case would represent the on-field scenario:
CASE 6 IS SHOW THE ON FIELD SCENARIO AS WE CAN SEE IN THE PICS BELOW ATTACH:
CASE 6:
CASE 7:
5. DOCX FILE ATTACHED IN THIS FOR MORE EXPLAINATION.
CONCULSION:
First five and seventh case if something is making contact then their should be some change of energy so that should be shown somewhere and in these cases when ever i am checking hourglass and contact energy it is almost zero that can be shown in all cases that were discussed above but in case 6 we can cleraly see the difference between the contact energy/hourglass..

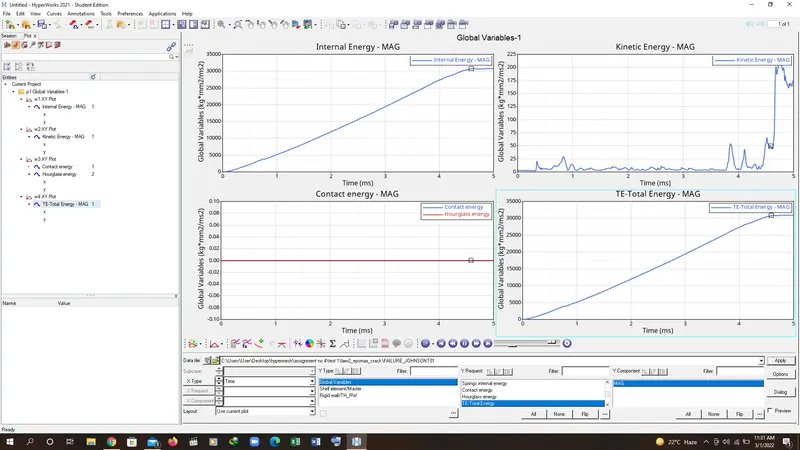

case 1

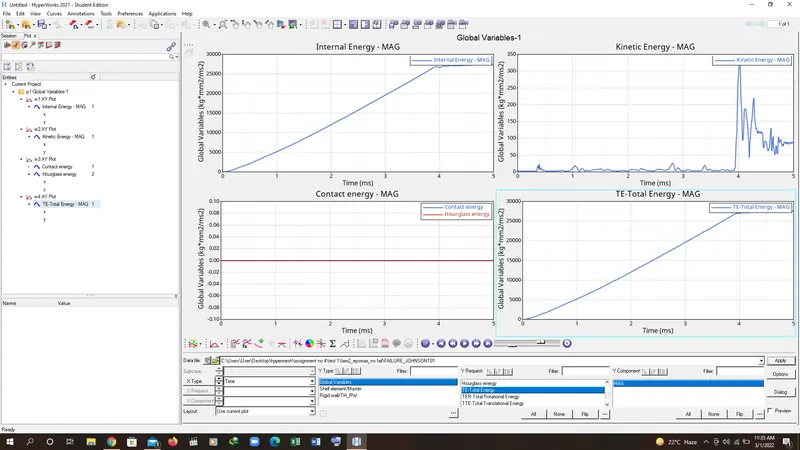

case 2

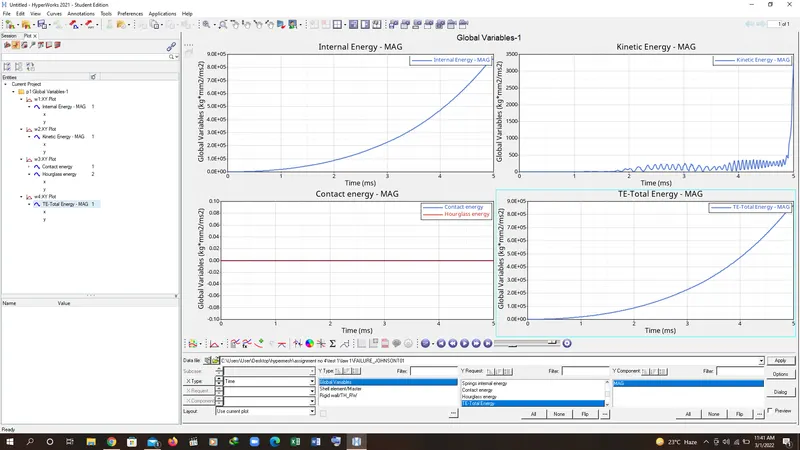

case 3

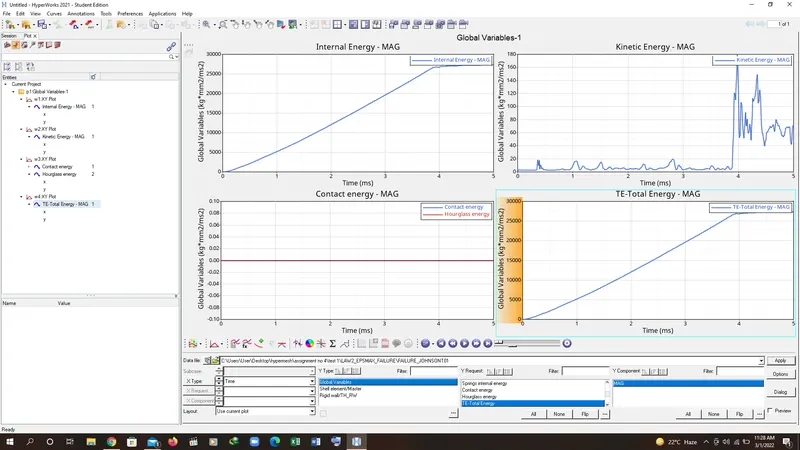

case 4

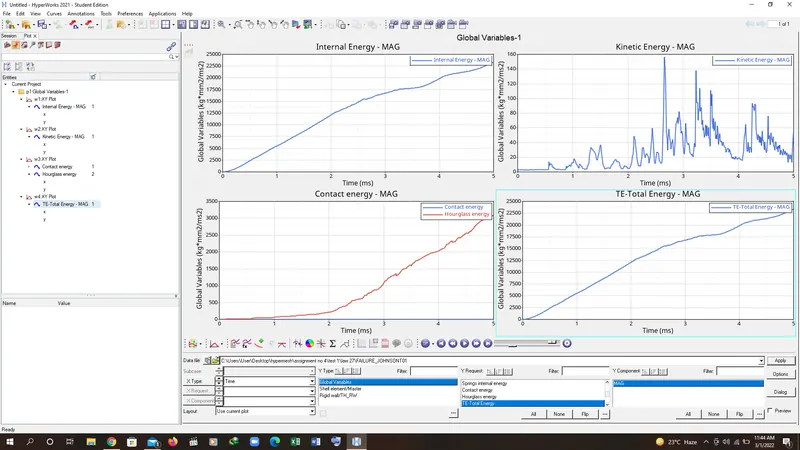

case 5

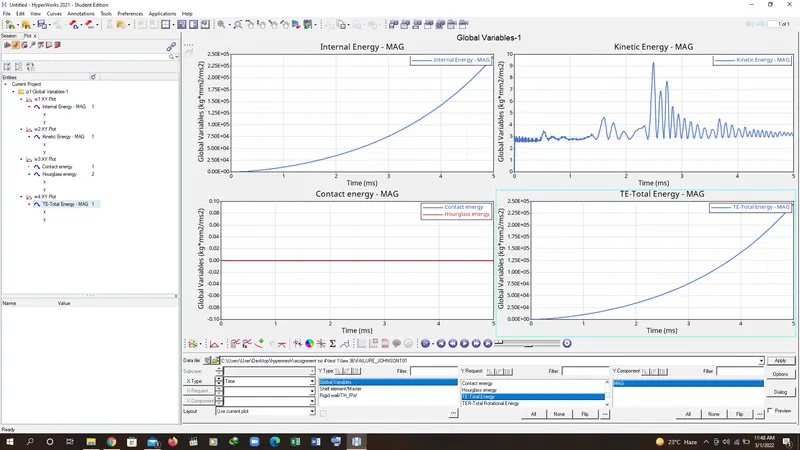

CASE 6:

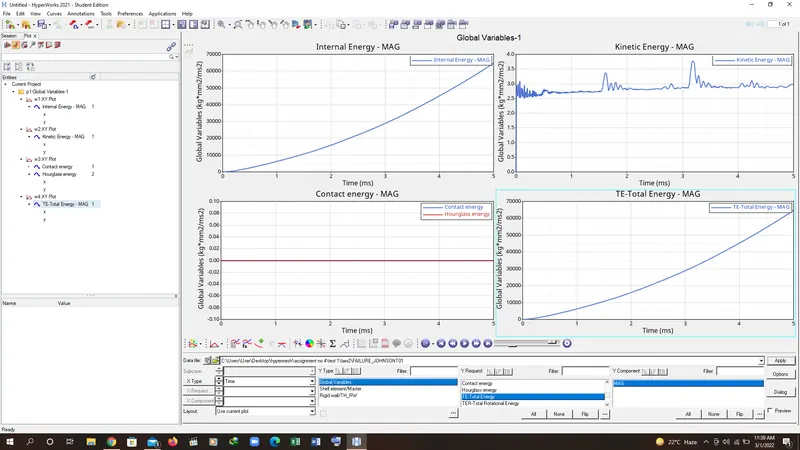

CASE 7:
