Week 9-Creation of 1D Connectors Challenge

OBJECTIVE:

For this challenge, you will have to mesh the given geometry. Provided below are the quality parameters that you have to follow.

Target Element size - 5 Units

Create connector and Attach the various parts of the given model

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

2. Left_Rail_2 & Front_truss_1:- Quad elements

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 3 Layers and 5 mm Diameter

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

9. Rest all the component left Join them with suitable connectors

PROCEDURE AD DESCRIPTION :

1. Open the hyperworks 2020.

2. Open the file fream assembly.

3. Go to automesh in 2d tool bar with element size 5mm.

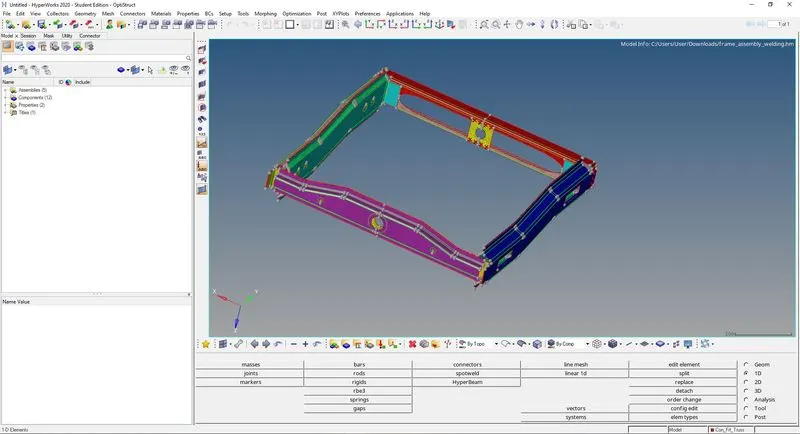

4. Go to 1d tool pallet in the tool bar go to 1d connectors.

Create connector and Attach the various parts of the given model

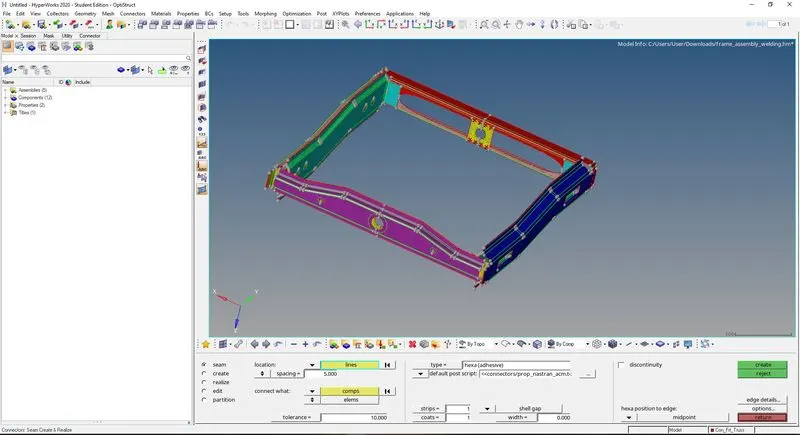

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

2. Left_Rail_2 & Front_truss_1:- Quad elements

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 3 Layers and 5 mm Diameter

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

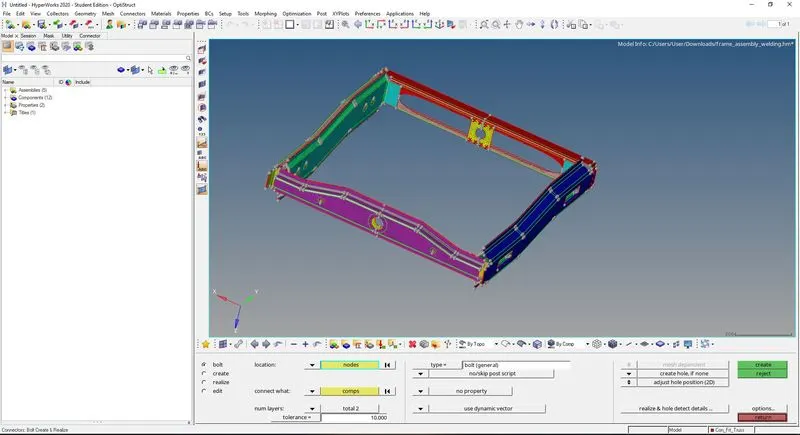

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

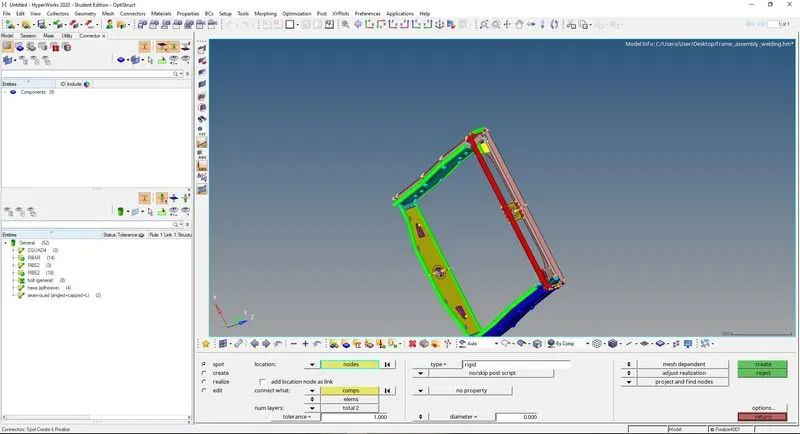

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

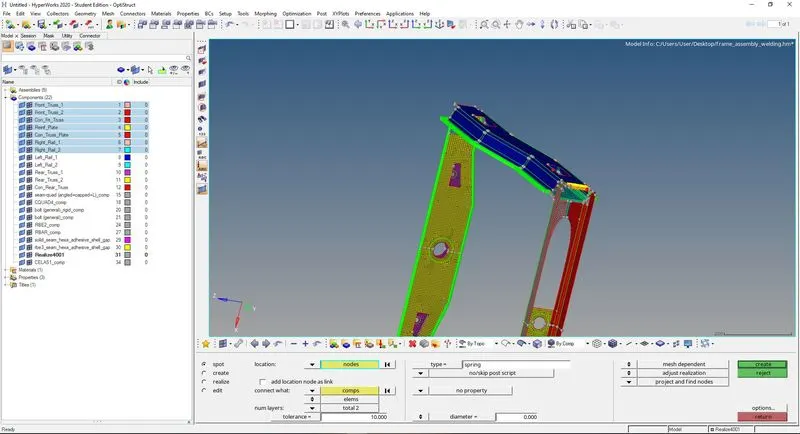

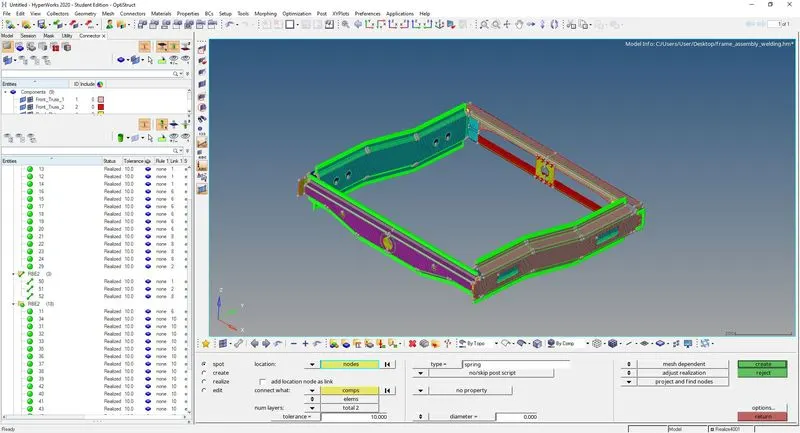

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

9. Rest all the component left Join them with suitable connectors

5. Kindly refer to the pictures to know and place the connectors according to respective objective.

6. After apply the respective connectors.

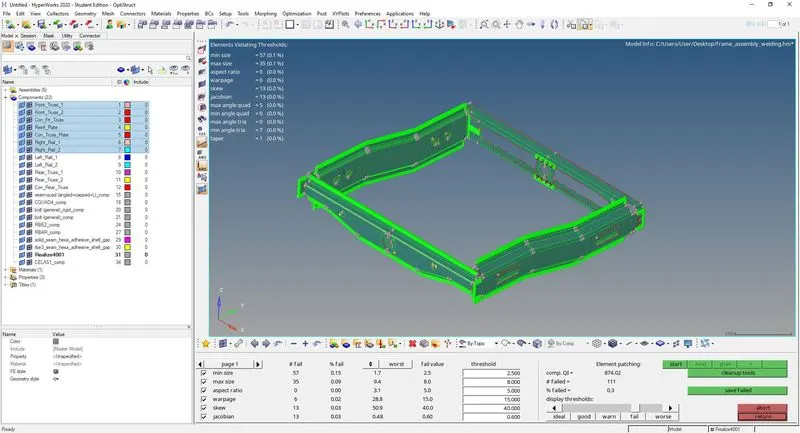

7. Go to the quality parameters to check the quality according to the asked in ojective.

RESULT:

Ship work like this
