Advanced Sheet Metal Design Using NX Cad -Metal bracket-II
AIM :
To perform the given Sheet Metal design using NX CAD
OBJECTIVE :
- To design a Metal Bracket
ABOUT :
Siemens NX :
Siemens NX software is a flexible and powerful integrated solution that helps you deliver better products faster and more efficiently.
NX delivers the next generation of design, simulation, and manufacturing solutions that enable companies to realize the value of the digital twin.
Sheet Metal :
Sheet metal is metal formed by an industrial process into thin, flat pieces. Sheet metal is one of the fundamental forms used in metalworking, and it can be cut and bent into a variety of shapes. Countless everyday objects are fabricated from sheet metal. Thicknesses can vary significantly; extremely thin sheets are considered foil or leaf, and pieces thicker than 6 mm (0.25 in) are considered plate steel or "structural steel".
Sheet metal is used in automobile and truck (lorry) bodies, airplane fuselages and wings, medical tables, roofs for buildings (architecture), and many other applications. Sheet metal of iron and other materials with high magnetic permeability, also known as laminated steel cores, has applications in transformers and electric machines.
Historically, an important use of sheet metal was in plate armor worn by cavalry, and sheet metal continues to have many decorative uses, including in horse tack.
Sheet metal is available in flat pieces or coiled strips. The coils are formed by running a continuous sheet of metal through a roll slitter.

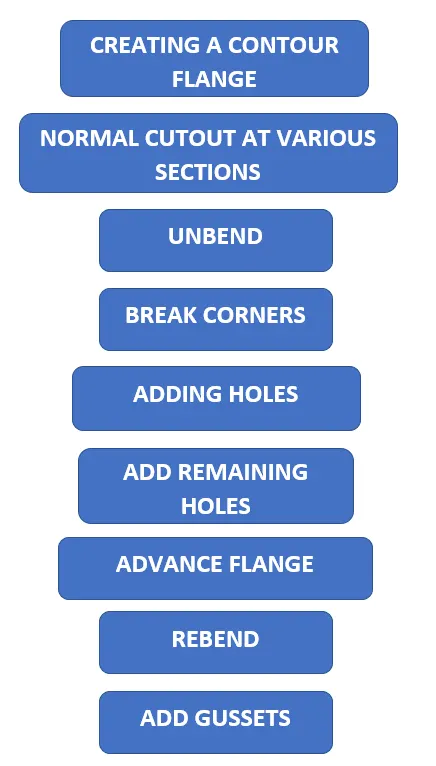

DESIGN METHODOLOGY :

DESCRIPTION :
Sketch : The 2D representation of the given profiles are obtained using sketch.
Tab : This feature is used to create a base with some thickness.
Normal cutout : It is used to cut the object with a given profile normally.
Breaking corners : It is used to make rounded edges instead of flat ones.
Unbend : It is used to unbend the entire sheet metal into a flat surface.
Holes : It is used to make holes of necessary types and dimension on the sheet metal.
Advance flange : This feature is used to create aan extended part using bend angles and reference face.
Gussets : It creates a stiffening attachment at curved faces.
MODEL :

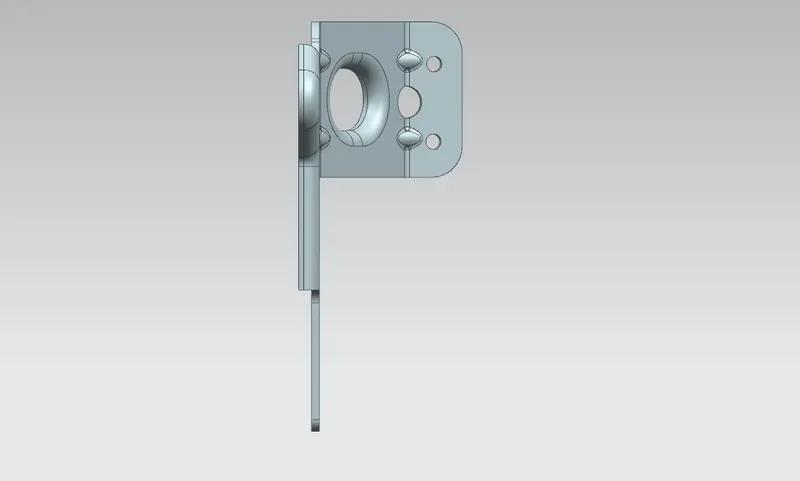

Front view

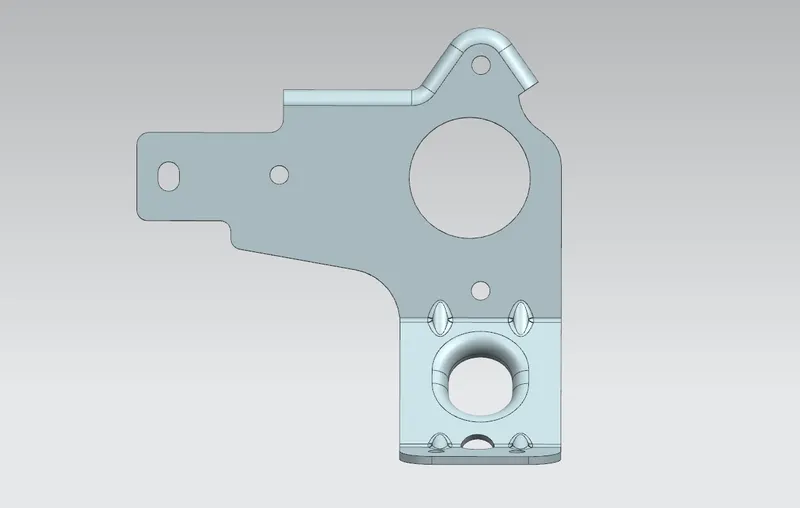

Top view

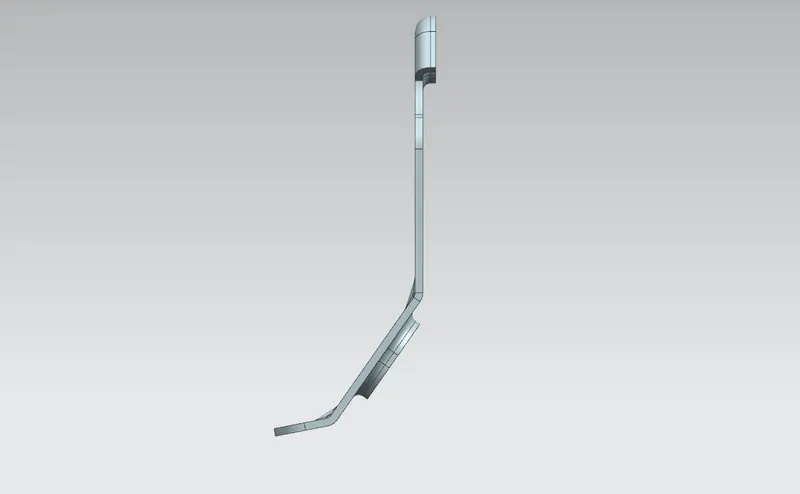

Side view

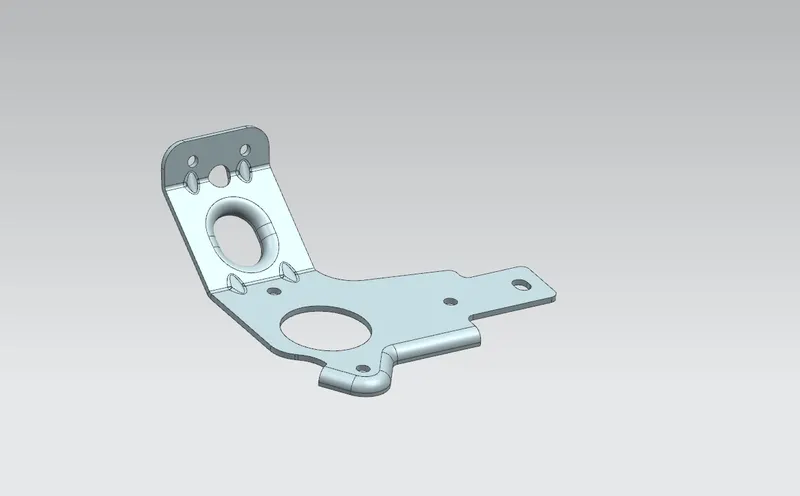

Isometric view

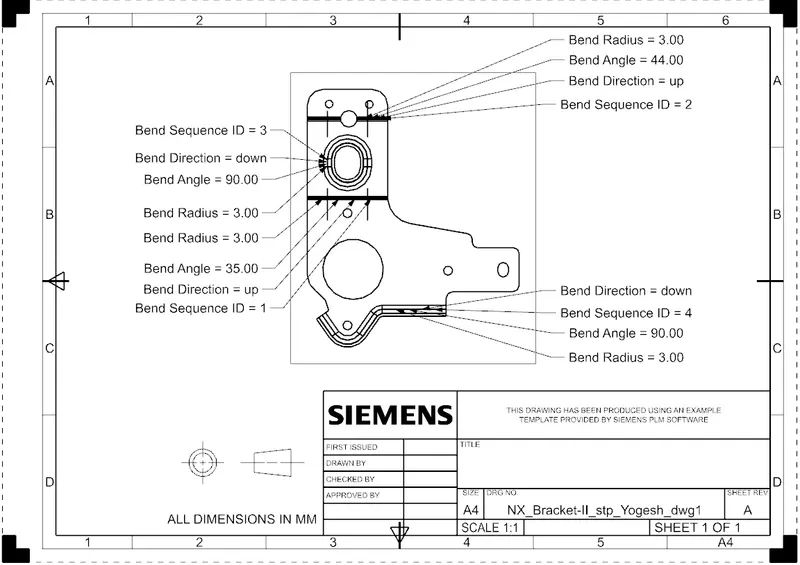

DRAFTING :

CONCLUSION :
- The model was designed as per the given dimensions.
- Images were attached representing various views.
- The model file was attached.
