Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

Objective: To design a Bracket using Siemens NX Sheet metal application.

Introduction:-

1. SIEMENS NX:- NX formerly known as "unigraphics", is an advanced high-end CAD/CAM/CAE, which has been

owned since 2007 by Siemens PLM Software.

2. SHEET METAL DESIGN:- NX Sheet Metal Design provides the design professional with a complete set of tools to

efficiently create and manage sheet metal parts based on the knowledge of material properties and

manufacturing processes. NX Sheet Metal Design tools incorporate material and bending information, enabling

the model to represent both the formed component and flattened blank shapes.

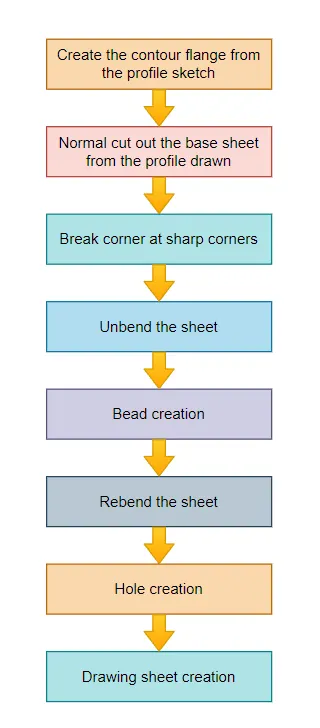

• Open new sheet metal part in NX cad
• Create contour flange using sketch with given parameters
• Cut the body using normal using given dimensions
• Give some break corners with required dimensions
• Unbend the model and create bead with using line sketch
• Create some holes as per requirements
• Rebend the model

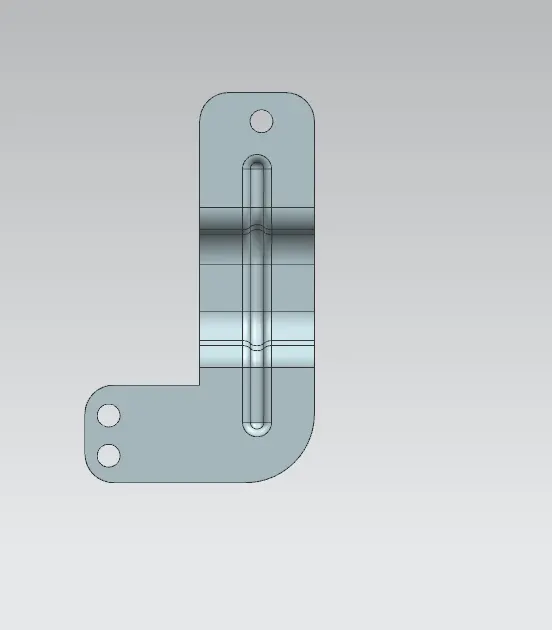

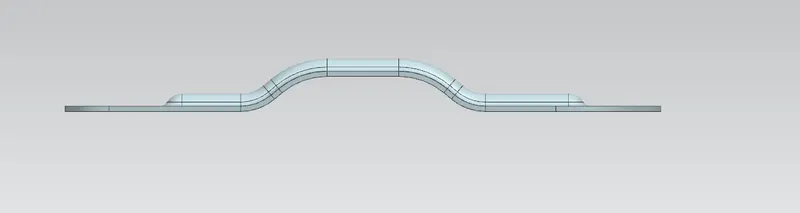

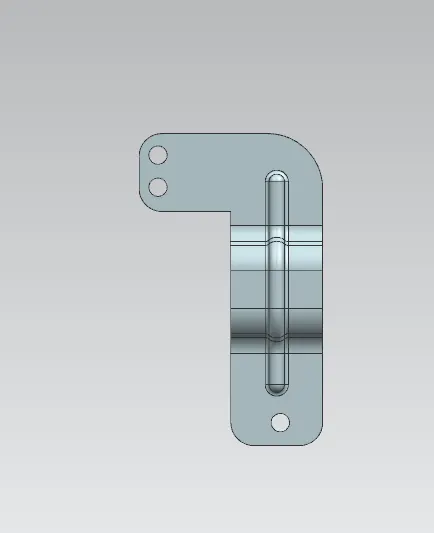

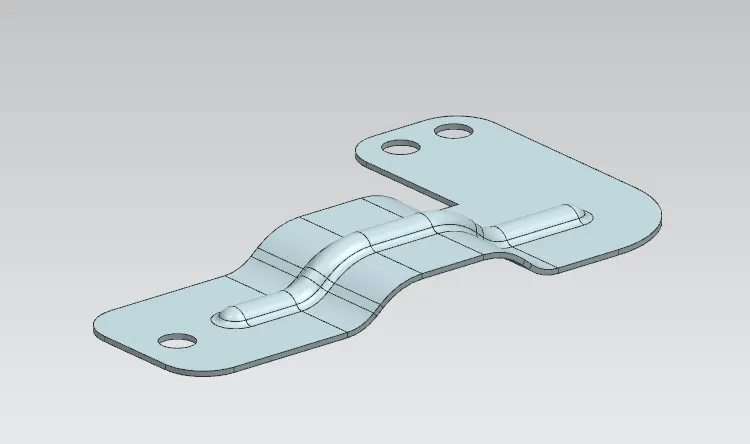

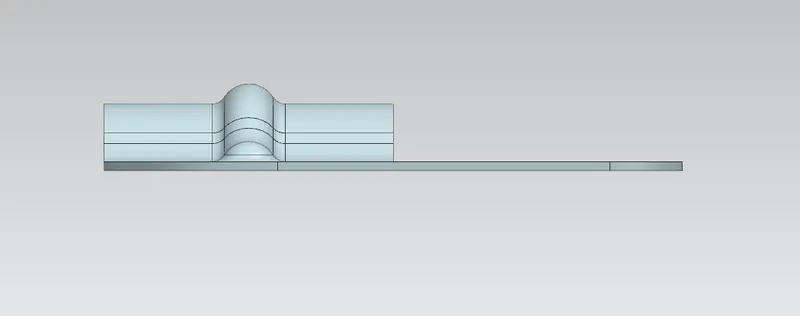

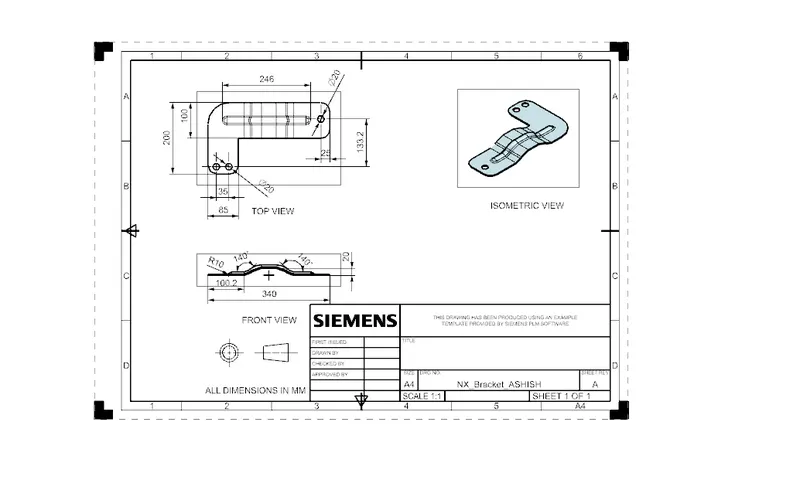

• If required create the drawing sheet using draft tool for understanding to customer
• Hence the model is ready

Conclusion :

Bracket is created is using advanced sheet metal tools in NX CAD.
