Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

Advanced Sheet Metal Design Using NX Cad Challenge-6-Bracket

Objective- To design a bracket using Siemens NX sheet metal application.

Introduction-

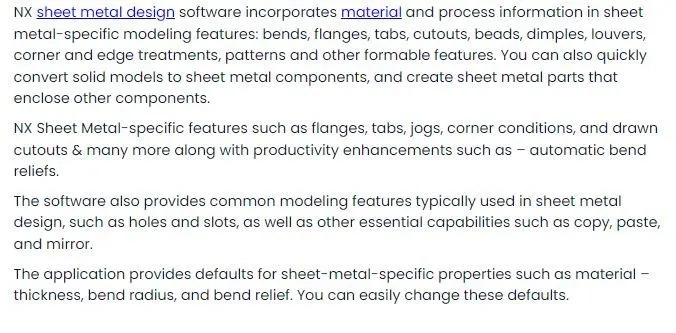

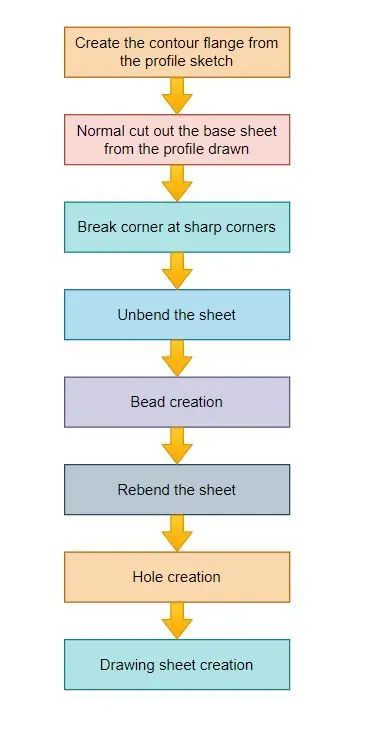

Design methodology-

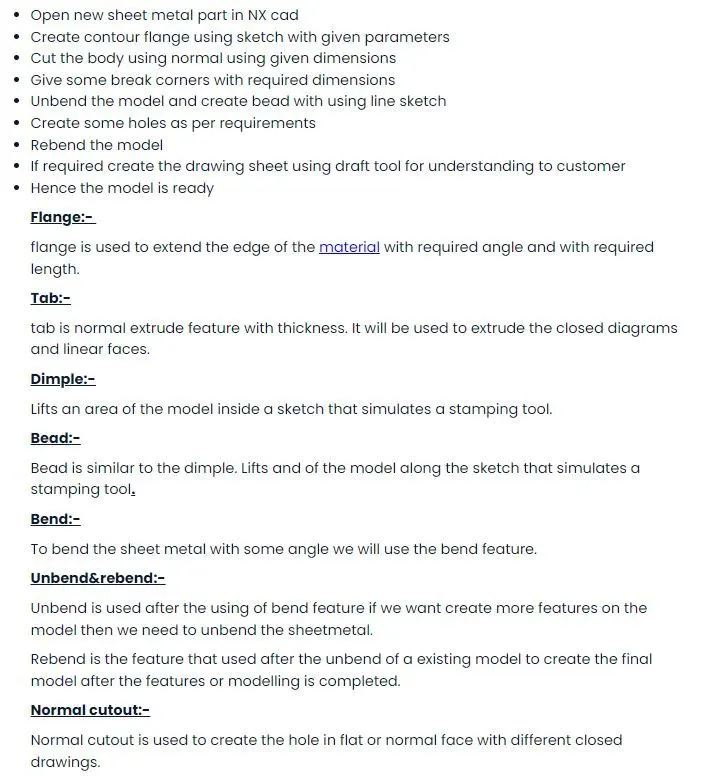

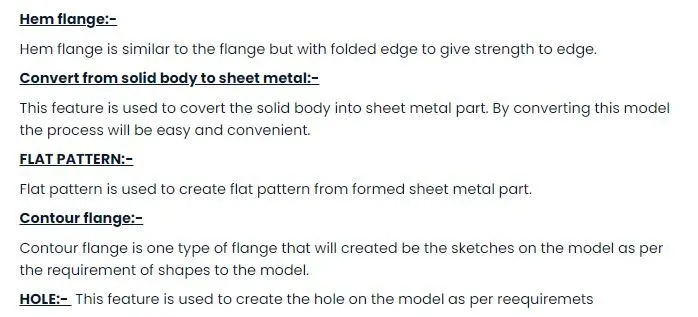

Description (Tools/ Features used while designing)-

Different Views-

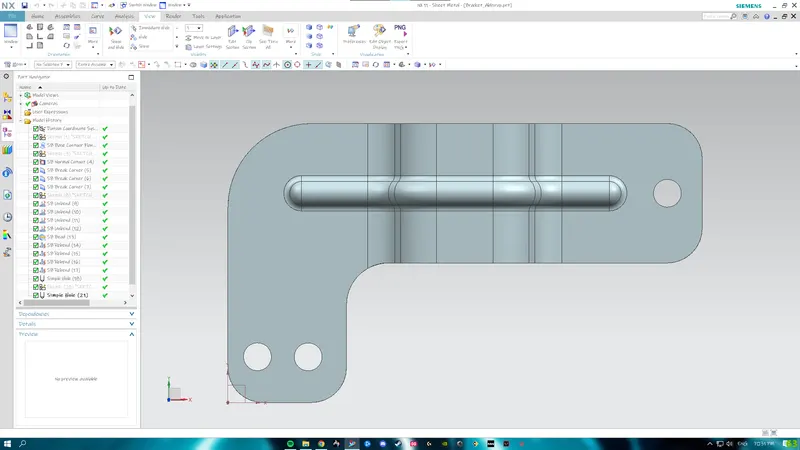

Front View-

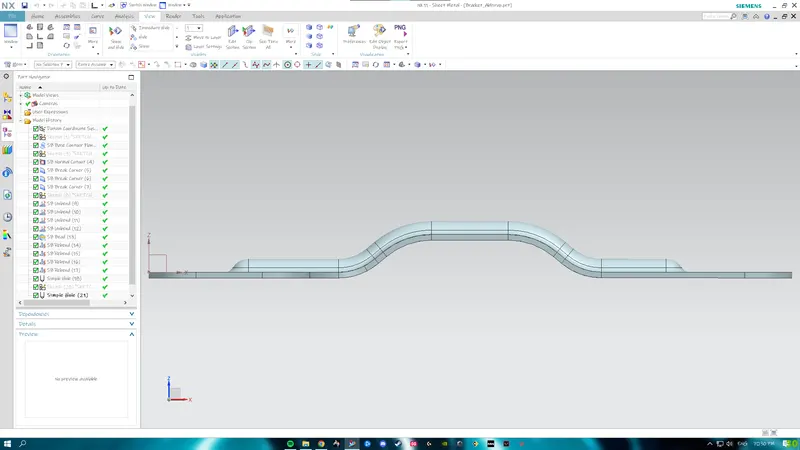

side view

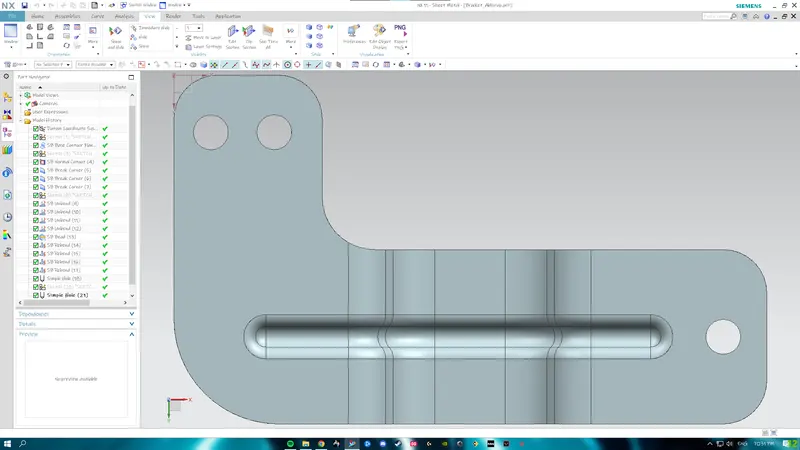

top view

bottom view

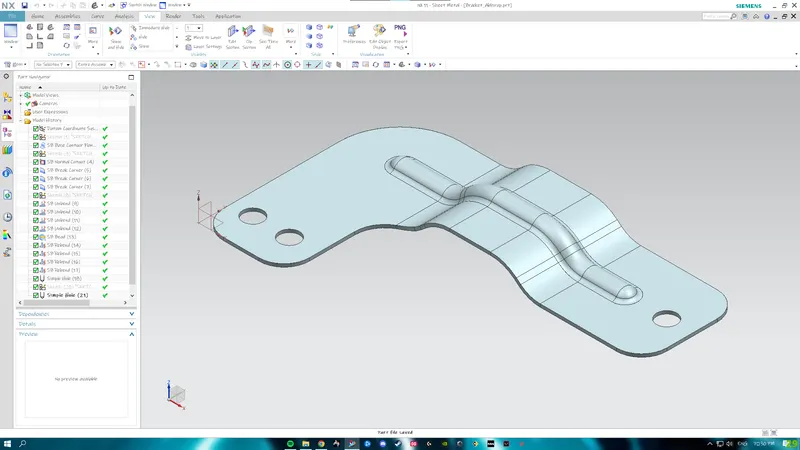

isometric view
