Challenge

Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

SHEET METAL BRACKET

OBJECTIVE

To design a sheet metal Bracket and carryout drafting using Siemens NX.

INTRODUCTION

NX, formerly known as “unigraphics”, is an advanced high-end CAD/CAM/CAE, which has been owned since 2007 by Siemens PLM Software.
Sheet Metal Fabrication is the process of forming parts from a metal sheet by punching, cutting, stamping, and bending.
The thickness of sheet metal starts from 5 mmand goes up to 6 mm. Anything above that is a metal plate. The thin sheet metal is easy to form, while still providing great strength.
Drafting is one of the application in NX Sheet Metal used to get 2-D drawings of all the different views of the designed model.

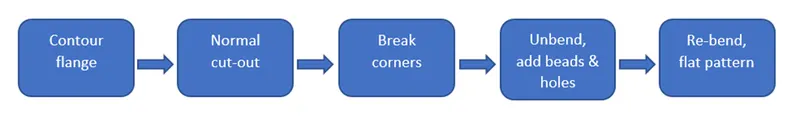

DESIGN METHODOLOGY

DESCRIPTION

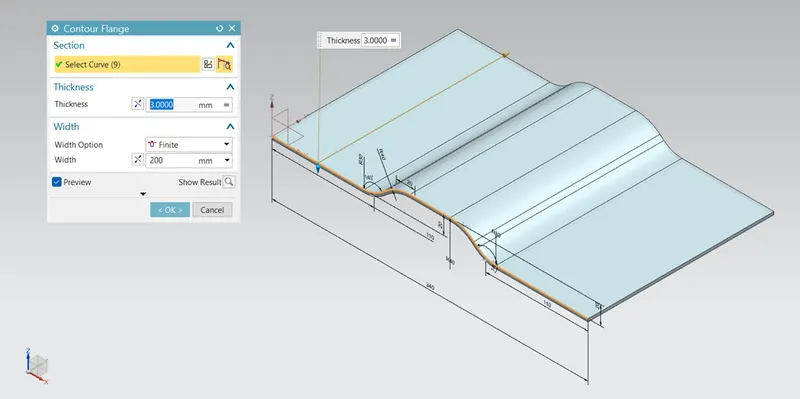

1. Contour Flange – It is used to extrude a sheet metal surface upto certain distance with a thickness, taking any sketch as reference.

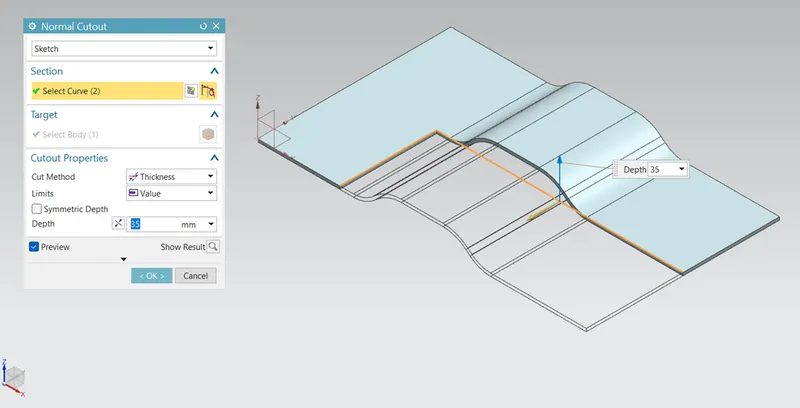

2. Normal Cutout – This feature is used to make a cutout on the sheet metal part giving appropriate thickness using a sketch.

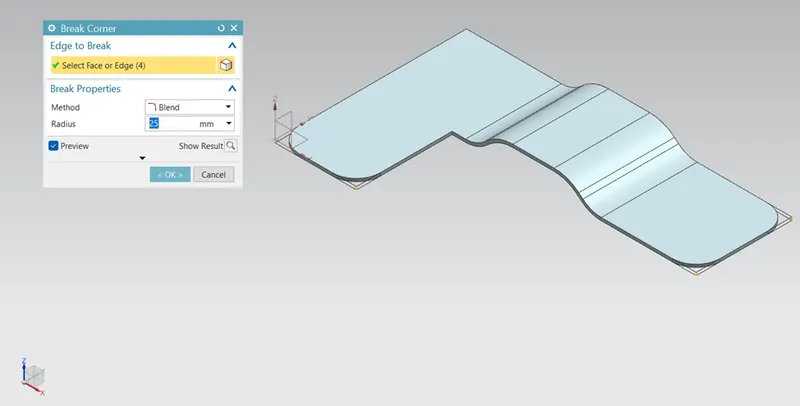

3. Break Corner - This feature is used to create a chamfer at the sharp edges in the sheet metal model.

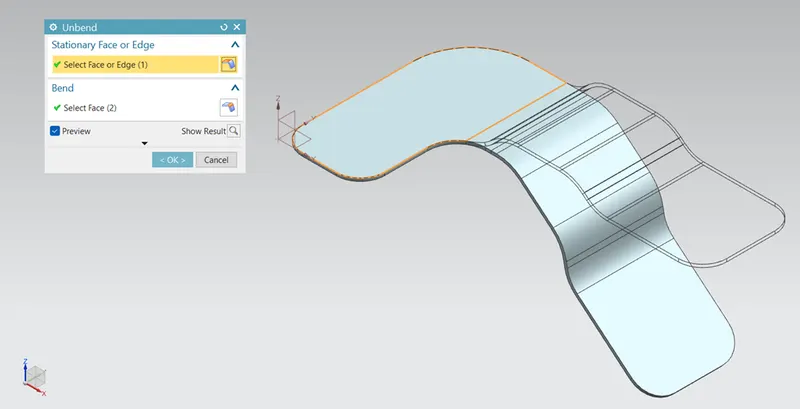

4. Unbend – It is used to unbend the previously bended regions.

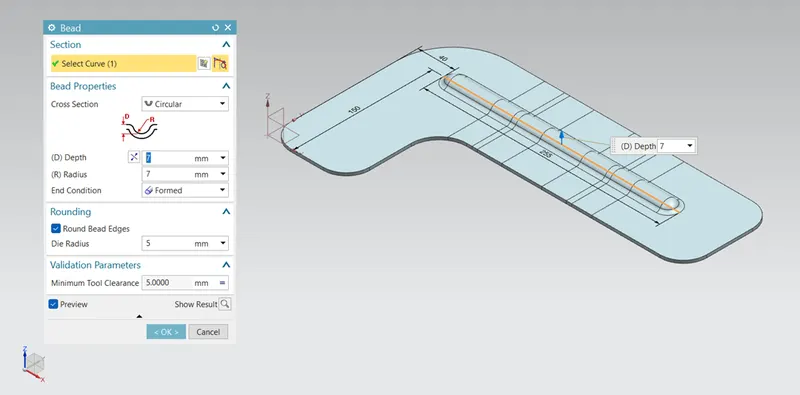

5. Bead - This feature is used to stamp into the sheet metal taking any sketch as a reference to increase the stiffness.

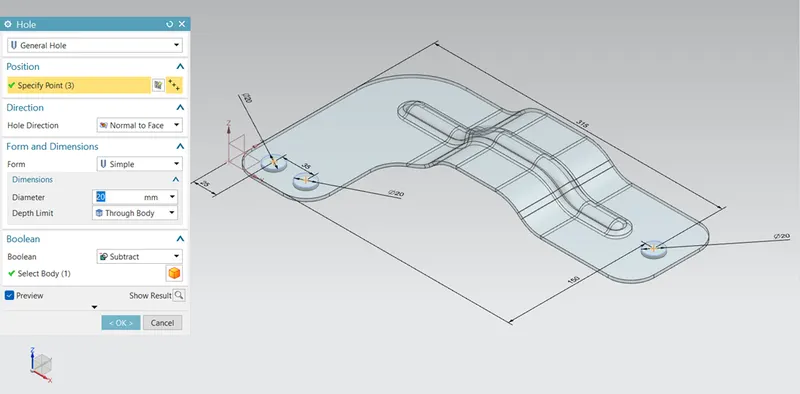

6. Hole - By drawing points on the sheet metal, taking those points as reference holes are created.

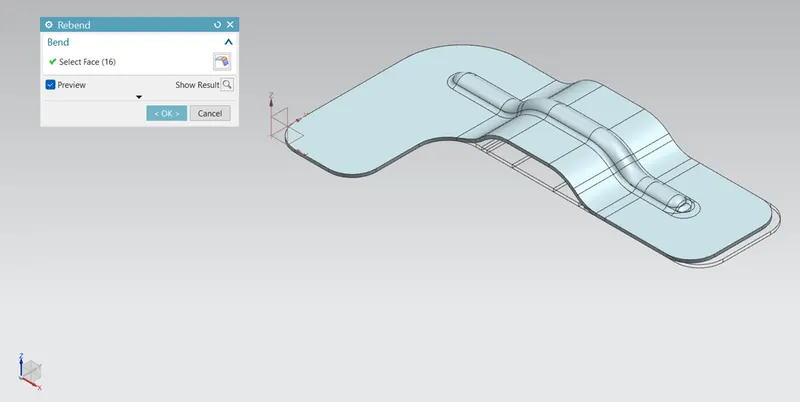

7. Rebend - It is used to rebend the previously unbended regions.

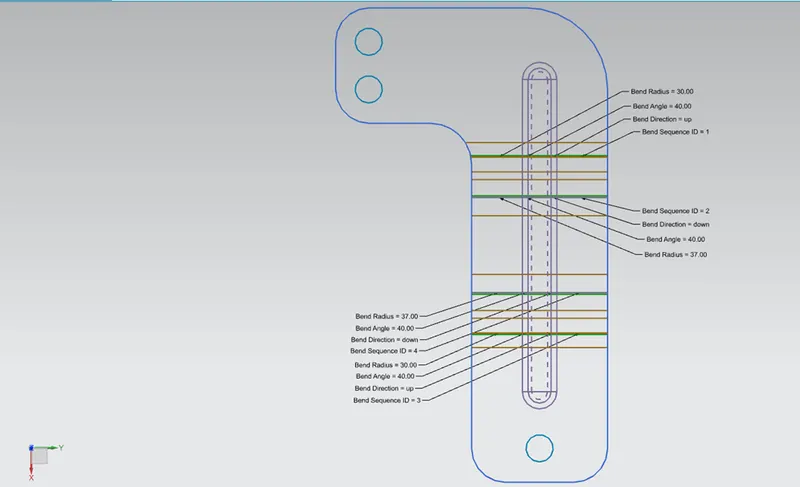

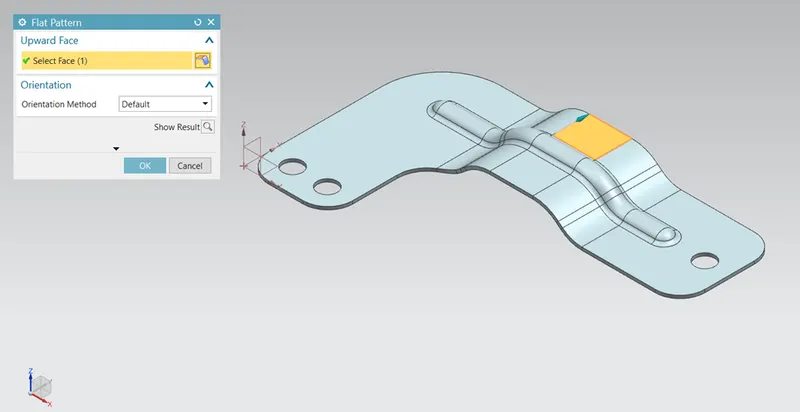

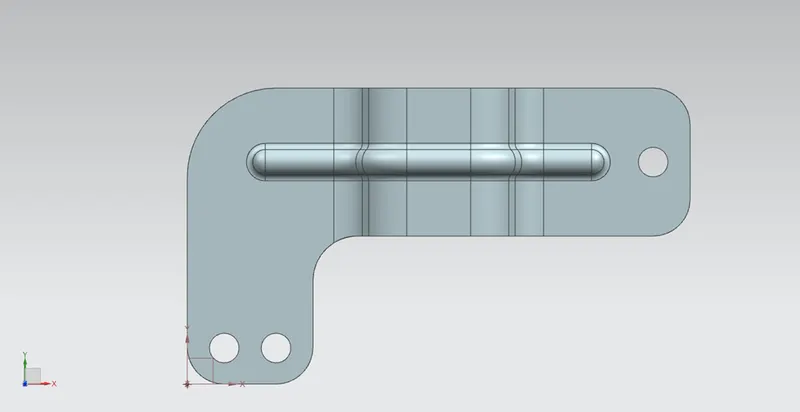

8. Flat pattern - This feature is used to obtain a 2D projection of the flat sheet metal.

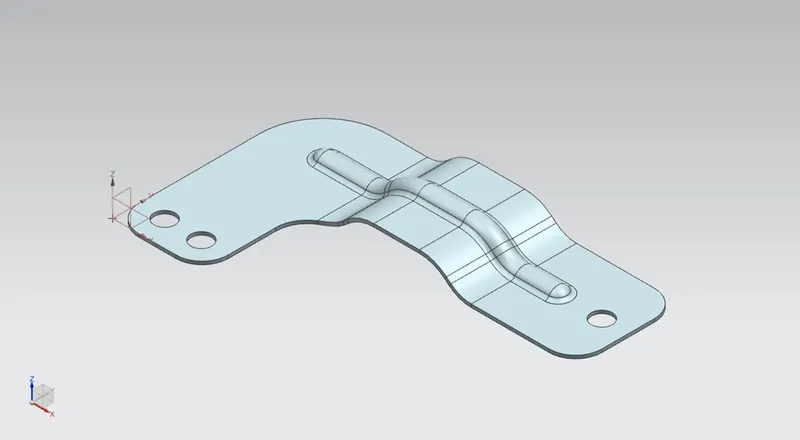

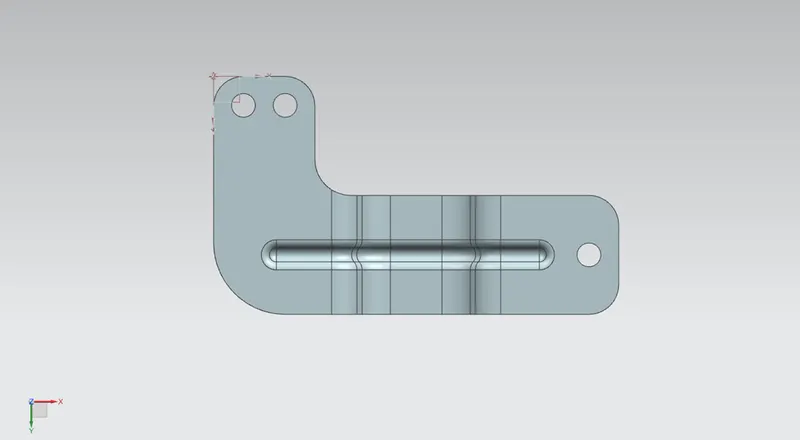

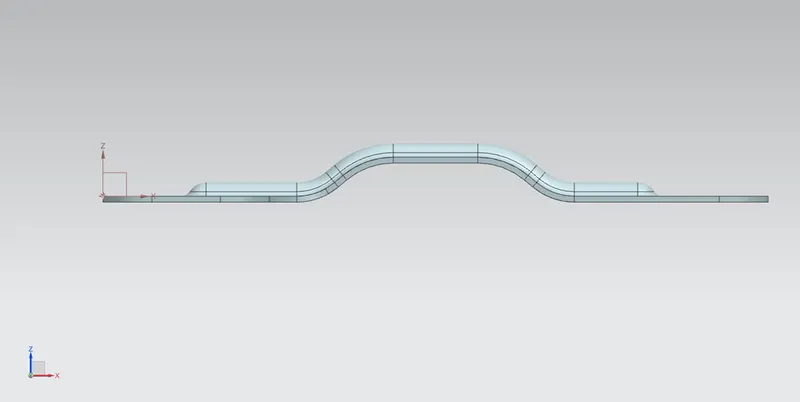

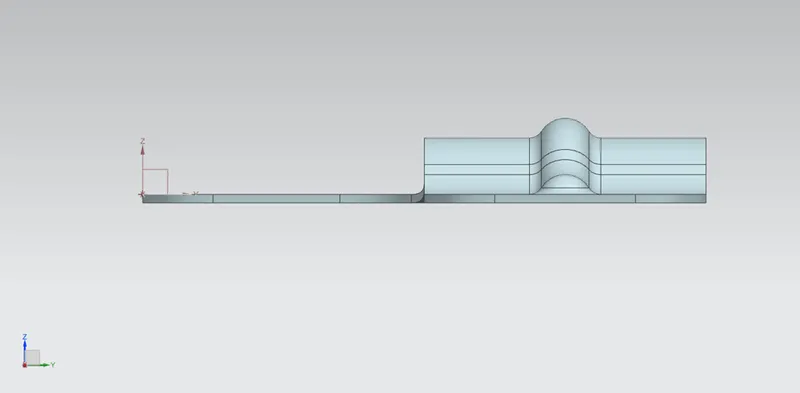

VIEWS OF THE MODEL

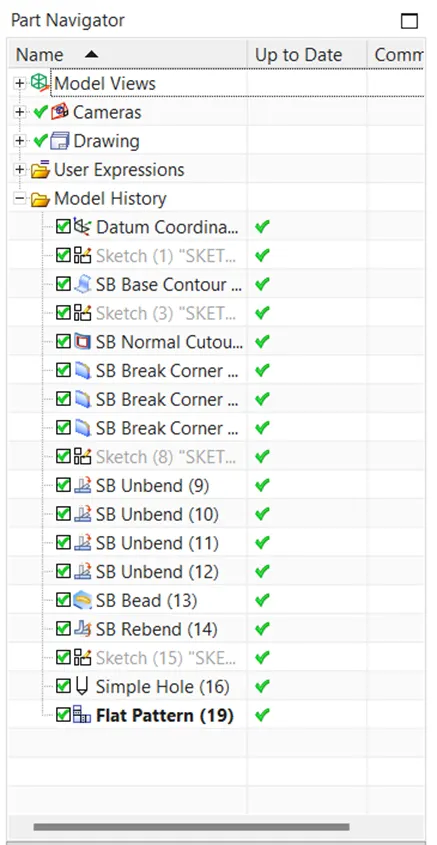

FEATURE TREE

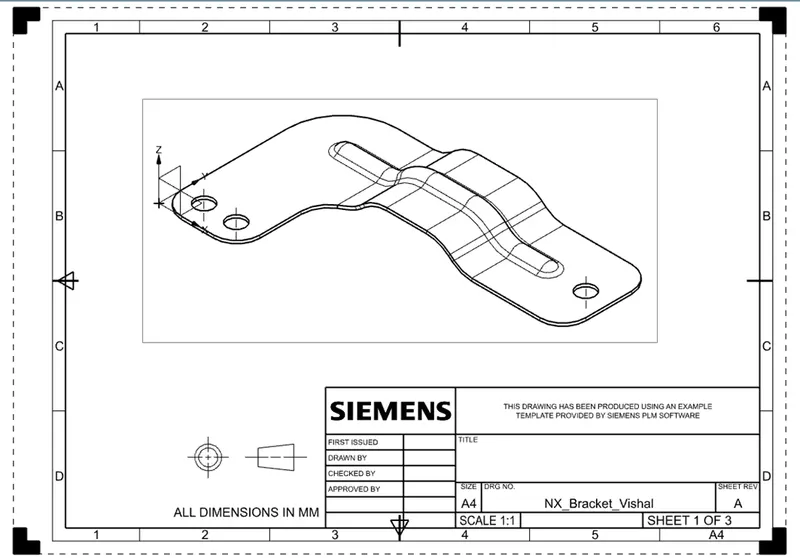

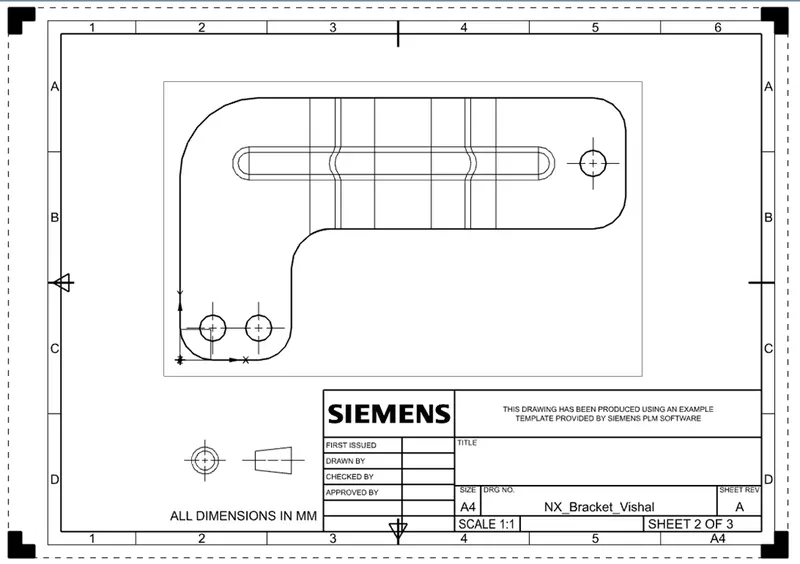

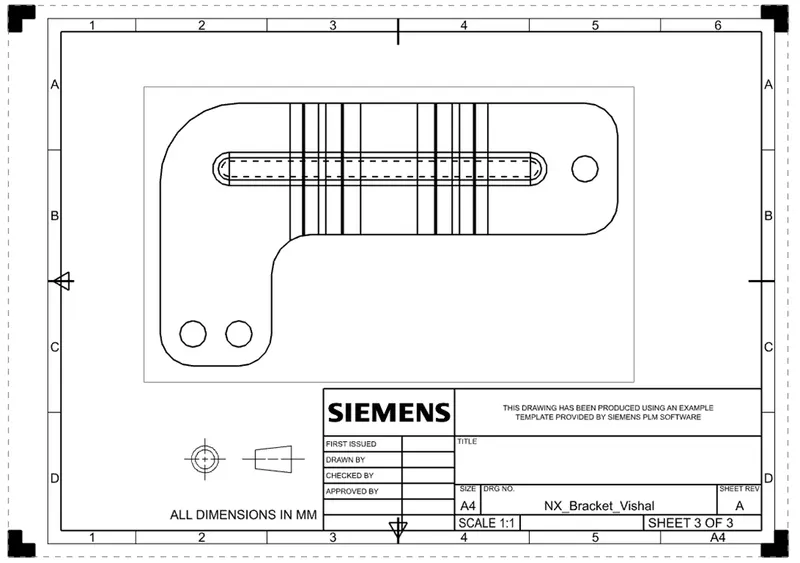

DRAWING SHEET

CONCLUSION

Sheet metal bracket in NX CAD is created by using the given sketches and procedures.
Flat pattern of the model is obtained and drafting is done.
