Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
DESIGN OF SHEET METAL BRACKET USING NX CAD
Objective :
The objective is to design a sheet metal Bracket using NX CAD
Introduction :
Sheet metal is metal formed by an industrial process into thin, flat pieces. Sheet metal is one of the fundamental forms used in metalworking, and it can be cut and bent into a variety of shapes. Countless everyday objects are fabricated from sheet metal.Thicknesses can vary significantly; extremely thin sheets are considered foil or leaf, and pieces thicker than 6 mm (0.25 in) are considered plate steel or structural steel.
Sheet metal is available in flat pieces or coiled strips.The coils are formed by running a continuous sheet of metal through a roll slitter.

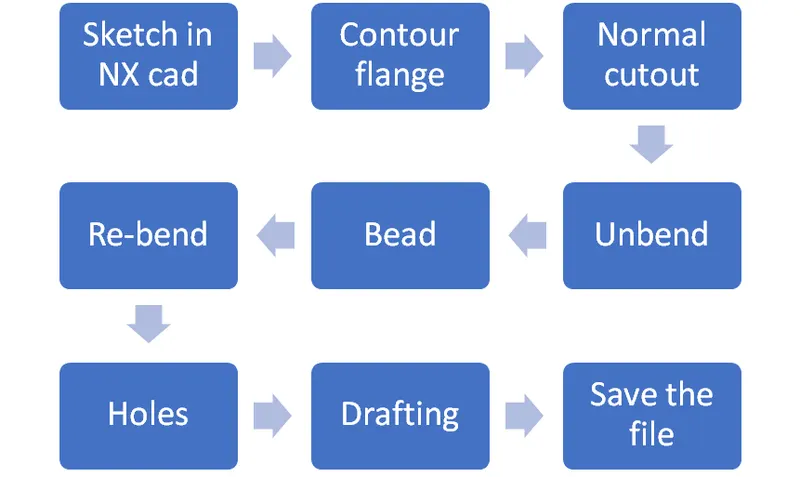

Design methodology :
Description :
Sketch : In this feature we will draw the basic shapes of the profile which we are designing by selecting repective plane.this feature is on the top left side of the screen when you open the application.
contour flange : contour flange command use to create a base feature by extruding a sketch along a vector, or adds material by sweeping a sketch along an edge or chain of edge.
Normal cutout : The normal cutout feature is used to cut the shape normal to the plane.we have to select the previously drawn drawing ehich we have to remove.in our case it is used to make a rectangular hole in the metal sheet.
Break croner : The break corner feature is used to avoid sharp corners and make the corners round. in the dialogue box select the edge and make the method to blend and give radius as 1mm and then click ok.repeat the same procedure for remaining 9 corners.
Unbend : This unbend option is used to unbend the sheetmetal to make it flat.in this select the stationary face and next select all other faces or simply drag a rectangle over all the faces. this is used to obtain a flat metal sheet.
Bead : The bead is like a raised rib in the sheet matal panel.it just requires only one sheetmetl face which is active.change the depth, radius and die radius in round bead edges to 1mm for our application.
Rebend : It is used to rebend the metal sheet into its original shape by selecting all the faces except the stationary face or it can be done simply by draging a rectanle over it.
Hole : This hole feature s under the more button of the feature field tab.This is used to make holes of desired size and desired tyoe of hole, in the dialogue box use screw clearance hole as type of hole, with screw size of M2 and a H13 fit.select the depth as through body.
screenshots of Model :

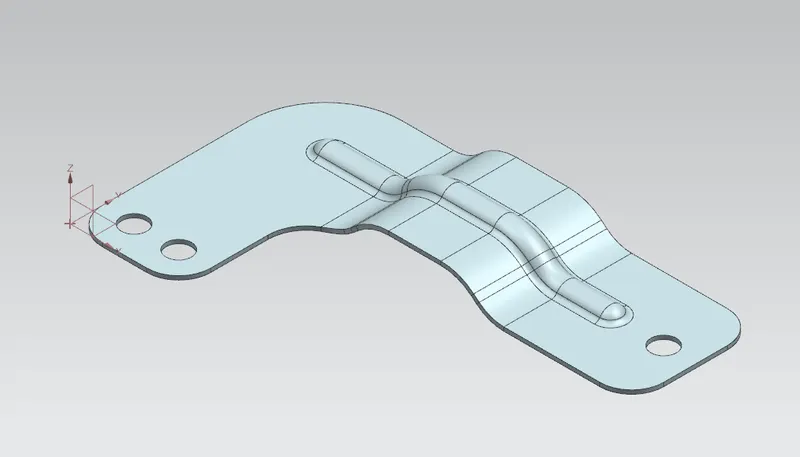

Isometric view
Front view

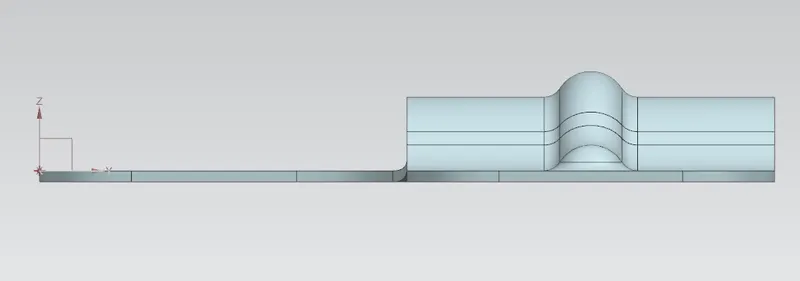

Side view

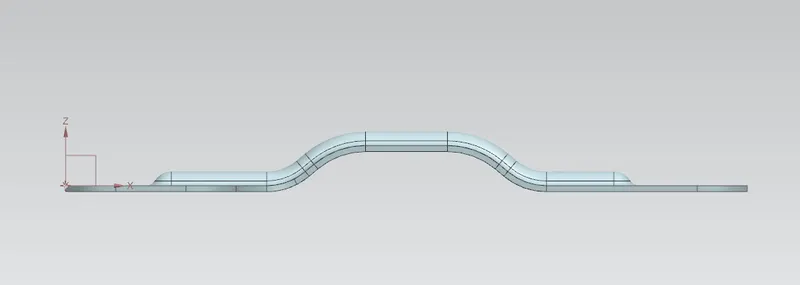

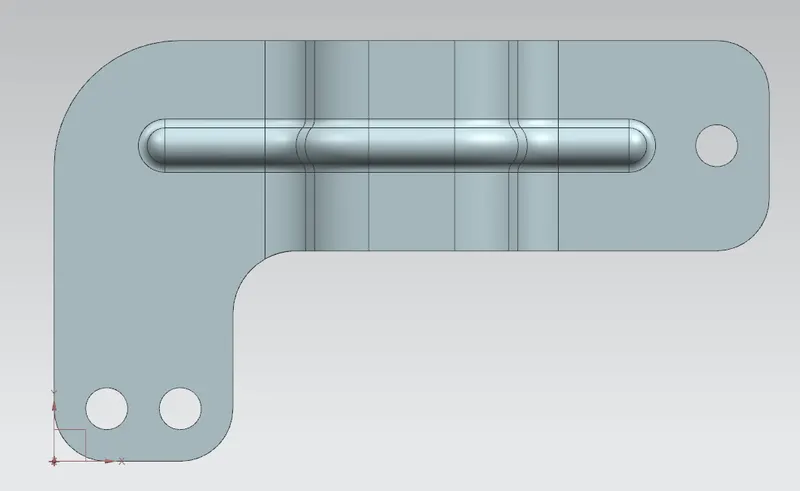

Top view

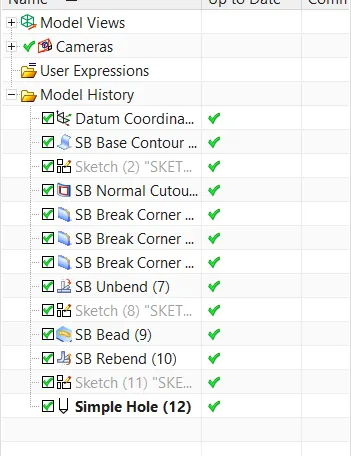

Feature tree

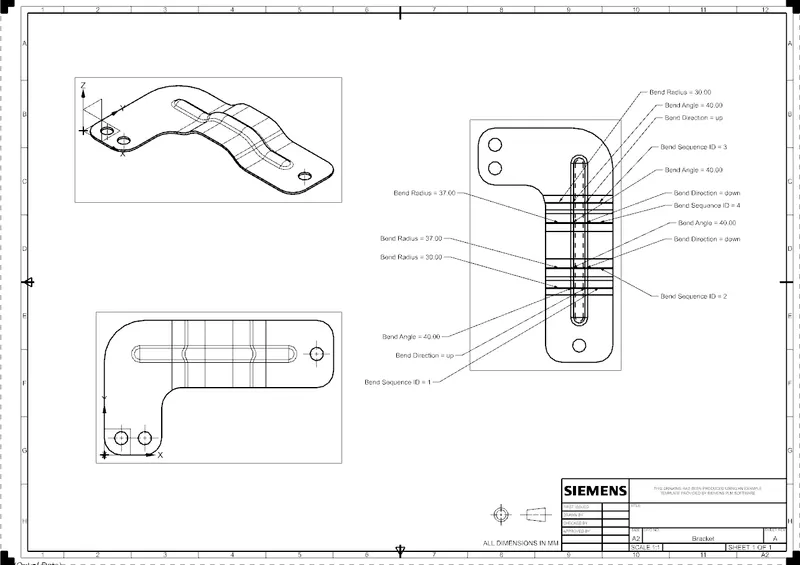

Drawing sheet
conclusion :
The objective of the project has achieved. The sheet metal Bracket has desigend using NX CAD and the drafting is done on Bracket.
