Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

Title : Design of brcket using sheet metal tool of NX 12

Objective : the challenge is mainly concentrated in design of sheet metal using contour flange, bead and flat pattern command

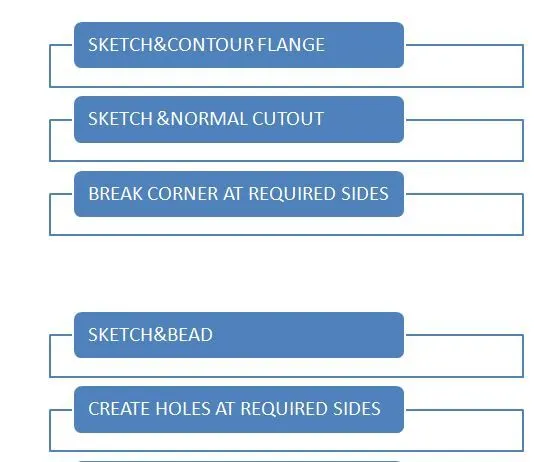

Discription

S-1 sketh the required design and use contour flange command to ged required shape

S-2 use normal cutout to cut the sheet

S-3 then use break corner command at all required edges

S-4 use linear line for creation of bead at the top face

S-5 finally create the holes at corners of the sheet

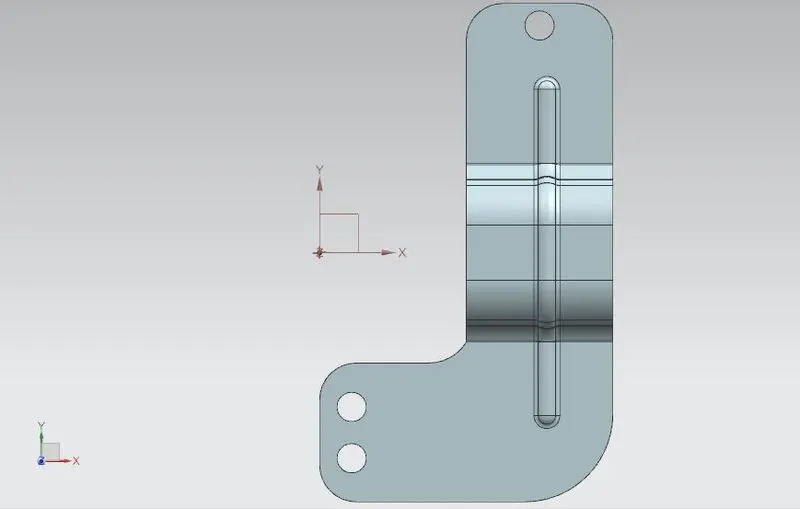

views

top view

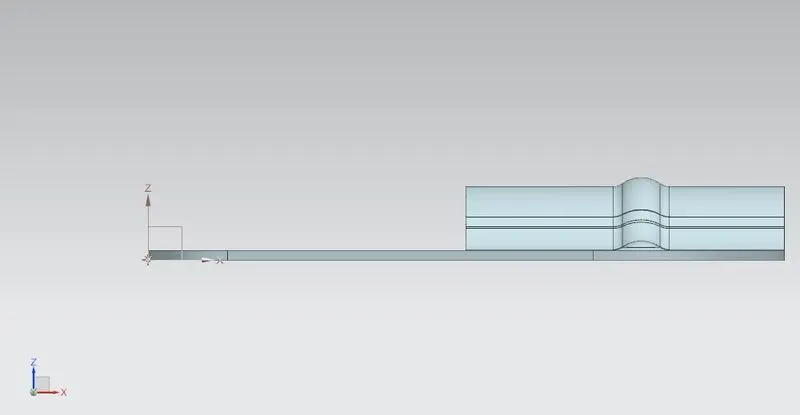

front view

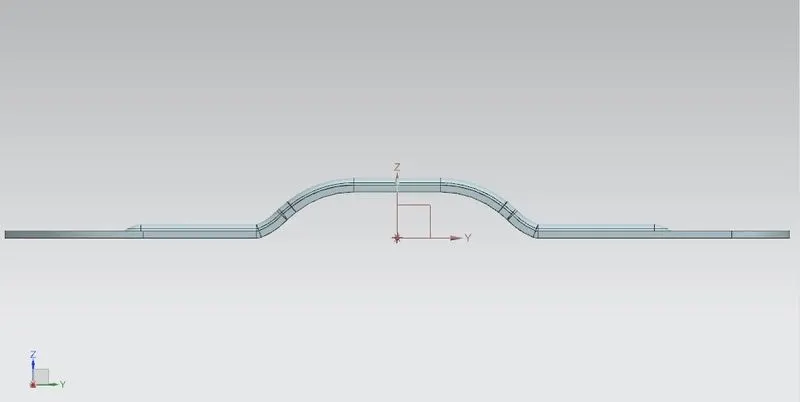

side view

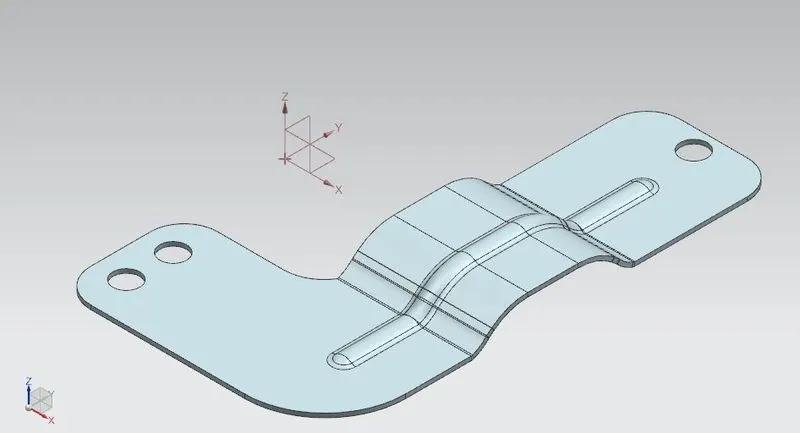

isometric view

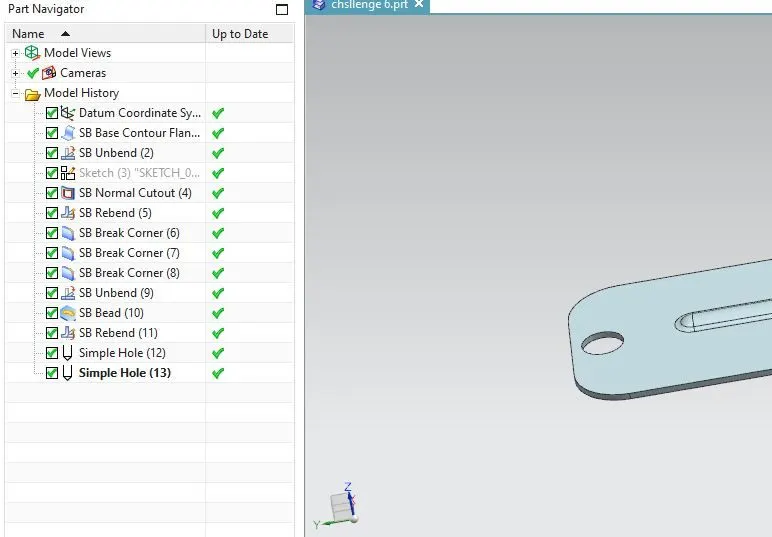

feature tree

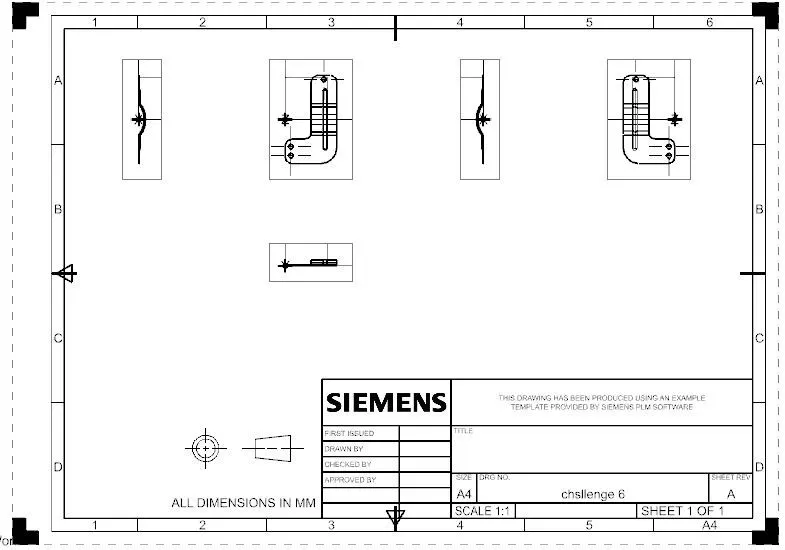

drawing sheet

Conclusion

hence the required bracket is prepared using the commands as per instructor said
