Advanced Sheet Metal Design Using NX Cad -Bracket
AIM :
To perform the given Sheet Metal design using NX CAD
OBJECTIVE :
- To design a Bracket
ABOUT :
Siemens NX :
Siemens NX software is a flexible and powerful integrated solution that helps you deliver better products faster and more efficiently.
NX delivers the next generation of design, simulation, and manufacturing solutions that enable companies to realize the value of the digital twin.
Sheet Metal :
Sheet metal is metal formed by an industrial process into thin, flat pieces. Sheet metal is one of the fundamental forms used in metalworking, and it can be cut and bent into a variety of shapes. Countless everyday objects are fabricated from sheet metal. Thicknesses can vary significantly; extremely thin sheets are considered foil or leaf, and pieces thicker than 6 mm (0.25 in) are considered plate steel or "structural steel".
Sheet metal is used in automobile and truck (lorry) bodies, airplane fuselages and wings, medical tables, roofs for buildings (architecture), and many other applications. Sheet metal of iron and other materials with high magnetic permeability, also known as laminated steel cores, has applications in transformers and electric machines.
Historically, an important use of sheet metal was in plate armor worn by cavalry, and sheet metal continues to have many decorative uses, including in horse tack.
Sheet metal is available in flat pieces or coiled strips. The coils are formed by running a continuous sheet of metal through a roll slitter.

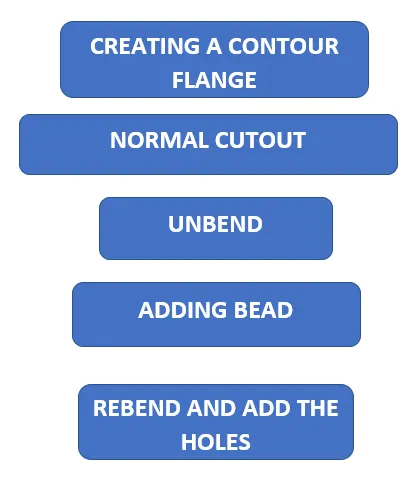

DESIGN METHODOLOGY :
DESCRIPTION :
The various command used for the design in order were,
Sketch : The 2D representation of the given profiles are obtained using sketch.
Contour flange : This feature is used to create a sheetmetal based on a profile.
Normal cutout : It is used to cut the object with a given profile normally.
Unbend : It is used to unbend the entire sheet metal into a flat surface.
Bead : This feature is used to lift the material based on a certain profile on the sheetmetal which strengthens the sheet metal.
Rebend : It is used to bend all the features of a sheet metal after an unbend.
Holes : It is used to make holes of necessary types and dimension on the sheet metal.
MODEL :

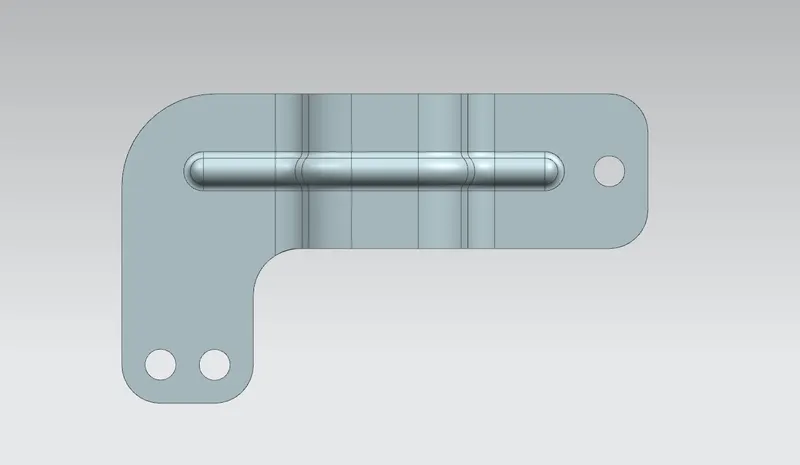

Top view

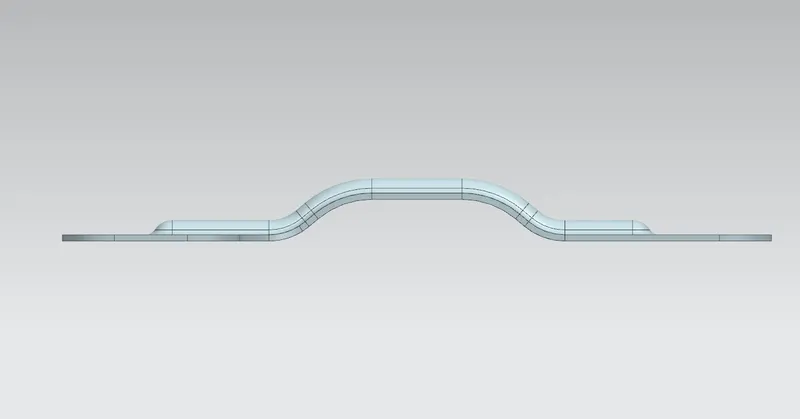

Front view

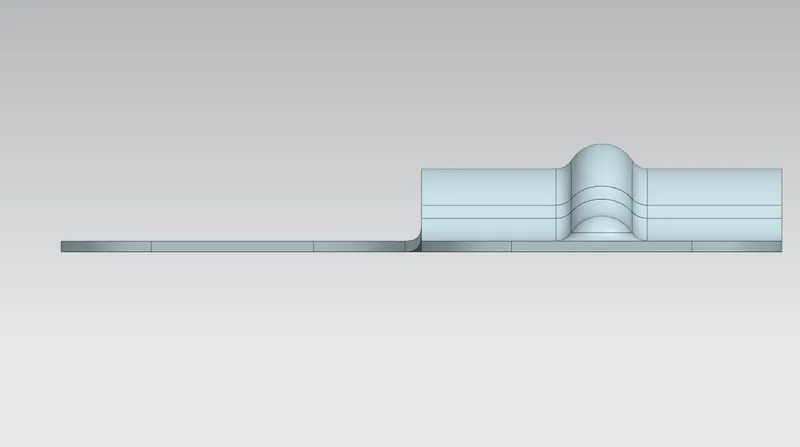

Side view

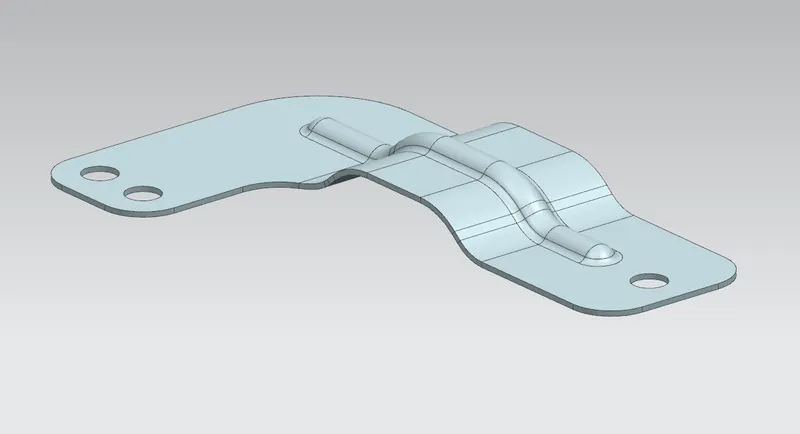

Isometric view

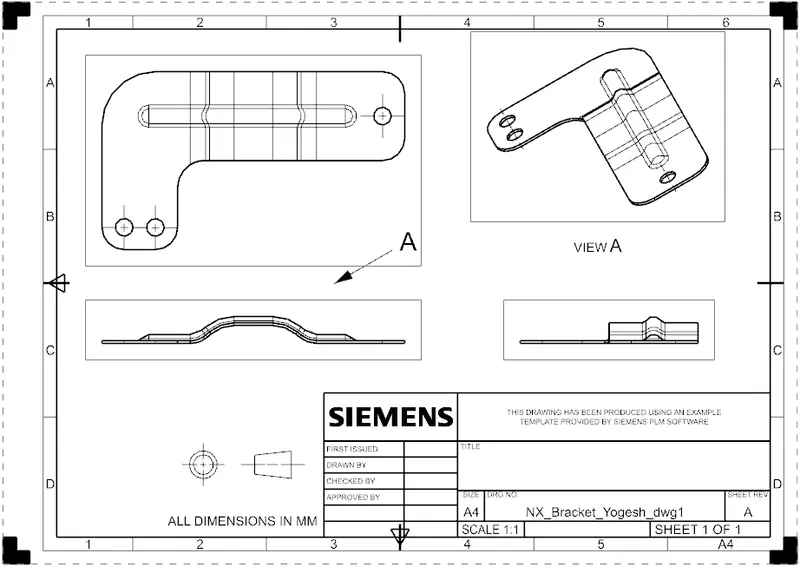

DRAFTING :
CONCLUSION :
- The model was designed as per the given dimensions.
- Images were attached representing various views.
- The model file was attached.
