Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

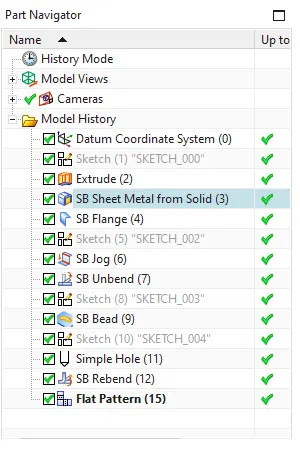

Procedure

1. Create a sketch and extrude
2. Convert that sheet metal into solid body using the feature
3. Create a flange at the edge
4. sketch on the opposite side and make a jog

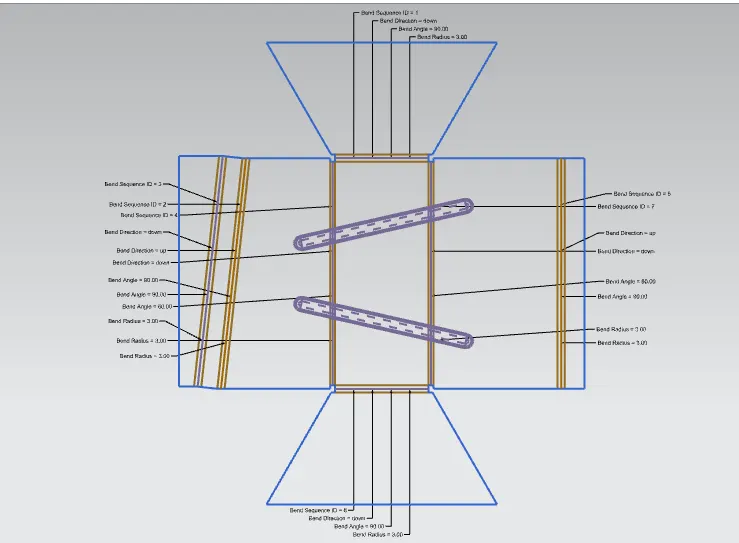

5. Unbend the body and sketch a lines
6. Make the lines into bead
7. Rebend the body
8. Create a holes
9. Make a linear pattern and value the preference

Conclusion

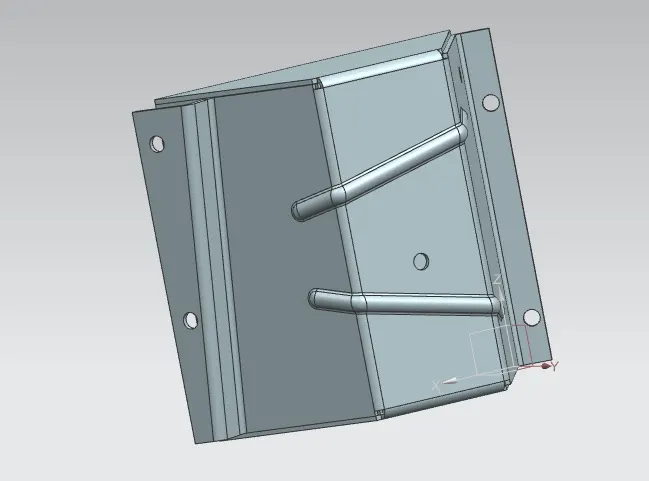

Hence the required design is obtained
