DESIGN OF A BOX ASSEMBLY

OBJECTIVE

• Objective of this project is to study and working on different features of NX CAD for making BOX ASSEMBLY.


INTRODUCTION

• Sheet metal is metal formed by an industrial process into thin, flat pieces.
• Sheet metal is one of the fundamental forms used in metal working, and it can be cut and bent into a variety of shapes.
• Sheet metal is a semi-finished product that can be produced over a large area, whereby sheets are generally light, thin, stable, elastic and flat.
• Sheet Metal is a comprehensive cold working process for metal sheets (usually below 6mm), including shearing, punching, cutting, folding, riveting, splicing, forming (such as car body) etc.

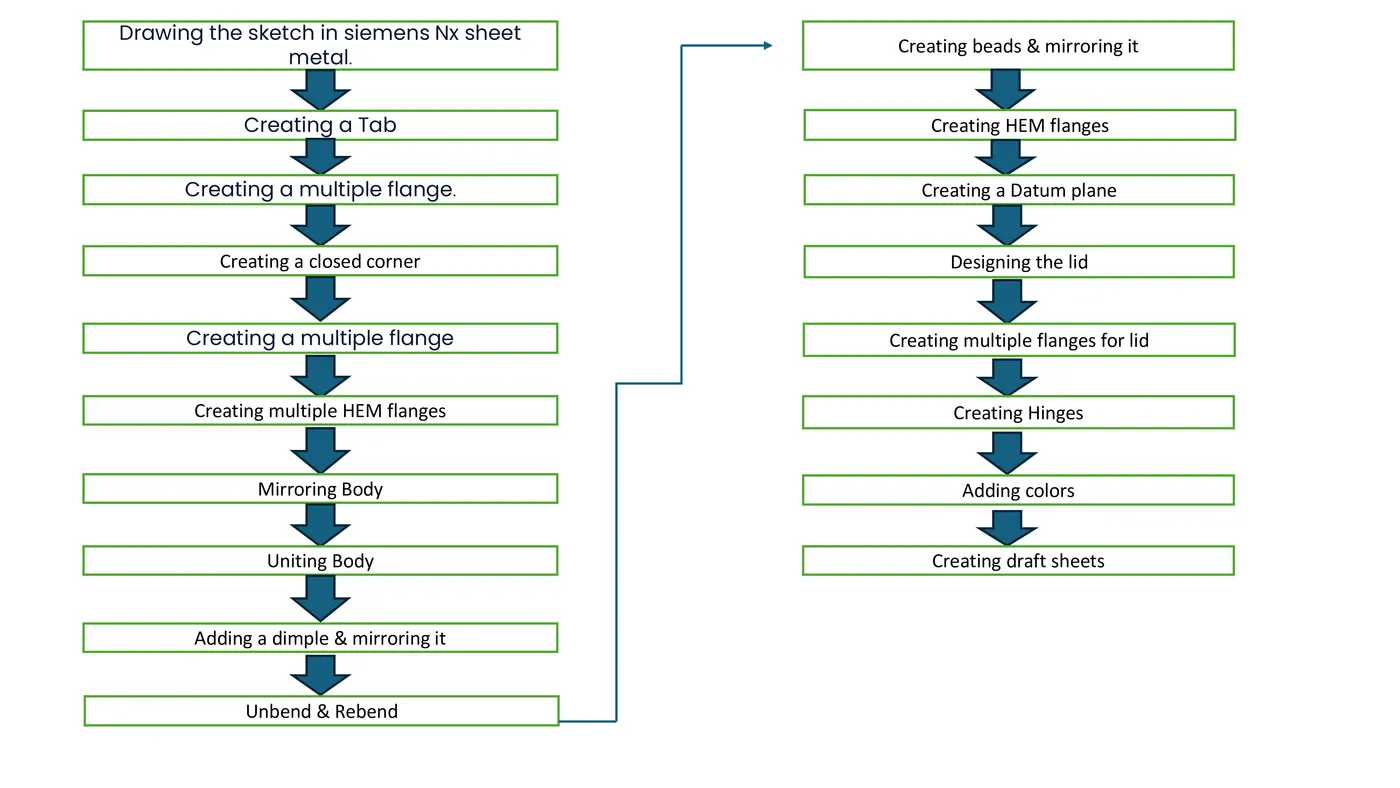

DESIGN METHODOLOGY:

DESCRIPTIOM:

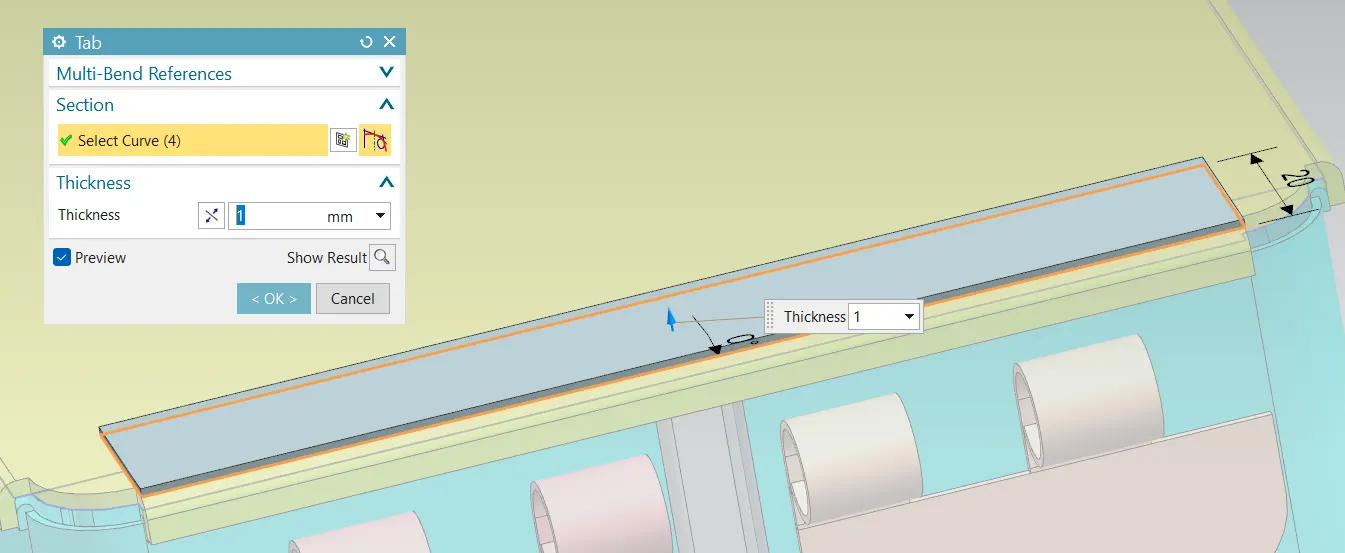

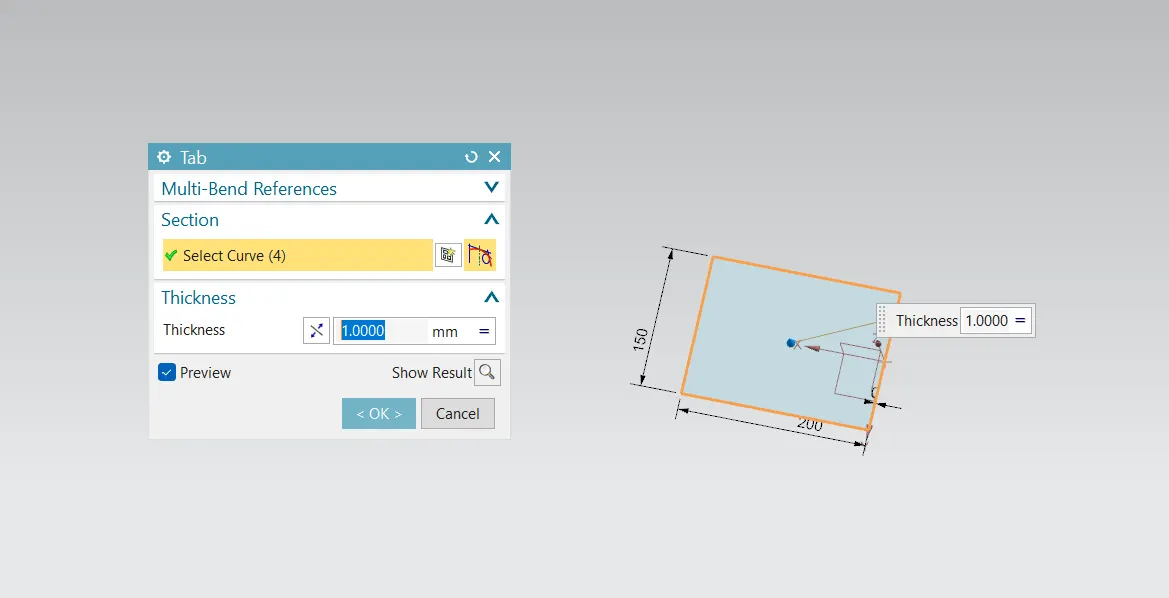

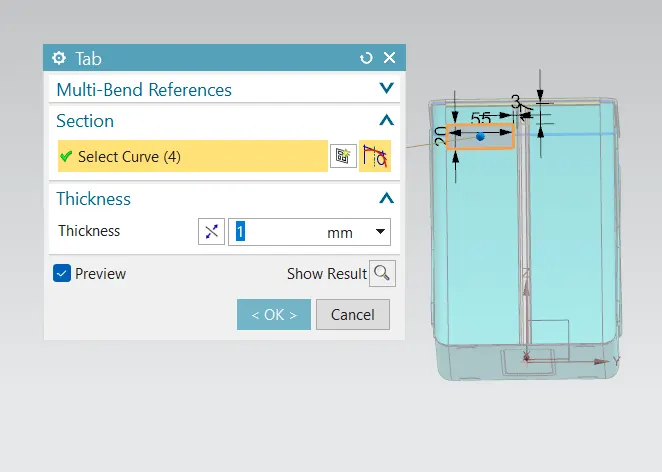

Tab: Draw the sketch and add the thickness of 1mm.

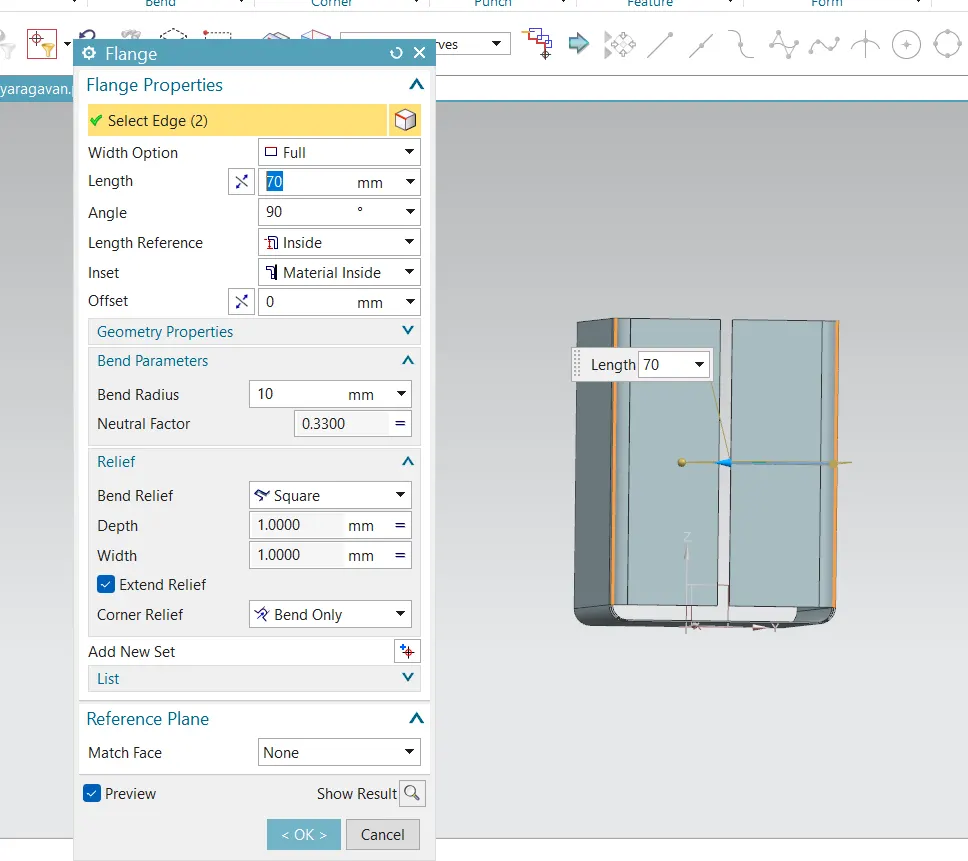

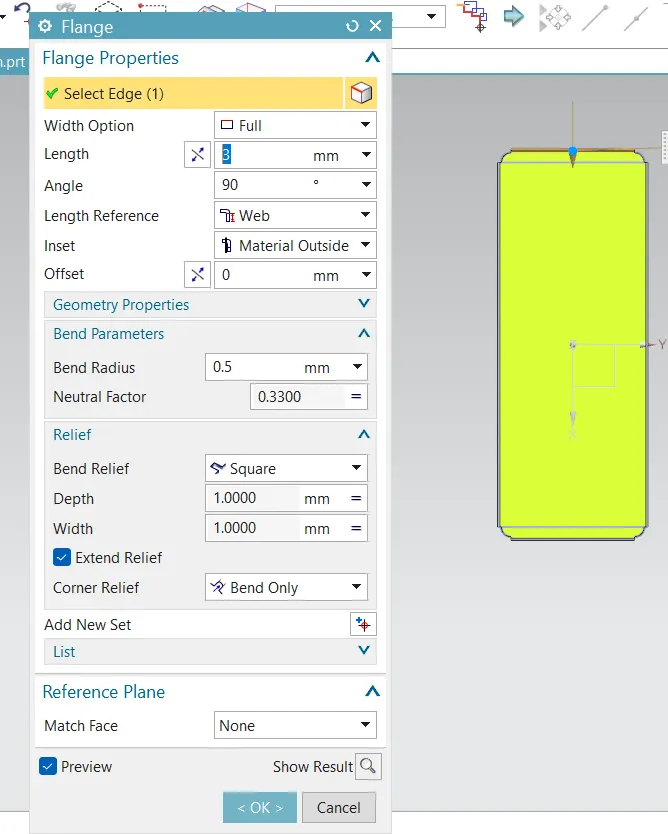

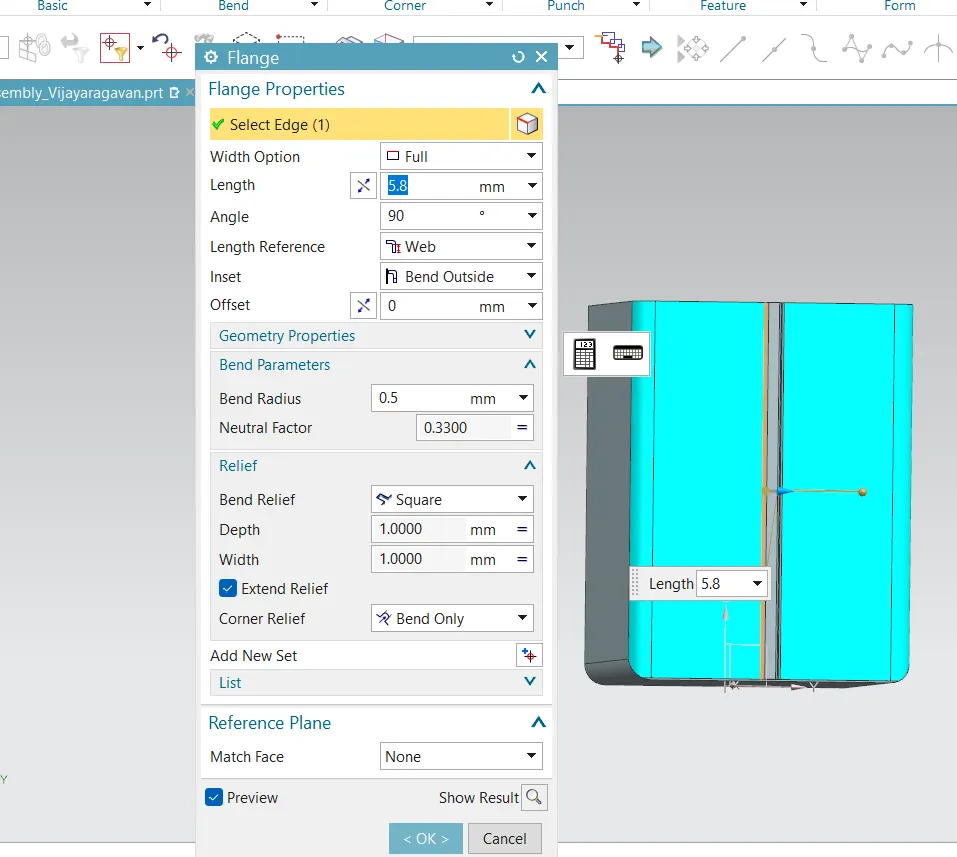

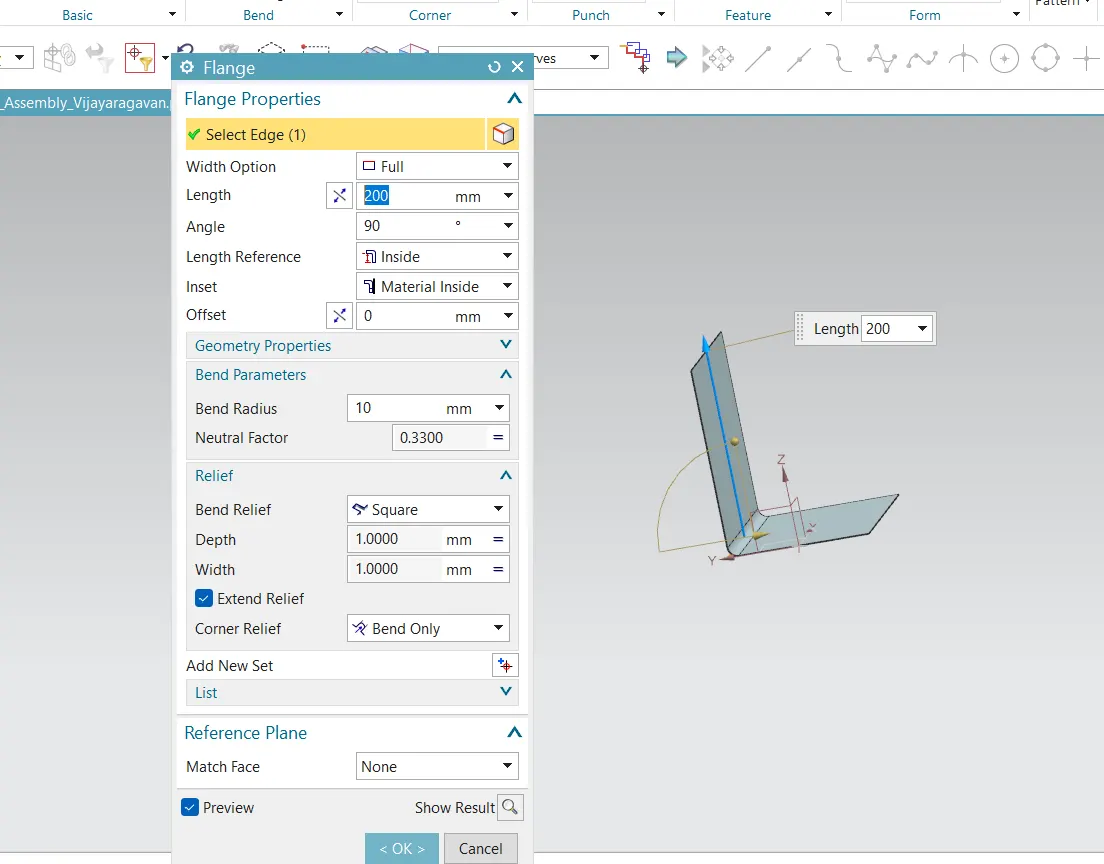

Add flange: Flange with bend radius 10, angle 90 deg and length of 200 mm

Flange with length 70 mm sides.

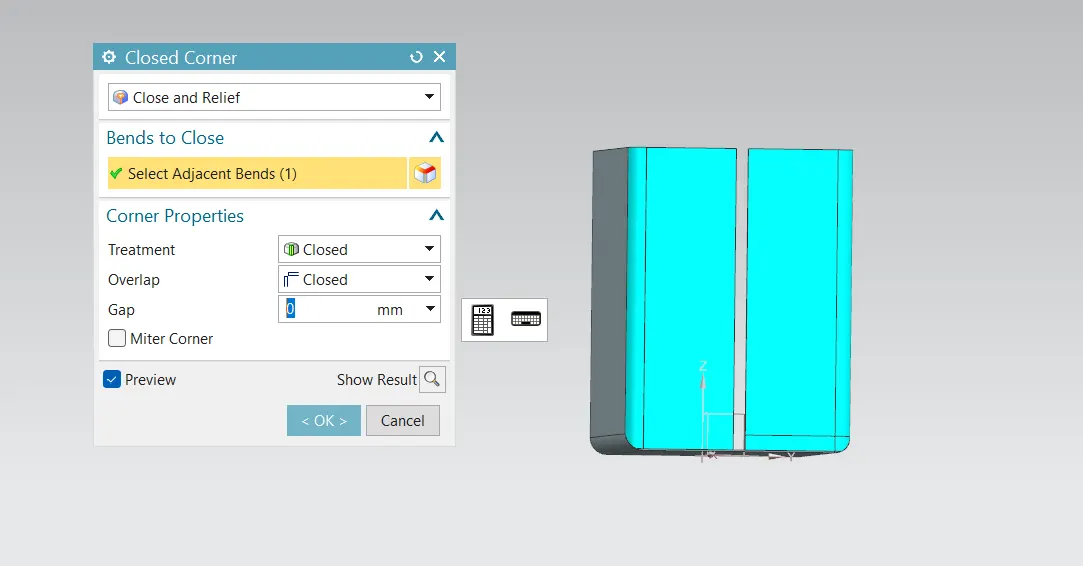

Close corners: close and relief option used to close corner.

Add flange and hem

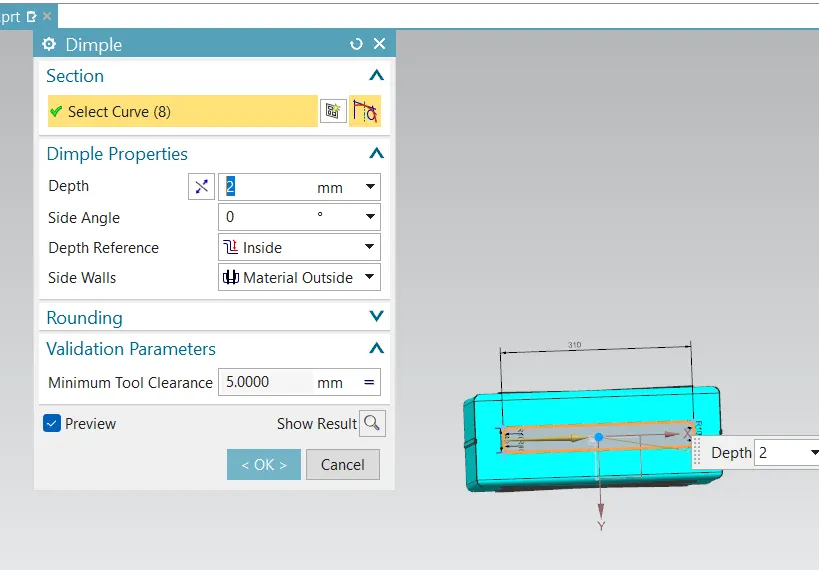

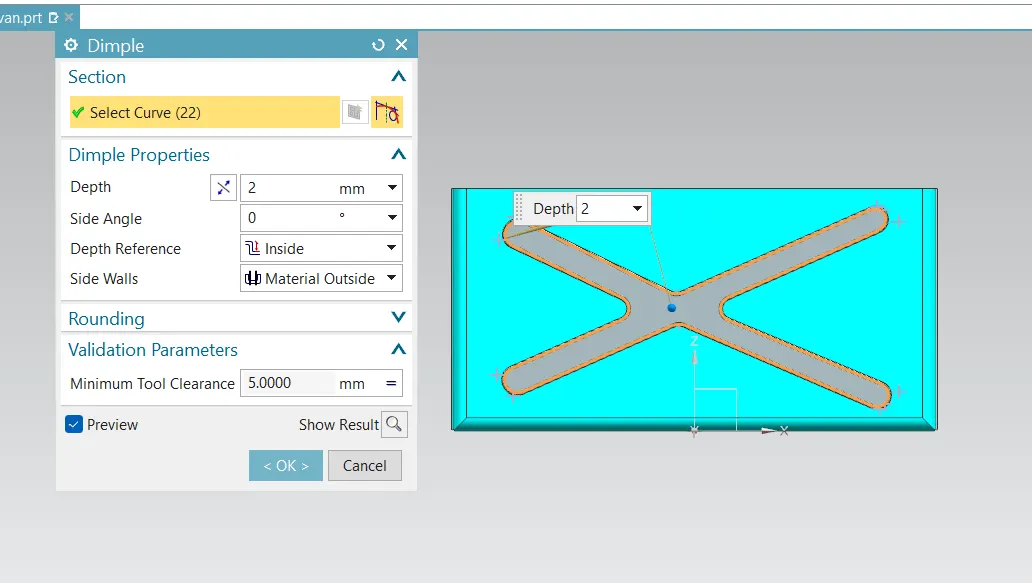

Add dimple: sketch and use depth of 2 mm for the dimple.

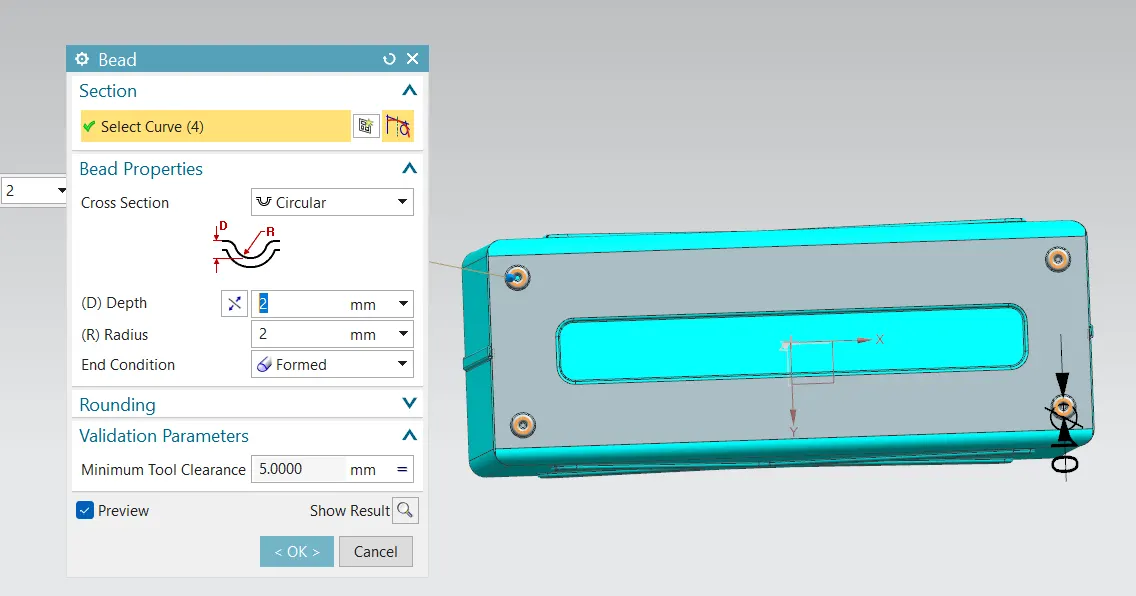

Add bred: Depth and radius of 2mm and mirror the bred feature.

LID

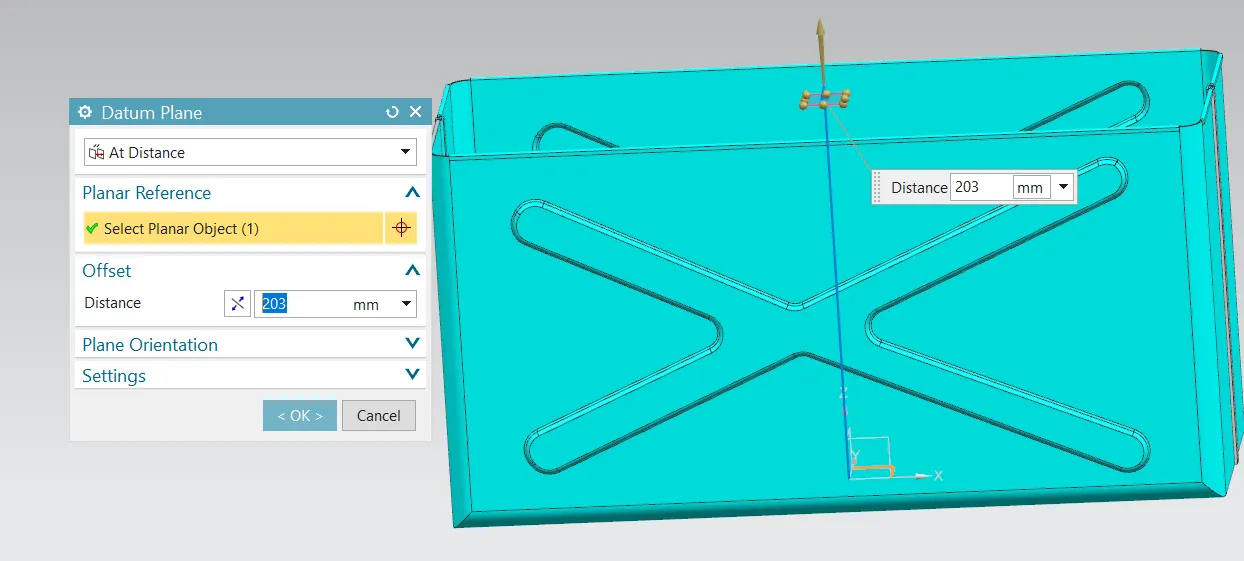

Use Datum plane at a distance of 203 mm

Tab: Sketch and add tab thickness 2 mm.

Add flanges: It is added to the sides of the Lid component

HINGE:

Tab: Sketch and add tab thickness of 1 mm

Add flange: Flange with 40 deg and length 4 mm is given

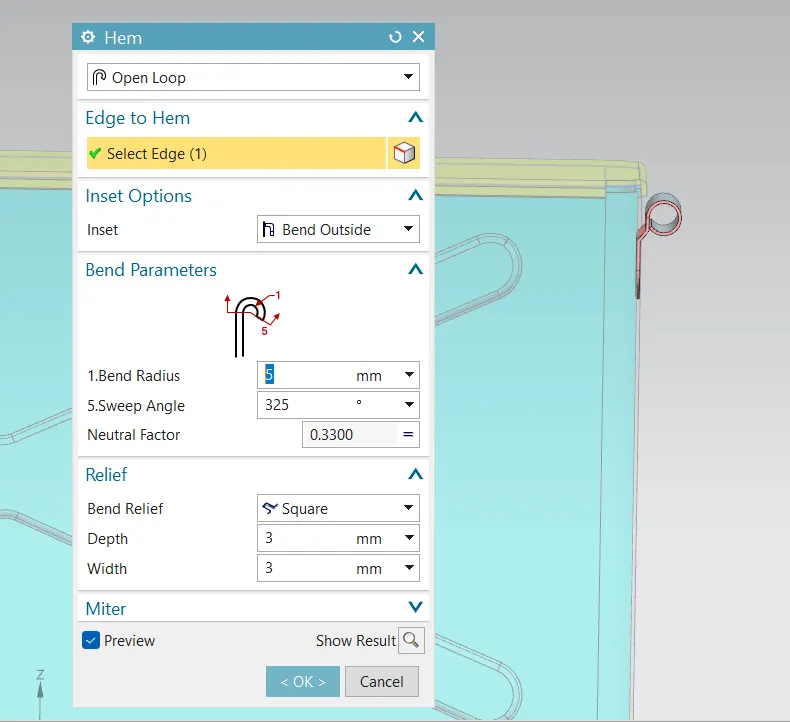

Add open loop hem: Bend radius 5 mm and sweep angle 325 deg is given

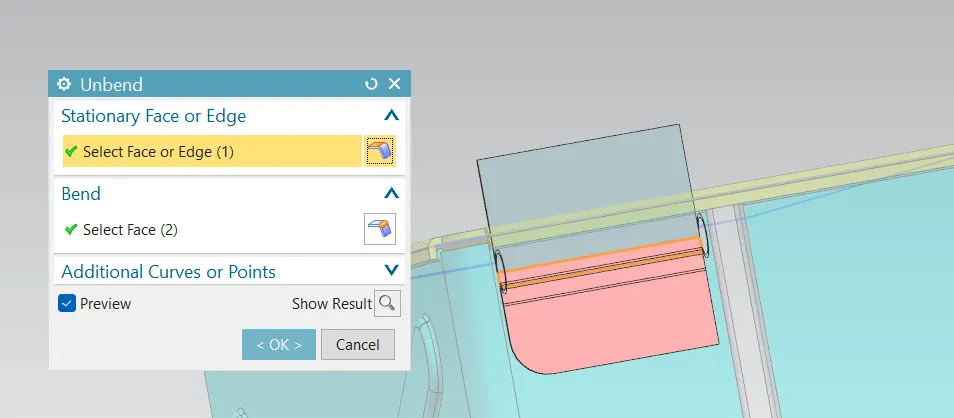

Unbend

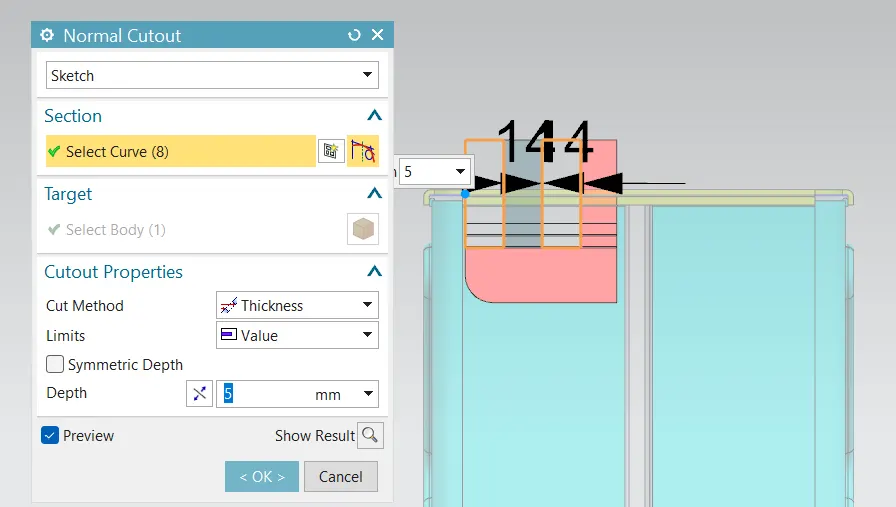

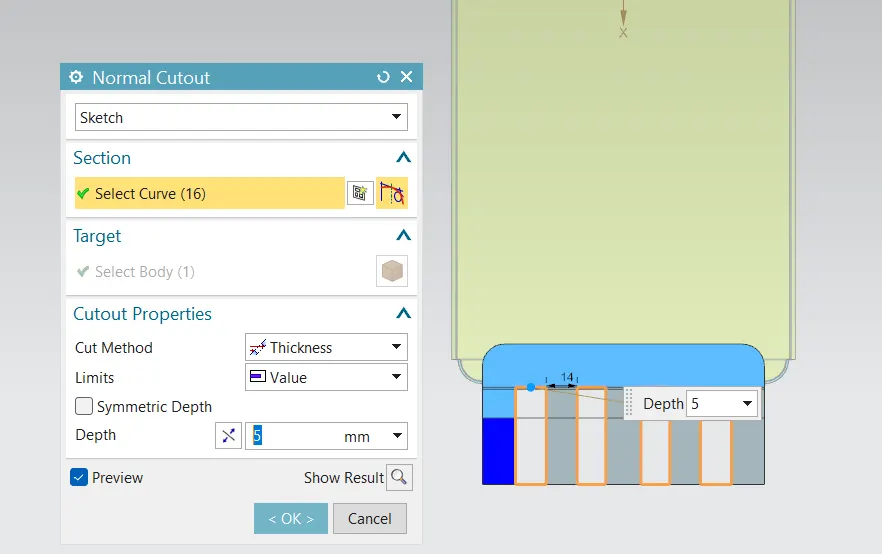

Sketch and Normal cutout: Cutout having depth of 5mm

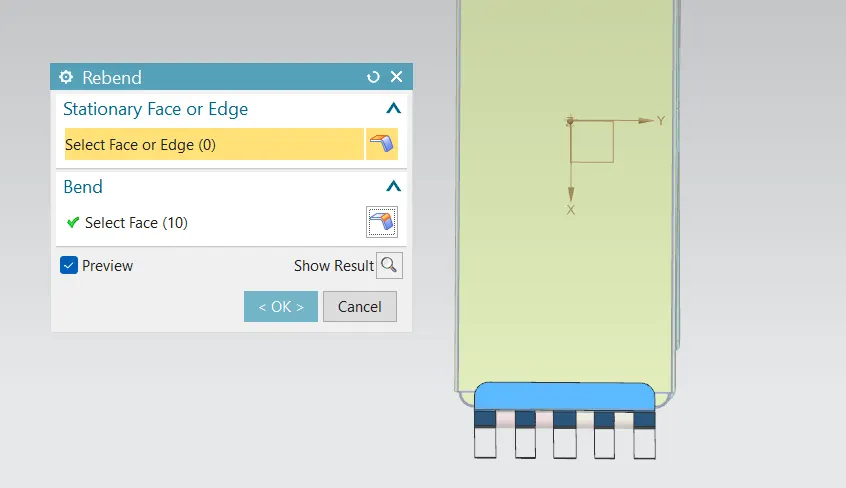

Rebend: Rebend after normal cutout feature

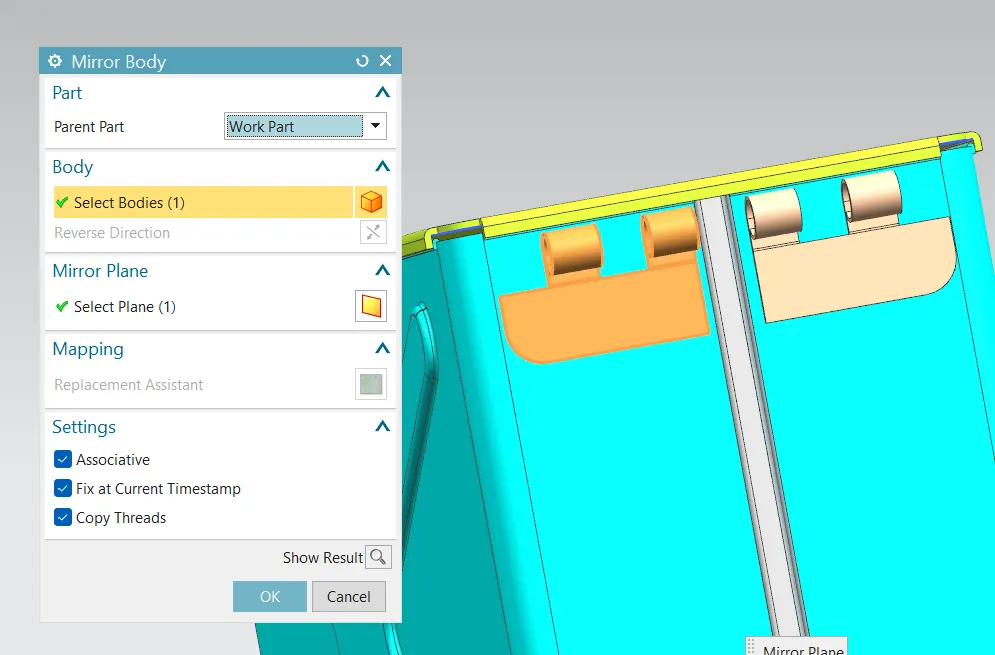

Mirror body: Mirror the body using XZ Plane

Tab: Sketch and add thickness 1mm

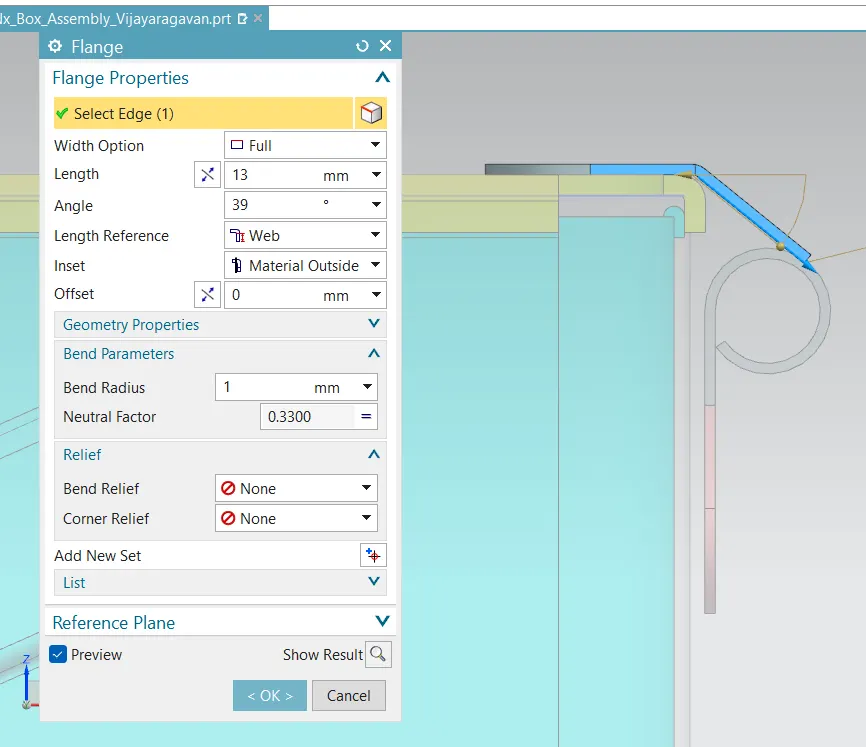

Add flange: flange having bend radius 1 mm and length of 13 mm

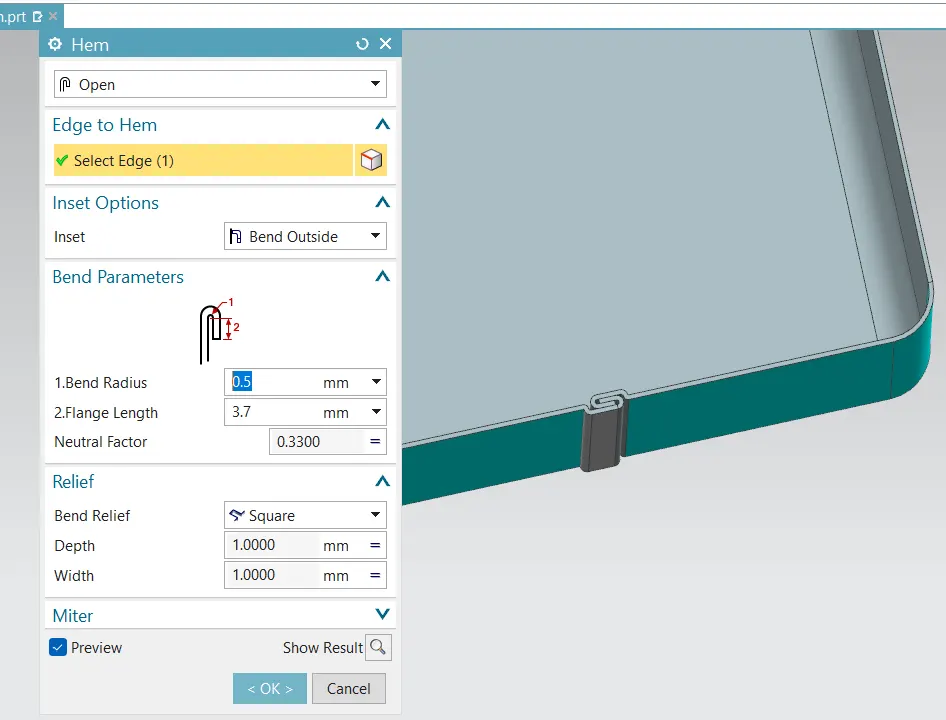

• Hem: Open loop type hem having Bend radius 5 mm and sweep angle 325 deg
•

Unbend: To sketch and cutout material

Normal cutout: Remove material from the tab

Rebend: To form the hem that was created

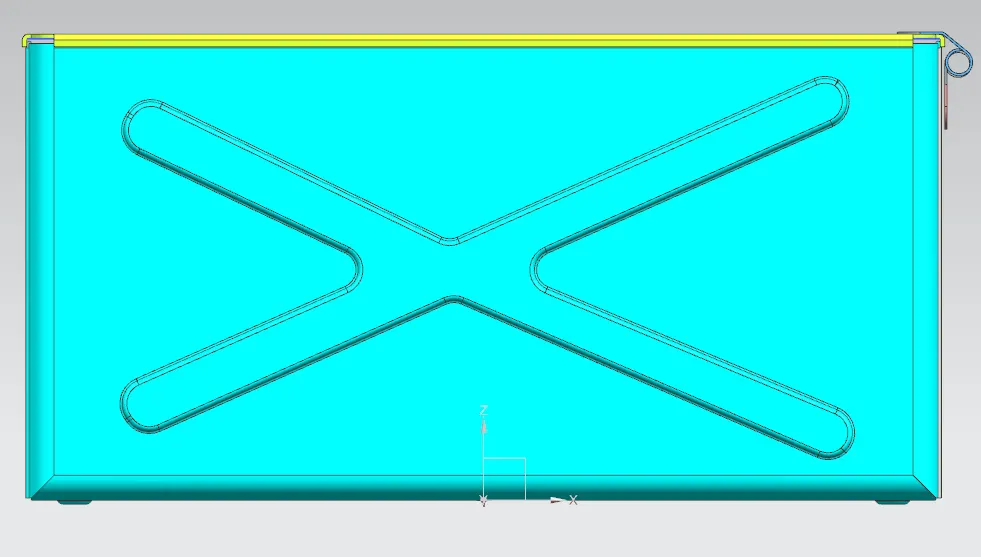

FRONT VIEW:

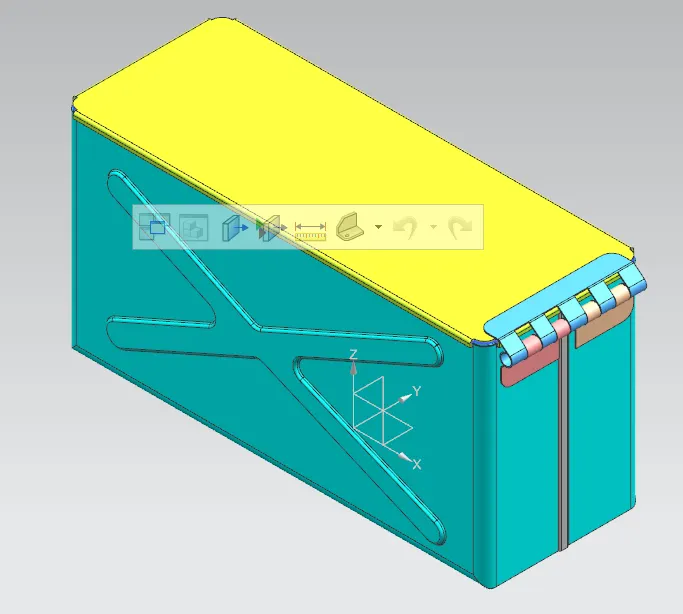

ISOMETRIC VIEW:

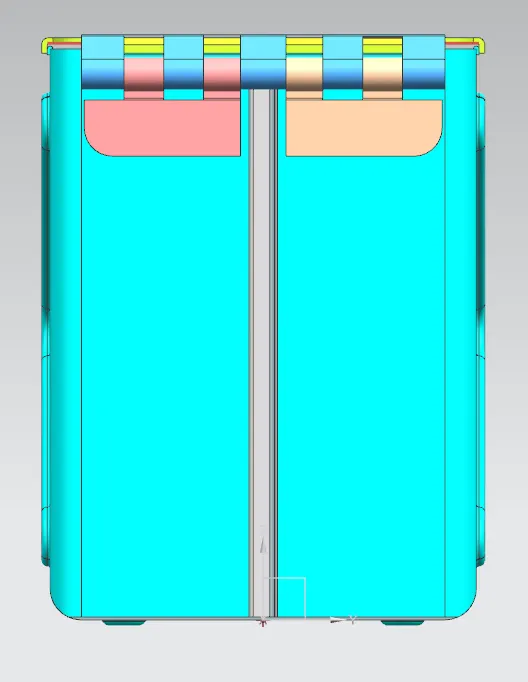

RIGHT VIEW:

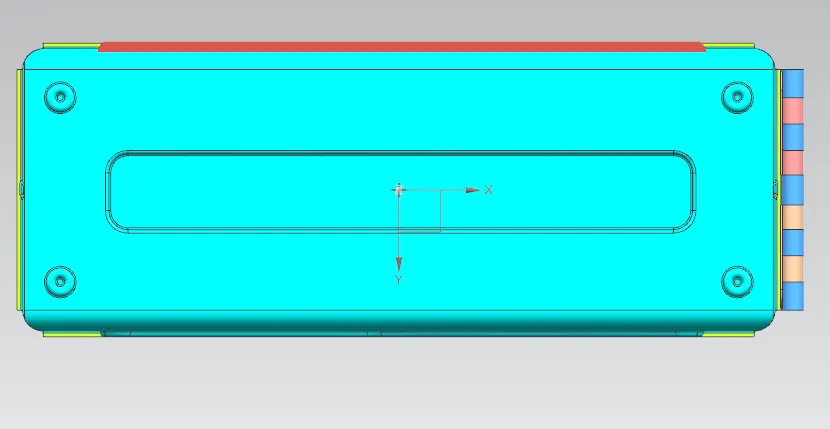

BACK VIEW:

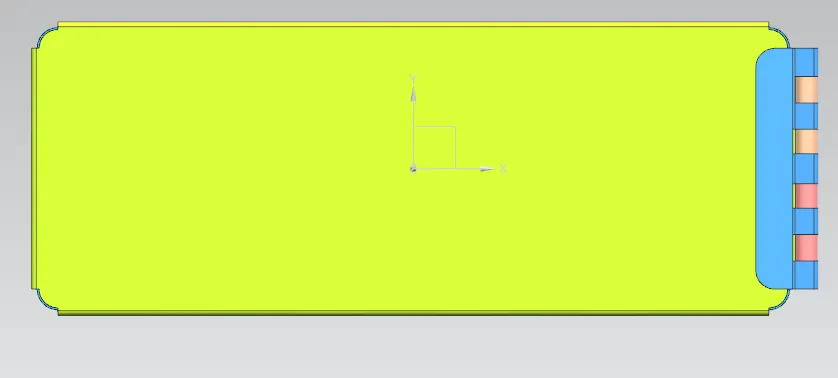

TOP VIEW:

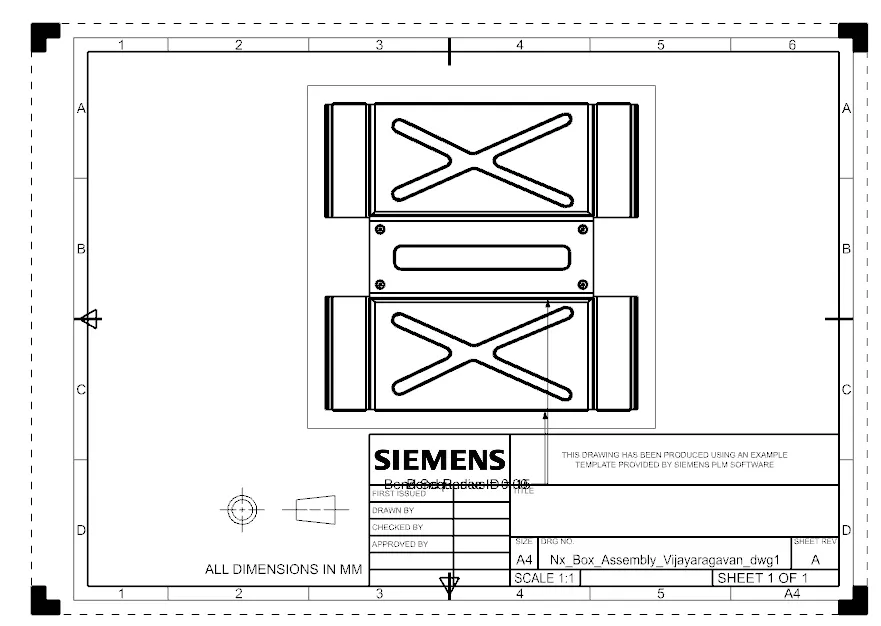

DRAWING SHEET:

CONCLUSION:

Box assembly design in advance sheet metal using Nx12 is completed.
