Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

BOX ASSEMBLY

OBJECTIVE:- Modelling of box assembly with proper dimensions and approach to make it step by step

Box assembly is use to carry some tools or any items. Modelling of box assembly has been done with the help of sheet metal in seimens NX

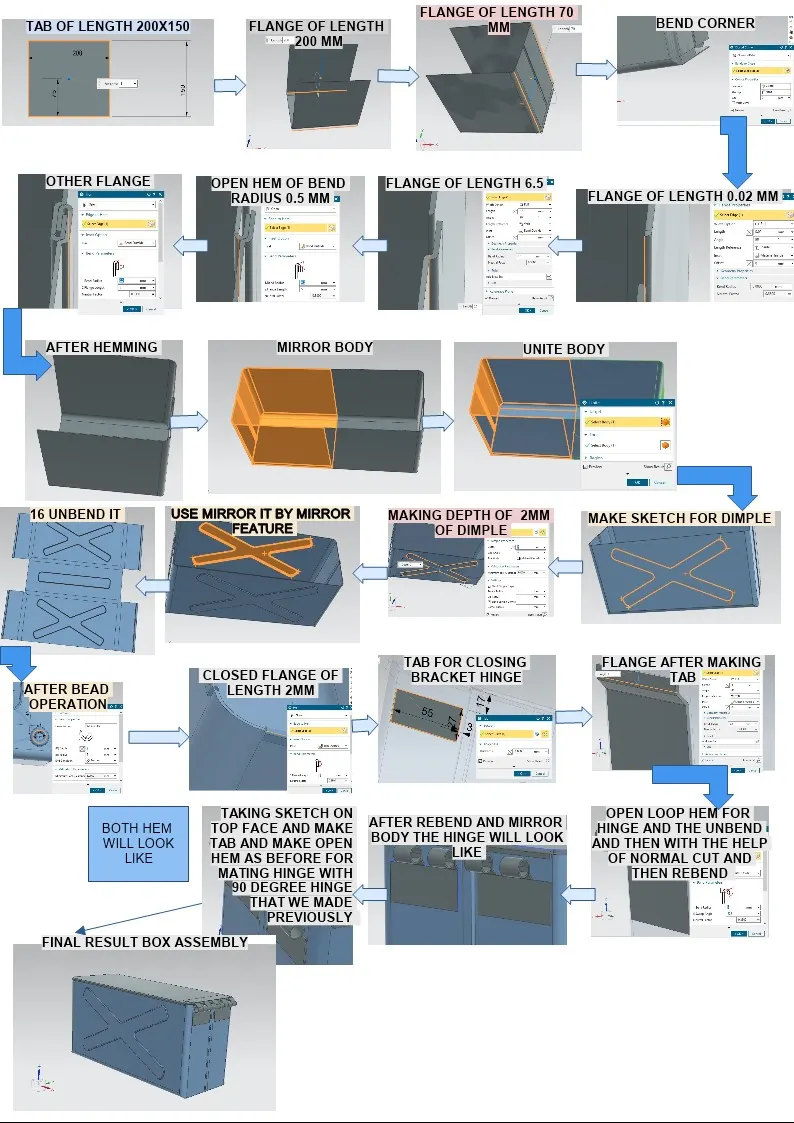

FLOW CHART TO MAKE BOX ASSEMBLY & COMMAND USE TO MAKE BOX ASSEMBLY

NEW FEATURE AND TOOL USED IN THIS CHALLENGE ARE AS FOLLOWS

1.HEM :- Hemming is use to improve strength, make edge safer to handle and also hide defects like rough edges and burr

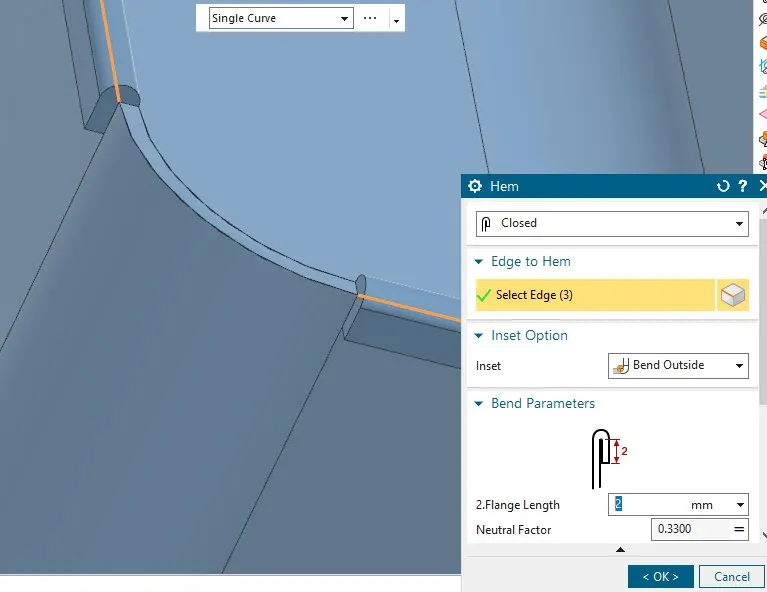

CLOSED TYPE HEM

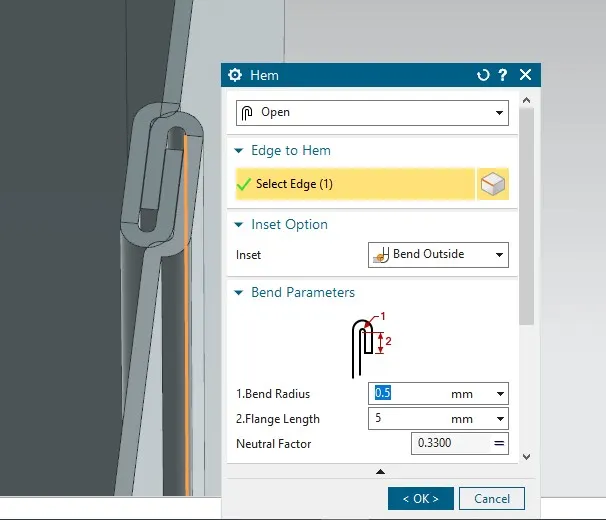

2. OPEN TYPE HEM

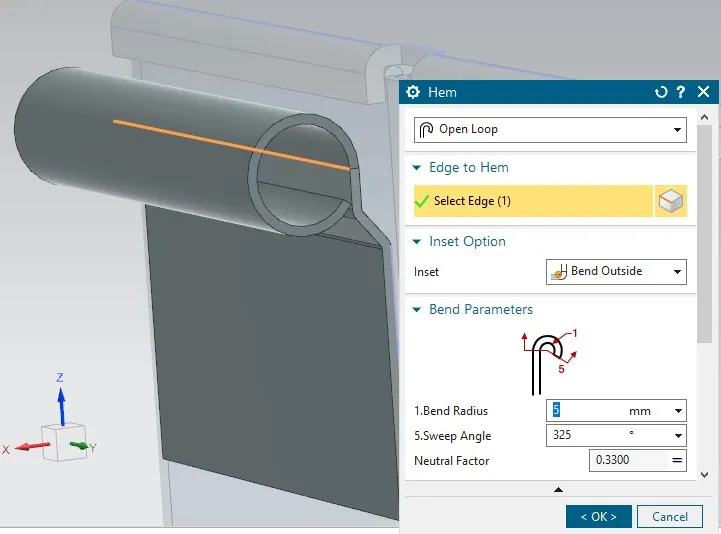

3. OPEN LOOP HEM

in this hem operation we give input bend radius and sweep angle

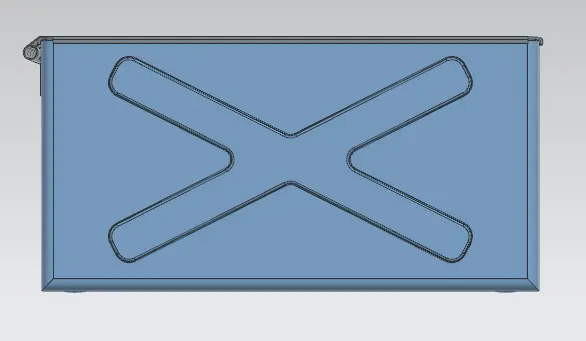

FRONT VIEW

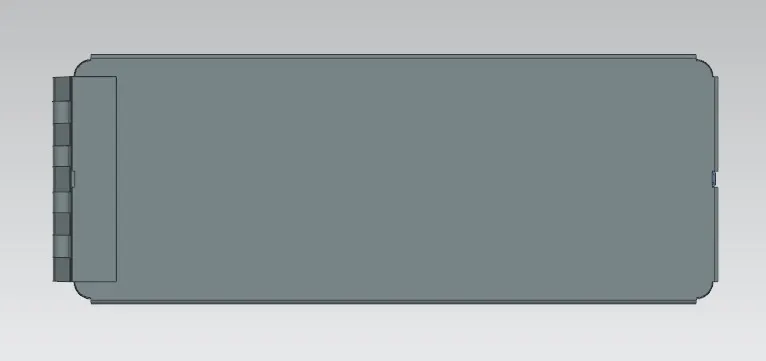

TOP VIEW

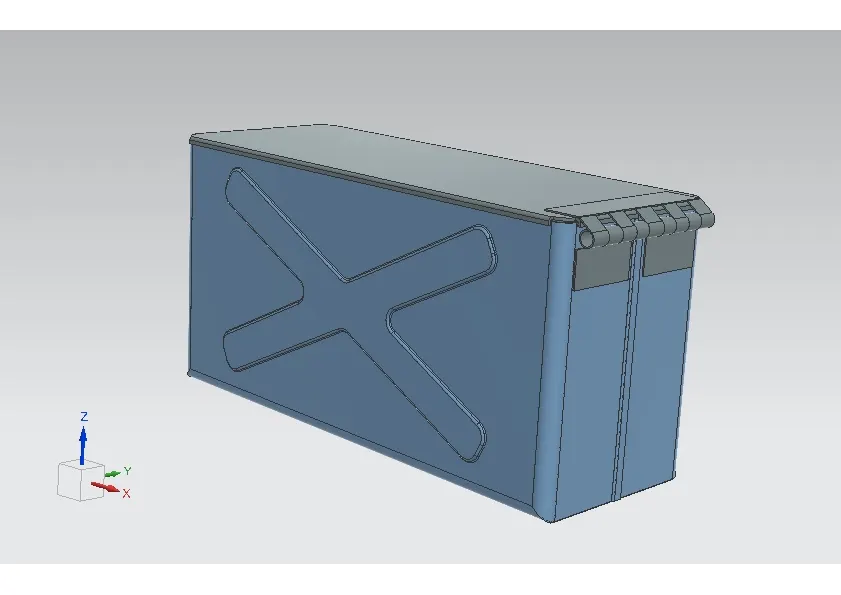

SIDE VIEW

CONCLUSION :- Modelling of box assembly has been created as per standard and with proper dimensions
