Section Modulus calculation and optimization

COMPARING THE PERFORMANCE OF THREE BEAM UNDER BENDING LOADAIM:- To compare the performance of three beam of different type under bending load.INTRODUCTION:-This report presents the results of nonlinear analysis performed on three different cross section beam: Rectangular Beam of dim. 80x45 , I section Beam having flange…

                                                                                    NX ODD ENCLOSURE OBJECTIVE:-…

                                                                                           …

Butterfly valveButterfly valve is used to regulate flow, pressure of the fluid or gases. It is called butterfly because the disc in the butterfly valve looks like butterfly wings WORKING OF BUTTERFLY VALVEThe main part is the disc which rotates around the central axis. When you turn around the valve handle the disc…

BOX ASSEMBLY  OBJECTIVE:- Modelling of box assembly with proper dimensions and approach to make it step by step  Box assembly is use to carry some tools or any items. Modelling of box assembly has been done with the help of sheet metal in seimens NX  FLOW CHART TO MAKE BOX ASSEMBLY & COMMAND USE TO MAKE…

                                                               CASING DESIGN  OBJECTIVE:-The objective is to design casing with proper dimensions using sheet…

Fender is a automotive part and that fits a wheel well also its primary job is to protect engine compartment and pedestrians  from sand, mud, rocks and liquids that thrown by rotating tire into the air or engine compartment. This is becauase when wheel rotate causes hurl up the stones and liquid in all direction. fenders…

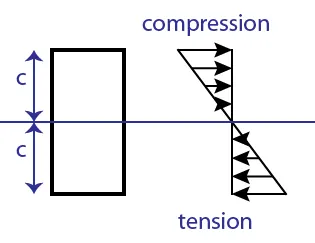

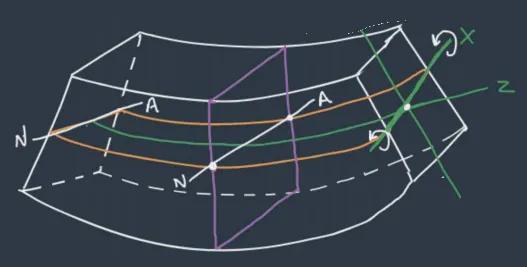

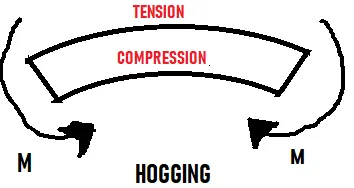

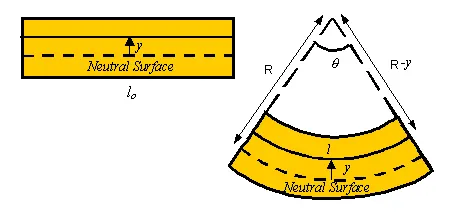

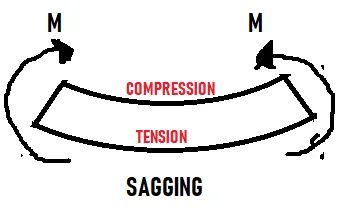

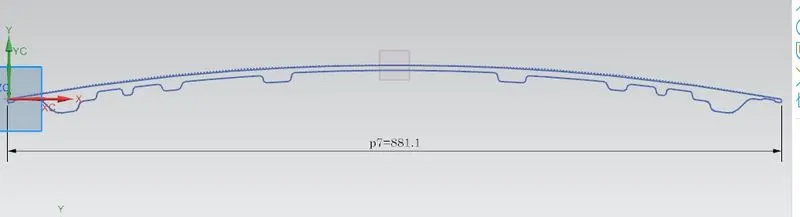

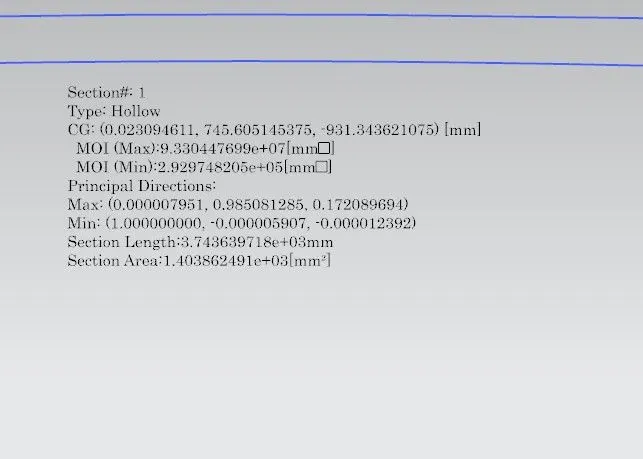

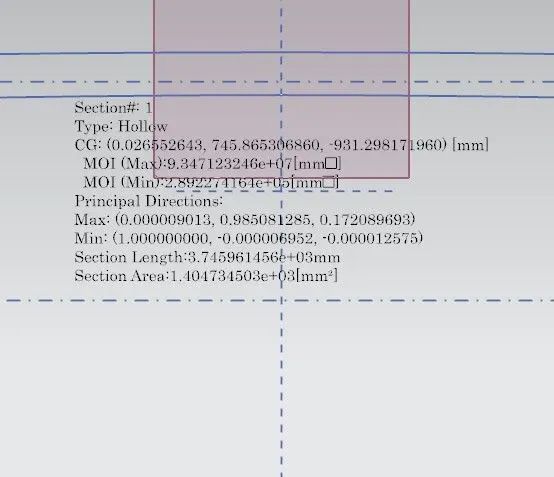

Bending:- when a beam is loaded under pure moment M. The beam will bend in a circular arc. as shown below  In sagging upper layer will experience compression while the lower layer will experience tension as shown above. The distribution of internal force in bending is linear i.e `sigma=ky`.The distribution of internal…

HOOD:-Car hood is also known as Bonnet and that encloses engine compartment of motor vehicle.It is located at front of vehicle,and it is designed to protect engine compartment and other components from dust,dirt and adverse weather condition, that can deteriorate the engine compartment and components. Car hood are typically…

A person name Ravi who is living in Cherapunji has a old car but his car's underside got rust and lots of noise from road came inside the cabin. He wents to a mechanic shop and tell about his problem facing with a car. Mechanic tell him to change underside part and  apply Underbody coating to Underside of car. Ravi…

Statement:-His Family comprises five members including his wife, a five-year-old boy, his father, and his mother.  Inference:-His family comprises five members it means that he need 5 seater car having good rating of safety. Statement:-He visits his native place Madurai which is 500kms away from Bangalore once a month.He…
