3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1). Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
AIM: To model a Ceiling from the architecture tab above the walls at the first-floor level.
Tools Used: open, ceiling, project browser, save.
Procedure:
Step1: Open the previous week's project.

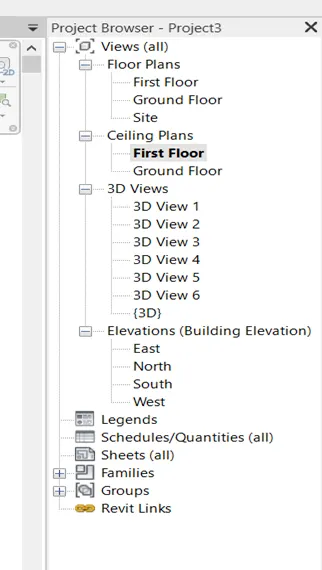

Step2: open the celling plan view using the project browser.

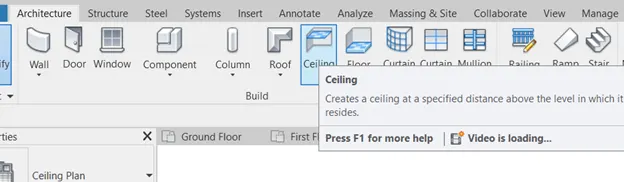

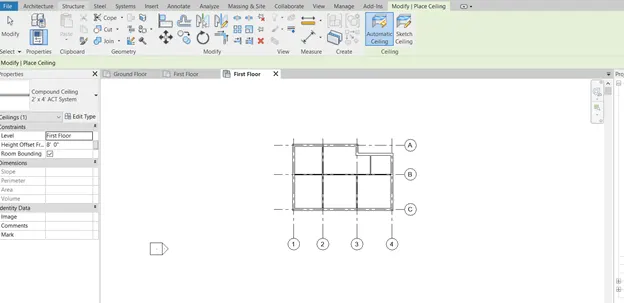

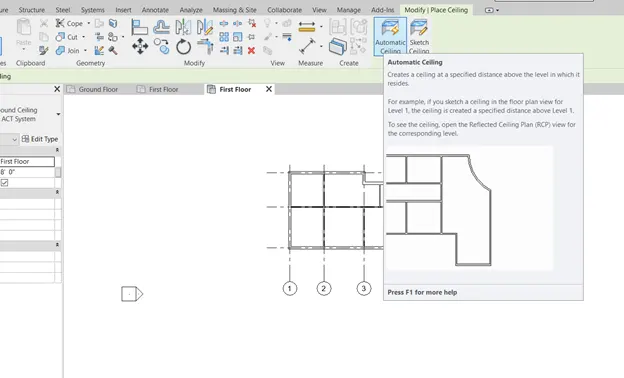

Step3: Now select the celling tool in architecture tab and then click on automatic celling to place celling use cursor and select the type of celling in properties.

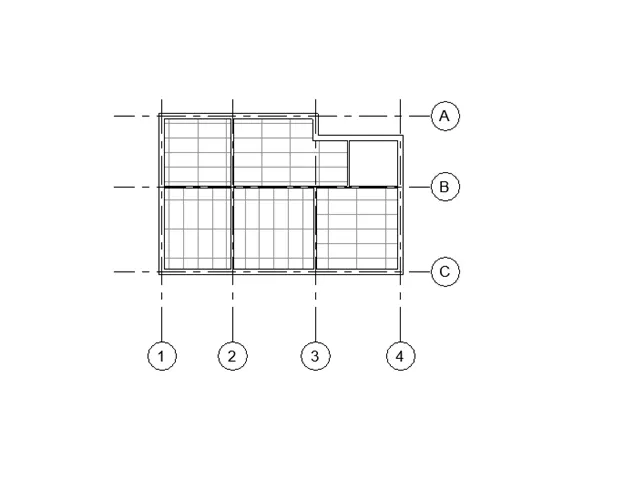

Step4: Then the grid celling will be placed like this.
RESULT: Celling is added to the layout successfully and it will look like below in 3D view.
2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
AIM: To model a roof above the ceiling by selecting the footprints of the ceiling & adjust the roof slope to 10 degrees.
Tools Used: Previous file, roof by footprint, properties palette, project browser.
Procedure:
Step1: Open previous file

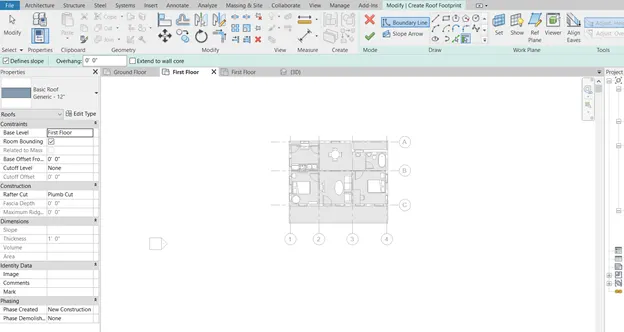

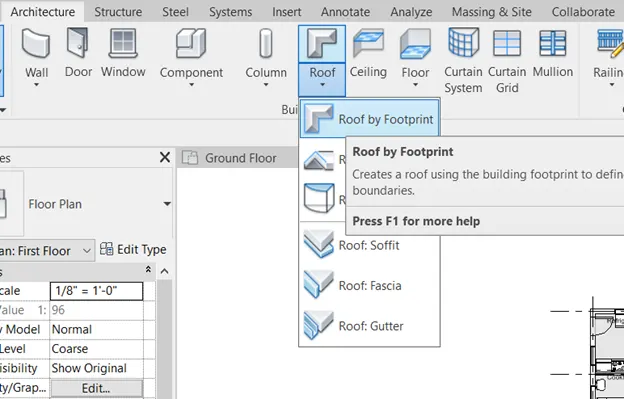

Step2: Now click on roof by footprint in architecture tab to create footprint roof

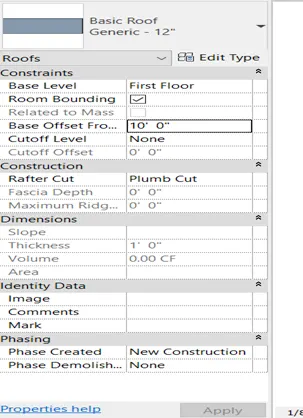

Step3: Now change the properties and material using property palette.
Step4: Using the draw tools appeared in ribbon bar and draw the roof to be created in the layout.

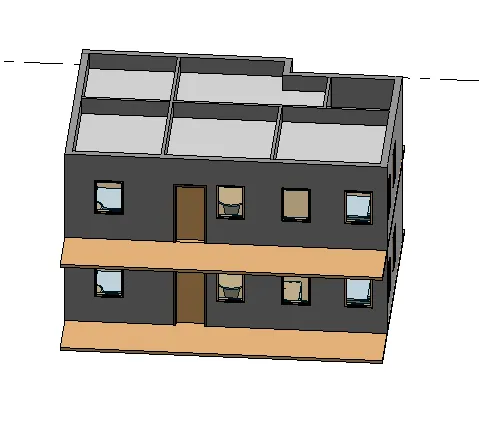

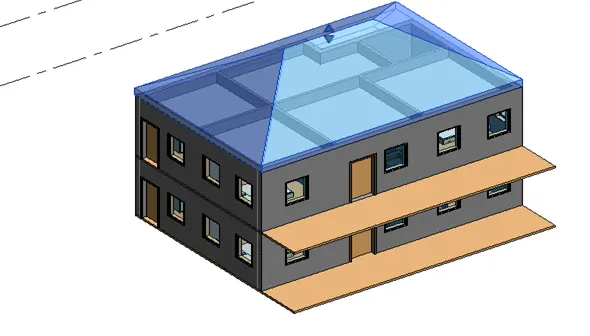

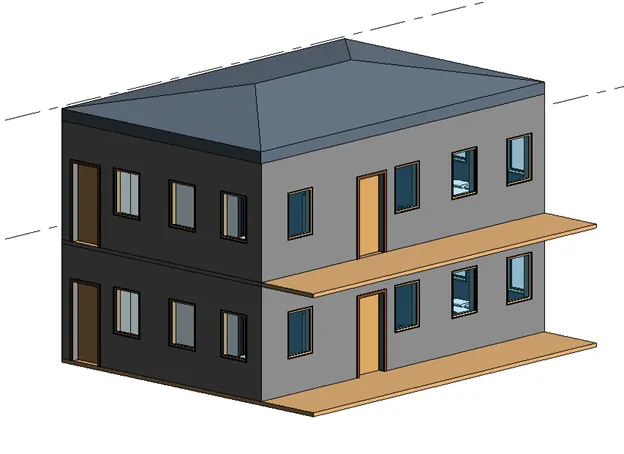

Step5: After drawing click on finish and it will looks like this in 3D view.

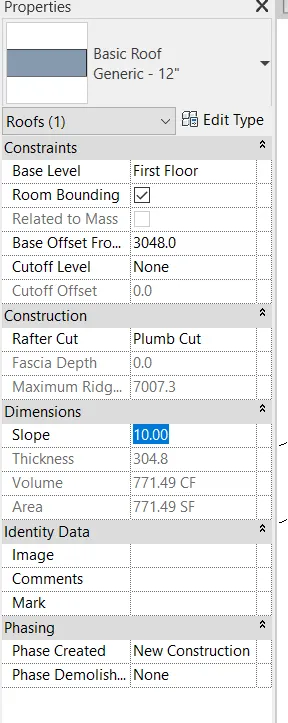

Step6: Now use properties to change the slope to 10 Degrees.
RESULT: Finally, roof by footprint had been created to the layout.
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
AIM: To Separate the created plan views for ground floor level and first-floor level including all the walls, floors, and components to architecture and structural plans.
Tools Used: open, view tab, plan views, architectural and structural view.
Procedure:
Step1: Open the previous file.

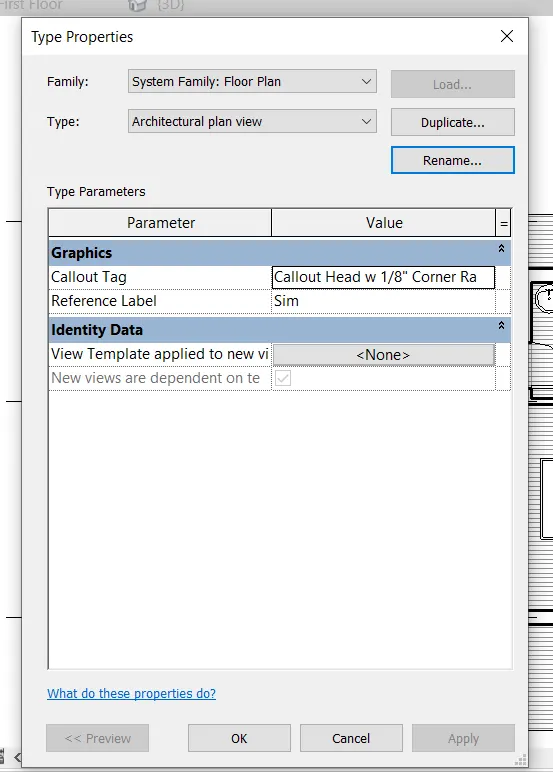

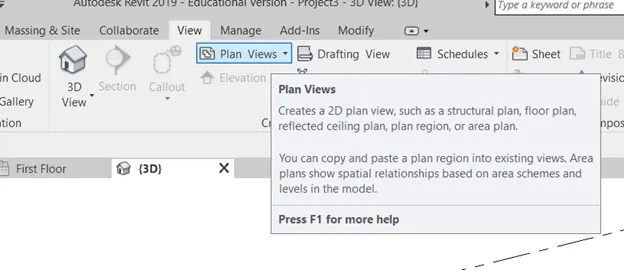

Step2: Go to view tab and click on plan views and in the list click on floor plans and change the name to architectural plans in the properties.

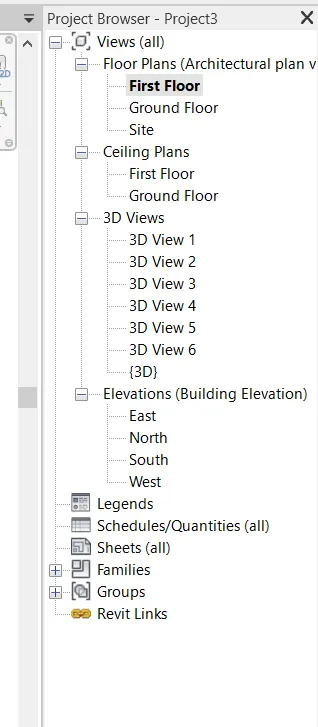

Step3: Then see the project browser that floor plans is renamed to architectural plans.

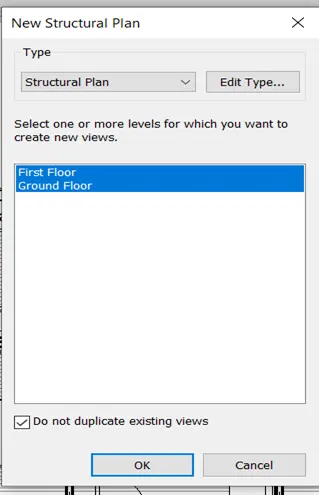

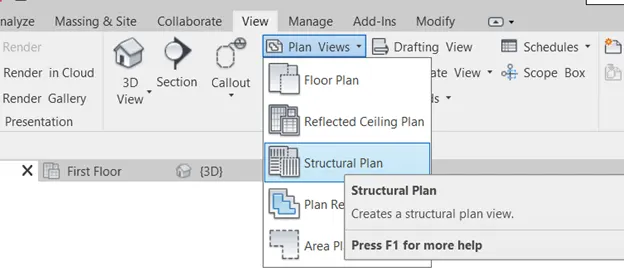

Step4: Again in plan views list click on structural plans then a dialogue box appears with structural views select them and click on ok.

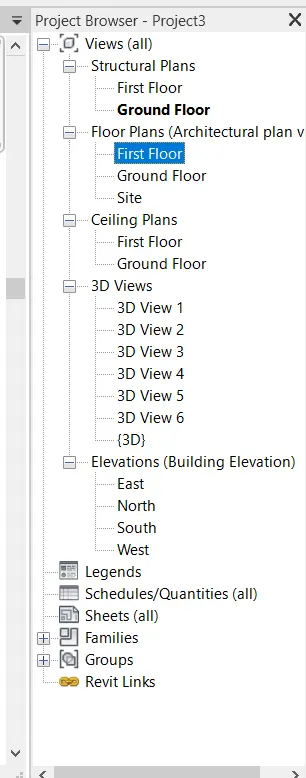

Step5: Now structural plan views had been created we can see them in project browser.

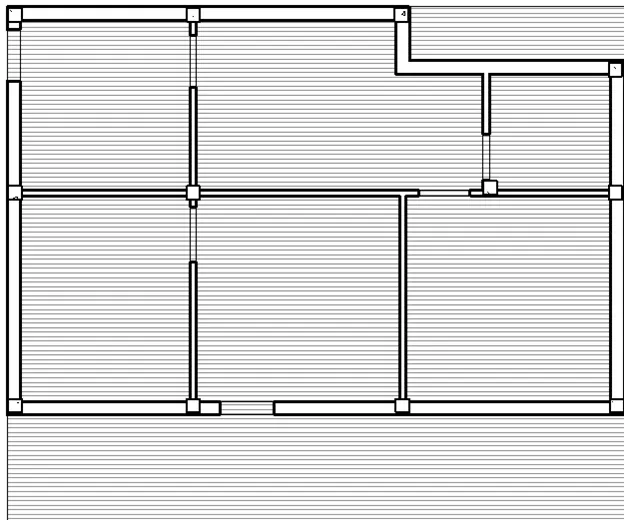

Step6: One of the structural plan will look like this.
RESULT: Successfully separated the architectural and structural plans.
4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
- The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
- The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
AIM: To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.
Tools Used: Open, annotate tab, dimensions, aligned dimensions.
Procedure:

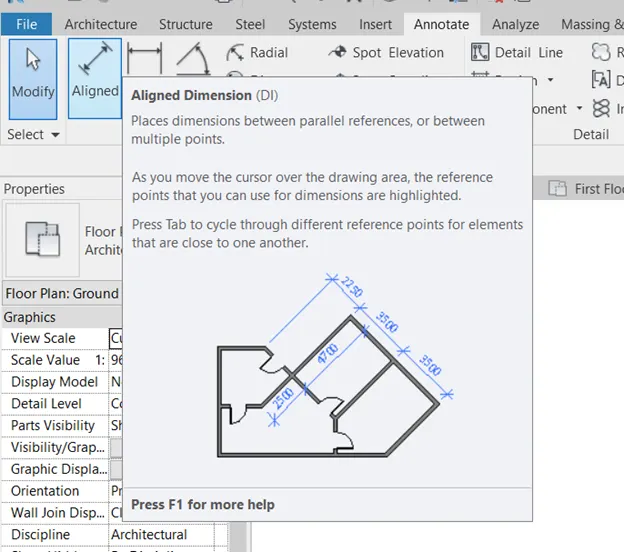

Step1:Open the previous file and click on Annotate tab and click on aligned dimension tool in dimensions panel.

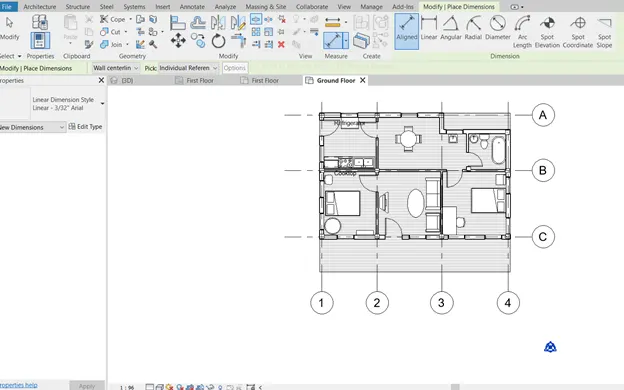

Step2: Screen will appear like this and use the cursor to create dimensions with reference of grids created before and place the dimensions of whole rooms and furniture distance from grids.

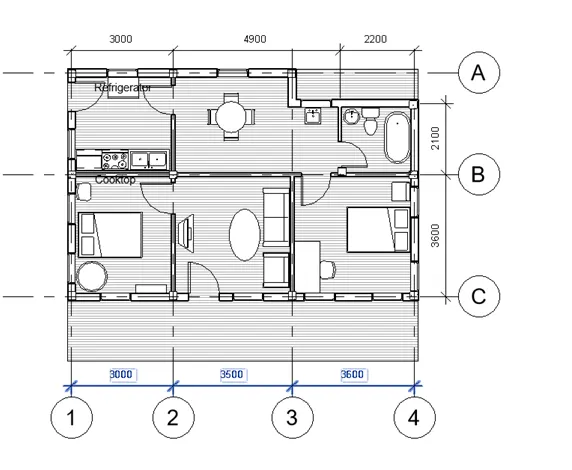

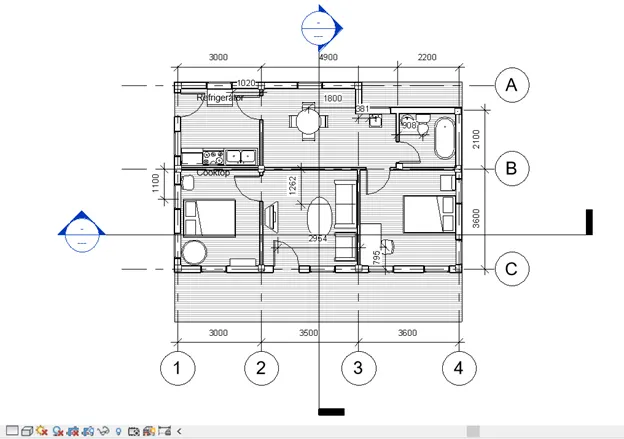

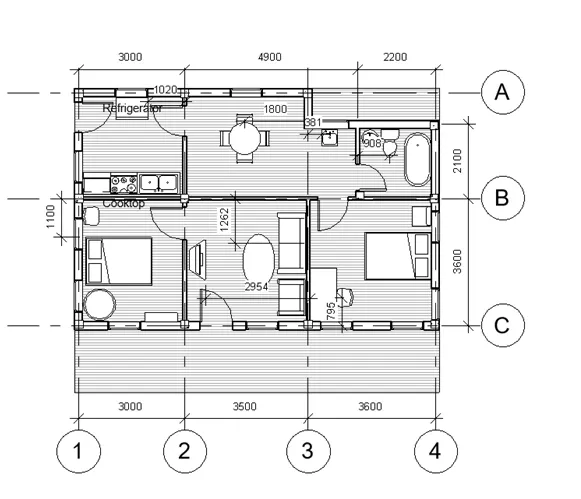

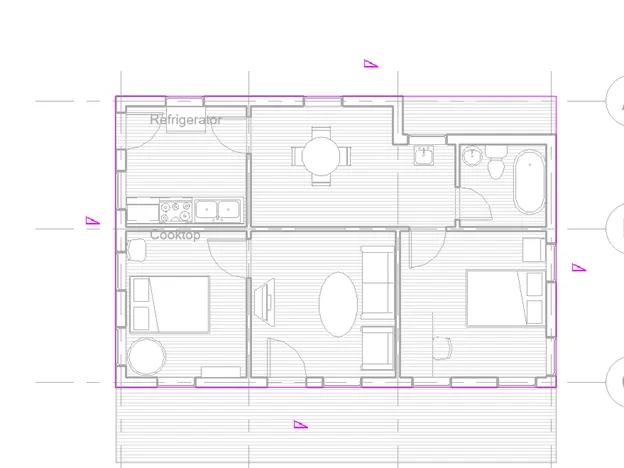

Step3: Finally, dimensions are placed in the architectural plan view.

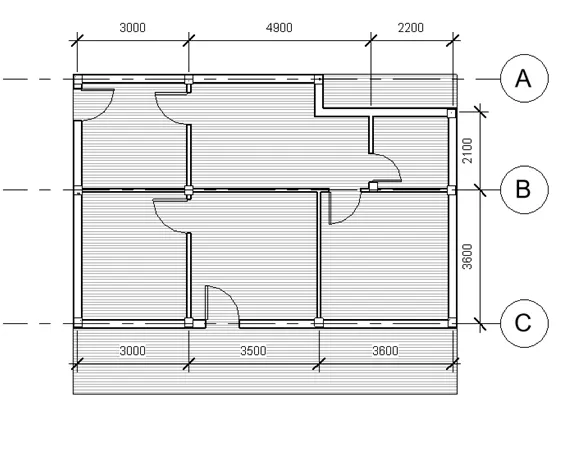

Step4: Similarly, create the dimensions to the structural floor plan view also in the above procedure with reference to the grids.
RESULT: Finally, dimensions are placed to both architectural and structural plan views of the layout created.
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
AIM: To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Tools Used: Open, View tab, Sheets, Project browse.
Procedure:

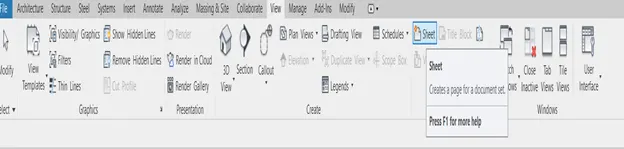

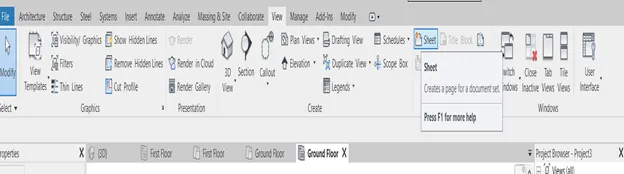

Step1: Open the previous file and in view tab select the sheets in create panel to create sheets.

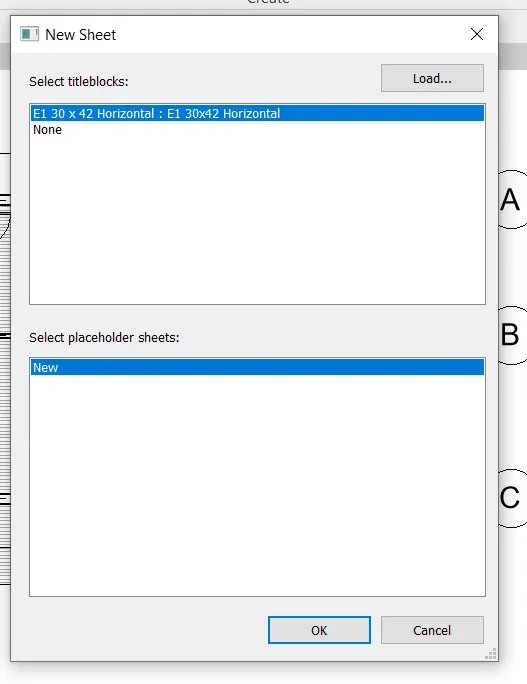

Step2: Then a window will appear that select the sheet required or load them if required sheet is not there.

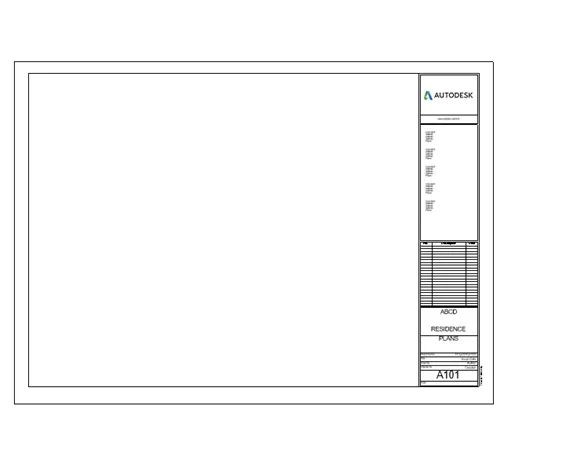

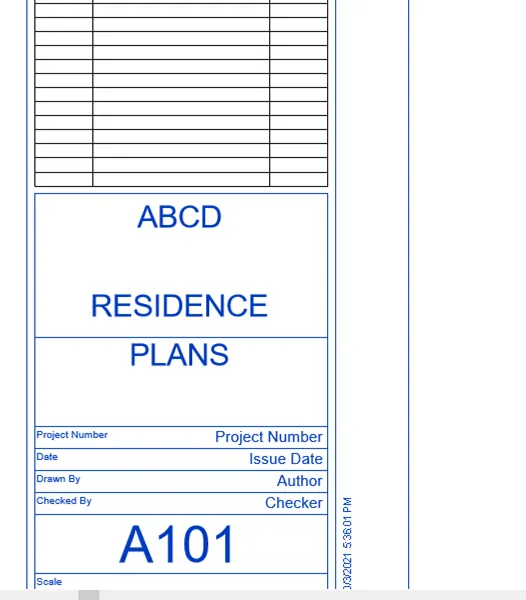

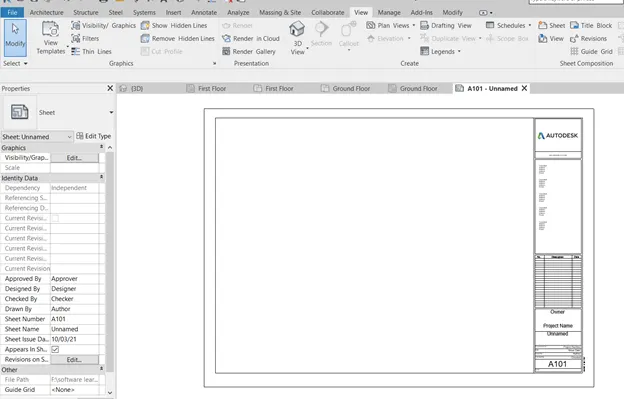

Step3: Then the created sheet will appear like this.

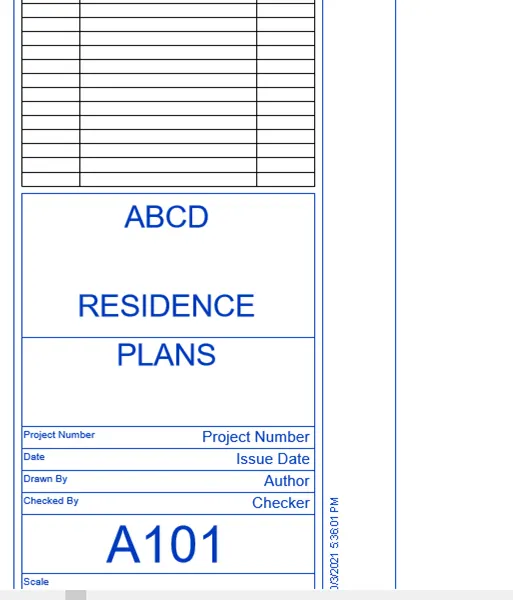

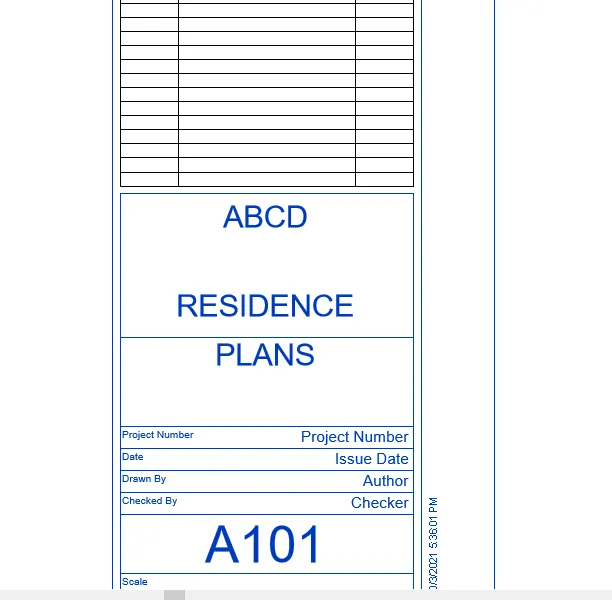

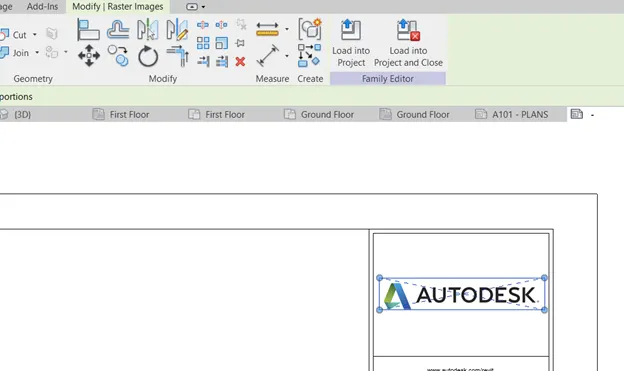

Step4: If the created sheet is not as required then edit the sheet by double clicking on it and edit the info like project name, client, sheet No etc.,
Step5: Then Finally load in the project.
RESULT: Finally, created a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
AIM: To create the elevation views of layout from East, North, South, and West using elevation views.
Tools Used: View tab, Elevation views, sheets.
Procedure:

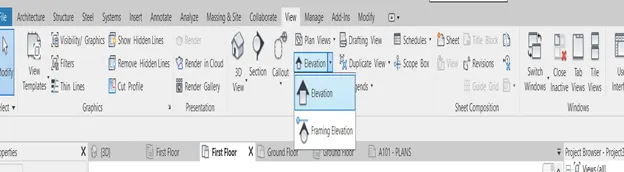

Step1: Open the previous file and click on elevations in view tab to create the elevation views for the layout.

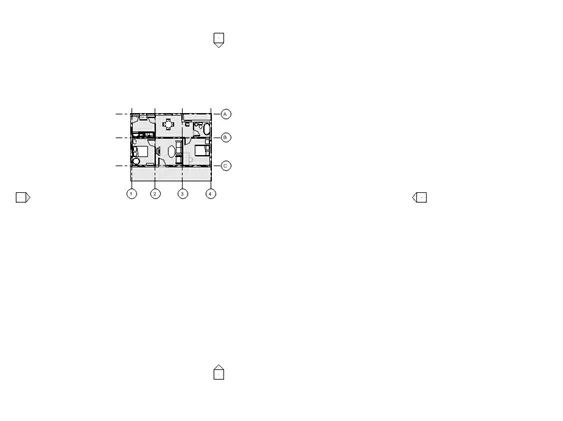

Step2: Use the cursor to place the elevations in North, South, East and West direction.

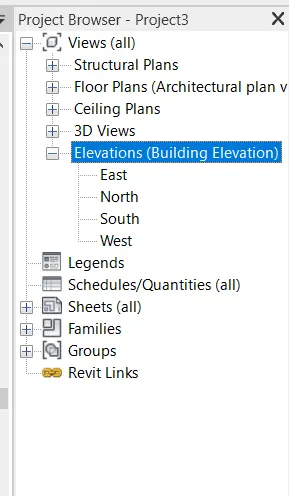

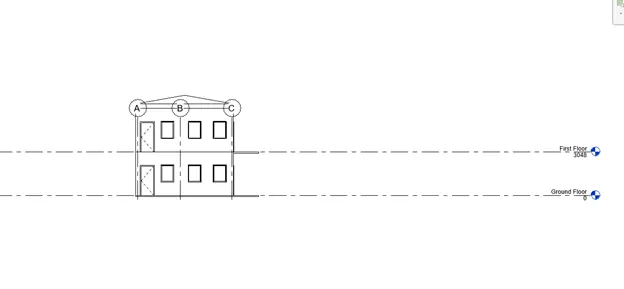

Step3: After creating the elevations in the project browser it will looks like this and open each elevation view to see how they are.

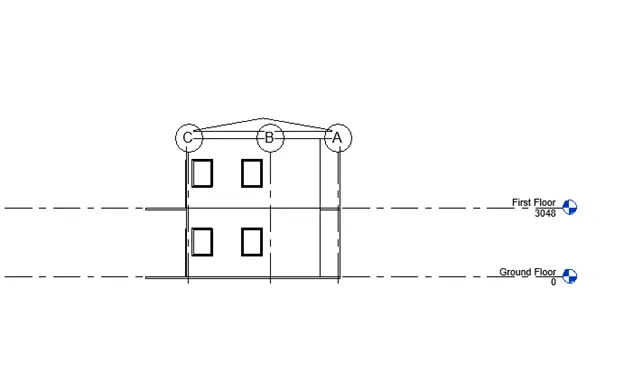

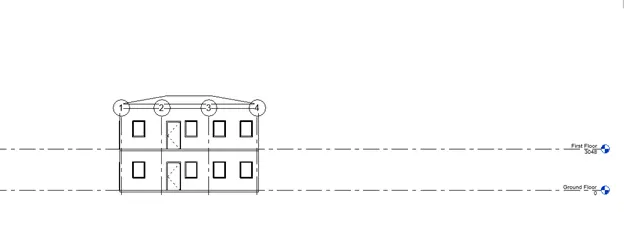

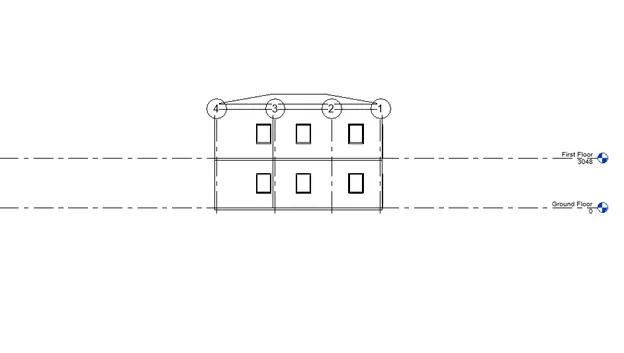

EAST:
WEST:
NORTH:
SOUTH:
RESULT: By this we had created the elevation views into the layout.
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM: To produce section cut through each room either cutting across longitudinally or in a transverse direction.
Tools Used: View tab, section, project browser.
Procedure:

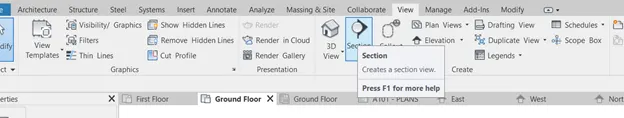

Step1: Open the previous file click on section tool in the view tab of create panel.
Step2: Now use the cursor to place the sectional view in the layout both longitudinally and transversely.

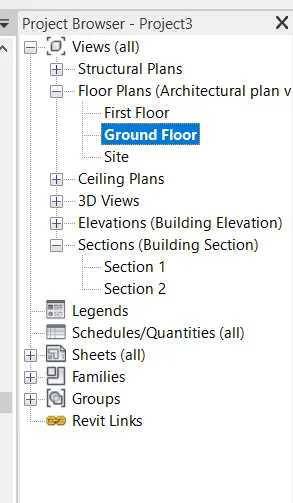

Step3: Now in project browser sectional views had been created.

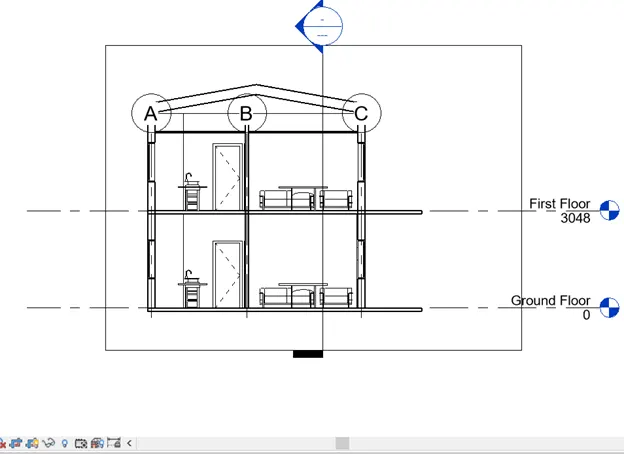

SECTION1:

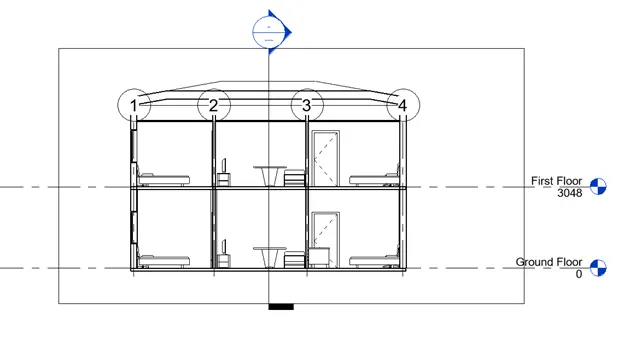

Section2:
RESULT: Finally, we had created the sectional views longitudinally and transversely to the layout.
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
AIM: To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Views: The ability to see an object in particular place or direction.
Plan views: the appearance of a plan as seen from top or A plan view is a orthographic projection of a 3-dimensional object from the position of a horizontal plane through the object.
Section Views: A section view is a view used on a drawing to show an area or hidden part of an object by cutting away or removing some of that object.
Elevation Views: An elevation is a view of a building seen from one side, a flat representation of one façade. This is the most common view used to describe the external appearance of a building. Each elevation is labelled in relation to the compass direction it faces, e.g. looking toward the north you would be seeing the southern elevation of the building. Buildings are rarely a simple rectangular shape in plan, so a typical elevation may show all the parts of the building that are seen from a particular direction.
Geometrically, an elevation is a horizontal orthographic projection of a building onto a vertical plane, the vertical plane normally being parallel to one side of the building.
Architects also use the word elevation as a synonym for façade, so the "north elevation" is the north-facing wall of the building.
9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
AIM: To create multiple sheets according to the question given.
Tools Used: View Tab, sheets, views, project browser.
Procedure:
Step1: To create sheets go to view tab and select sheets in the create panel.
Step2: Select the sheet from the dialogue box appeared.
Step3: Sheet had been opened change the details as required.

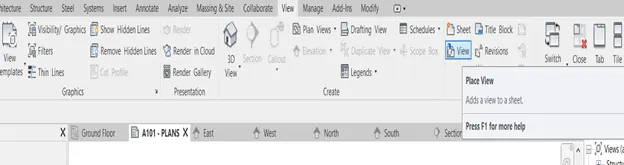

Step4: Now select the view in view tab in create panel to place the views in sheets.

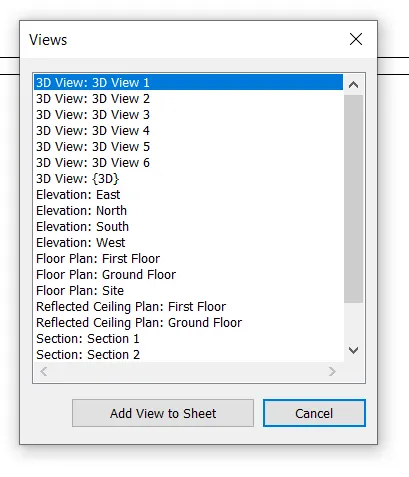

Step5: Now a dialogue box will appear their select the view to be placed in the sheet.
Result: Finally, sheets of given views are created and presented below.

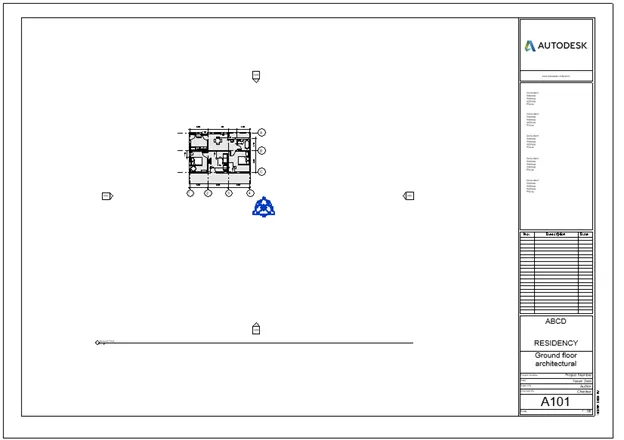

a. A 101- Ground Floor Architecture Plan

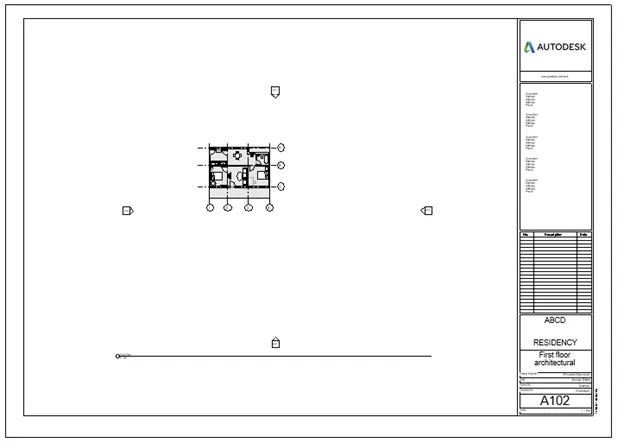

b. A 102- First Floor Architecture Plan

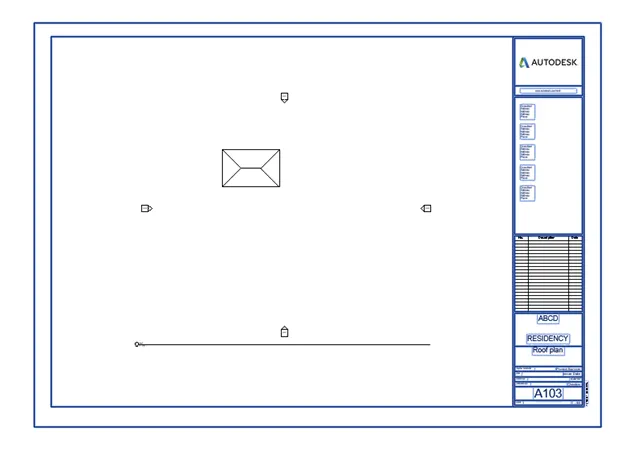

c. A 103- Roof Plan

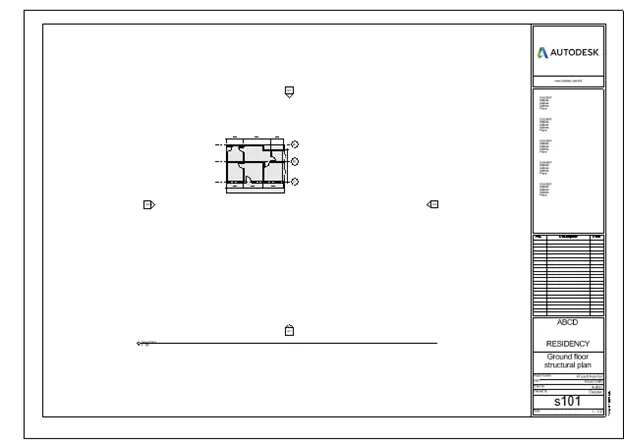

d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan

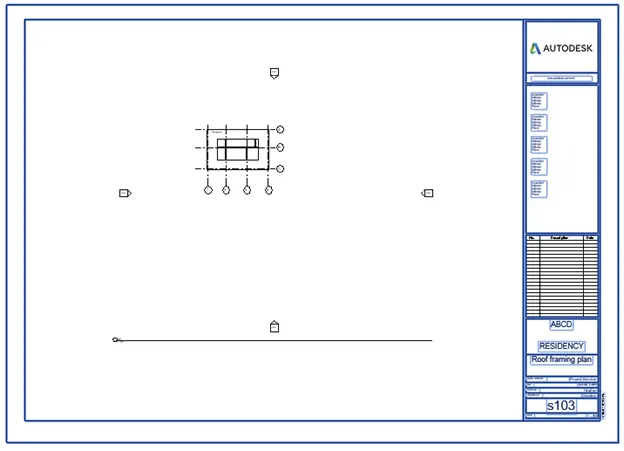

f. S 103- Roof Framing Plan

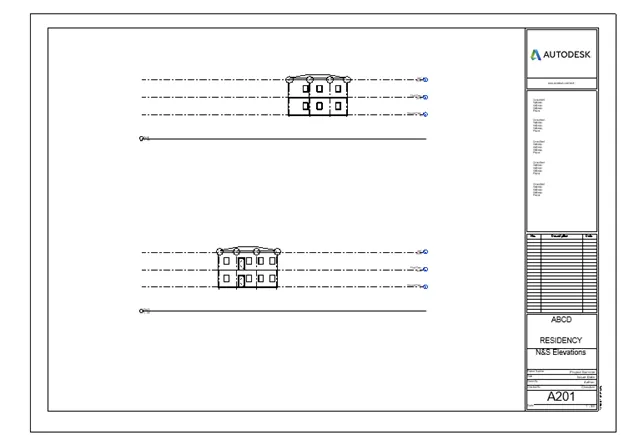

g. A-201- North-South Elevations

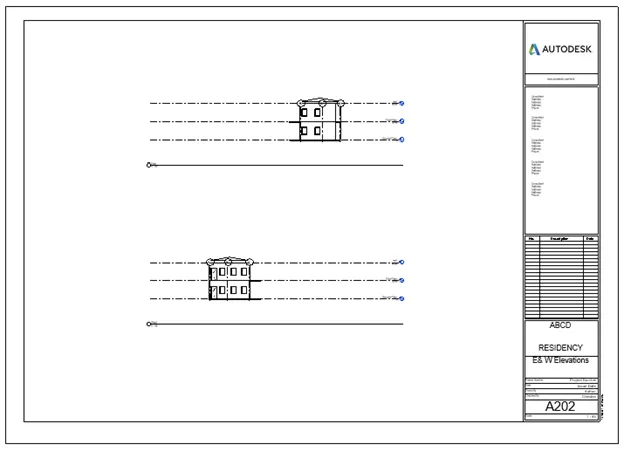

h. A-202- East-West Elevations
10) Create a camera-specific view or a 3D view in each room (living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets as possible after, 502, 503... n) to place the 3D view images. Produce the sheets as a part of project drafting.
AIM: To create a camera-specific view and produce the sheets as a part of project drafting.
Tools Used: View tab, camera, sheets, project browser.
Procedure:

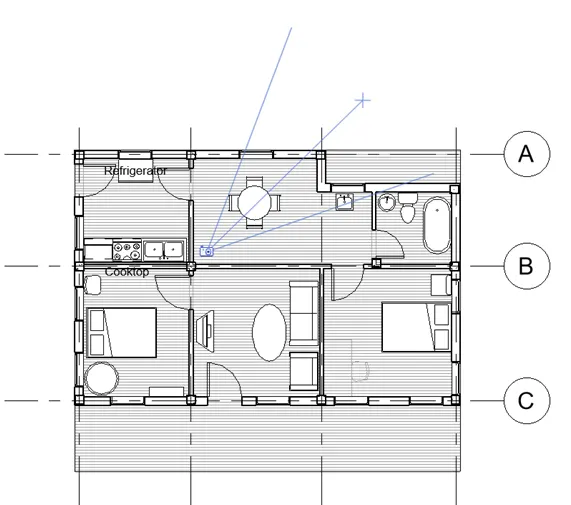

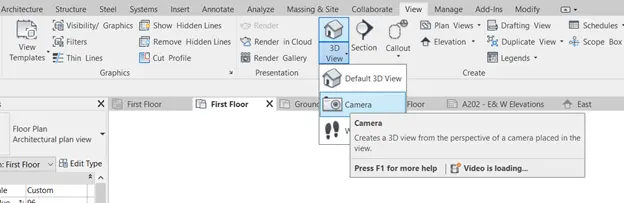

Step1: Open the previous file and use the camera tool in view tab and use cursor to place the camera in the plan view where the 3D camera view to be created and we can change the offset of eyepiece in options bar to adjust the view range.

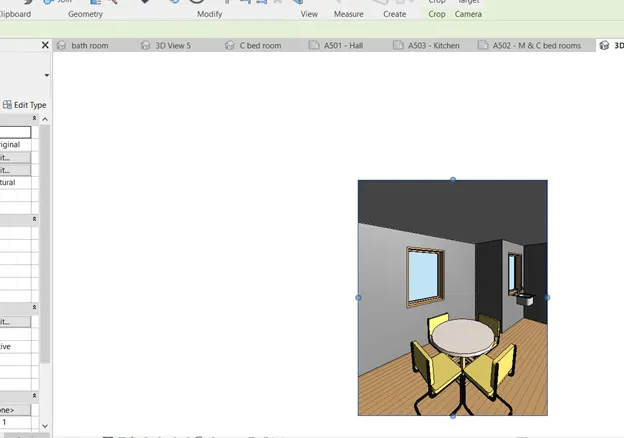

Step2: Now it will be visualized like this.
Step3: create the camera views of different rooms like hall, bedroom, kitchen etc.
Step4: Now create the sheets as discussed above question and place the camera views in the sheet created and edit the info as required.
Step5: Now the sheets are created for different camera views of different rooms.

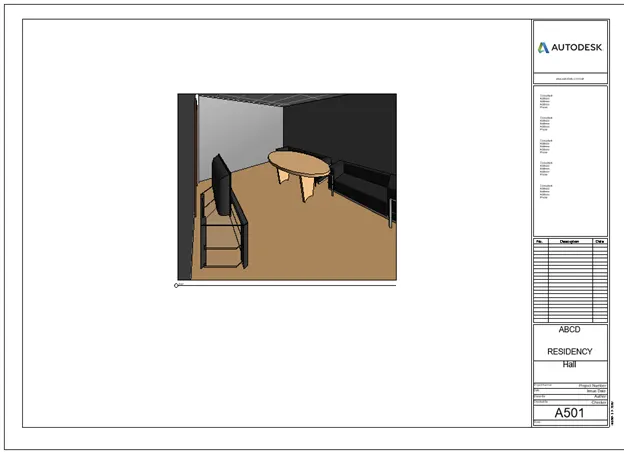

HALL:

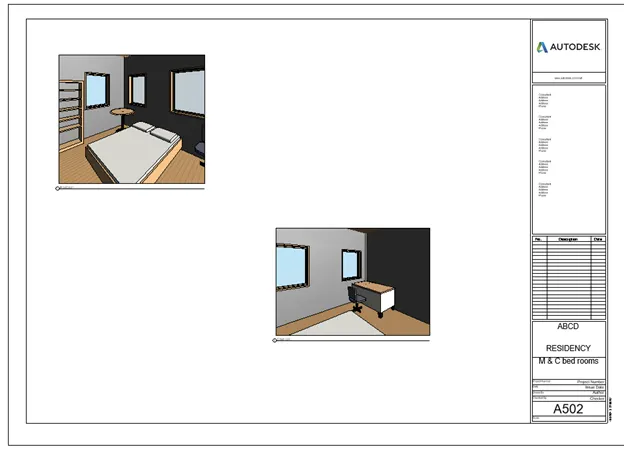

Bed rooms:

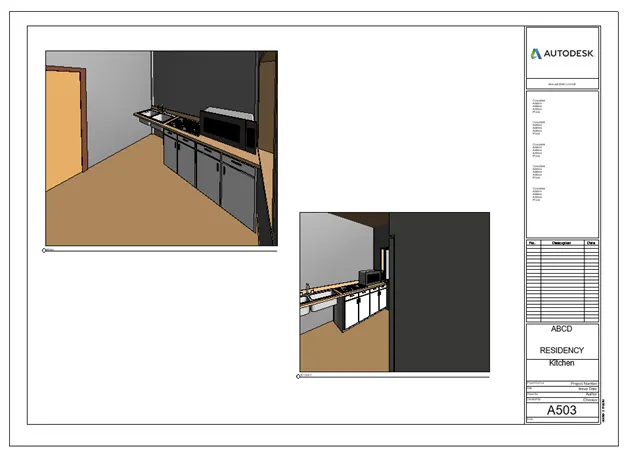

Kitchen:
RESULT: By this we had created different sheets by placing the camera view of different rooms in the project.
