3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Aim 1:

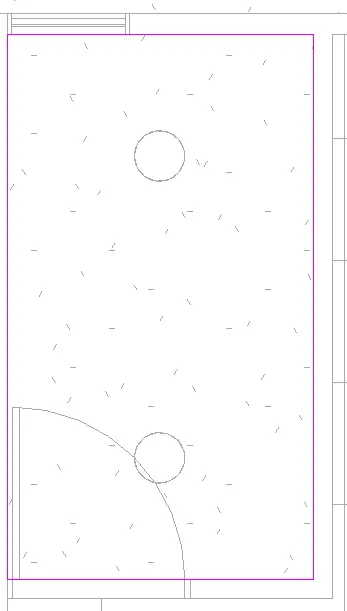

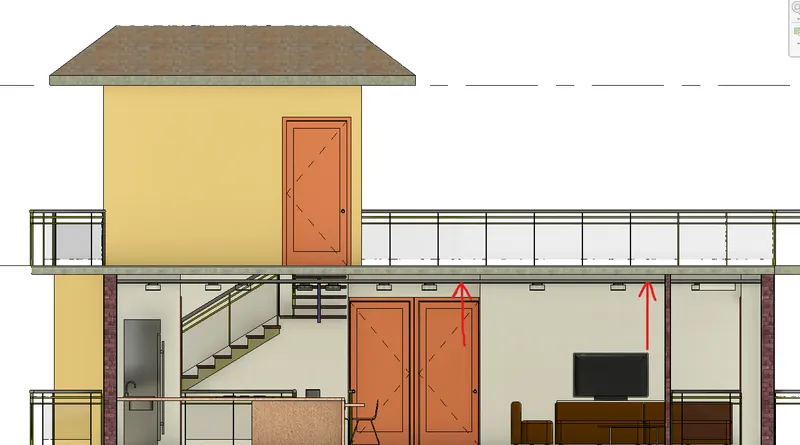

Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

Procedure:

1. open the First Floor Ceiling Plan.

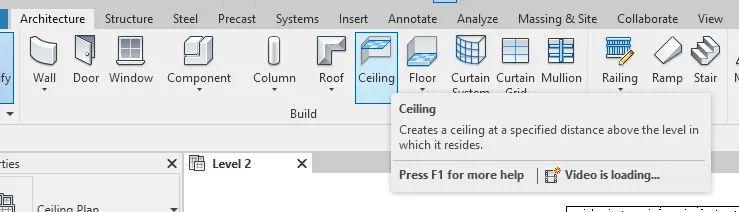

2. Select the Ceiling tool in Architectural tab.
   •

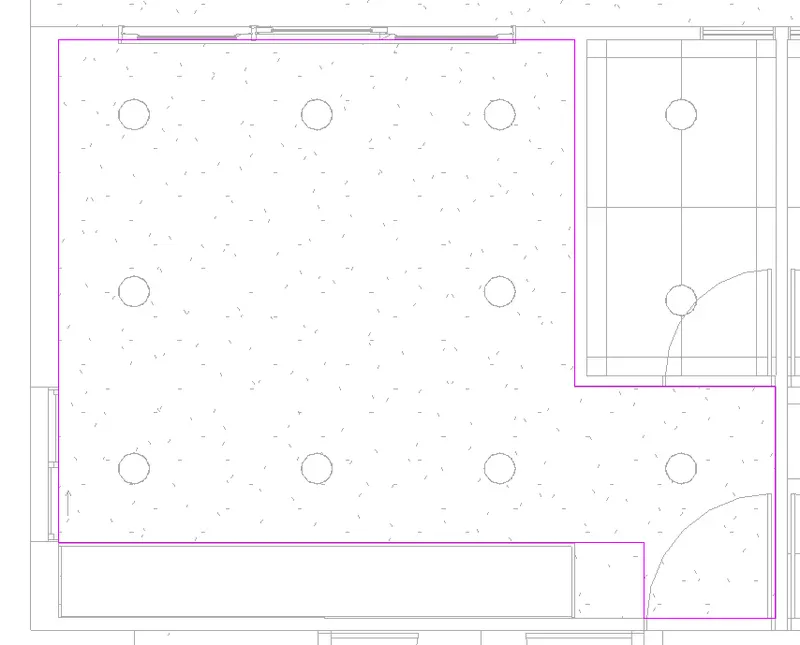

3. Draw the Ceiling for Bed room 1.
   •

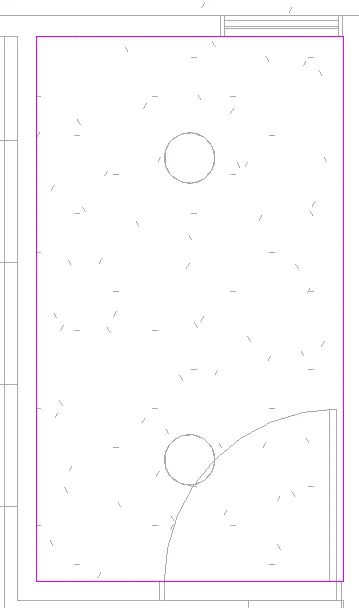

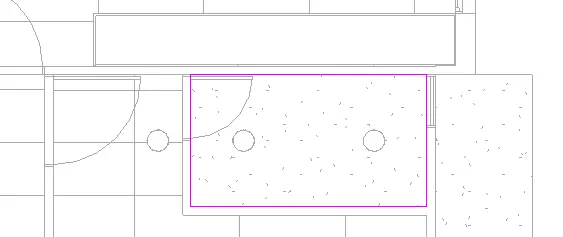

4. Now again choose the ceiling tool and draw ceiling in Toilet Area.
   •
5. Now again choose the ceiling tool and draw ceiling in Toilet Area.
   •

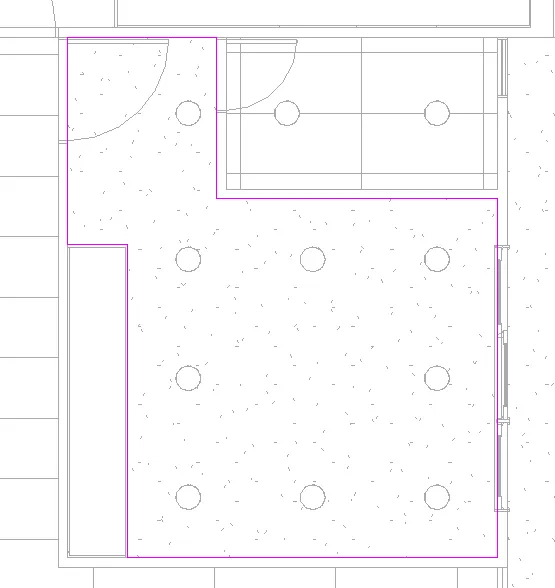

6. Now again choose the ceiling tool and draw ceiling in Bedroom.
   •
7. Noe again choose the ceiling tool and draw the ceiling in toilet of bedroom.
   •

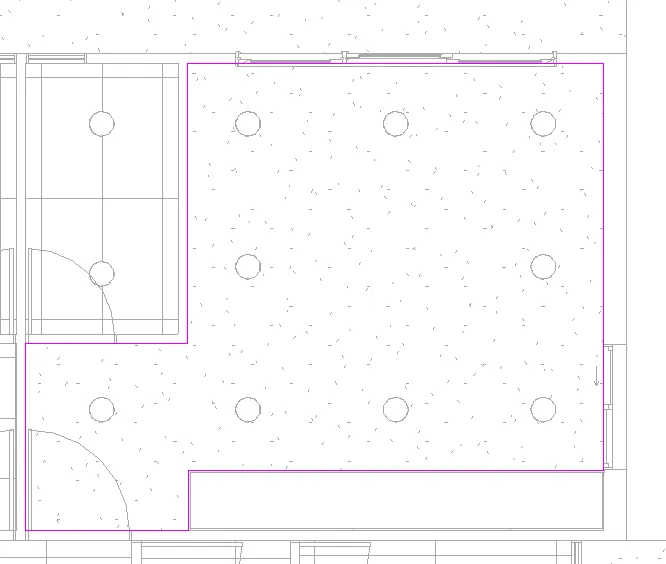

8. Now again choose the ceiling tool and draw the ceiling in bedroom.
   •

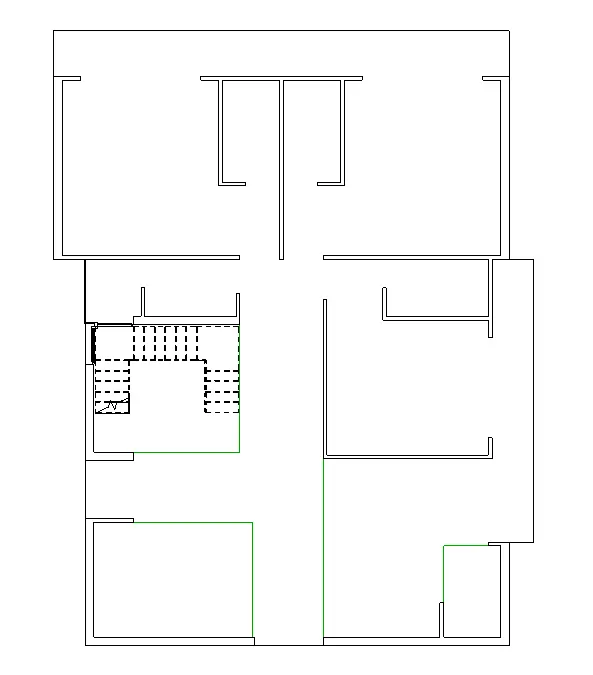

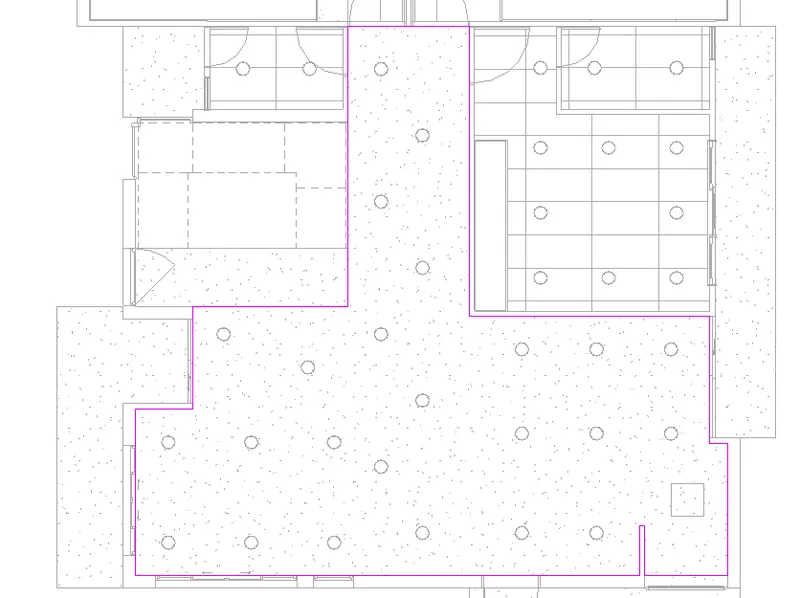

9. Now draw the ceiling in the remaining area where ever required.
   •

Result :

Ceiling is successfully drawn at first floor.

Aim 2:

Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

Procedure:

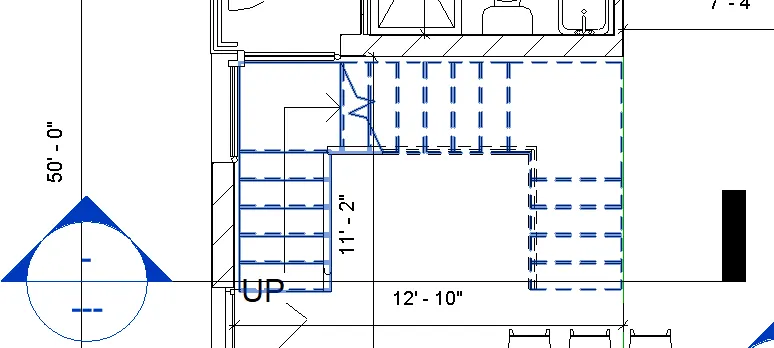

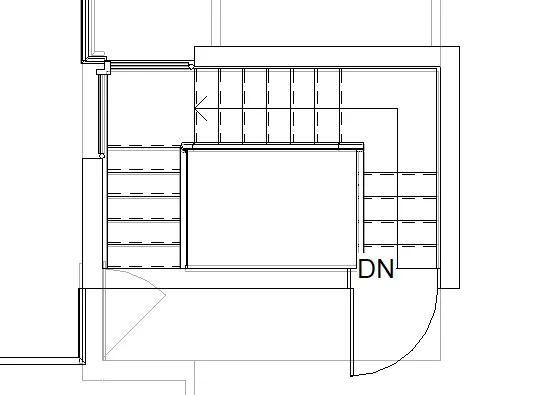

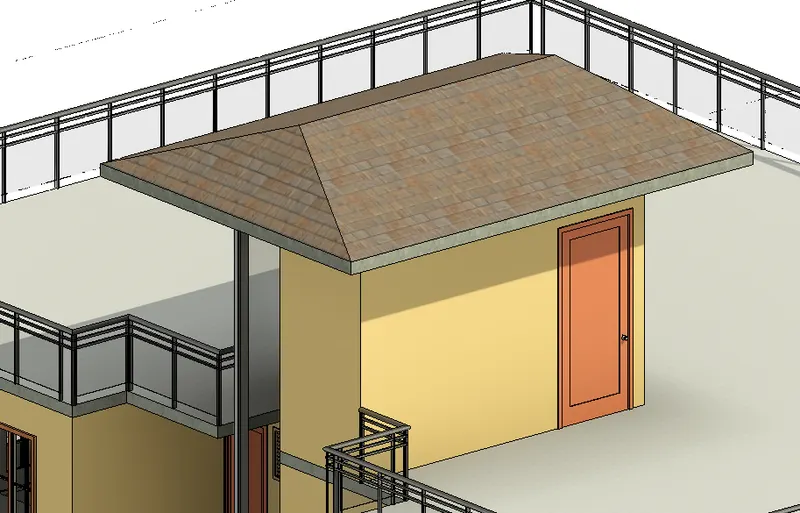

1. Open the top View of the Stair-Case.
   •

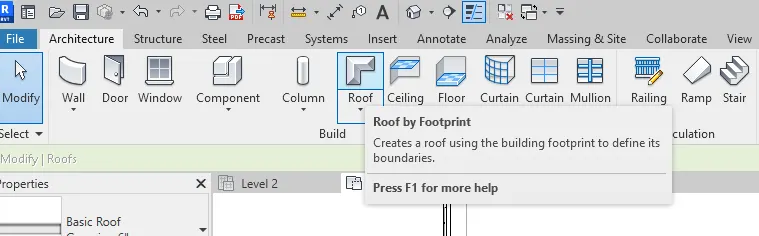

2. Noe select the roof tool in Architecture Tab.
   •

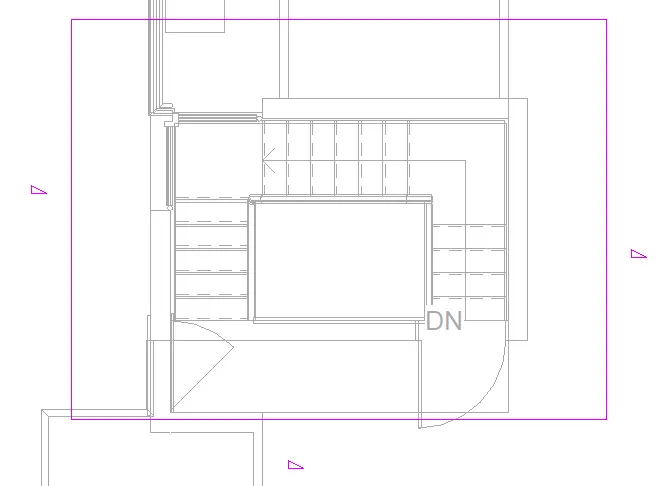

3. Now Draw the Roof on the top of the staircase.
   •
4. Change the slope value to 10 degree.

Result:

Aim 3:

Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building

Procedure:

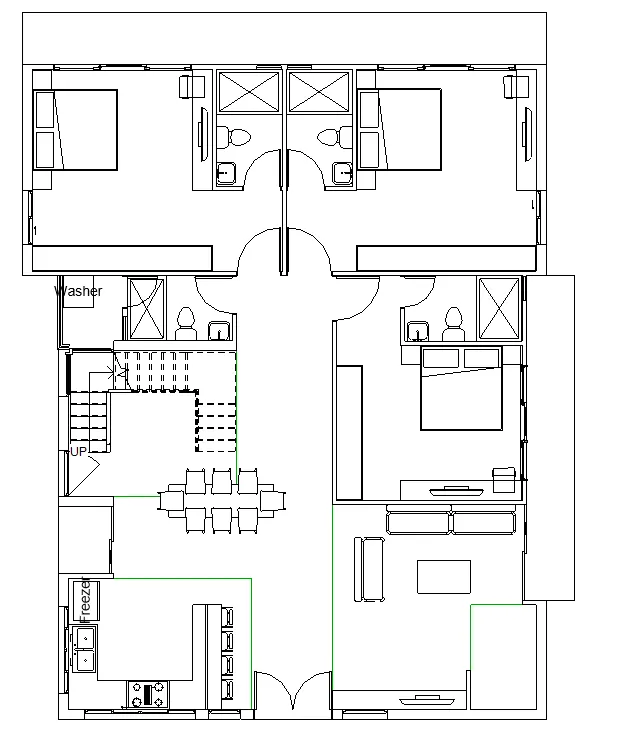

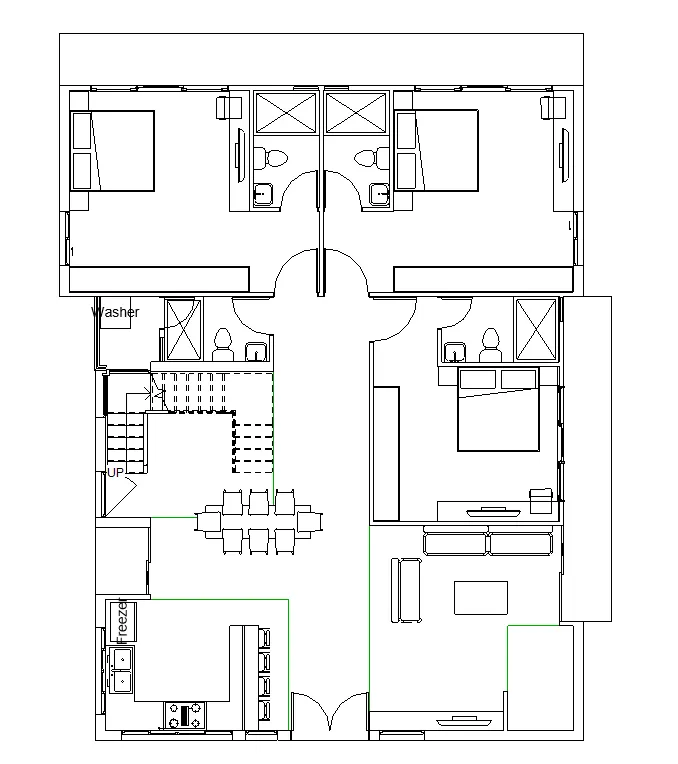

1. Open Ground Floor Plan.
   •
2. This is the Plan have walls, floors, and all the components placed within the building.

b. Structure plan must have details of only walls, floors, and columns

Procedure:

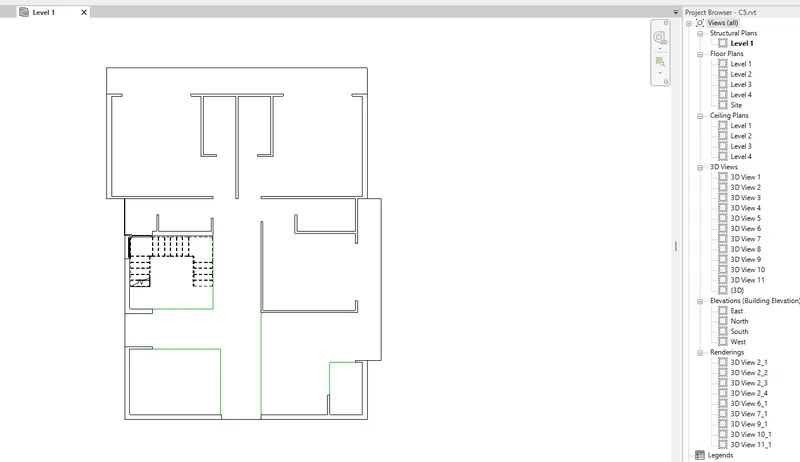

1. Select the View tab:
   •

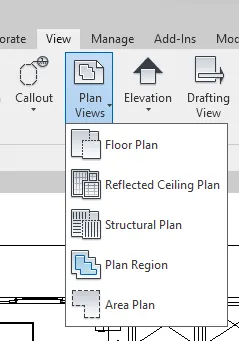

2. Select the plan views option drop down.
   •

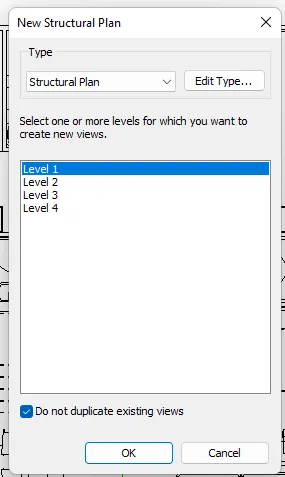

3. Select the Structural plan option.
   •
4. Select level 1 and click ok.
   •

Result:

Both the Floor plan and Structural Plan has been created Successfully.

**There is no column has been placed not required yet so its not visible in the plan.**

Aim 4:

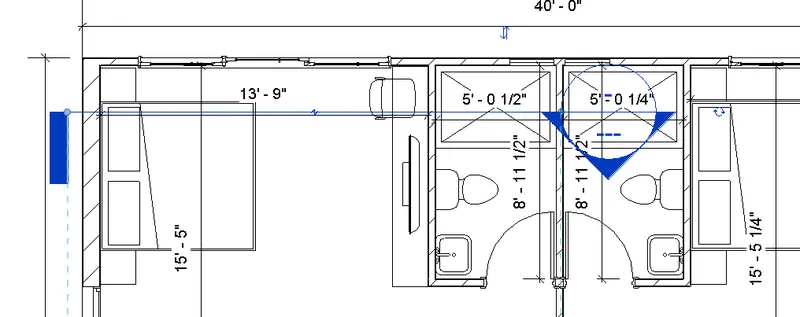

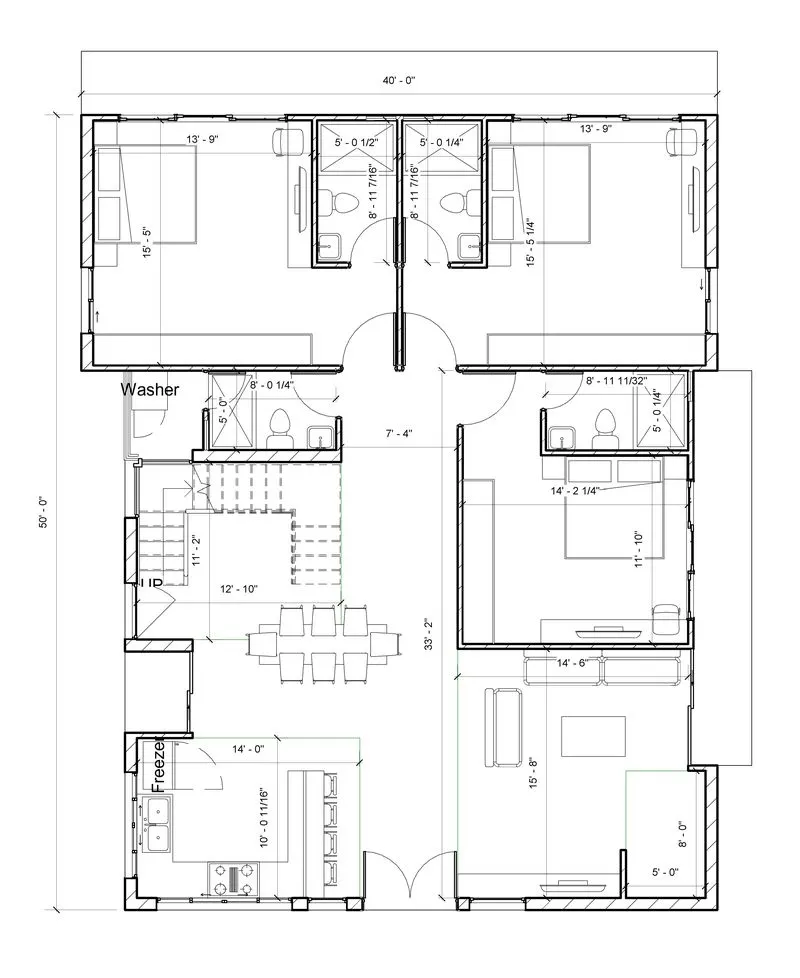

Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids.

Procedure:

1. Go to Annotate tab.
2. Select the Aligned Dimension Tool.
3. Set the Dimension measurement to Wall face.

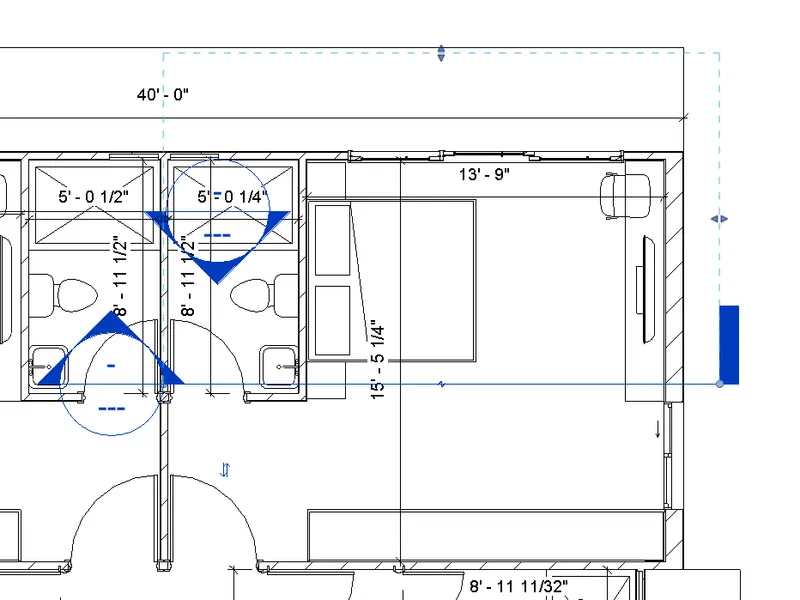

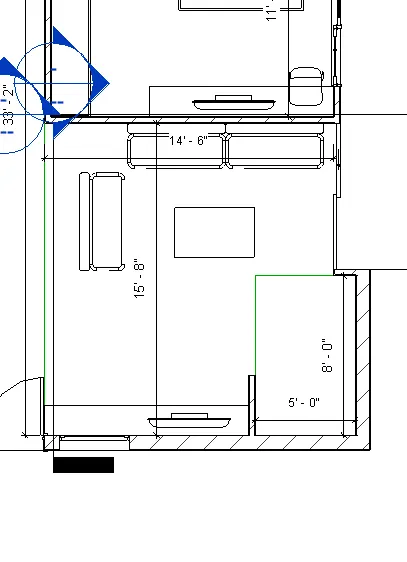

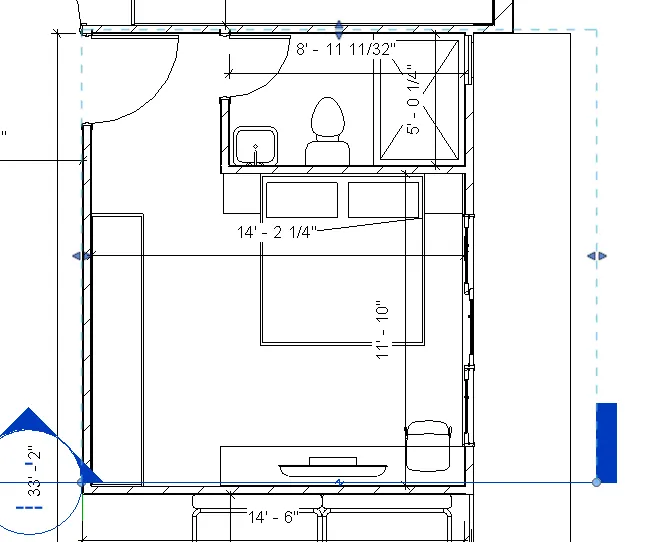

4. Now One by one Select the faces of wall from inside and Dimension the partitions.

Result a:

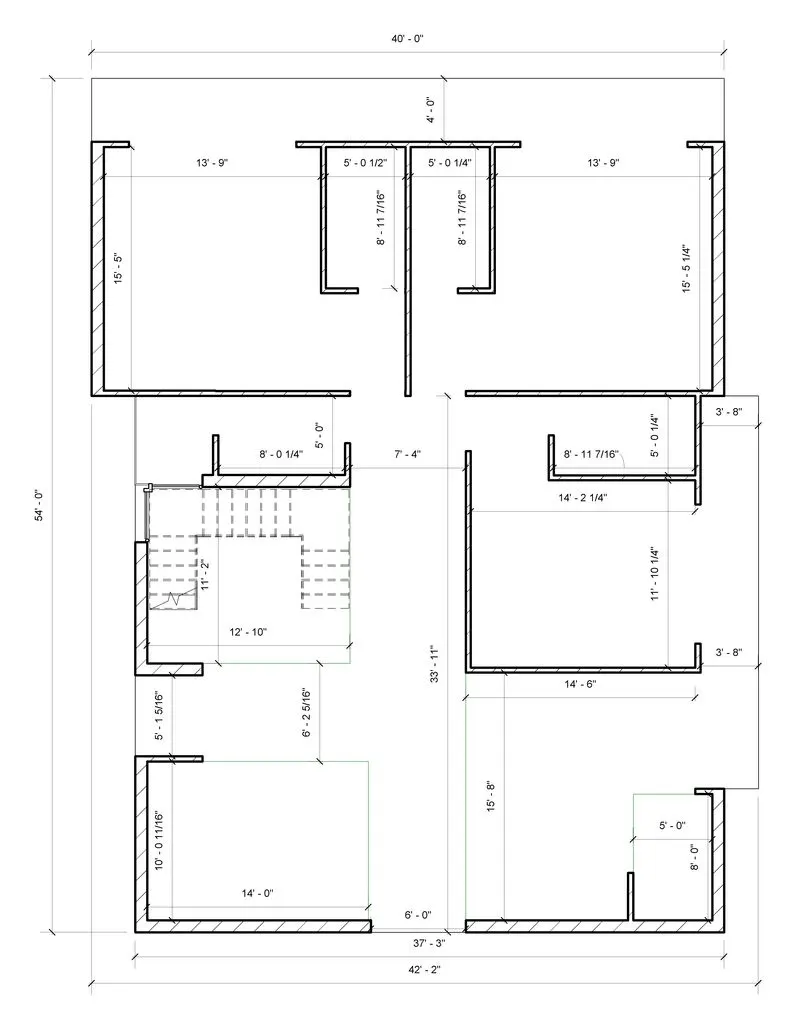

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Procedure:

1. Go to Annotate tab.
2. Select the Aligned Dimension Tool.
3. Set the Dimension measurement to Wall face.
4. Now One by one Select the faces of wall from inside and Dimension the partitions.

Result b:

Aim 5:

Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

Procedure:

1. Goto View tab.
   •

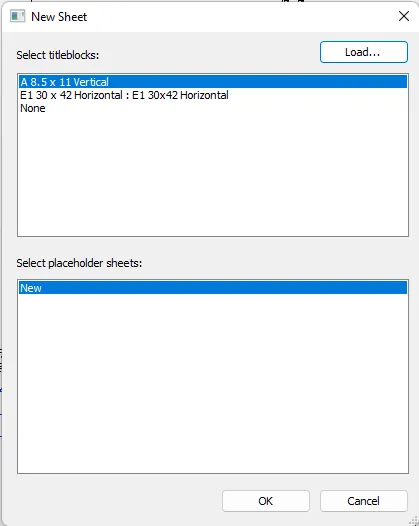

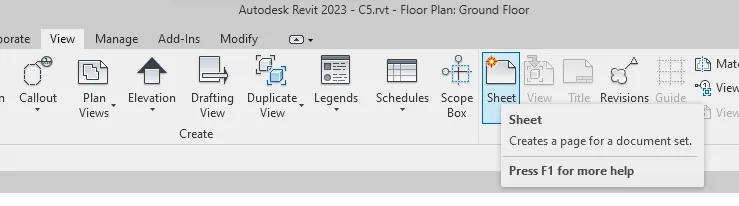

2. Select the sheet tool in View tab.
   •

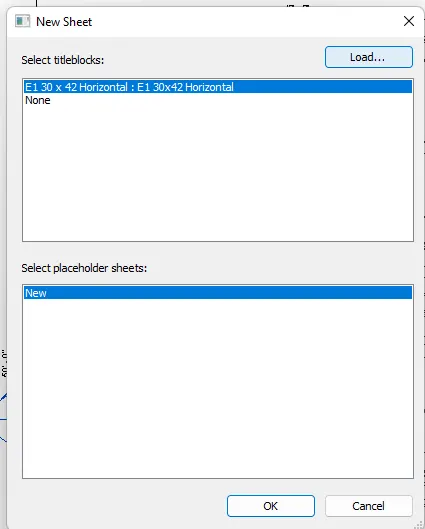

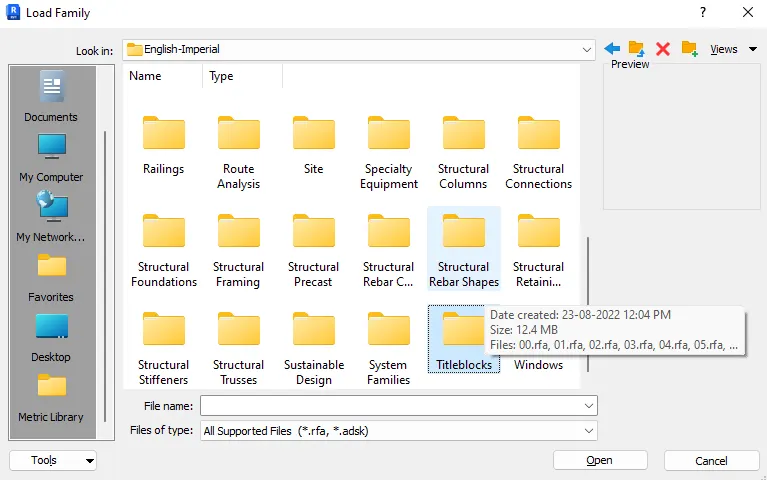

3. Click on Load button on the box.
   •
4. Select Title block in the library.
   •
5. Select Sheet A 8.5 x 11 and click ok.
   •

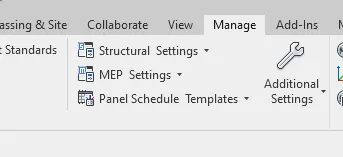

6. Go to Manage tab.
   •

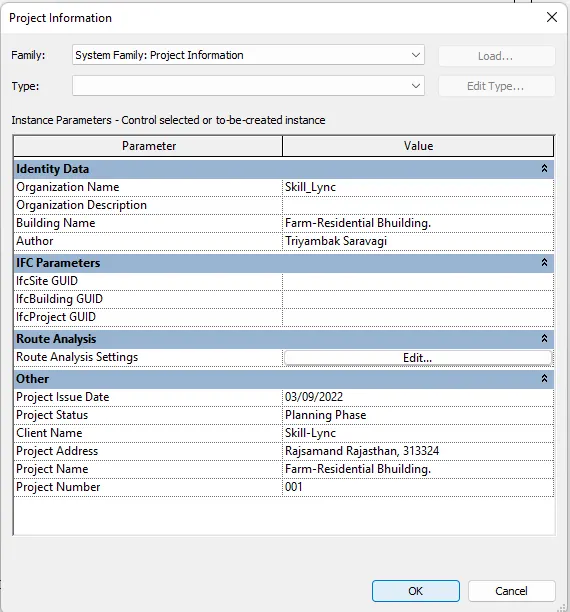

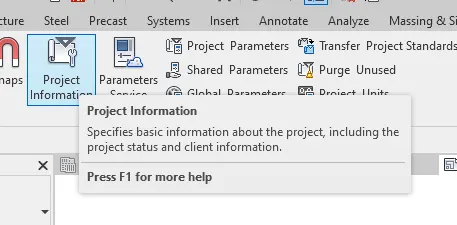

7. Select the Project Information Tool.
   •
8. Now Enter the Details required & click ok.
   •

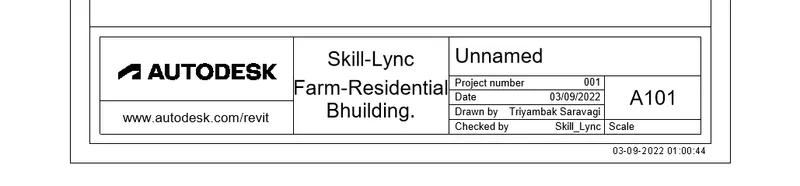

9. All the details has been updated on sheet.
   •

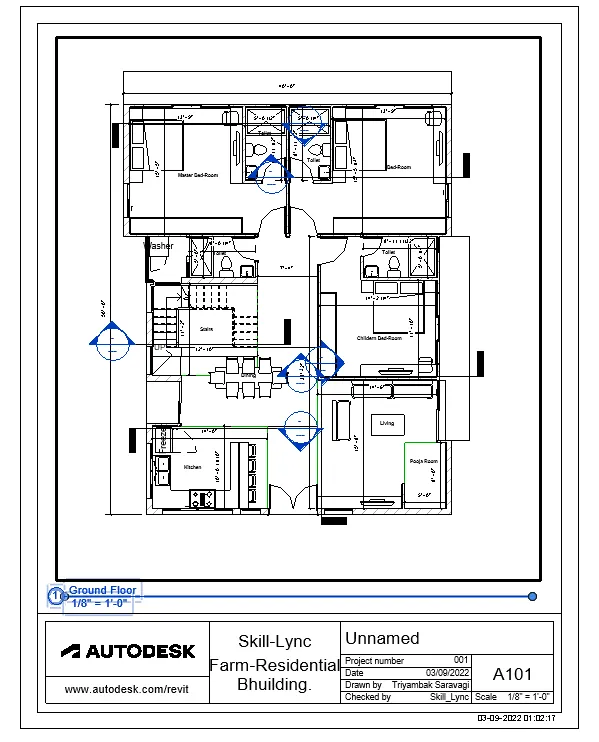

10. Drag & Drop the Ground Floor Plan on the sheet and adjust the parameters on the sheet to add appropriate views.
    •

Result:

Aim 6:

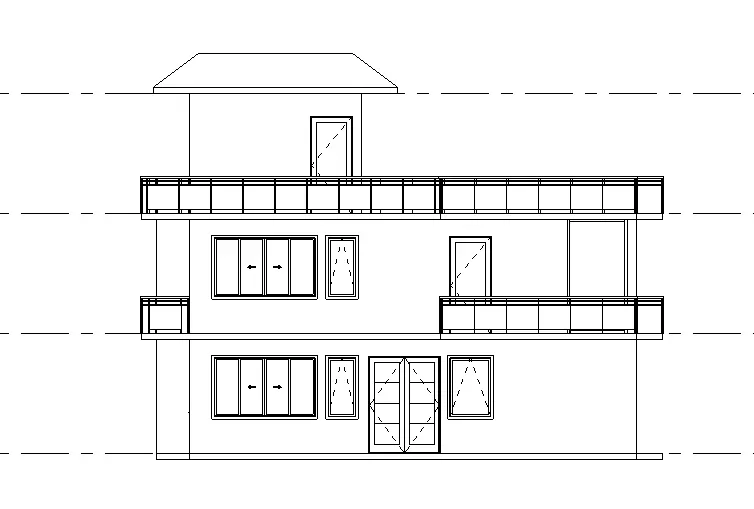

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Procedure:

1. Since By default all four elevation has been given in the project browser.
2. If not than Go to View tab.
   •

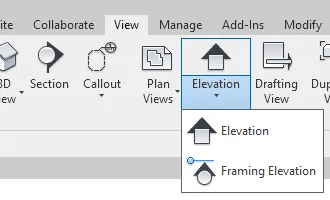

3. Select the elevation drop down.
   •
4. Select elevation and place the elevation view point in the work-plan and rename them as North, South, East, West.

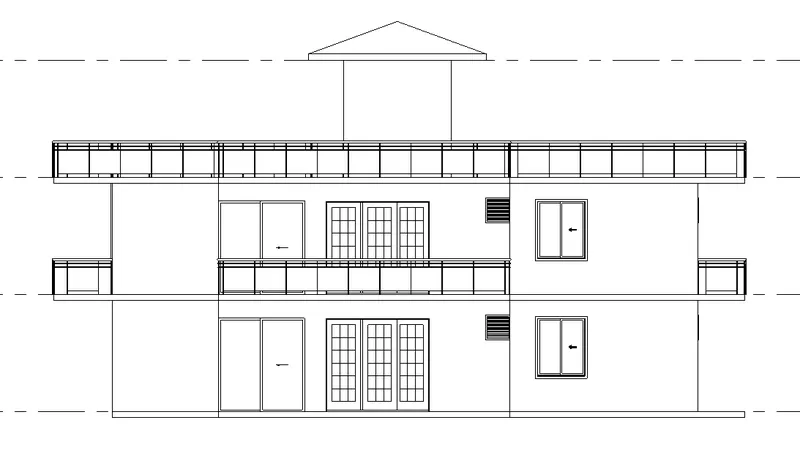

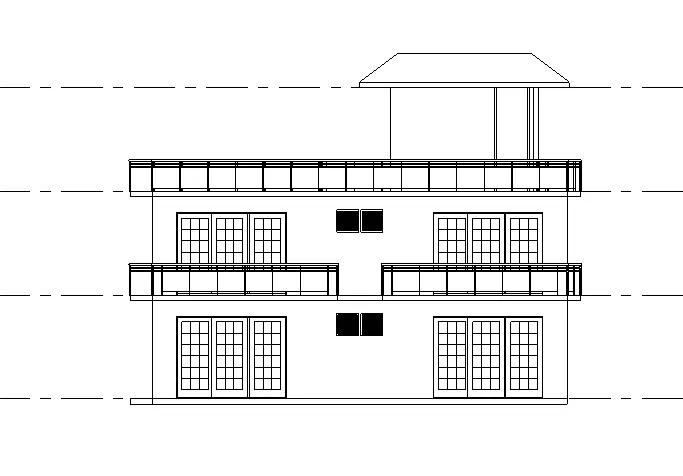

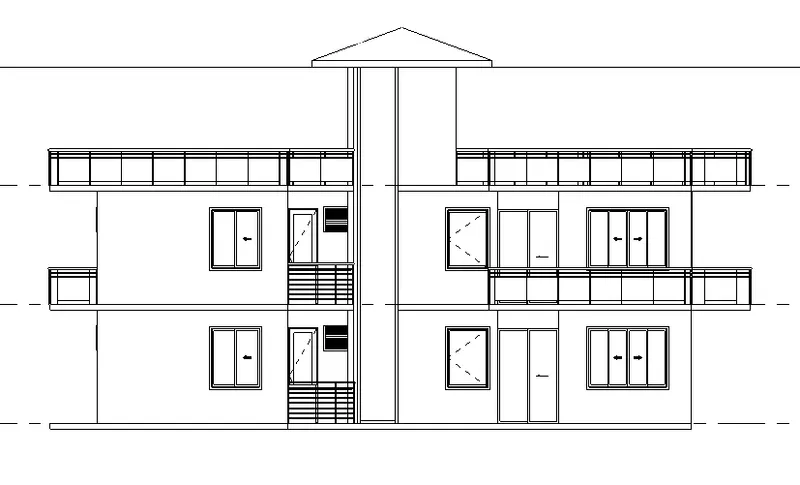

5. Open North Elevation.
   •
6. Open South Elevation.
   •
7. Open East Elevation.
   •
8. Open West Elevation.
   •

Aim 7:

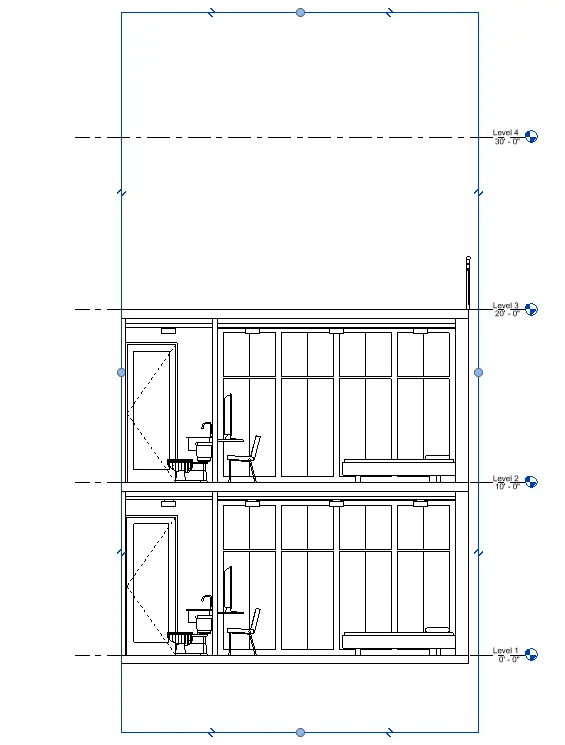

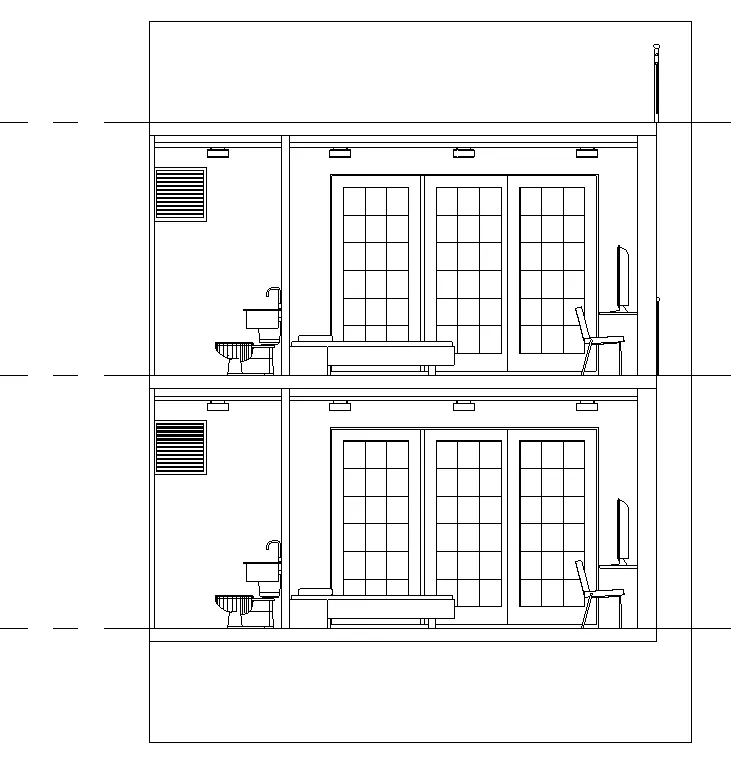

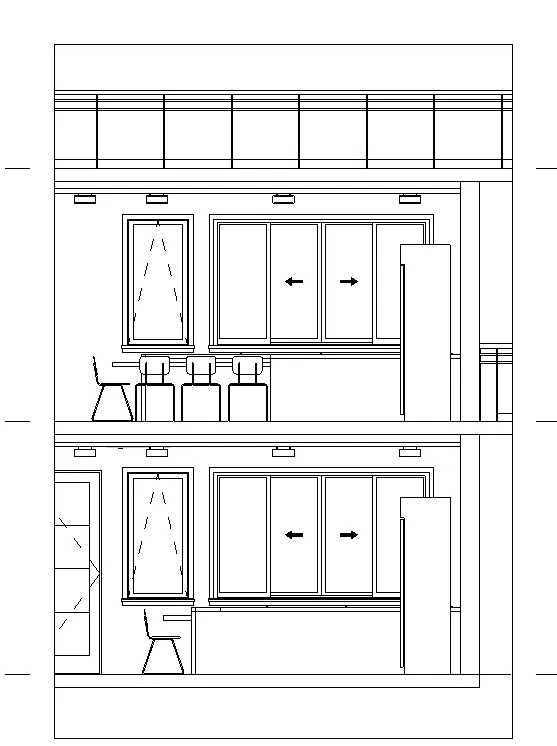

Produce section cut through each room either cutting across longitudinally or in a transverse direction

procedure:

1. Open View tab
   •
2. Select the Section tool.
3. Draw the Section on First Bedroom and Rename as Bed-Room-1.
   •

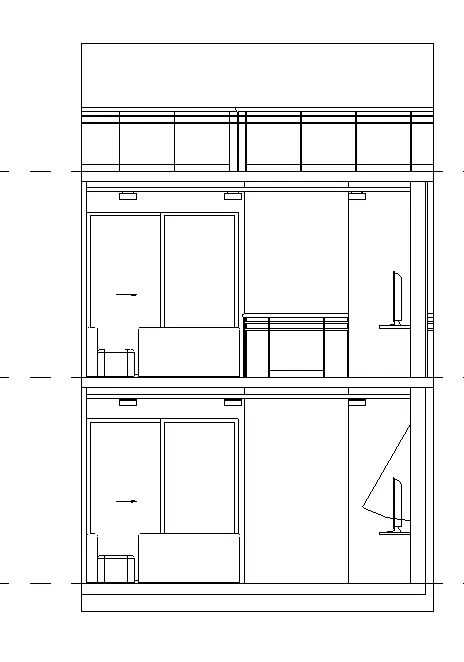

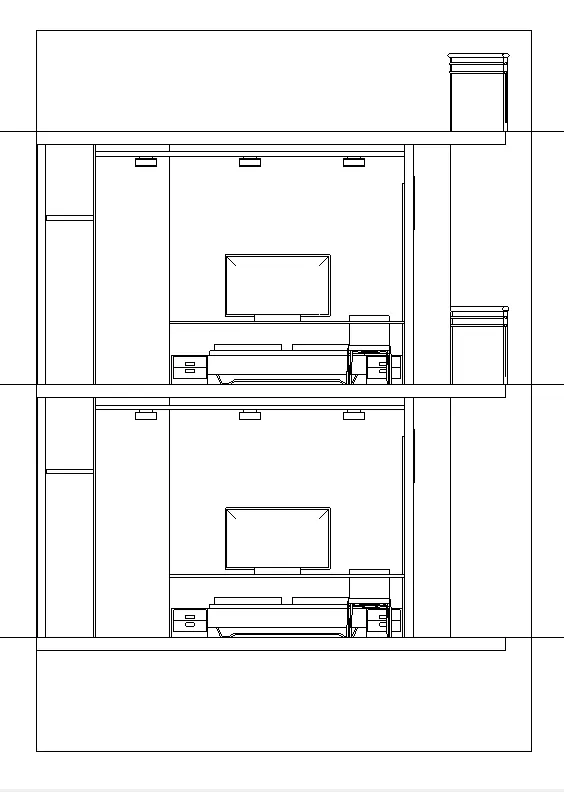

4. Section Bed-Room-1 View:
   •
5. Draw the Section on Second Bedroom and Rename as Bed-Room-2.
   •
6. Section Bed-Room-2 View:
   •
7. Draw the Section on Third Bedroom and Rename as Bed-Room-3.
   •
8. Section Bed-Room-3 View:
   •
9. Draw the Section on Living and Rename as Living.
   •
10. Section Living View:
    •

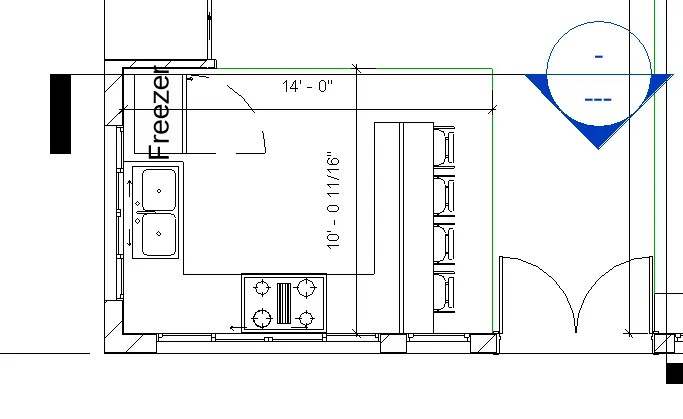

11. Draw the Section on Kitchen and Rename as Kitchen.
    •
12. Section Kitchen View:
    •

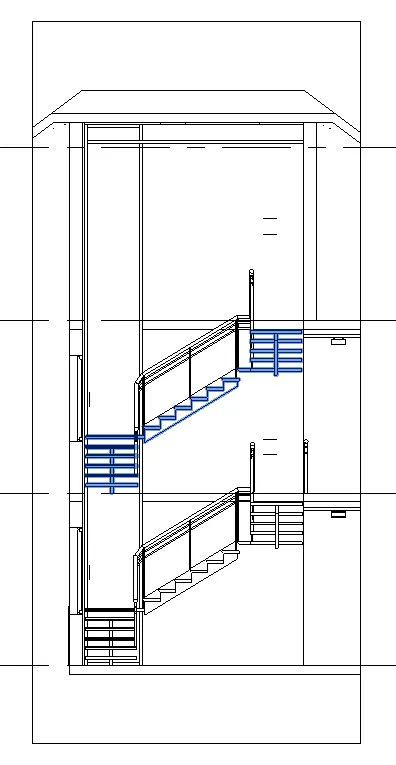

13. Make Section of Stairs and rename it as Stairs.
    •
14. Section Stairs View:
    •

Aim 8:

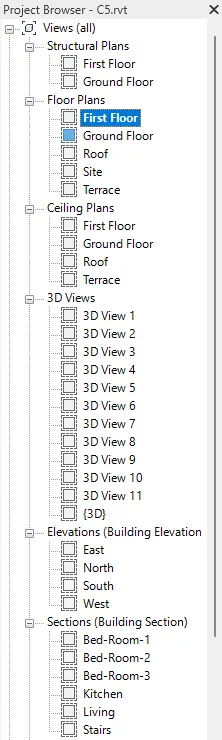

Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Result:

1.
2.

Aim 9:

Using the sheet template produced create multiple sheets as follows

Procedure:

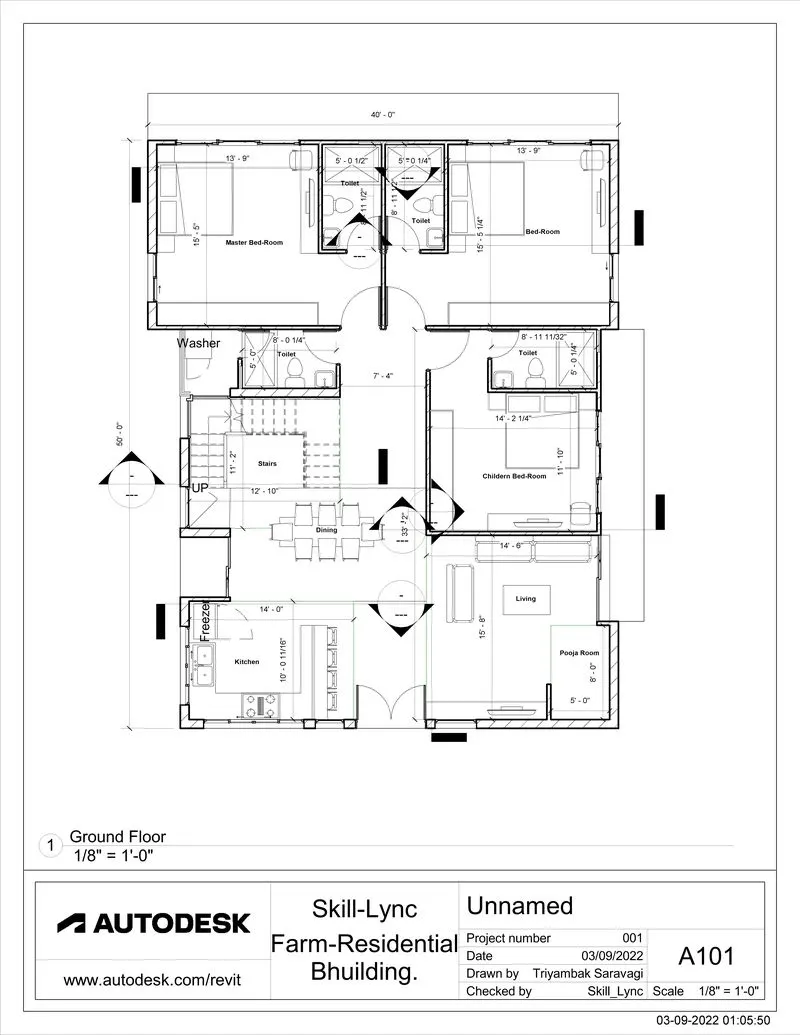

1. A 101- Ground Floor Architecture Plan
   • Goto View tab.
   • Select the sheet option.
   • Select A 8.5 x 11 sheet and click on ok.
   • Drag the Ground Floor and and adjust the parameters on the sheet to add appropriate views.
     •

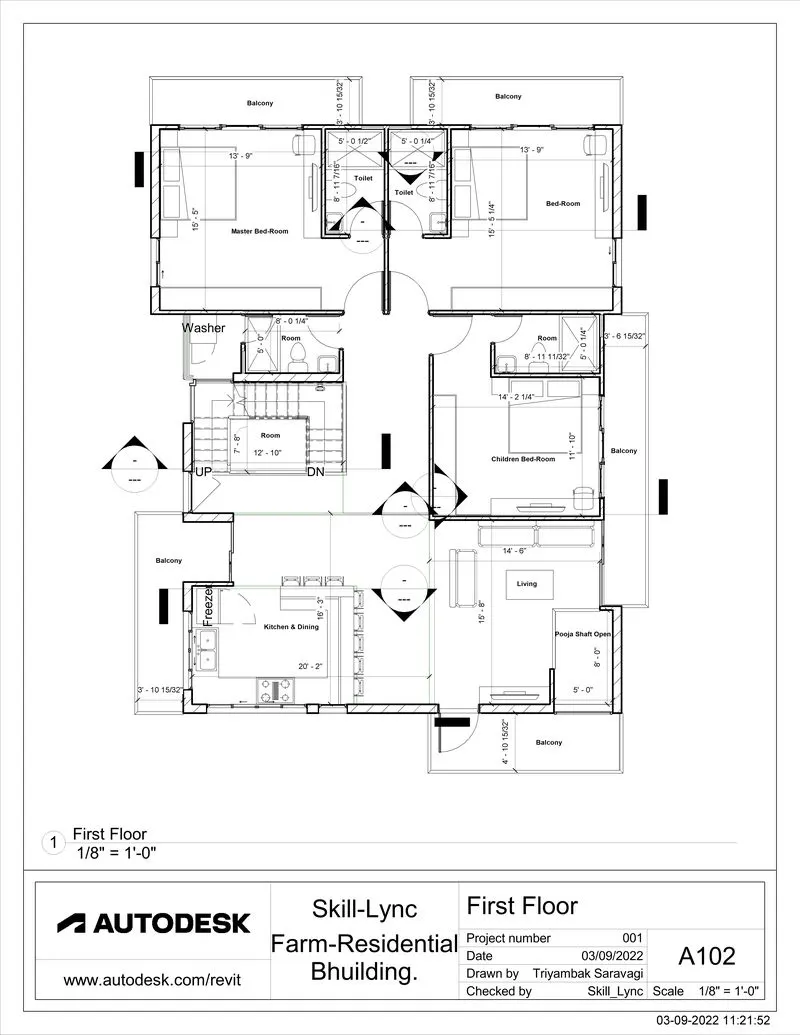

2. A 102- First Floor Architecture Plan
   • Goto View tab.
   • Select the sheet option.
   • Select A 8.5 x 11 sheet and click on ok.
   • Drag the First Floor and adjust the parameters on the sheet to add appropriate views.
     •

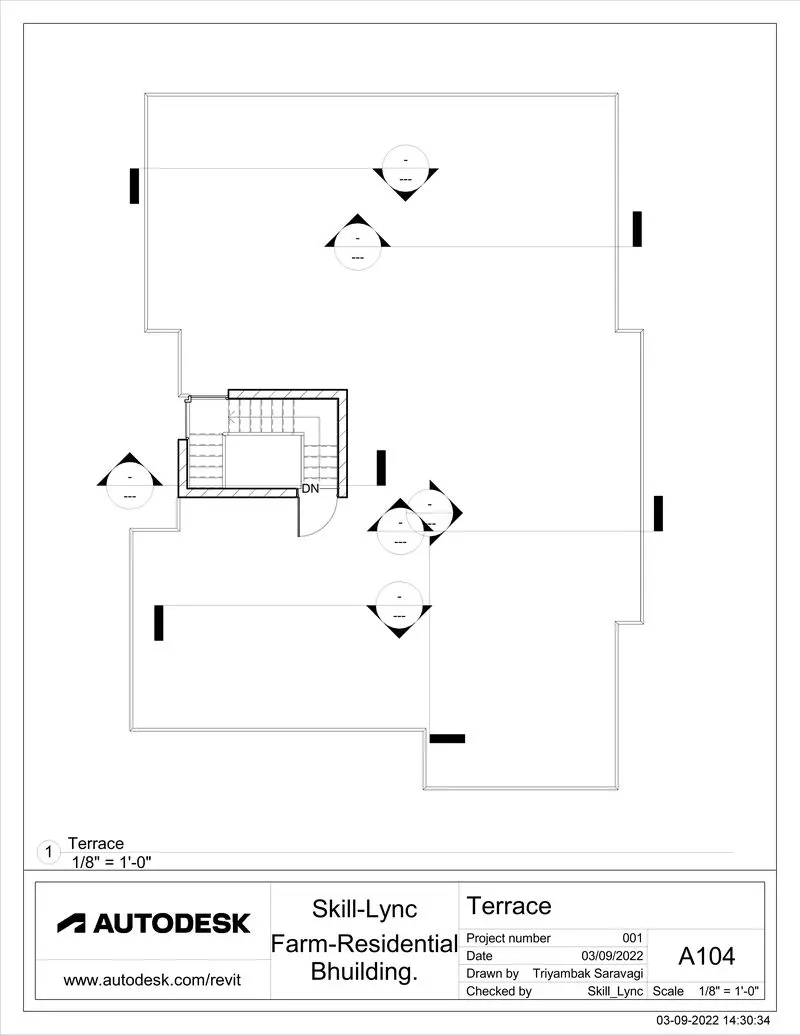

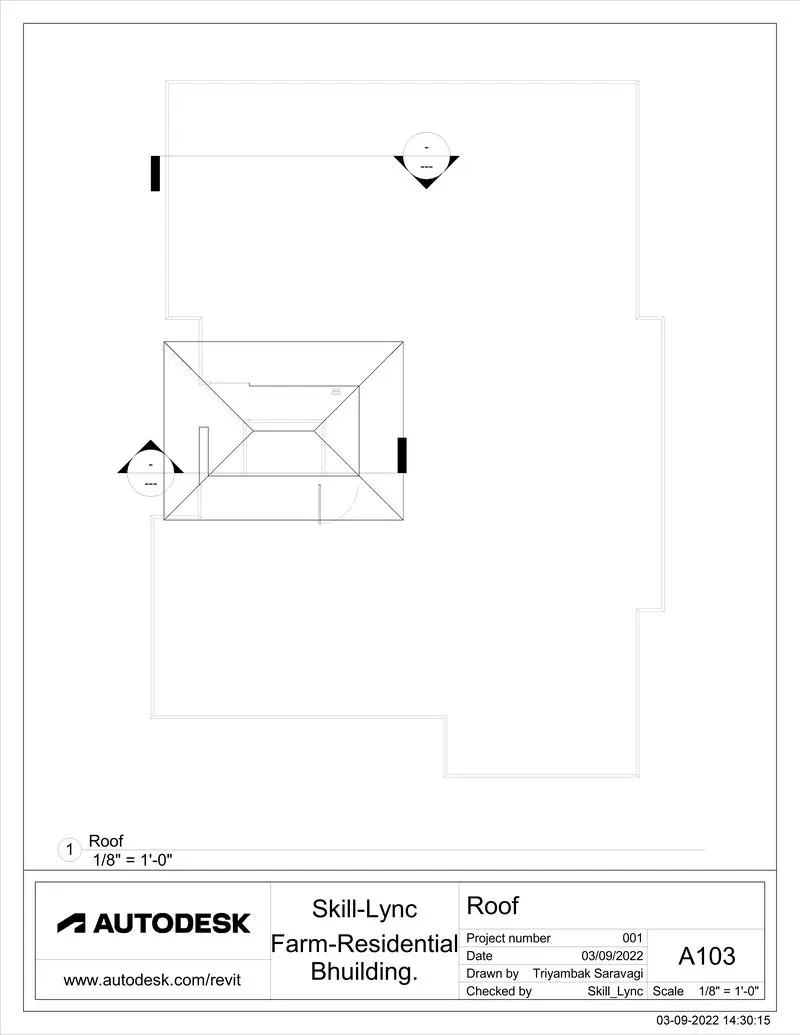

3. A 103- Roof Plan
   • Goto View tab.
   • Select the sheet option.
   • Select A 8.5 x 11 sheet and click on ok.
   • Drag the Terrace and Roof plan and adjust the parameters on the sheet to add appropriate views.
     •
     •

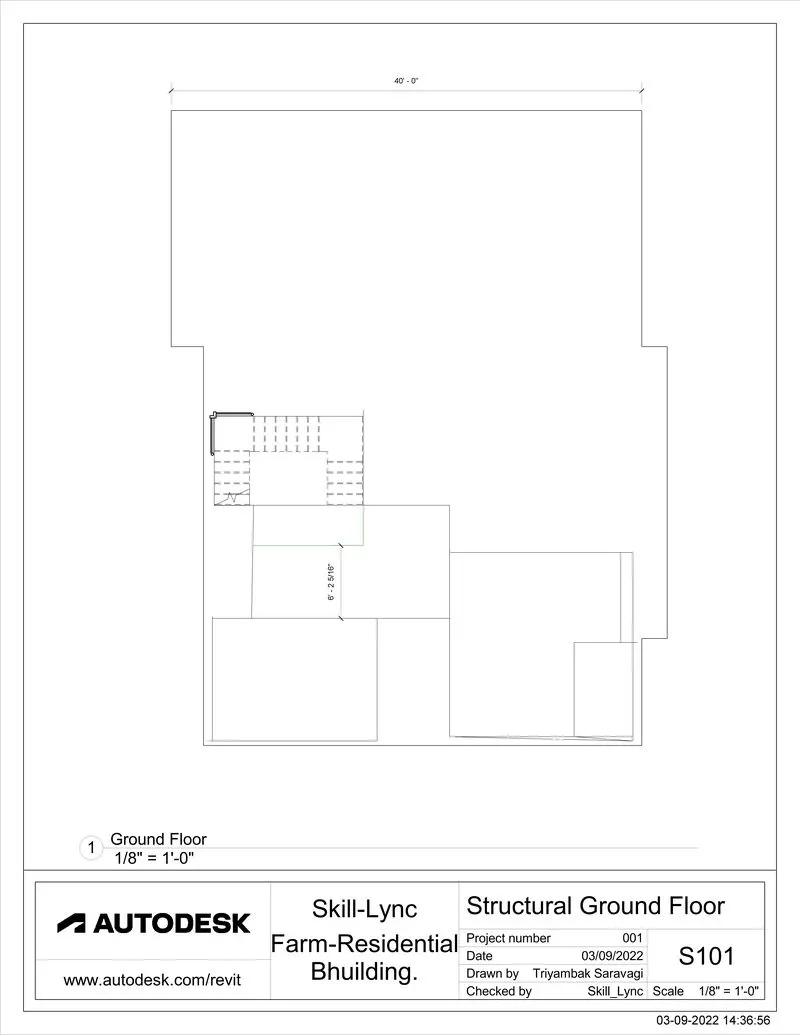

4. S 101- Ground Floor Structural Plan
   • Goto View tab.
   • Select the sheet option.
   • Select A 8.5 x 11 sheet and click on ok.
   • Drag the Structural Ground Floor plan and adjust the parameters on the sheet to add appropriate views.
   • Change the Sheet Number to S101.
     •

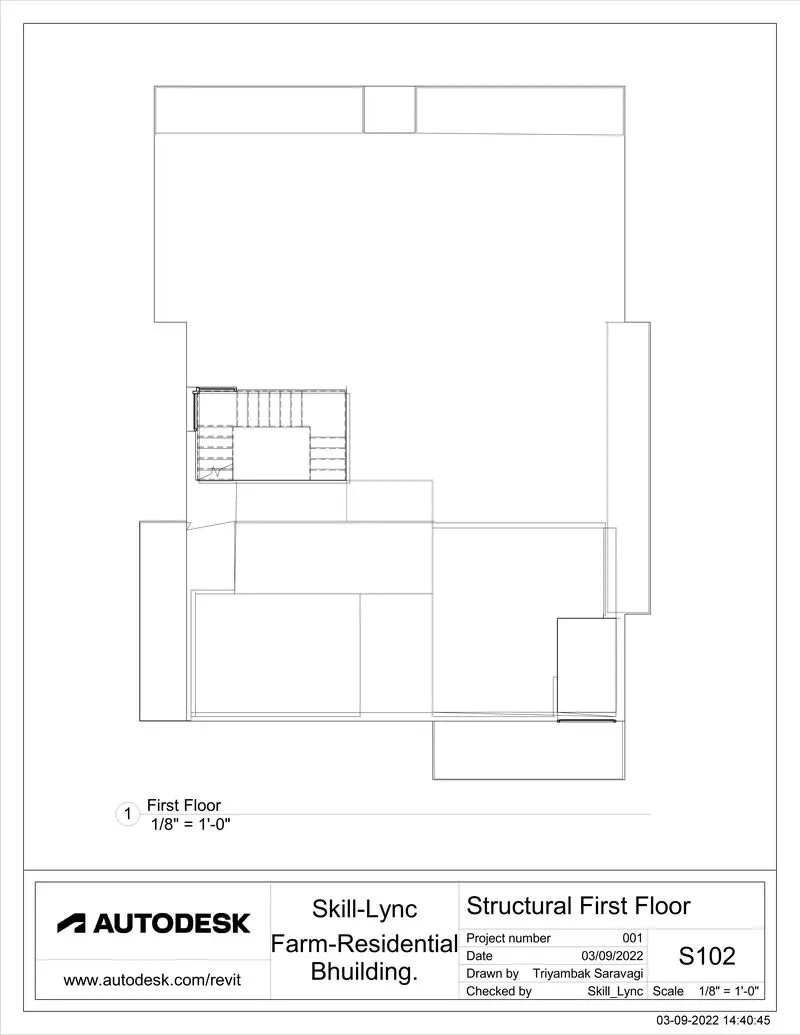

5. S 102- First Floor Structural Plan
   • Goto View tab.
   • Select the sheet option.
   • Select A 8.5 x 11 sheet and click on ok.
   • Drag the Structural First Floor plan and adjust the parameters on the sheet to add appropriate views.
     •

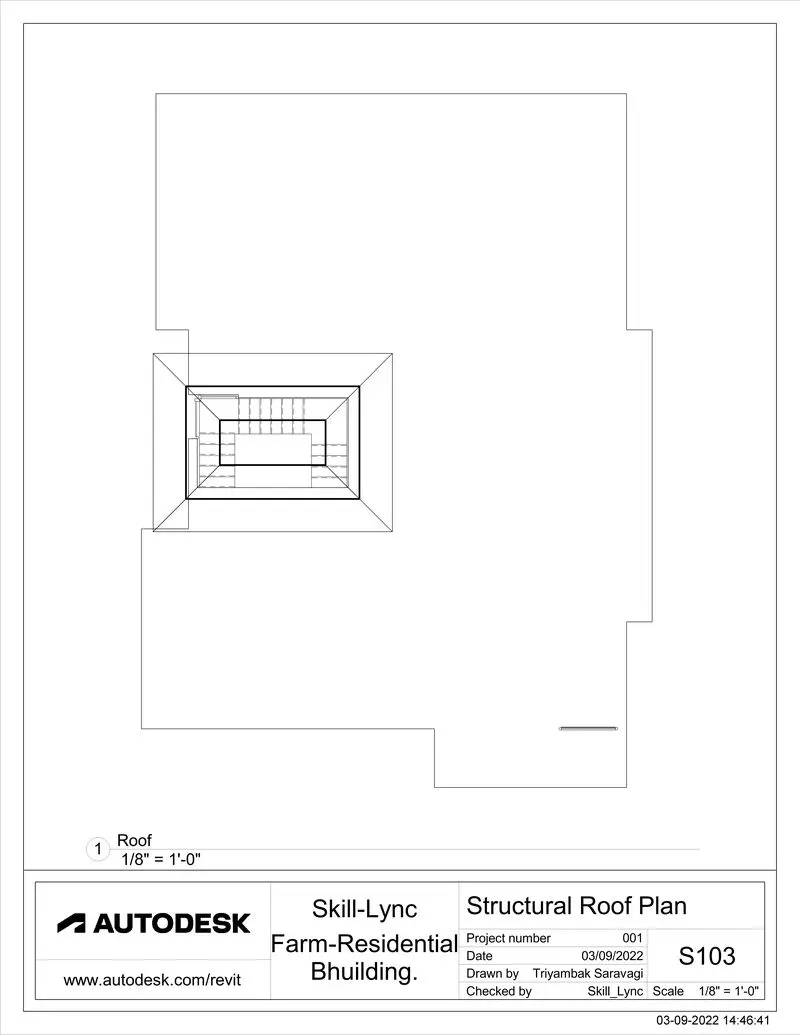

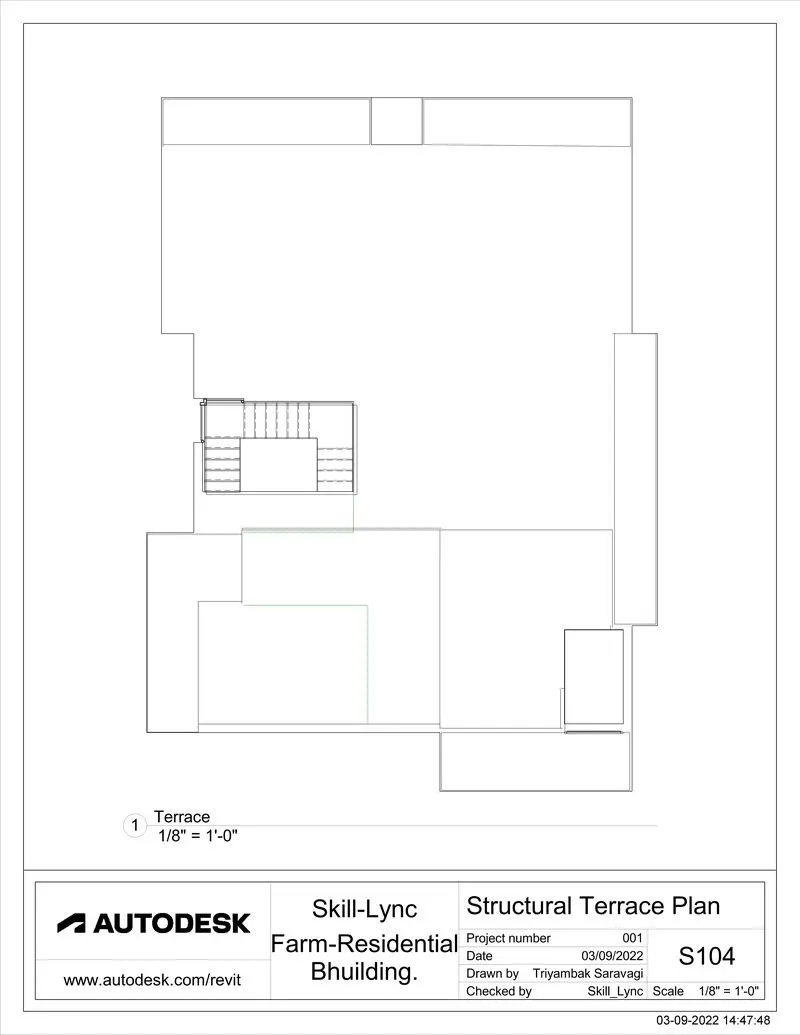

6. S 103- Roof Framing Plan
   • Goto View tab.
   • Select the sheet option.
   • Select A 8.5 x 11 sheet and click on ok.
   • Drag the Structural Roof & Terrace plan and adjust the parameters on the sheet to add appropriate views.
     •
     •

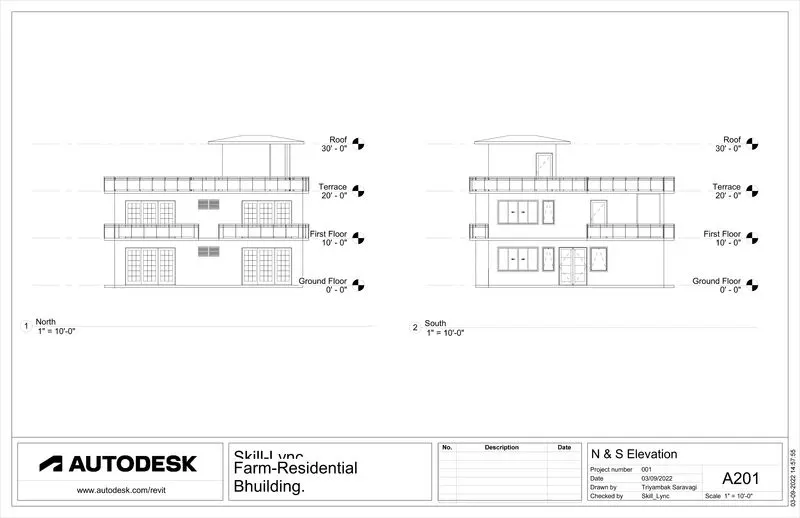

7. A-201- North-South Elevations
   • Goto View tab.
   • Select the sheet option.
   • Select A 8.5 x 11 sheet and click on ok.
   • Drag the N & S Elevation and adjust the parameters on the sheet to add appropriate views.
     •

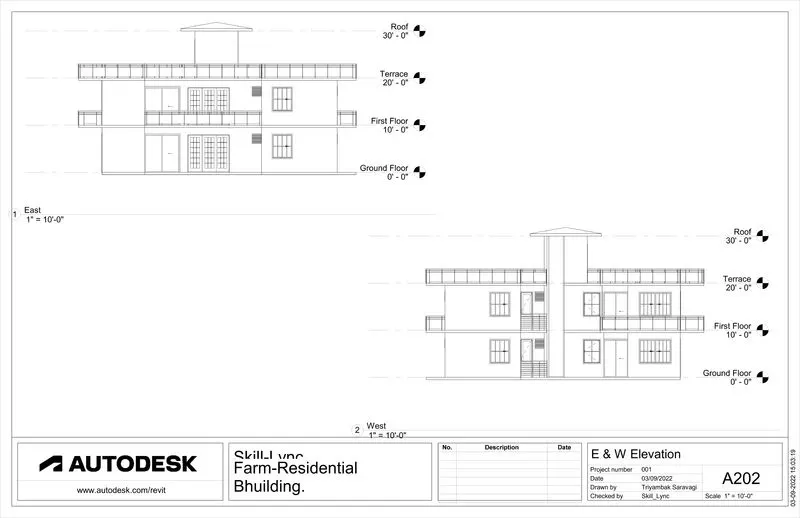

8. A-202- East-West Elevations
   • Goto View tab.
   • Select the sheet option.
   • Select A 8.5 x 11 sheet and click on ok.
   • Drag the E & W Elevation and adjust the parameters on the sheet to add appropriate views.
     •

Aim 10:

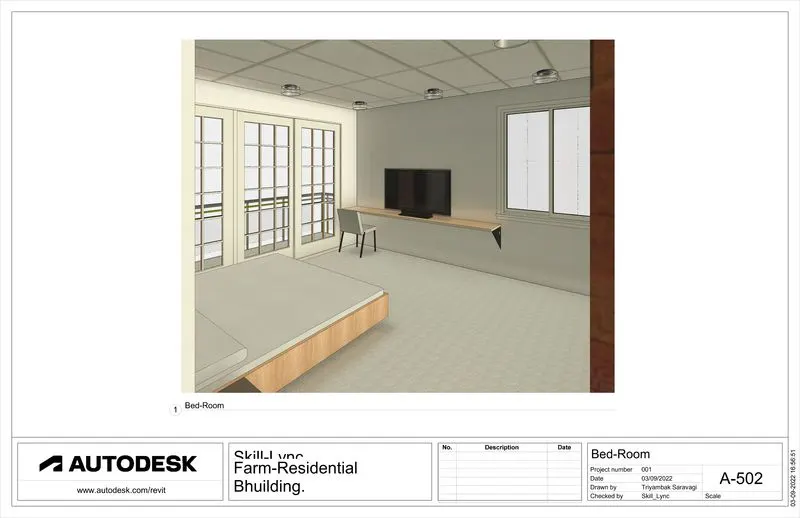

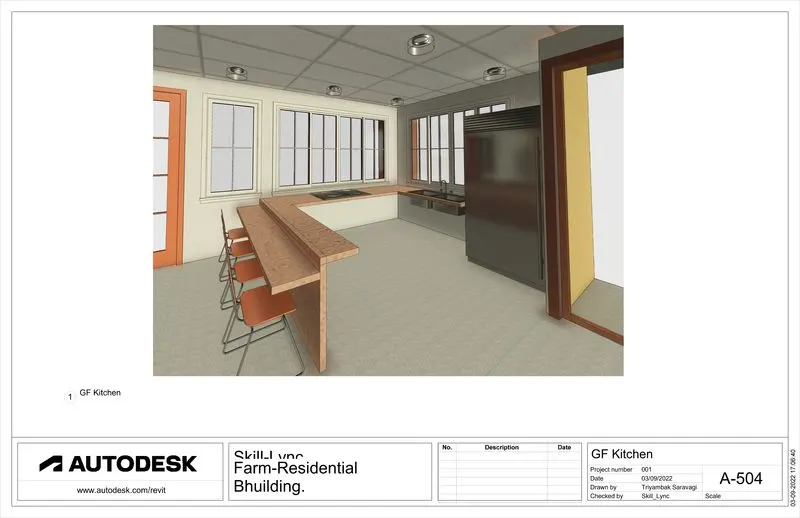

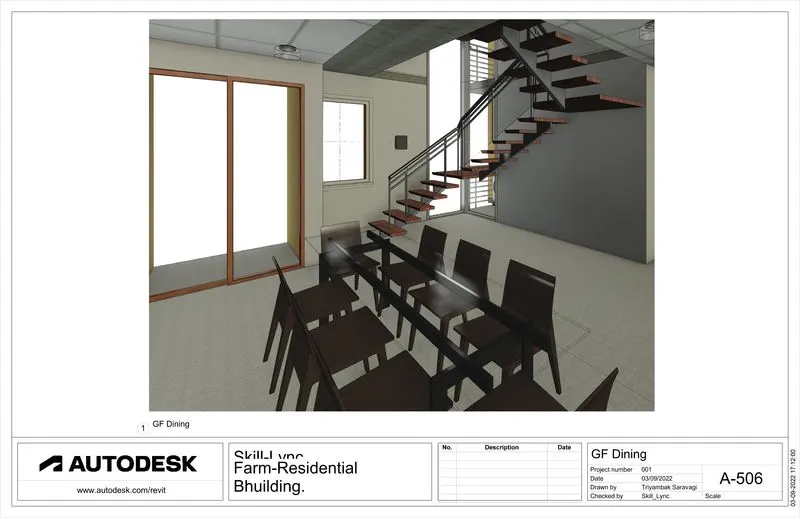

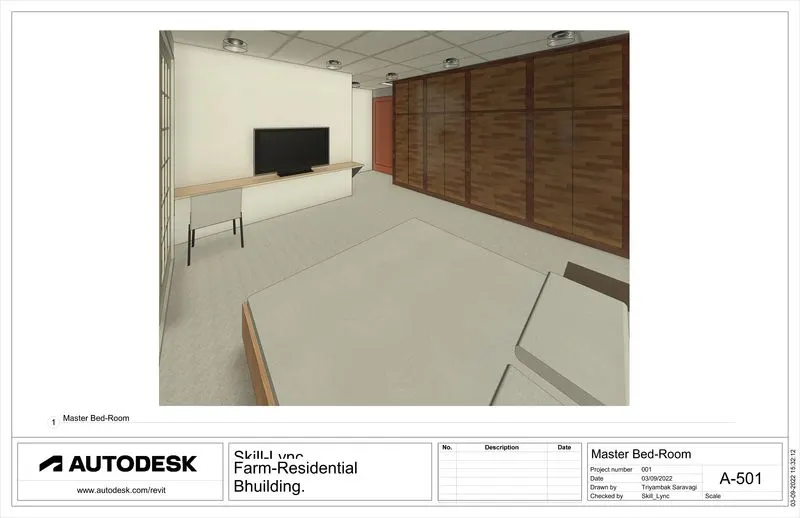

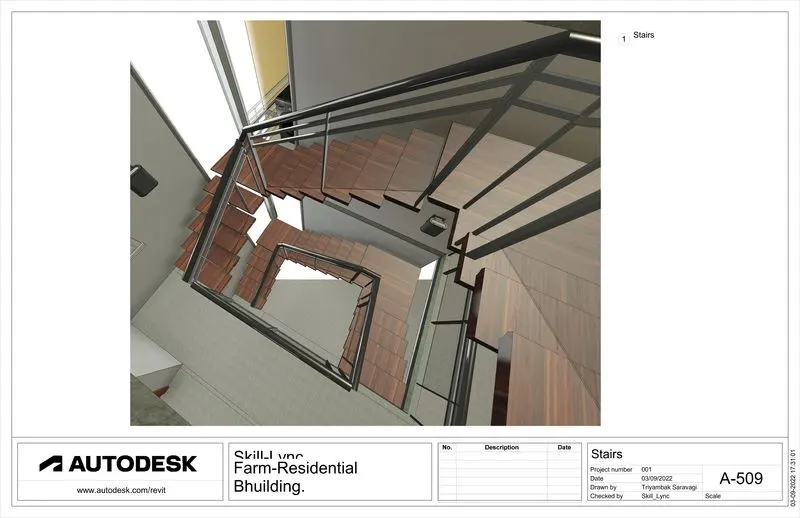

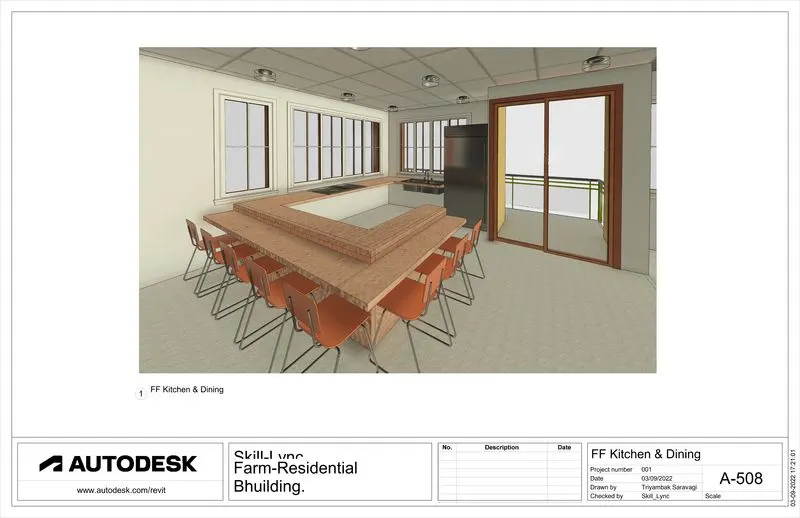

Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Procedure:

1. Open View tab.
2. go to Drop Down of 3D View.
3. Select the Camera tool in drop Down.
4. place the camera in each rooms and save the views.
5. Now again open View tab.
6. Select the sheet tool.
7. and open the Sheet template.

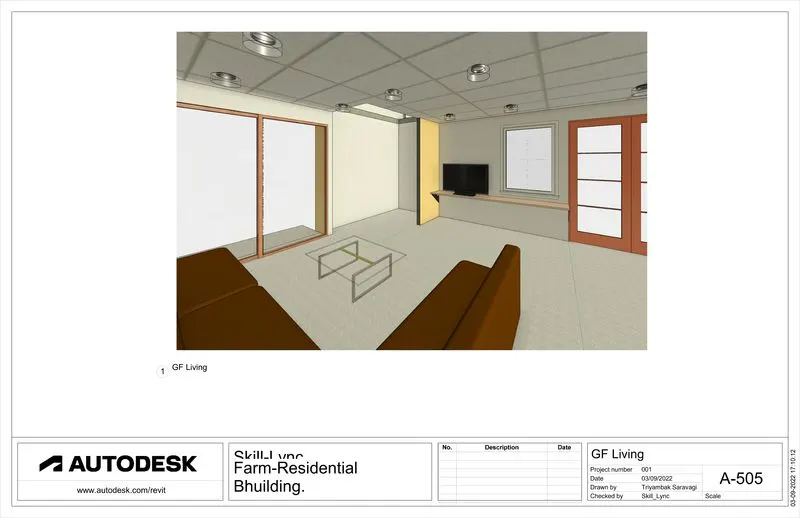

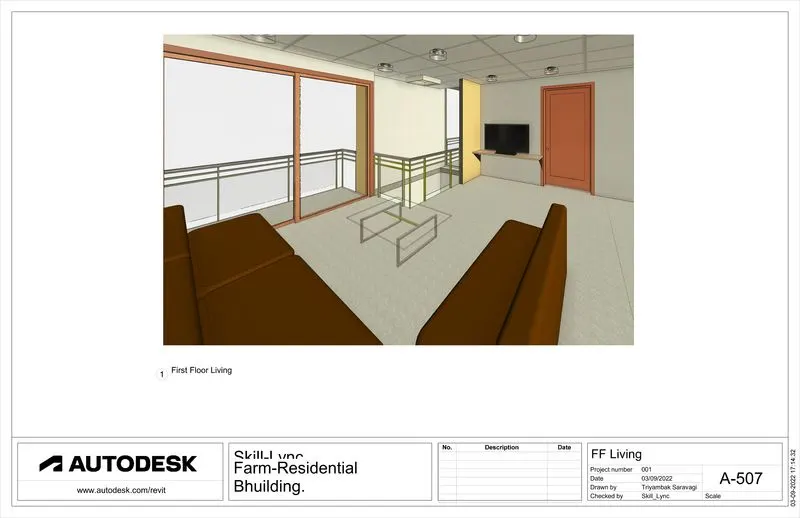

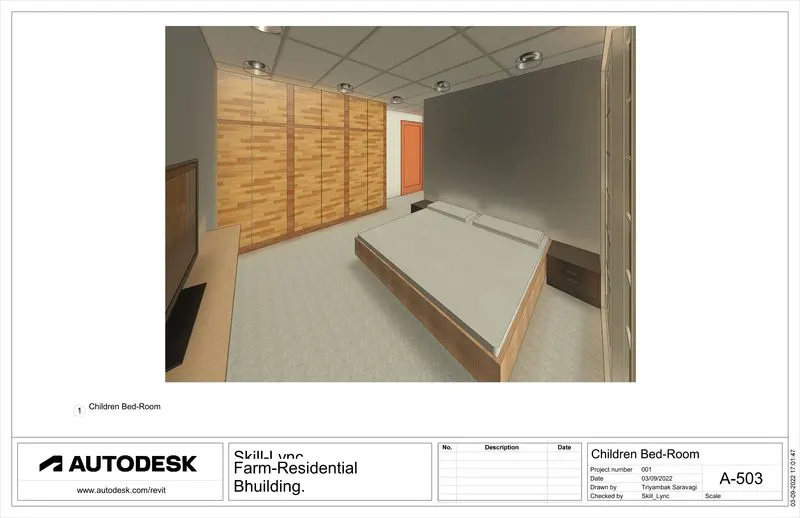

8. insert the camera views Starting from A-501.
   •
   •
   •
   •
   •
   •
   •
   •
   •

Result:

All the 3D presentation has been successfully done.
