3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

ANS1)

AIM- Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

PROCEDURE

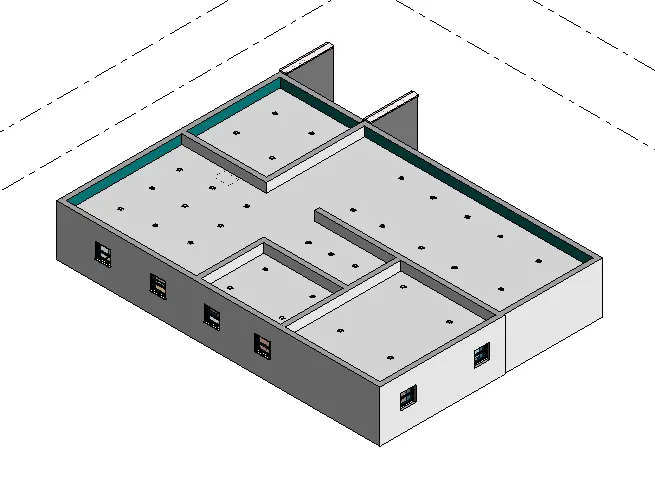

• Go to aritectural -> celling-> automatic celling
• revit automatically place the cellings above the rooms

RESULT

ANS2)

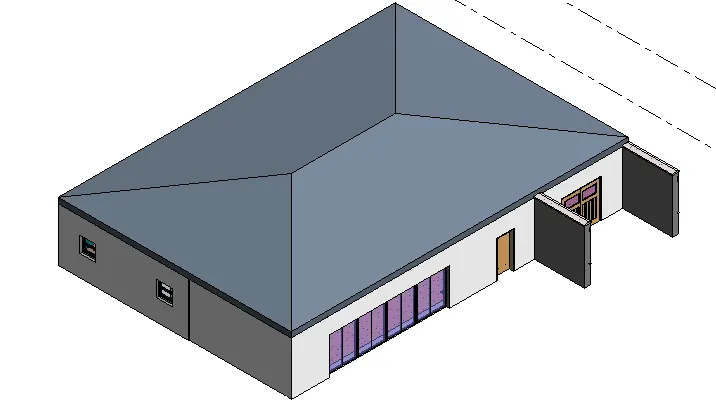

AIM-Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

PROCEDURE

• Go to architectural->roof by footprint-> pick a line
• select exterior walls of the building
• roof will be created
• select the roof
• give slope value to 10

RESULT

ANS3)

AIM-Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

PROCEDURE

• open weak 3 model
• go to view -> plan view -> floor plan -> select level 1 and then level 2 sequentially
• adopte same procedure for the structural view
• go to view -> plan view -> structural plan -> select level 1 and then level 2 sequentially

RESULT

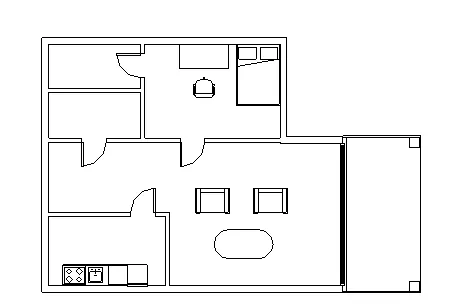

FLOOR PLAN-ARCHITECTURAL

STRUCTURAL PLAN

ANS4)

AIM-Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

PROCEDURE

• GO To annotate tab -> aligned
• give the dimension with reference to grid
• follow the procedure for the structural plan

RESULT

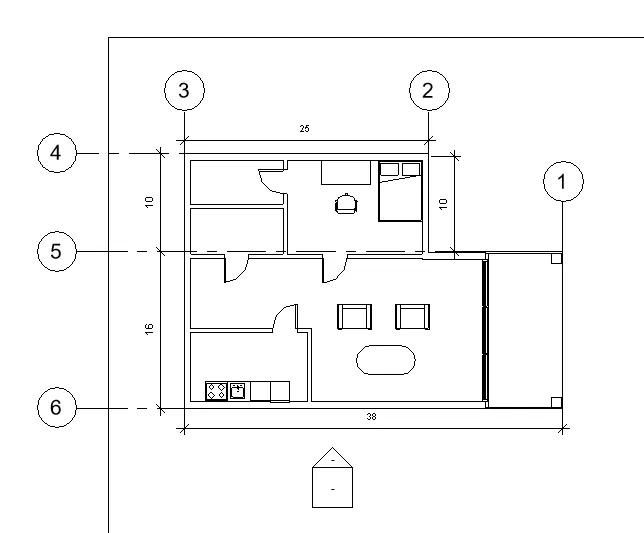

A) ARCHITECTURAL

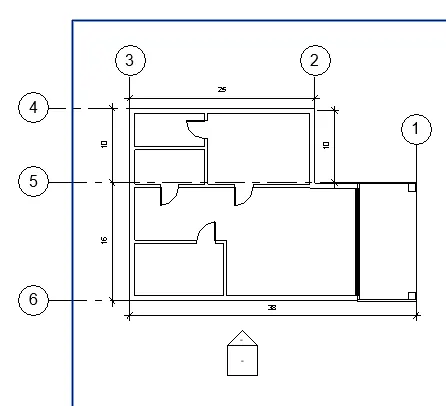

B)STRUCTURAL - Considering grids as the reference

ANS5)

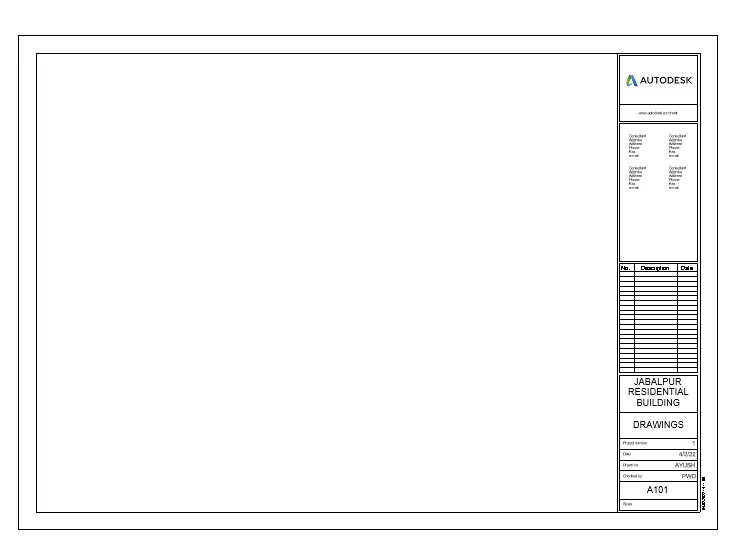

AIM-Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

PROCEDURE

• GO TO VIEW-> SHEETS -> A1 METRIC->OK
• sheet will be loaded
• to adjust its prameters
• directly double click on the text which you need to change

RESULT

ANS6)

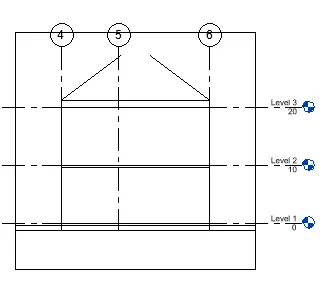

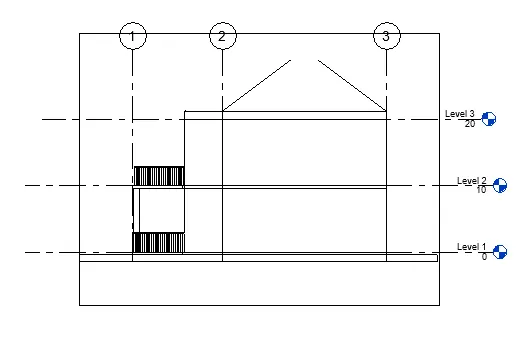

AIM-Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

PROCEDURE

• Go to view-> elevation-> create view from each direction
• name the view created as north ,south, east and west

RESULT

ANS7)

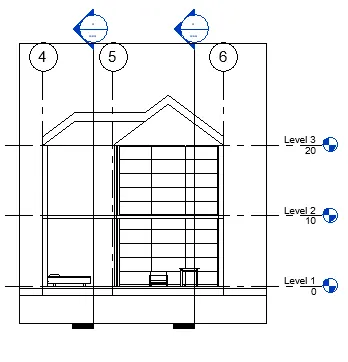

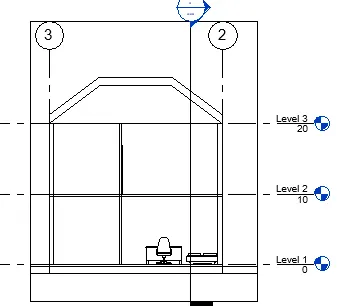

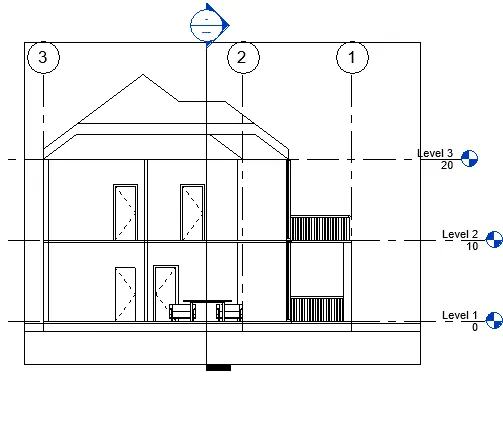

AIM-Produce section cut through each room either cutting across longitudinally or in a transverse direction

PROCEDURE

• GO to view and then to section
• cut the section of the room in logitudinal and lateral direction

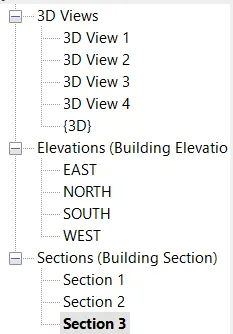

RESULT

ANS8)

AIM-Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

PROCEDURE

• TAKE SCREENSHOT OF THE CLASSIFICATION FROM PROPERTY BROWSER

ANS9)

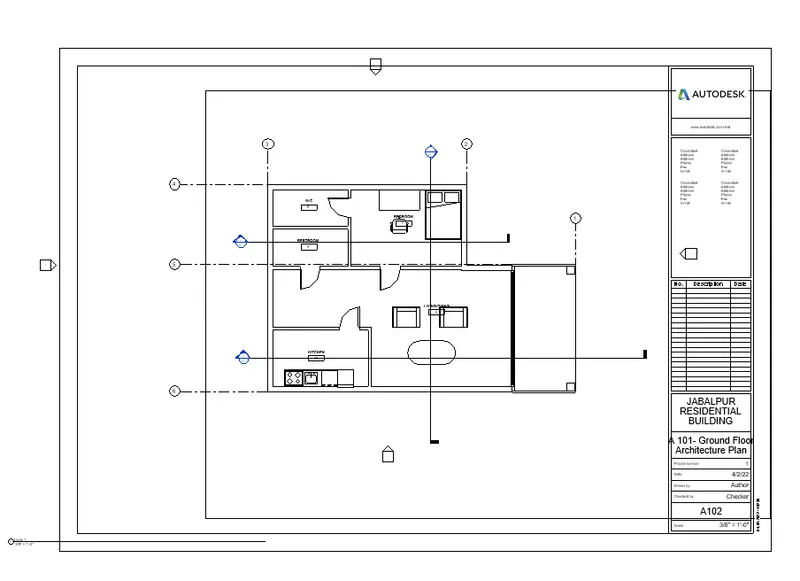

a. A 101- Ground Floor Architecture Plan

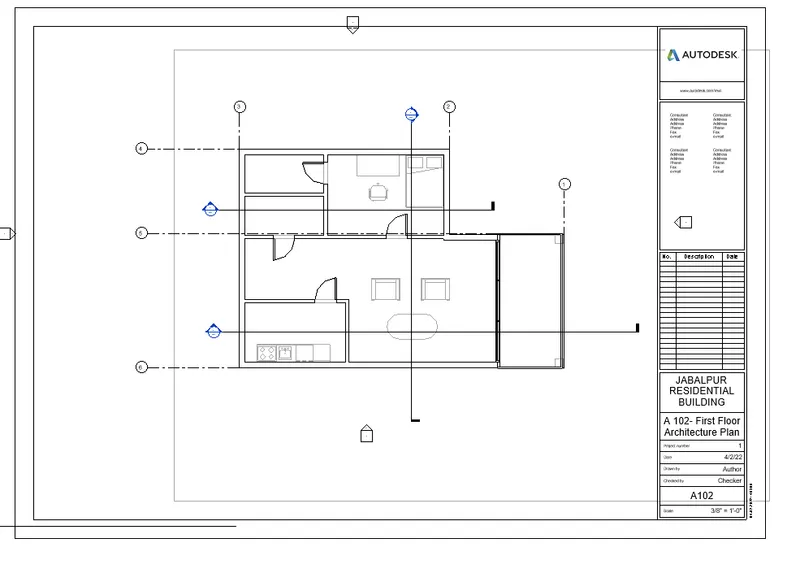

b. A 102- First Floor Architecture Plan

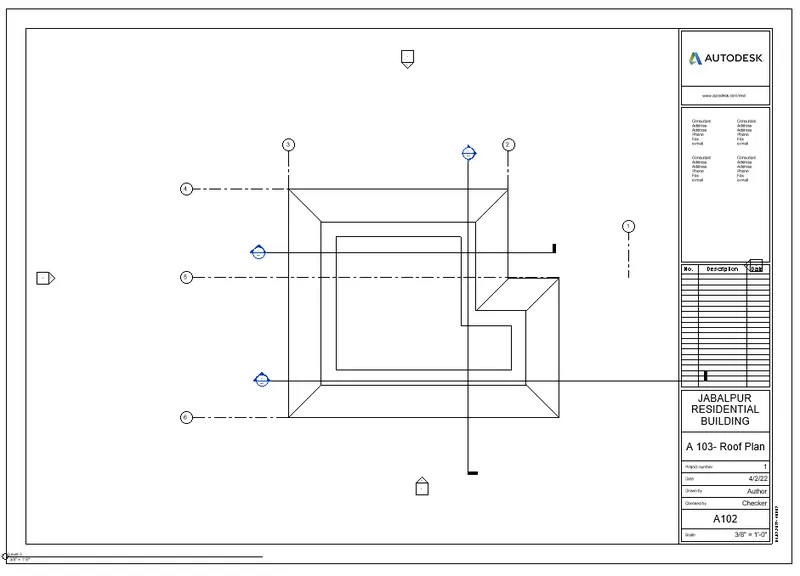

c. A 103- Roof Plan

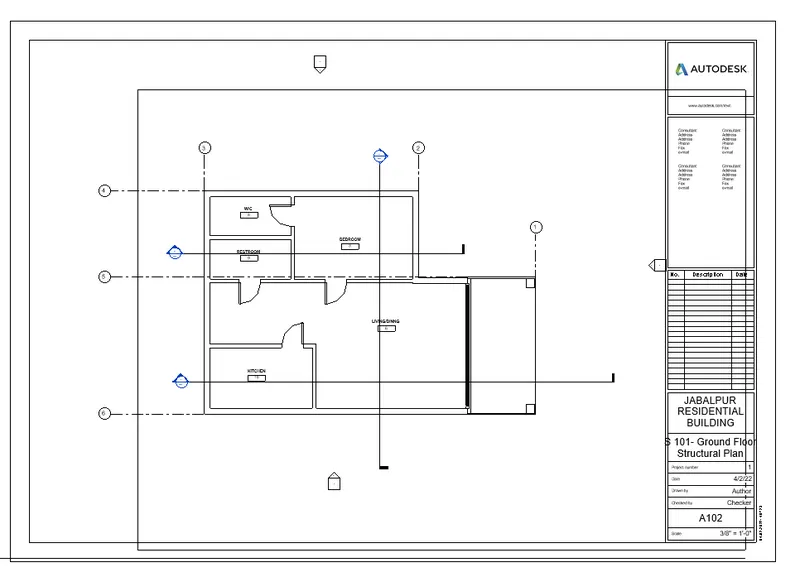

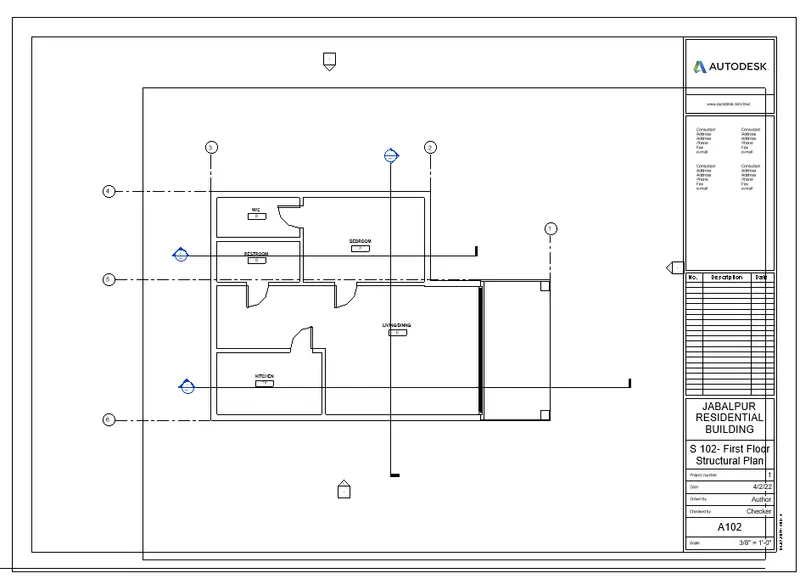

d. S 101- Ground Floor Structural Plan

e. S 102- First Floor Structural Plan

f. S 103- Roof Framing Plan

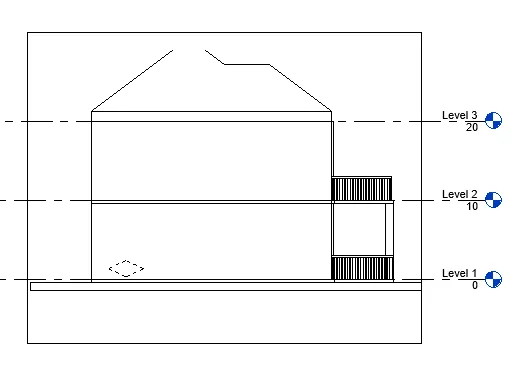

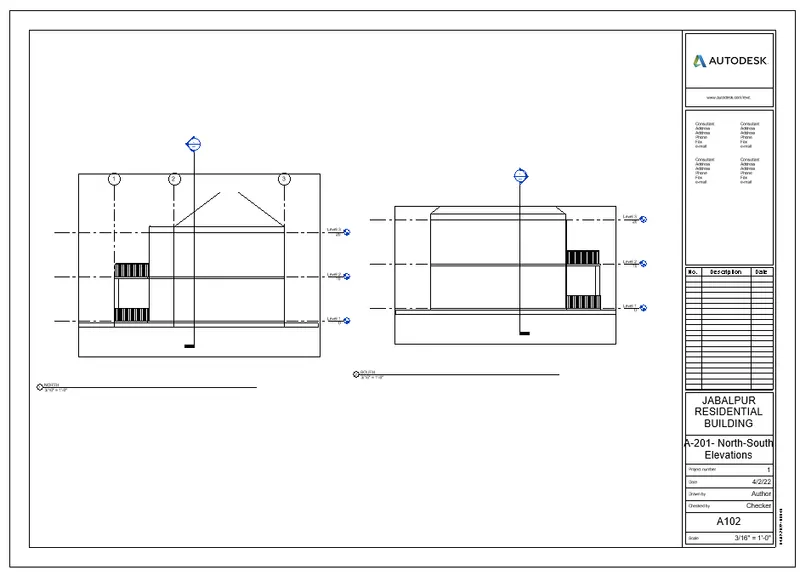

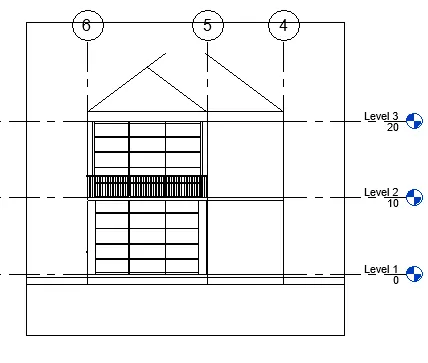

g. A-201- North-South Elevations

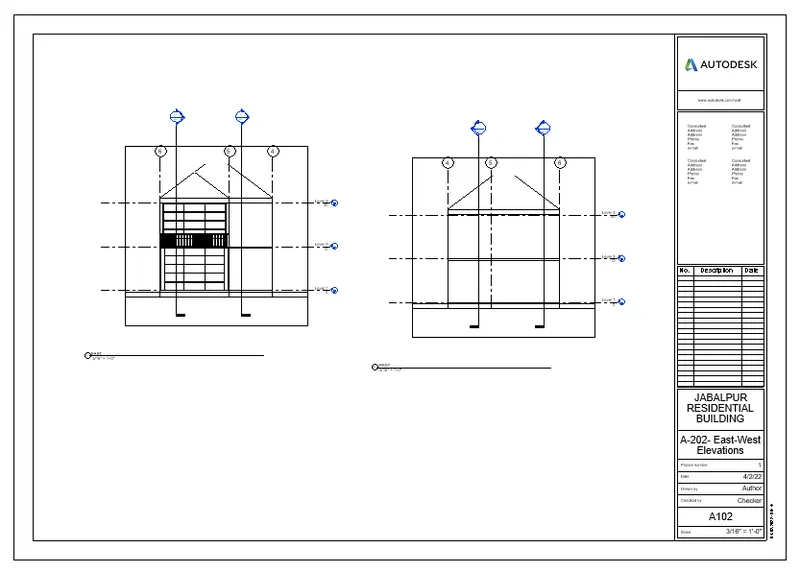

h. A-202- East-West Elevations

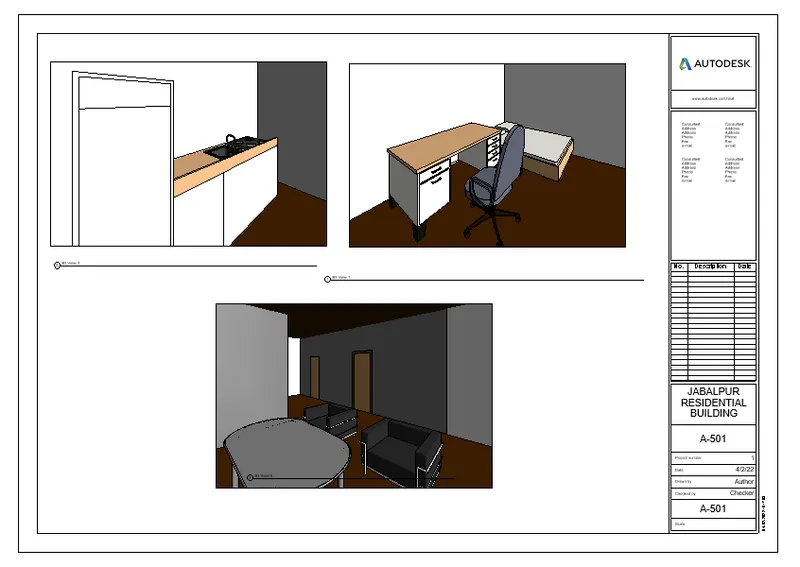

ANS10) CAMERA VIEW OF EACH ROOM IN A SHEET
