Challenge

Creation of geometries by Coordinate system methods using AutoCad

AIM- Draw the geometries using all the coordinates system methods

INTRODUCTION-cordinate system

Absolute cordinate system-In absolute cordinate system all the points are located from the origin

Relative cordinate system- In relative cordinate system the points are located with respect to the previous point

Polar cordinate system-In polar cordinate system if one angle and the distance is known we can draw a line from the given point

PROCEDURE

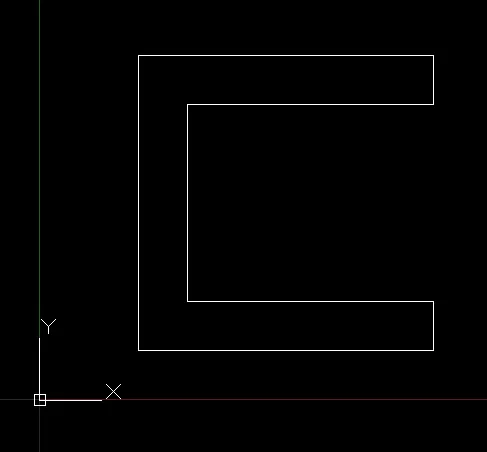

FORP1

Absolute cordinate system

select a line command by typing L in command window and press enter (we can also select it directly from the home)
specify the first point eg (2,1) press enter
specify the second point as (8,1)followed by (8,2)(3,2)(3,6)(8,6)(8,7)(2,7)(2,1)
after mentioning all the point we get our figure in the autocad

Relative cordinate system

select the line command
specify the first point eg(2,1)
now we need to specify the second point for which 1st point is the origin so it will be like let say we have to move 6 unit from point (2,1) in x direction so we write @6,0 and press enter and if we want to move 1 unit up in y direction from this point then we will write it as @0,1
so set of commands are (2,1) @6,0 @0,1 @-5,0 @0,4 @5,0 @0,1 @-6,0 @0,-6
following this way we can draw the figure

polar cordinate system

select aline command
specify the first point eg(2,1)
now if i want to move 6 unit in x direction from this point then it can be done by using the command @6<0 and from here if i want to move 1 unit up in y axis then command for this will be @1<90
so set of command are (2,1) @6<0 @1<90 @5<180 @4<90 @5<0 @1<90 @6<180 @6<270
following this way we can draw the figure

RESULT

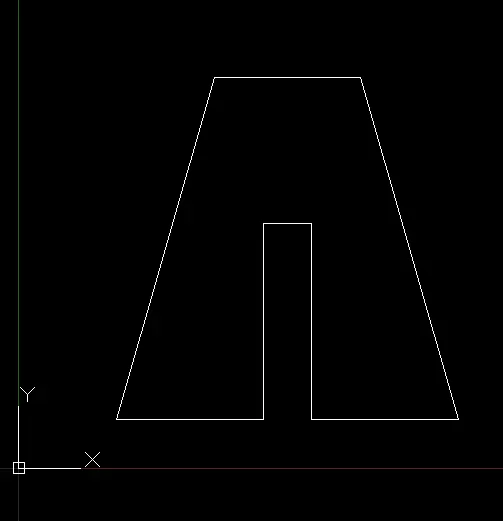

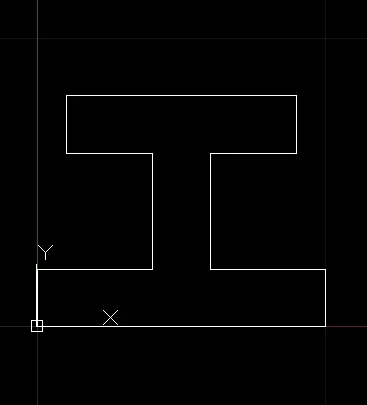

FORP2

Absolute cordinate system

select a line command by typing L in command window and press enter (we can also select it directly from the home)
specify the first point eg (2,1) press enter
followed by (5,1)(5,5)(6,5)(6,1)(9,1)(7,8)(4,8)(2,1)
after mentioning all the point we get our figure in the autocad

Relative cordinate system

select the line command
specify the first point eg(2,1)
now we need to specify the second point for which 1st point is the origin so it will be like let say we have to move 3 unit from point (2,1) in x direction so we write @3,0 and press enter and if we want to move 4 unit up in y direction from this point then we will write it as @0,4
so set of commands are (2,1) @3,0 @0,4 @1,0 @0,-4 @3,0 @-2,7 @-3,0 @-2,-7
following this way we can draw the figure

polar cordinate system

RESULT

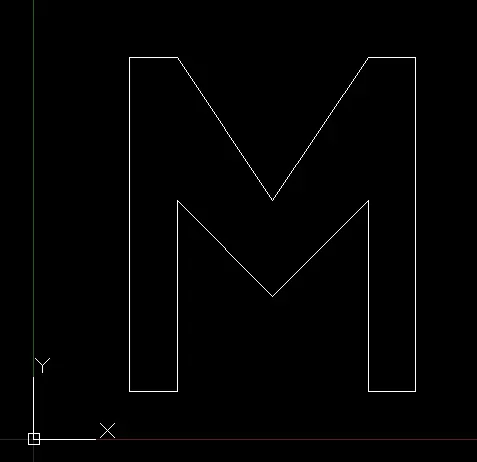

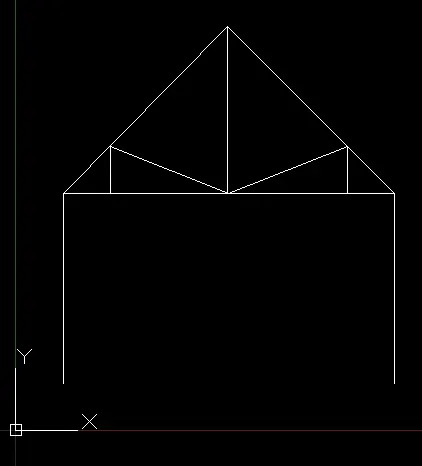

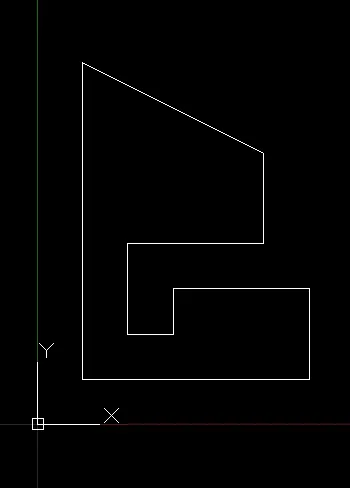

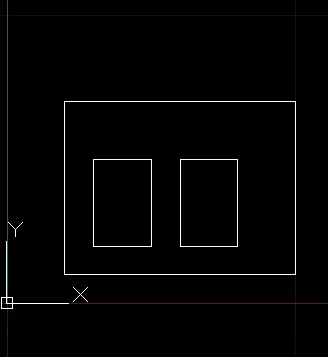

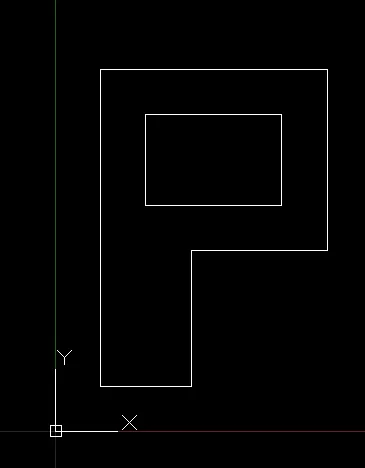

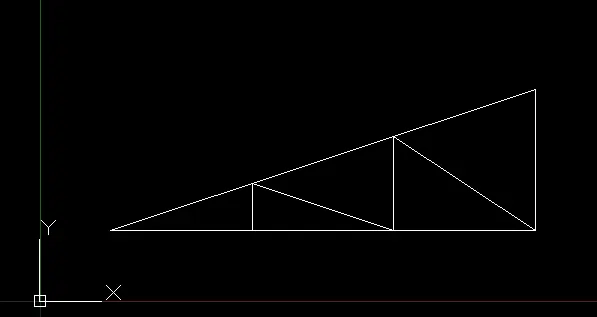

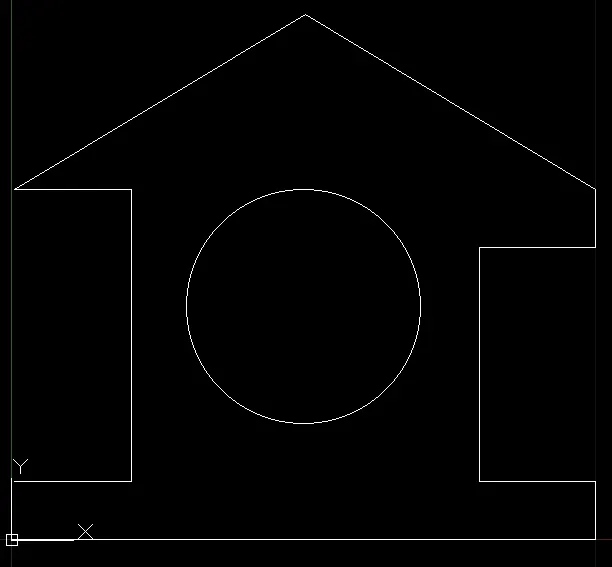

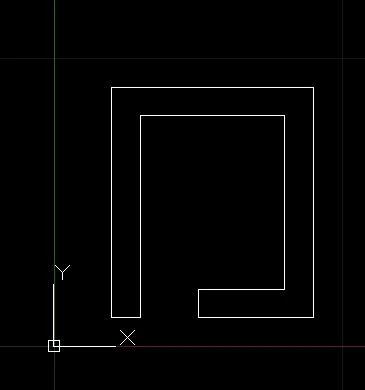

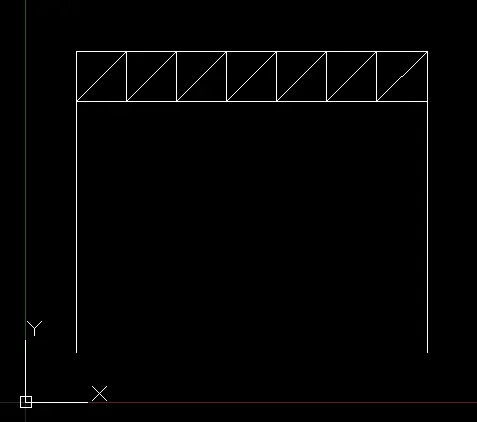

RESULT OF THE REMAINING FIGURE:-
