Creating a Floor plan, Footing detail and Isometric view using AutoCad

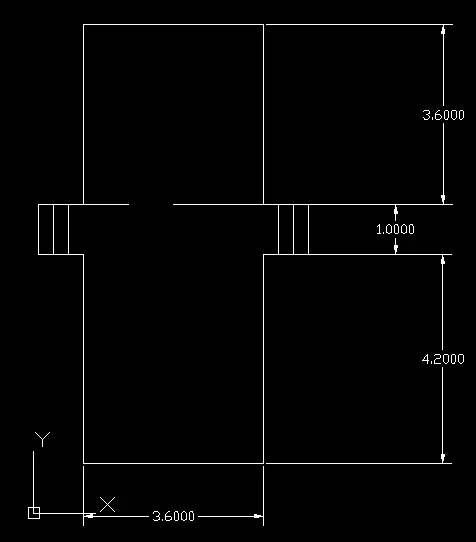

AIM To draw the given figure in autocad

Fig 1

PROCEDURE

1. SELECT line command
2. specify the first point eg-(1,1)
3. follows the series of command

• (@0.9,0)(@0,0.25)(@-0.2,0)(@0,0.4)(@-0.05,0)(@0,0.4)(@-0.05,0)(@0,0.6)(@0,0.05)(@0,1)(@-0.3,0)(@0,-1)(@0,-0.05)(@0,-0.15)(@-0.3,0)(@0,-0.15)(@-0.3,0)(@0,-0.15)(@-0.3,0)(0,-0.15)(@1.15,0)(@0,-0.25)(@-0.05,0)(@0,-0.4)(@0.2,0) (1,1)

RESULT

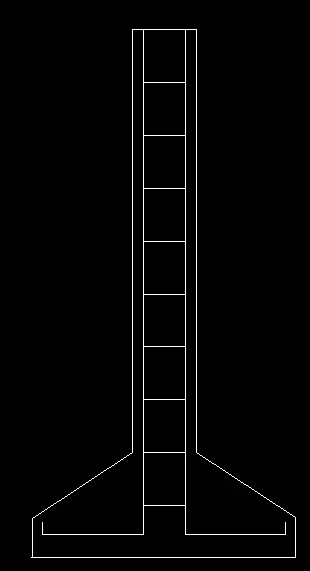

FIG2

PROCEDURE

1. SELECT the line command
2. specify the first point
3. follow the series of command

• (@1,0)(@0,0.15)(@0.45<146.7)(@0,0.2)(@0,0.2)(@0,0.2)(@0,0.2)(@0,0.2)(@0,0.2)(@0,0.2)(@0,0.2)(@-0.04,0)(@-0.92,0)(@-0.04,0)(@0.-0.2)(@0,-0.2)(@0,-0.2)(@0,-0.2)(@0,-0.2)(@0,-0.2)(@0,-0.2)(@0,-0.2)(@0.45<213.3)(@0,-0.15)

RESULT

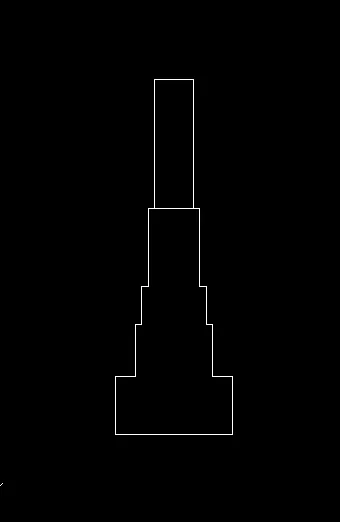

FIG3

PROCEDURE

1. SELECT the line command
2. specify th first point
3. follow the series of command

• (@3.6,0)(@0,4.2)(@1,0)(@0.3,0)(@0.3,0)(@0.3,0)(@0,1)(@-0.3,0)(@-0.3,0)(@-0.3,0)(@0,3.6)(@-3.6,0)(@0,-3.6)(@-0.3,0)(@-0.3,0)(@-0.3,0)(@0,-1)(@0.3,0)(@0.3,0)(@0.3,0)(@0,-4.2)

RESULT

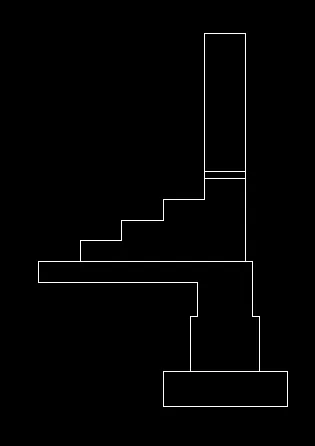

FIG4

PROCEDURE

1. SELECT the line command
2. specify th first point
3. follow the series of command

• (@0.9,0)(@0,0.45)(@-0.05,0)(@0,0.3)(@-0.05,0)(@0,0.6)(@-0.05,0)(@0,1)(@-0.3,0@0,-1)(@-0.05,0)(@0,-0.6)(@-0.05,0)(@0,-0.3)(@-0.05,0)(@0,-0.4)(@-0.15,0)(@0,-0.45)

RESULT

FIG5

PROCEDURE

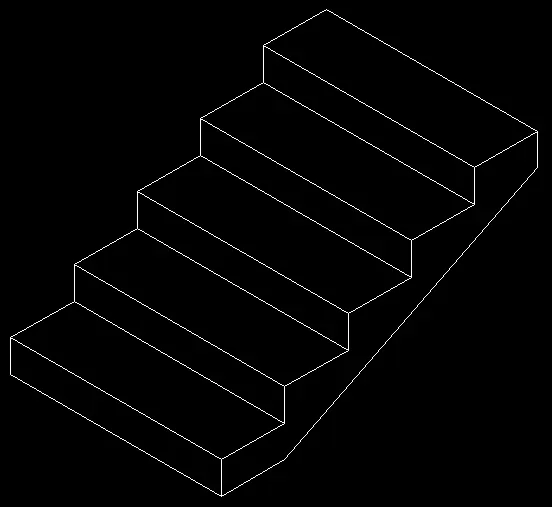

1. SELECT THE ISOMETRIC DRAFTING
2. SELECT THE ORTHO MODE
3. SELECT THE DYNAMIC MODE
4. specify the first point
5. using dynamic mode draw the given isometric drawing by putting the given dimension

RESULT

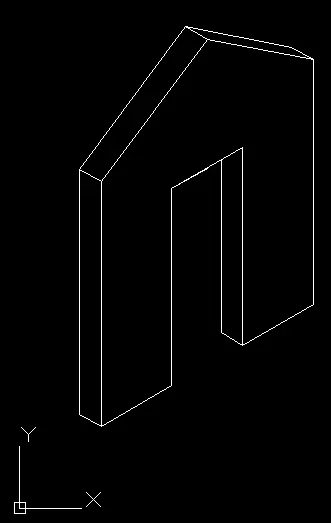

FIG6

PROCEDURE

1. SELECT THE ISOMETRIC DRAFTING
2. SELECT THE ORTHO MODE
3. SELECT THE DYNAMIC MODE
4. specify the first point
5. using dynamic mode draw the given isometric drawing by putting the given dimension

RESULT
