Centrifugal Pump Simulation

In this project, you will be cleaning up the geometry and setting up the case in converge CFD software. And then running the case to capture the flow physics correctly and getting the correct performance curve for the centrifugal pump.

  • Mechanical Engineering
  • Automotive Engineering
  • Materials Engineering
  • Aerospace Engineering

duration
Duration :

1 month

projectfees
Project Fees :

INR 30,000

Benefits of this Project

In this project, you will be cleaning up the geometry and setting up the case in converge CFD software. And then running the case to capture the flow physics correctly and getting the correct performance curve for the centrifugal pump.

What will you do in this project?

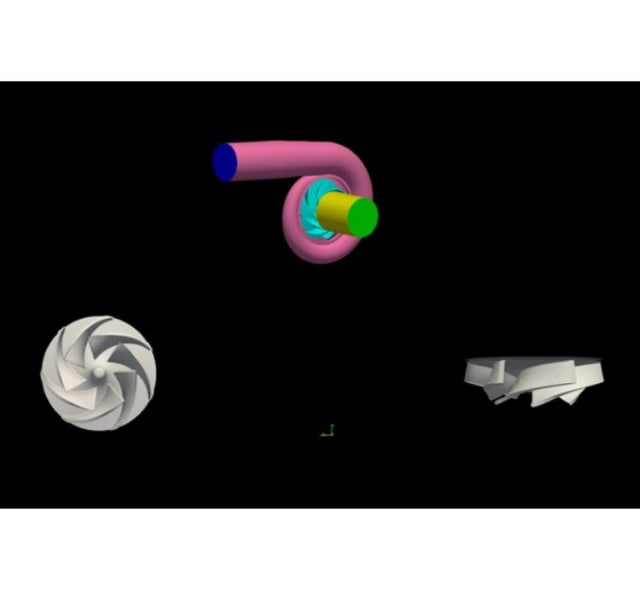

Step 1 - Geometry cleanup and case setup in Converge Studio

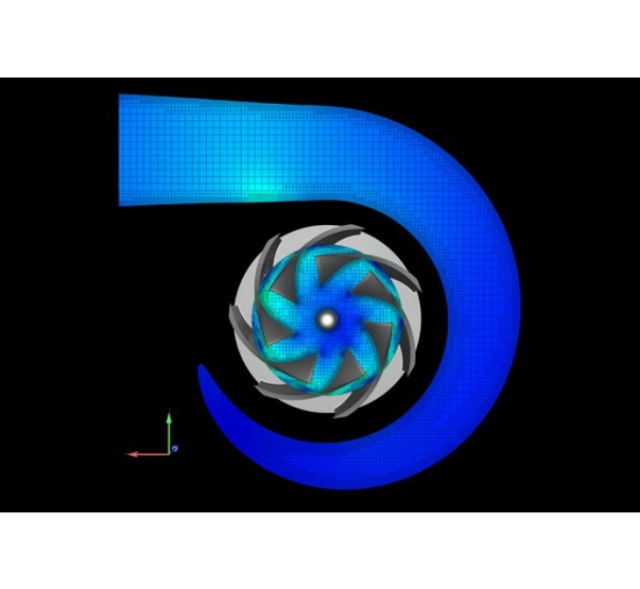

Step 2 - Mesh generation and refinement of mesh

Step 3 - Apply Boundary Conditions and Run the Simulation

Calculations and Analysis

In this project, you will work on a Centrifugal pump and run the simulation. You will do the following in this project,

  • Surface cleanup and setting up the case
  • Run the case in parallel using CYGWIN

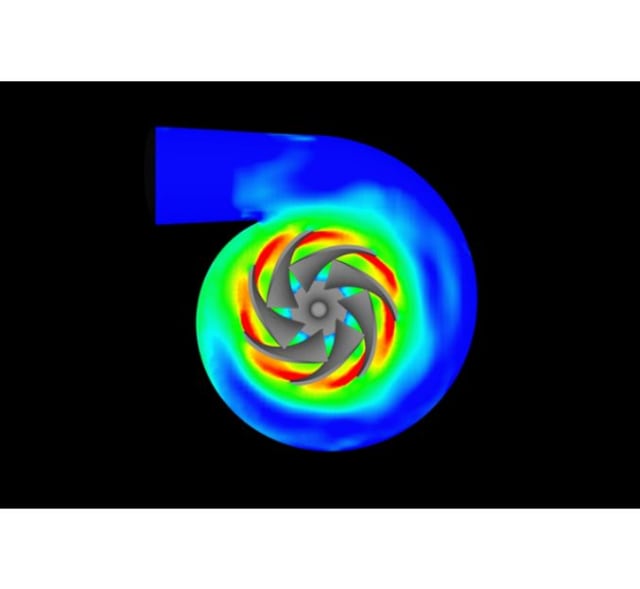

  • Line plotting and visualizing the results in PARAVIEW.
  • Plotting Performance curve
