Menu

Executive Programs

Workshops

Projects

Blogs

Careers

Student Reviews



More

Academic Training

Informative Articles

Find Jobs

We are Hiring!


All Courses

Choose a category

Loading...

All Courses

All Courses

logo

Geometric Design Fundamentals

Strengthen your fundamentals in the geometrics of road design.

nsdc
Approved Training Partner

Book a Class, for FREE

RELATED RECENT PLACEMENTS

Rohit Mali

William O'Neil India

NMIMS MUMBAI

Dhiraj Satghare

RD Civil Solution

Acharya Shrimannarayan Polytechnic

Namrata Rao

Piaggio & C. S.p.A.

Rajeev Gandhi College of Engg and Research Institute

Siddhi Parab

C.C Engineers

lokmanya tilak college of engineering

Anil Katarkar

3D engineering

NATIONAL INSTITUTE OF TECHNOLOGY

Bhavesh Kumbhare

Dar Al-Handasah Engineering company

Rashtrasant Tukadoji Maharaj Nagpur University

Akash Bhadkumbe

XS CAD

Dr. D Y Patil College of Engineering & Innovation, Varale

Madhura Joshi

NEILSOFT LIMITED

Government Polytechnic Ratnagiri

Syllabus

This course is full of best-in-class content by leading faculty and industry experts in the form of videos and projects

Course Overview

  • This course mainly focuses on the basic concepts of geometric design and their implementation in the software, generally used for road design in the practical world.
  • Upon taking up this course, students will get clarity on the basic concepts of geometric design of roads and will also gain basic knowledge of the software used.
  • The students will learn the basics of Civil 3D, an industry-relevant software.

Course Syllabus

On a daily basis we talk to companies in the likes of Tata Elxsi and Mahindra to fine tune our curriculum.

Week 01 - Introduction and Classification of Roads

  • In this week, the following topics will be covered:
    • Basis of Geometric design
    • Various types and classifications of roads
    • Highway alignment

Week 02 - Geometric Control Factors

  • In this week, the following topics will be covered:
    • Factors affecting the Design
      • Speed
      • Topography
      • Design vehicle
      • Traffic
      • Environment and other factors as per IRC

Week 03 - Cross-section

  • In this week, the following topics will be covered:
    • Pavement edge
    • ROW
    • Median
    • Kerb
    • Camber
    • Shoulder
    • Footpath
    • Service road

Week 04 - Sight Distance

  • In this week, the following topics will be covered:
    • Sight distance
    • Reasons for providing sight distance
    • Various types of sight distance
    • Calculation of sight distance

Week 05 - Horizontal Alignment

  • In this week, the following topics will be covered:
    • Horizontal alignment
    • Minimum and maximum radius values for various roads
    • Superelevation
    • Methods of attaining superelevation
    • Transition curve and method of calculation of transition curve
    • Extra widening and setback distance

Week 06 - Vertical Alignment

  • In this week, the following topics will be covered:
    • Gradient
    • Calculating the gradient
    • Types of gradient
    • Design criteria for summit and valley curves
    • Design of vertical curve for various sign distances as per IRC
    • Special design for Hill roads

Week 07 - Standards and Software

  • In this week, the following topics will be covered:
    • Various country standards
      • IRC (India)
      • AASHTO (America)
      • DRMB
    • Various software used in the design

Our courses have been designed by industry experts to help students achieve their dream careers

Industry Projects

Our projects are designed by experts in the industry to reflect industry standards. By working through our projects, Learners will gain a practical understanding of what they will take on at a larger-scale in the industry. In total, there are 2 Projects that are available in this program.

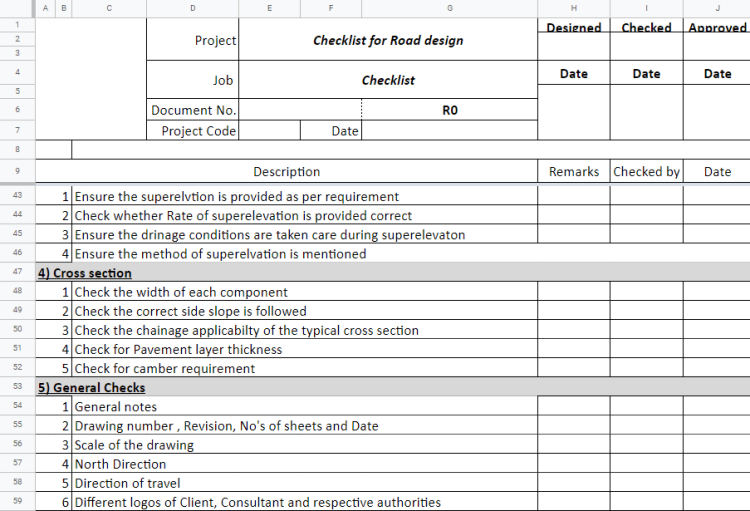

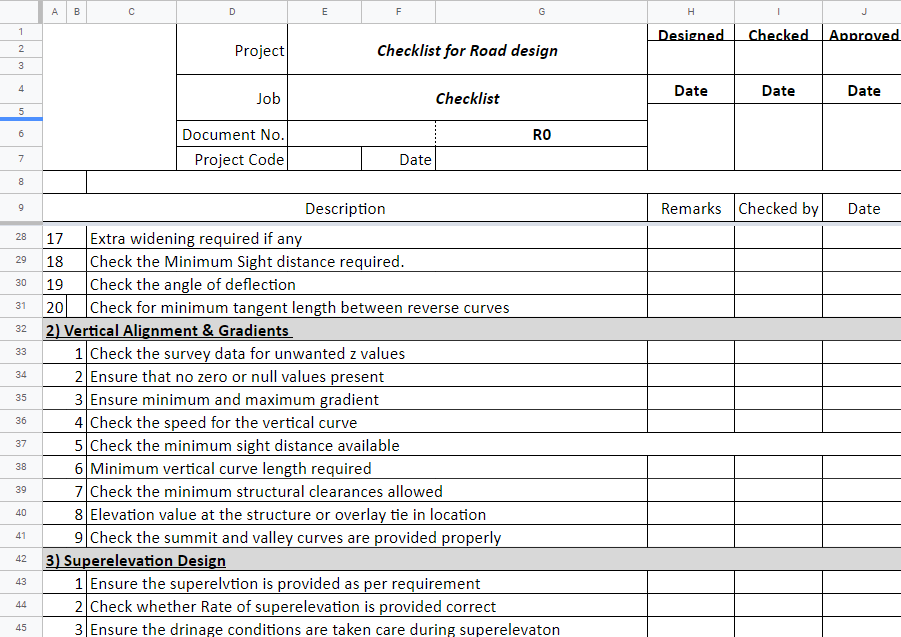

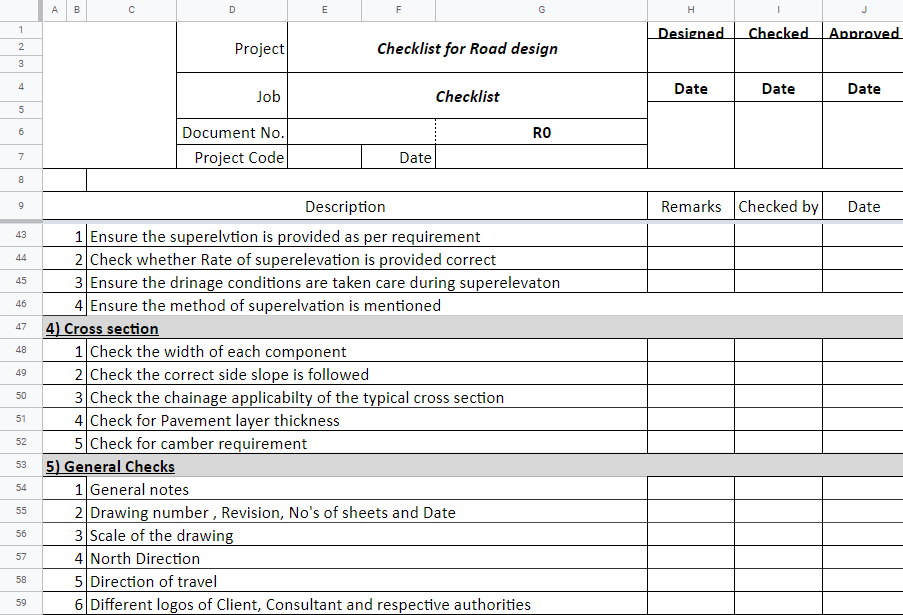

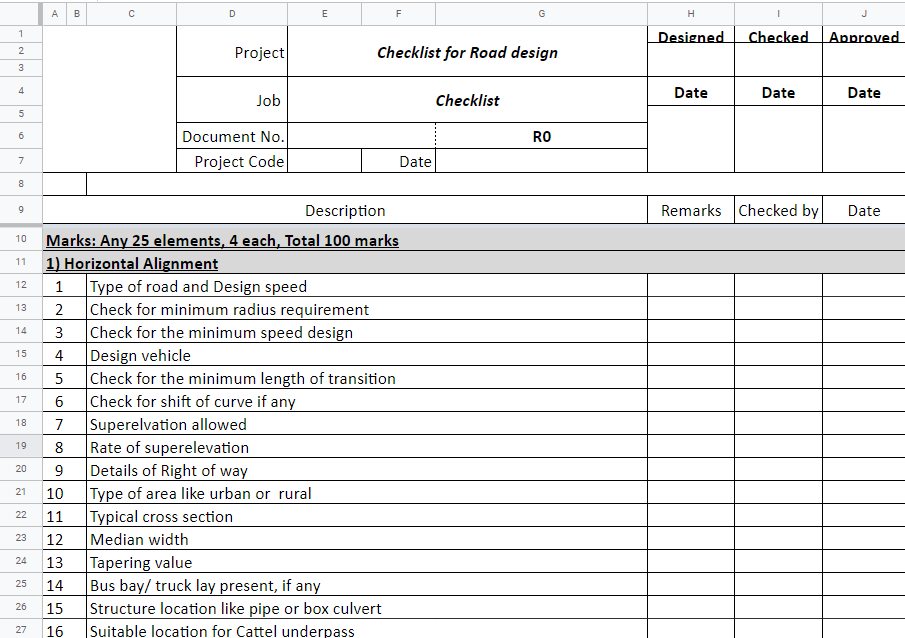

Geometric Design Parameter

In this project, students will have to understand and list all the necessary parameters required for the road geometric design.

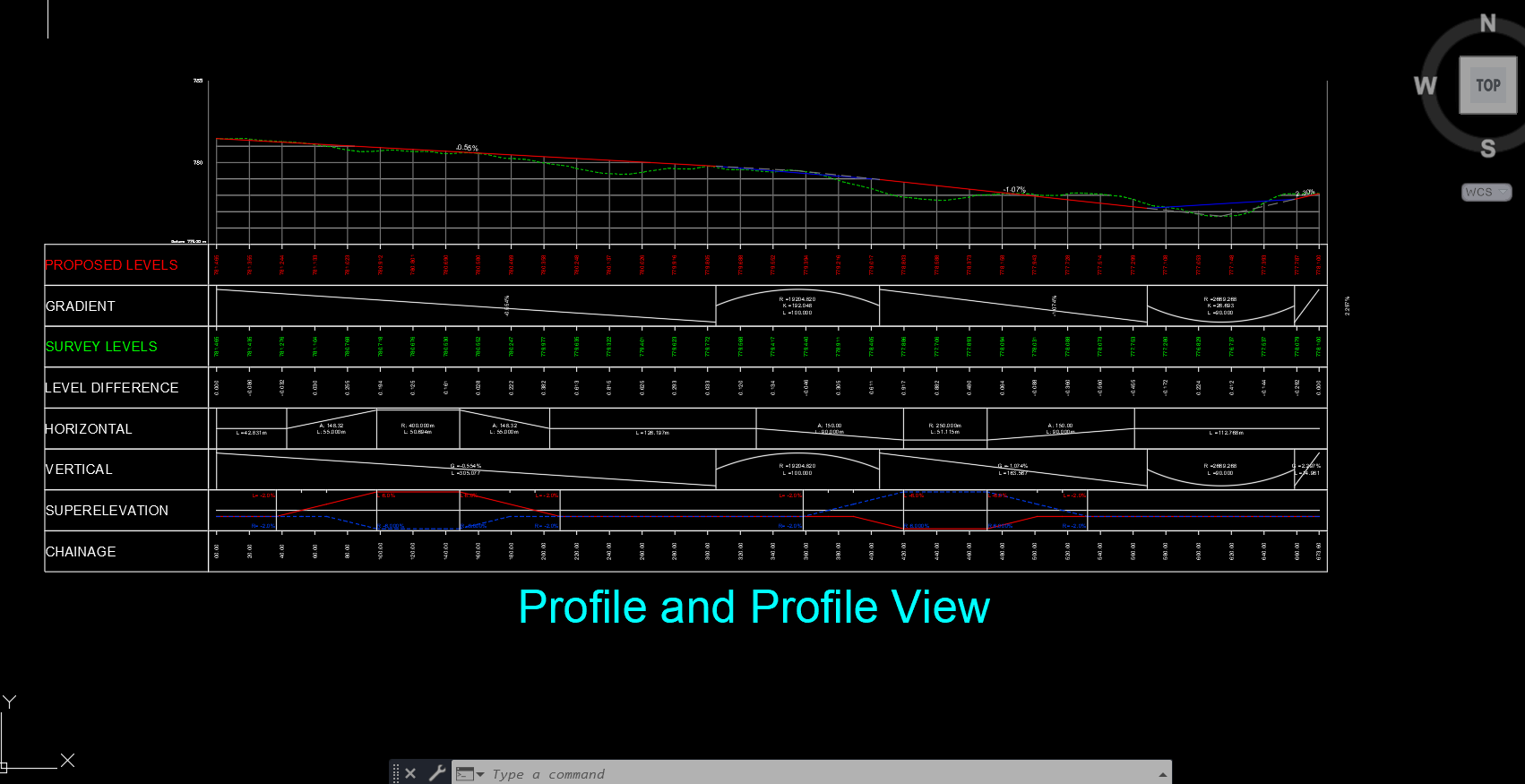

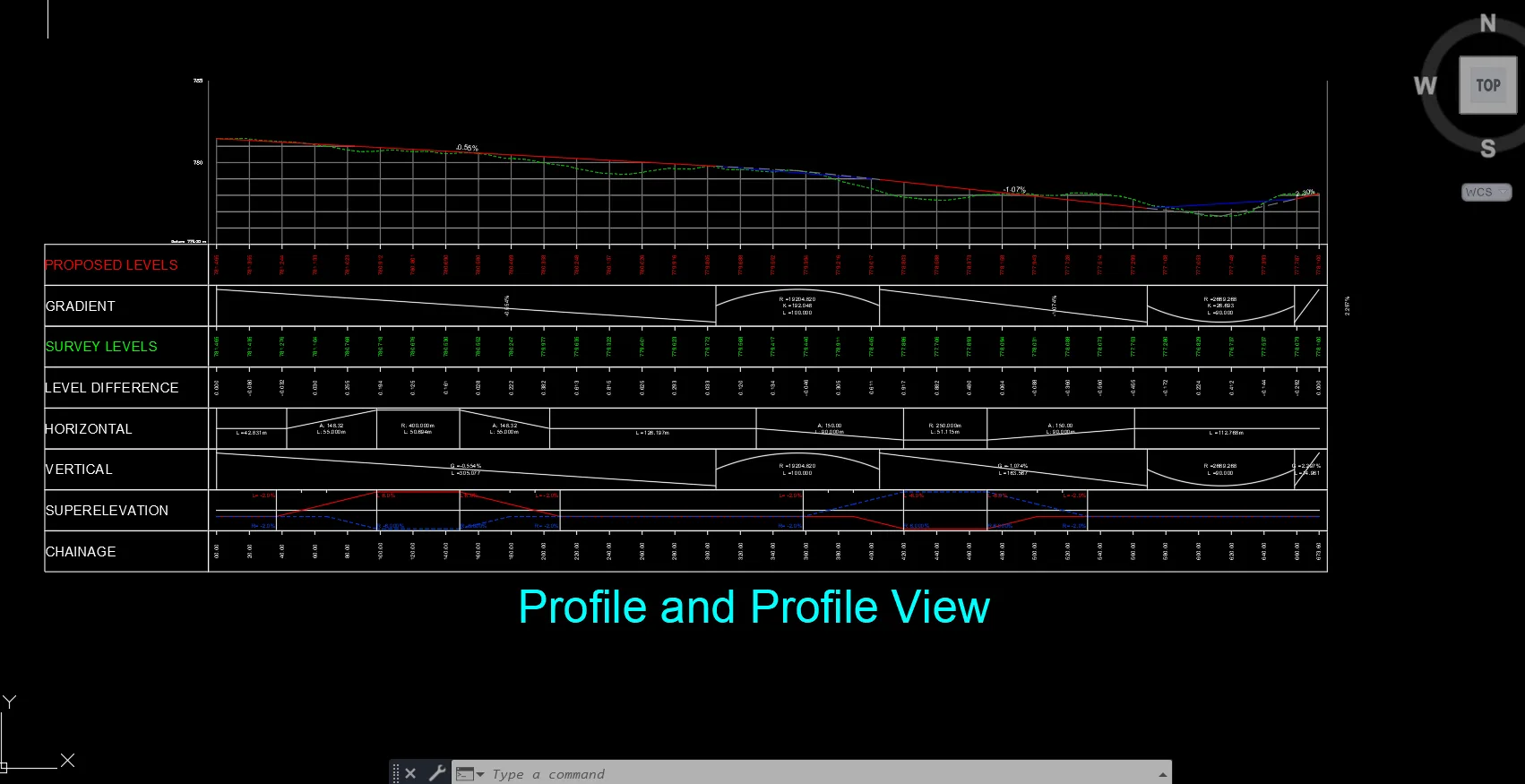

Lane National Highway Roadway Design in Civil 3D

In this project, students will design the surface, profile, corridor development, and detailed cross-section for roadways or roads in Civil 3D.

Our courses have been designed by industry experts to help students achieve their dream careers

Ratings & Reviews by Learners

Skill-Lync has received honest feedback from our learners around the globe.

Google Rating
4.8

Instructors profiles

Our courses are designed by leading academicians and experienced industry professionals.


1 industry expert

Our instructors are industry experts along with a passion to teach.


11 years in the experience range

Instructors with 11 years extensive industry experience.


Areas of expertise

  • Transportation

Similar Courses

Got more questions?

Talk to our Team Directly

Please fill in your number & an expert from our team will call you shortly.

Please enter a valid number
