A Stepwise Guide to Create a Revit Showcase

logo

Skill-Lync

Teams working in architecture, engineering, and construction (AEC) may produce high-quality structures and infrastructure with the aid of Revit® BIM software. Using Revit, one can:

  • Model objects, systems, and forms in three dimensions with ease, accuracy, and precision.
  • Plan, elevation, schedule, and section updates can all be made instantly as projects change, streamlining documentation labour.
  • Provide specialised toolkits and a uniform project environment to multidisciplinary teams.

Applications of Autodesk Revit

Revit software uses include the drawing sheet setup, the rendering functions, and also the remote work capabilities.

Drawing sheet setup:

This feature enables detailed collaboration on projects while ensuring accurate updates throughout entire drawing sheets when changes are made to at least one area.

Rendering:

Revit enables professionals to access design and rendering functions in an exceedingly single program. this enables the designs to be created within the identical software that renders the ultimate images. The user can access an unlimited library of materials and custom Revit add-ins for MEP.

Remote work capabilities:

The cloud-based points of access enable this feature. this is often vital in an era where remote working mandates change how collaboration and team coordination are done. The cloud server functions include enabling saving with updates applied across drawing sheets, team collaboration, and more. The browser connects the team to the cloud, enabling everyone to access the Revit software's powerful features.

Creation of Showcase using Revit

Steps to create a showcase using Revit:

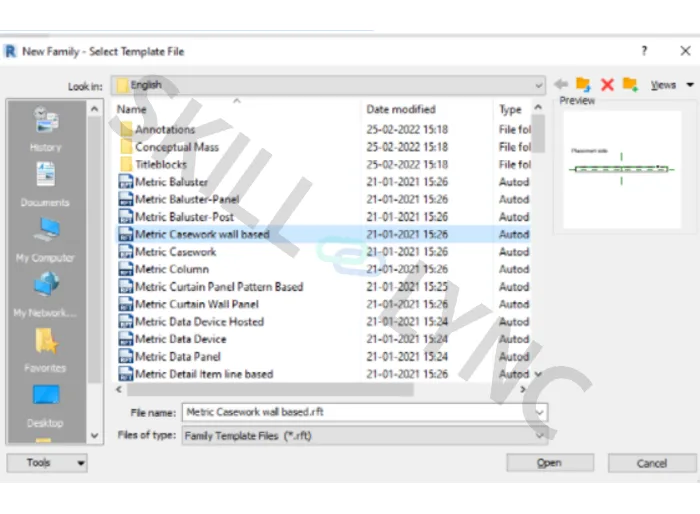

*Select New families > Metric casework wall based

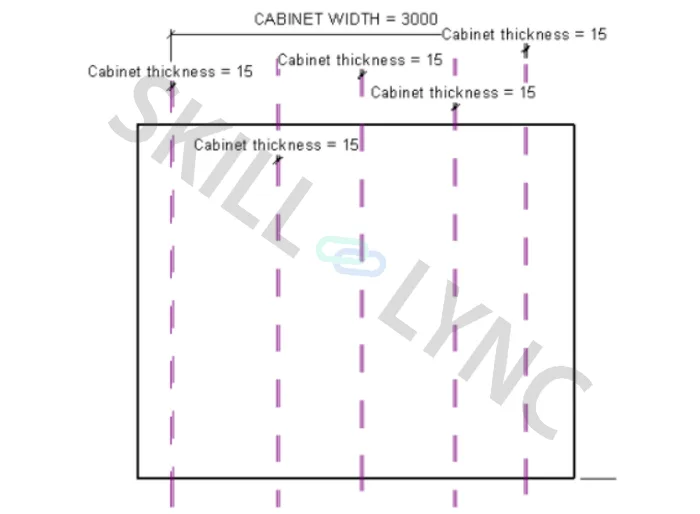

*Type RP and add the reference lines

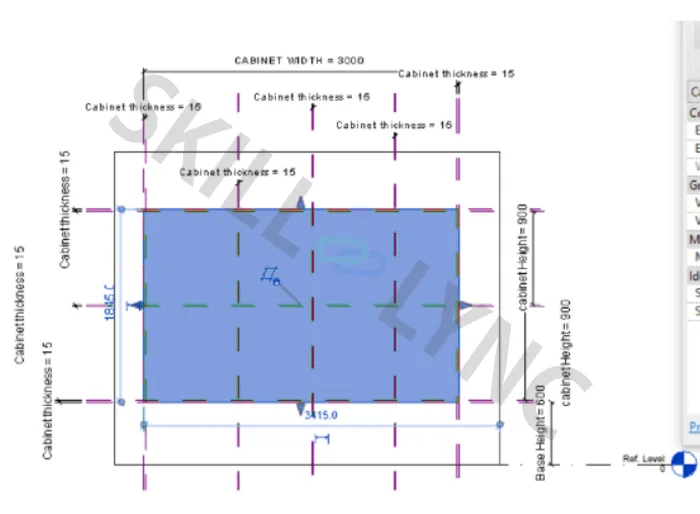

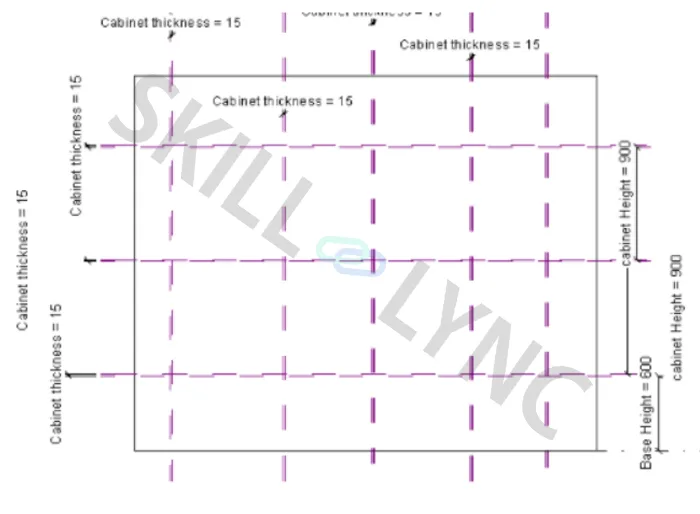

*add dimensions and parameters are added







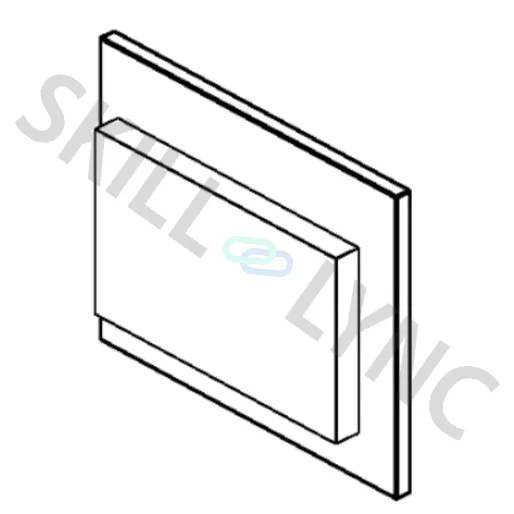

*Now the set the required  plane  and the extrusion option is selected







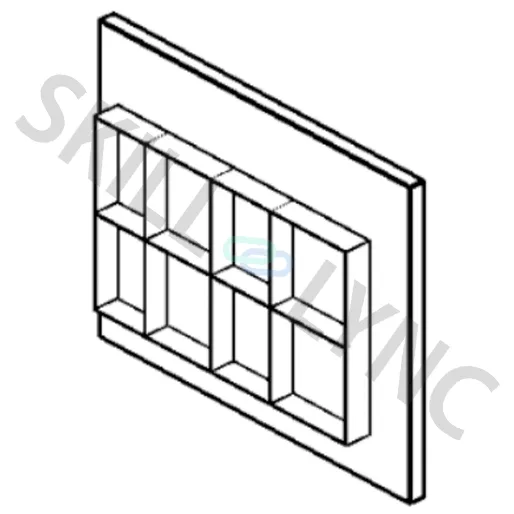

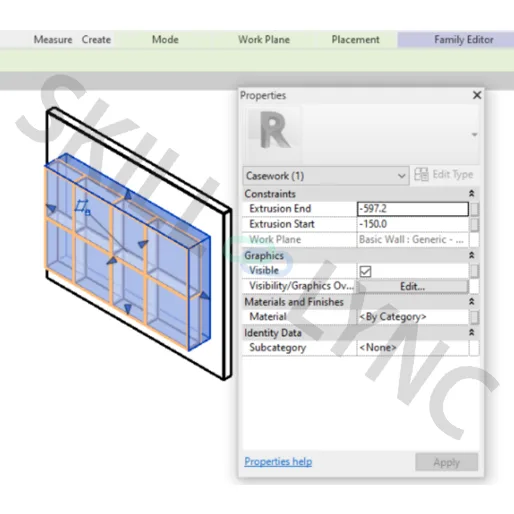

*Now we have to create the voids





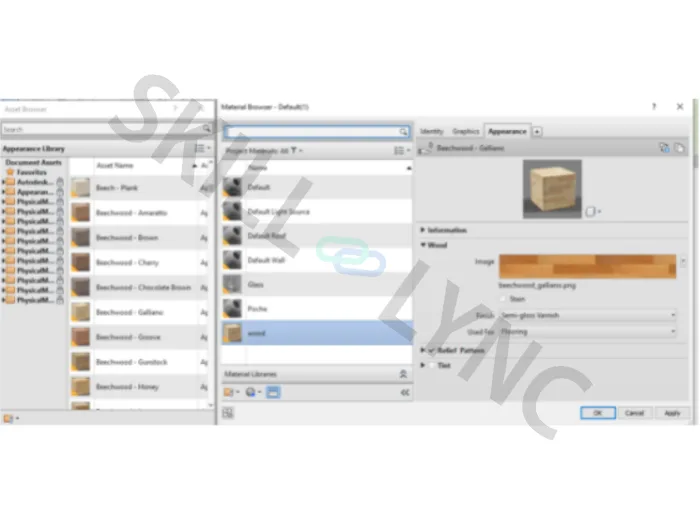

*Now the materials are added to the showcase

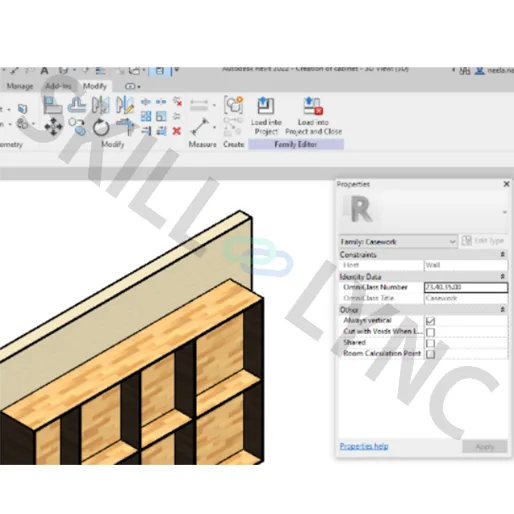

*Select the model > add the material (under property browser)









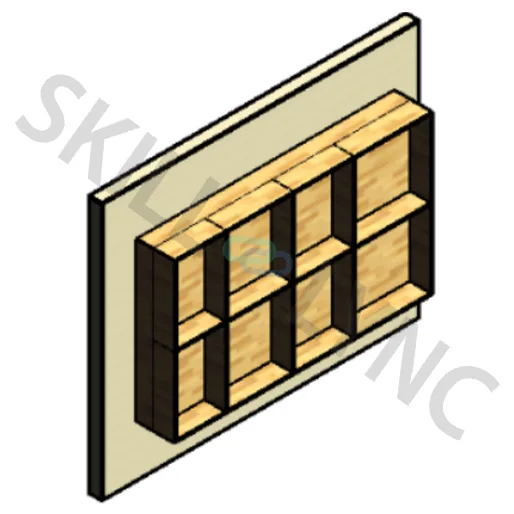

*Now this project can be saved and also loaded into a project
