Types of Steering Gearbox: Rack and Pinion, Recirculating Ball and More

In short

  • A steering gearbox converts the turning of the steering wheel into the sideways push that steers the front wheels. It also multiplies the driver's effort.
  • Two types matter today. Rack and pinion is used in most cars. Recirculating ball is used in trucks, buses and some off-roaders: Bosch's Servocom hydraulic gear is rated for front axles above 6 t, with a 22.2-26.2:1 ratio. Worm and sector, worm and roller, and cam and lever are older designs you still meet in exams and in old vehicles.
  • Steering ratio = steering-wheel angle ÷ road-wheel angle. In Skill-Lync's worked example, 50 mm of rack travel per turn on a 130 mm steering arm gives 16.3:1 on centre, quickening to 13.8:1 at lock, with 2.8 turns lock to lock.
  • Most new cars add electric power steering, with the motor on the column, the pinion or the rack. A few now use steer-by-wire: the Infiniti Q50 in 2013 kept a backup clutch, and the Tesla Cybertruck has no steering column.

A steering gearbox is the mechanism between the steering column and the steering linkage. It turns the rotation of the steering wheel into the linear or swinging motion that steers the wheels, and gears it down so the driver can turn heavily loaded tyres. The main types are rack and pinion, recirculating ball, worm and sector, worm and roller, and cam and lever. Rack and pinion dominates passenger cars; recirculating ball survives in heavy vehicles.

This guide explains how each type works, with schematics. It shows how steering ratio is calculated, with a worked example for both a rack-and-pinion and a recirculating-ball gear, and works out why power assistance is needed. It then covers the three electric power steering layouts and steer-by-wire, and clears up a common confusion about "ram-type" steering gear. The worked numbers were computed by Skill-Lync with a short Python script, kept with this article's sources.

What does a steering gearbox do?

A steering gearbox has two jobs. First, it converts the rotation of the steering column into the motion the linkage needs: a sideways slide of a rack, or the swing of a pitman (drop) arm. Second, it reduces the motion and multiplies torque. A driver turns the wheel many degrees for each degree at the road wheels, so modest hand effort can overcome tyre scrub.

Where the gearbox sits depends on the linkage. In a rack-and-pinion system the gearbox is the cross-car link: the rack ends connect straight to the tie rods. In the worm-type boxes (recirculating ball, worm and sector, worm and roller, cam and lever), the box is bolted to the chassis. Its output shaft swings a pitman arm, which drives a drag link or centre link and then the tie rods. That extra linkage suits a beam axle that moves up and down as one piece. It is one reason trucks kept worm-type boxes after cars moved to racks.

What are the types of steering gearbox?

Five gearbox types are taught in automobile engineering. Rack and pinion and recirculating ball are the two in wide production today. Worm and sector, worm and roller, and cam and lever (or worm and peg) are older worm-type designs. They differ in how the input shaft drives the output: sliding teeth, rolling balls, a rolling roller or a peg in a groove.

Schematics of four steering gearboxes: rack and pinion with a pinion sliding a toothed rack; recirculating ball with a worm, a ball nut and a sector driving the pitman arm; worm and roller with an hourglass worm and a roller on the cross shaft; cam and lever with a peg in a helical cam groove
Four steering gearbox types, simplified. Blue is the input from the steering column, amber is the output to the steering linkage.
TypeHow it worksWhere you find it
Rack and pinionPinion on the column slides a toothed rack; rack ends drive the tie rods (gear teeth)Most cars built today, e.g. the Suzuki Swift (electric power-assisted)
Recirculating ballWorm drives a nut on a chain of steel balls; nut teeth turn a sector and pitman arm (rolling balls)Heavy trucks and buses (e.g. Bosch Servocom); Jeep Wrangler, Ineos Grenadier Quartermaster, Lada Niva
Worm and sectorWorm meshes with a toothed sector on the cross shaft (sliding teeth)Older vehicles
Worm and rollerHourglass worm turns a toothed roller, usually two teeth, on the cross shaft (rolling)Older vehicles
Cam and lever / worm and pegA peg or stud on a lever rides in the groove of a cam-shaped wormOlder vehicles

Names vary between textbooks. "Worm and nut" usually means the recirculating-ball design (a worm driving a nut, with balls acting as the thread). Some lists add "worm and ball-bearing nut", "cam and roller" or "cam and peg" as separate entries. When an exam asks for "types of steering gearbox", the five above, with a sketch of each, is the safe answer.

How does rack and pinion steering work?

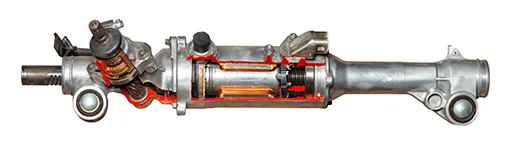

In rack-and-pinion steering, a small gear (the pinion) on the end of the steering shaft meshes with a straight toothed bar (the rack). Turning the steering wheel turns the pinion, which slides the rack left or right. Tie rods on the rack ends push and pull the steering arms, turning the wheels. It is simple, light, direct and easy to package with independent front suspension.

The key design number is the rack's travel per turn of the steering wheel, often called the c-factor. One turn of the pinion moves the rack by one pinion pitch circumference. The steering arm then converts rack travel into wheel angle. Our illustrative rack moves 50 mm per turn and drives a 130 mm effective steering arm. Close to straight ahead, one turn of the steering wheel therefore steers the wheel by:

So the on-centre steering ratio is:

With ±70 mm of rack travel, the steering wheel turns 504° (1.4 turns) each way, 2.8 turns lock to lock. The road wheel reaches .

Two charts for a rack moving 50 mm per steering-wheel turn on a 130 mm steering arm: road-wheel angle reaches 32.6 degrees at 504 degrees of steering; the local steering ratio falls from 16.3 to 1 on centre to 13.8 to 1 at lock
The same rack gives a quicker ratio toward lock, because the steering arm swings through larger angles for the last millimetres of rack travel. Computed in calc.py.

The ratio is not constant. As the steering arm swings round, each millimetre of rack travel turns the wheel slightly more. In our example the ratio quickens from 16.3:1 at centre to 13.8:1 at full lock. Variable-ratio racks, still driven by a normal pinion, shape this curve on purpose. Arthur Ernest Bishop invented them in the 1970s to improve response and steering feel.

To run these numbers for your own geometry, use Skill-Lync's free steering geometry calculator. It works out wheel angles, Ackermann percentage, turning circle and parking effort for a rack-and-pinion linkage. Why the inner and outer wheels need different angles is explained in our guide to Ackermann's principle of steering.

How does recirculating ball steering work?

In a recirculating-ball gearbox, the steering shaft ends in a worm (a coarse screw) that runs inside a nut, with a chain of steel balls in place of a thread. Turning the worm drives the nut along it, and teeth on the nut turn a sector shaft that swings the pitman (drop) arm. The balls return through a guide tube, so they keep circulating.

Rolling balls instead of sliding threads cut friction, wear and the play (slop) felt when the steering changes direction. The design is strong, which suits heavy front axles. Bosch's Servocom, a hydraulic recirculating-ball gear for heavy commercial vehicles, puts the mechanical gear, the control valve and the power cylinder in one cast housing. The main 8098 variant is rated for front axle loads above 6.0 t, with a ratio of 22.2-26.2 and a 43 kg net weight. Wikipedia lists the Jeep Wrangler, Ineos Grenadier Quartermaster and Lada Niva as current vehicles using recirculating ball. It notes that rack and pinion took over in most newer cars because it is more economical.

Worked example: recirculating-ball ratio. One worm turn moves the nut by the worm's lead . That turns a sector of pitch radius by radians, so the gear ratio is:

With an illustrative 12 mm lead and a 45 mm sector radius:

The sector turns 15.3° per steering-wheel turn, so 45° of pitman-arm travel each way takes about 2.9 turns, or 5.9 turns lock to lock. That 23.6:1 sits inside Bosch's published 22.2-26.2 band for the Servocom. It shows why heavy vehicles have "slow" steering: more turns, but less effort per turn.

How do worm and sector and worm and roller steering work?

In a worm-and-sector gearbox, a worm on the steering shaft meshes with a toothed sector (a slice of a gear) on the cross shaft, which swings the pitman arm. Worm and roller replaces the sector with a small toothed roller, usually two teeth, that rolls along an hourglass-shaped worm. Rolling contact gives less friction than the sliding teeth of worm and sector.

The hourglass shape lets the roller stay in mesh with the worm as the cross shaft swings through its arc. Both designs are worm-type boxes driving a pitman arm, like the recirculating ball. Since rack and pinion took over in most newer cars, you will rarely find either on a new vehicle, but both remain standard exam topics.

How does cam and lever steering work?

In cam-and-lever steering, the worm is replaced by a cylindrical cam with a helical groove. A lever on the pitman-arm shaft carries one or two tapered studs (pegs) that sit in the groove. Turning the cam moves the studs along it, swinging the lever and the drop arm. In the worm-and-peg version, a single cone-shaped peg follows the worm thread.

Mounting the studs in bearings, so they roll along the groove instead of sliding, reduces friction and improves steering response. Some textbook descriptions give the groove a variable pitch, which changes the ratio across the steering range.

What is steering ratio and how is it calculated?

Steering ratio is the angle the steering wheel turns divided by the angle the road wheels turn: . A 16:1 ratio means 16° at the steering wheel for 1° at the wheels. A lower number is "quicker" steering, with fewer turns and more effort. A higher number is "slower" steering, with more turns and less effort.

Two parts multiply to give the overall ratio. The gearbox ratio is for a worm-type box, or one turn per c-factor of rack travel for a rack. The linkage ratio depends on the steering-arm length and angle, which is why the overall ratio varies across the lock. Our two worked examples show the typical spread: about 16:1 for the car rack and 23.6:1 for the truck box, which needs more help to turn its heavy axle.

A quick way to measure it on a real car: turn the steering wheel exactly one full turn from straight ahead and measure the road-wheel angle on turn plates, or from the change in the tyre's heading. Then divide 360° by that angle. Measure near centre and near lock to see the variation.

Why does a steering gearbox need power assistance?

Steering forces at the rack are large. Nexteer rates its single-pinion electric power steering for up to 13.5 kN of rack load. Moving 13.5 kN through a rack that travels 50 mm per turn needs about 107 N·m at the pinion. That is a 565 N (58 kgf) push at the rim of a 380 mm steering wheel, before any friction.

The torque at the pinion follows from the rack's travel per turn: one turn of torque does work , which moves force through distance . So:

Real parking loads depend on the car, the tyres and the surface, and 13.5 kN is a rating ceiling, not a typical value. Still, the sum shows why a slower ratio alone can't make steering light without making it slow. Power assistance supplies most of the torque, and the driver supplies a small, controlled share that gives road feel.

What are the types of power steering?

There are three families. Hydraulic power steering (HPS) uses an engine-driven pump that pushes oil into a cylinder on the rack or in the steering box. Electro-hydraulic steering drives that pump with an electric motor. Electric power steering (EPS) drops the hydraulics and uses an electric motor and gearbox. EPS is classified by where the motor acts: column, pinion or rack.

Electric power steering layouts: column assist motor inside the cabin for light, compact and medium cars; pinion assist in the engine bay, single-pinion units up to 13.5 kN rack load for A to C segment cars; rack assist for mid-size cars to full-size trucks, high-output units up to 27 kN
Electric power steering is named after where the assist motor acts. Ratings from JTEKT and Nexteer product pages.
  • Column assist (C-EPS): the motor sits on the steering column inside the cabin. JTEKT says this type is adopted for light, compact and medium cars. It needs no waterproofing and does not affect the engine and transmission layout.
  • Pinion assist (P-EPS): the motor drives the pinion in the engine bay, and JTEKT notes it is quieter than the column type. Nexteer rates its single-pinion system at 130 N·m of assist torque and 13.5 kN of rack load for A to C segment cars. Its dual-pinion system, with a second pinion for the motor, goes to 15 kN for C and D segments.
  • Rack assist (R-EPS): the motor drives the rack directly, usually through a ball screw. Nexteer says its rack-assist systems steer vehicles from mid-size cars up to full-size trucks, with high-output versions rated to 27 kN.

Heavy trucks still mostly use hydraulic recirculating-ball gears, now increasingly with electric help. Bosch's Servotwin adds an electric motor and a steering control unit to the Servocom gear. Bosch says this supports driver-assistance functions such as lane keeping, side-wind compensation and traffic-jam assist. It also gives emergency steering support without a second hydraulic circuit.

What is steer-by-wire?

Steer-by-wire removes the mechanical connection between the steering wheel and the steering gear. Sensors read the steering wheel, and electric actuators move the rack. The 2013 Infiniti Q50 was the first production car to offer it, with a clutch that reconnects a backup column if the electronics fail. As of 2024, the Tesla Cybertruck uses steer-by-wire with no steering column at all.

Without a fixed mechanical link, software decides how far the wheels turn for a given steering-wheel angle, so the ratio can be changed electronically. The cost is a demanding safety case: with no shaft to fall back on, the electronics themselves must keep the car steerable after a fault. That is why the Q50 kept a backup clutch. For students, steer-by-wire is where steering gear design meets embedded controls and functional safety.

Is "ram-type" steering gear used in cars?

No. Ram-type steering gear is ship equipment. In Wärtsilä's definition, an electro-hydraulic ram-type steering gear uses two or four hydraulic rams. These connect to the tiller, through a link mechanism or a Rapson slide, to turn the rudder. It shows up in lists of "steering gear types" because ships also have steering gear, but it is not an automobile steering gearbox.

Which steering gearbox suits which vehicle?

VehicleUsual gearbox todayWhy
Hatchbacks, sedans, most SUVsRack and pinion with EPS (column, pinion or rack assist)Light, compact, direct feel, suits independent front suspension
Full-size pickups, heavy EVsRack and pinion with high-output rack-assist EPSRack-assist units rated to 27 kN (Nexteer)
Heavy trucks and busesHydraulic recirculating ball (e.g. Bosch Servocom)Front axles above 6 t, beam axles with pitman-arm linkage, high ratio (22-26:1)
Some body-on-frame off-roadersRecirculating ballDurability and strength with a solid front axle

How can you learn steering system design?

Steering gear choice, steering ratio, Ackermann geometry and the suspension kinematics around them are core work for chassis and vehicle dynamics engineers. Skill-Lync's Vehicle Dynamics using MATLAB course covers steering and handling models. Suspension Design using ADAMS builds the suspension and steering system in Adams/Car. You can compare all six vehicle dynamics courses on the vehicle dynamics course page, or talk to a Skill-Lync counsellor about which fits your background.

Frequently asked questions

Which steering gearbox is used in most cars?

Rack and pinion. A pinion on the steering shaft slides a toothed rack whose ends drive the tie rods directly. It is light, compact, gives direct feel and suits independent front suspension. Most new cars combine it with electric power steering. For example, Suzuki lists electric power-assisted rack and pinion for the Swift.

Why do trucks use recirculating ball steering?

Trucks have heavy beam front axles and need high force and durability. A recirculating-ball gear's rolling balls handle high loads with low friction and little play. Its pitman-arm linkage suits a solid axle that moves as one piece. Bosch rates its Servocom hydraulic recirculating-ball gear for front axles above 6 t.

What is a good steering ratio for a car?

It depends on the vehicle and its assistance. Our worked rack-and-pinion example gives 16.3:1 on centre and 2.8 turns lock to lock. Heavy trucks run slower ratios: Bosch's Servocom gear is 22.2-26.2:1. A quicker (lower) ratio means fewer turns but more effort at the wheel, so it usually needs power assistance.

What is the difference between worm and sector and worm and roller steering?

Both use a worm on the steering shaft to swing a cross shaft and pitman arm. In worm and sector, the worm meshes with sliding contact against a toothed sector. In worm and roller, a small toothed roller rolls along an hourglass-shaped worm. Rolling contact reduces friction, so worm and roller needs less effort.

Is the steering gearbox the same as power steering?

No. The steering gearbox is the mechanical gear, such as a rack and pinion or a recirculating ball, that converts and multiplies the driver's input. Power steering is an assist system added to it: a hydraulic cylinder or an electric motor on the column, the pinion or the rack. Manual steering has a gearbox but no power assistance.

What is a c-factor in rack and pinion steering?

The c-factor is the distance the rack moves for one full turn of the pinion, in millimetres per revolution. It equals the pinion's pitch circumference. Together with the steering-arm length, it sets the steering ratio. In our example, 50 mm per turn on a 130 mm arm gives about 16.3:1 near centre.
