Understanding Dimensioning in AutoCAD: Essential Features and Rules

Welcome back to the AutoCAD Essentials for Mechanical Engineers series. This blog focuses on an integral part of engineering drawing: dimensioning. Dimensioning in AutoCAD defines the size and geometry of objects, and is crucial for translating designs into manufacturable products. Whether you're working with AutoCAD 2D or AutoCAD 3D, accurate dimensioning ensures that parts fit and function as intended.

Let's explore the different features and rules associated with dimensioning in AutoCAD, which are vital for any mechanical engineer.

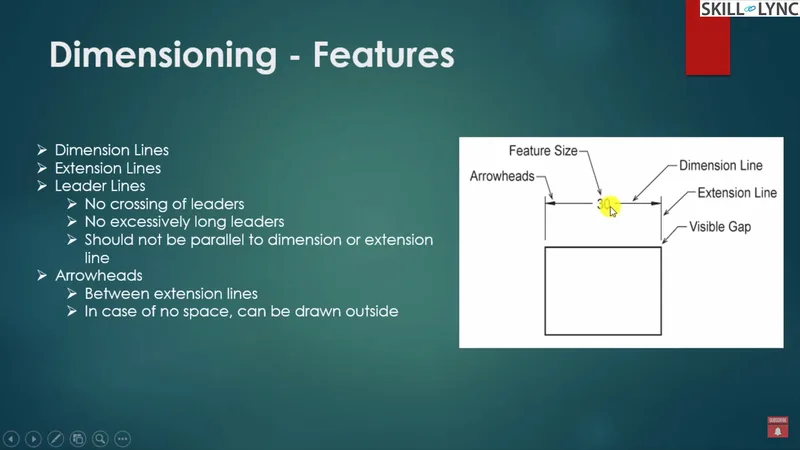

Key Features of Dimensioning

When creating an AutoCAD drawing, it’s important to understand the key features involved in dimensioning. Here’s a breakdown of these features using a rectangle or square object as an example:

• Dimension Line: This line indicates the measured distance, such as the width of the object. The dimension line can be horizontal, vertical, or aligned depending on the feature being measured.
• Feature Size: The number along the dimension line that denotes the actual measurement. For example, a dimension of 30 units between two edges of the object.
• Extension Line: These lines extend from the object to the dimension line, showing exactly where the measurement starts and ends.
• Visible Gap: A small space between the extension line and the object, indicating that the dimension is for information purposes and not part of the object itself.
• Leader Lines: Used to provide additional information about the object, such as the location of arrowheads or specific features. Leader lines should be placed as close to the object as possible and should not cross dimension or extension lines.

Arrowheads and Their Importance

Arrowheads are an essential part of the dimension line. They should be placed between the extension lines, indicating the points being measured. If space is tight, arrowheads can be placed outside, pointing inward, while the dimension is positioned between them.

Types of Dimensions

In AutoCAD for mechanical engineers, there are various dimension types to consider:

• Linear Dimensions: These measure the distance between two points, either horizontally, vertically, or along an inclined plane.
• Angular Dimensions: These measure the angle between two lines or features.
• Notes and Symbols: You can also add notes specifying whether the measurement is a diameter, radius, or chamfer. For instance, a diameter symbol (⌀) denotes the size of circular features like holes or cylinders.

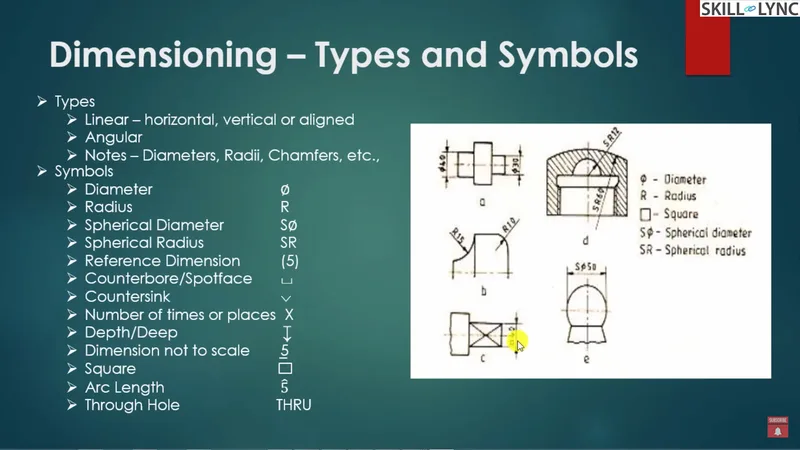

Common Dimensioning Symbols

AutoCAD offers a wide range of symbols that communicate specific information about the object:

• Diameter (⌀): Specifies the diameter of a circular feature, like a roller or hole. For example, a roller with a diameter of 40 units is labeled as ⌀40.
• Radius (R): Denotes the radius of an arc or curve. If the radius is part of a spherical element, the symbol "S" is prefixed, such as S⌀50.
• Counterbore and Countersink: These symbols indicate machining operations where bolts or screws will fit. A counterbore is represented by a square (⏧), while a countersink is shown as an inverted arrow (⌵).
• Repetition Symbol (X): Indicates how many times a feature repeats. For instance, 5X means there are five holes of the same size.
• Depth (⌴): Used to indicate how deep a hole is drilled.

Reference Dimensions

Sometimes, dimensions that do not directly affect the manufacturing process are needed for additional clarity. These are auxiliary dimensions and are enclosed in parentheses. They provide extra information without requiring a tolerance, ensuring that the part functions as intended.

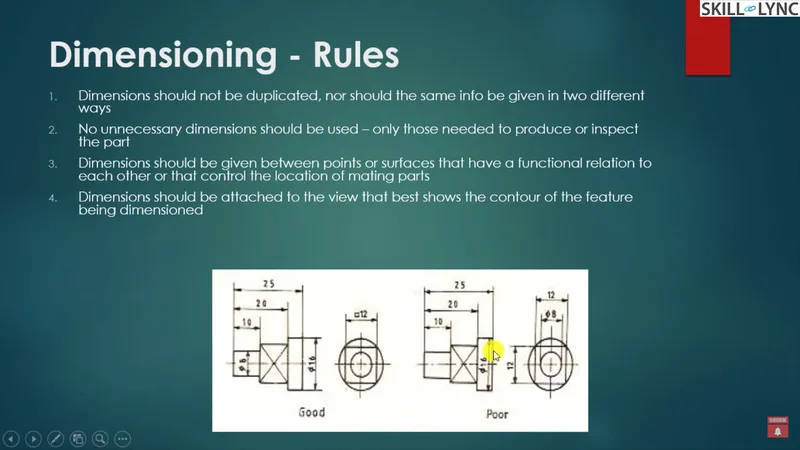

Rules for Dimensioning in AutoCAD

To ensure accuracy and clarity in your AutoCAD mechanical drawings, it’s essential to follow these key dimensioning rules:

• Avoid Duplicating Dimensions: Never repeat the same dimension in different views. Redundant dimensions can confuse the manufacturer or inspector.
• Use Functional Dimensions: Only include dimensions critical for the part’s function. For instance, the roller diameter and pitch in a chain and sprocket assembly are functional dimensions that must be tightly controlled.
• Attach Dimensions to the Most Descriptive View: Place dimensions in the view that best represents the feature. For example, if the part is square, label it as such in the view that clearly shows its square geometry.
• Avoid Dimensioning to Hidden Lines: Always dimension to visible features to ensure accuracy.
• Leader Lines: Ensure that leader lines are properly angled, typically at 30°, 45°, or 60°, and avoid crossing them with other dimension or extension lines.

Practical Example: Chain and Sprocket Mechanism

Take a chain and sprocket system as an example. The roller diameter, pin diameter, and pitch are functional dimensions critical to the performance of the system. Incorrect dimensioning could lead to misalignment or failure during operation. Non-functional dimensions, like the thickness of the chain plates, may not directly affect performance but are necessary for manufacturing.

Dimensioning Standards in AutoCAD

When creating mechanical drawings in AutoCAD, it’s crucial to follow international standards for dimensioning and tolerancing. Two commonly used standards include:

• ASME Y14.5: The American standard for GD&T (Geometric Dimensioning and Tolerancing).
• ISO 2768: The international standard for general tolerances.

These standards ensure that your drawings are understood globally and meet the necessary quality requirements for manufacturing and assembly.

Conclusion

Dimensioning in AutoCAD is a crucial skill for mechanical engineers, ensuring that designs are accurate, manufacturable, and functional. By mastering dimensioning features and adhering to the correct rules, you can create precise, professional-quality drawings that communicate your design intent clearly.

Whether you're just starting with AutoCAD 2D drawing for beginners or looking to advance your skills in AutoCAD mechanical, understanding the nuances of dimensioning is key. With practice and the right resources, like AutoCAD training or an AutoCAD mechanical crash course, you’ll be well on your way to mastering this essential aspect of CAD design.

Stay tuned for the next installment in the AutoCAD Essentials for Mechanical Engineers series, where we’ll dive deeper into practical applications and advanced features for more complex mechanical designs.
