Understanding Geometric Dimensioning and Tolerancing (GD&T) in AutoCAD

Welcome back to the AutoCAD Essentials for Mechanical Engineers series! In this blog, we’ll dive into Geometric Dimensioning and Tolerancing (GD&T), a fundamental tool in the design and manufacturing process, particularly for engineers working with AutoCAD 2D and AutoCAD 3D. GD&T is key to ensuring that parts and assemblies meet the necessary specifications for manufacturability, assembly, and service.

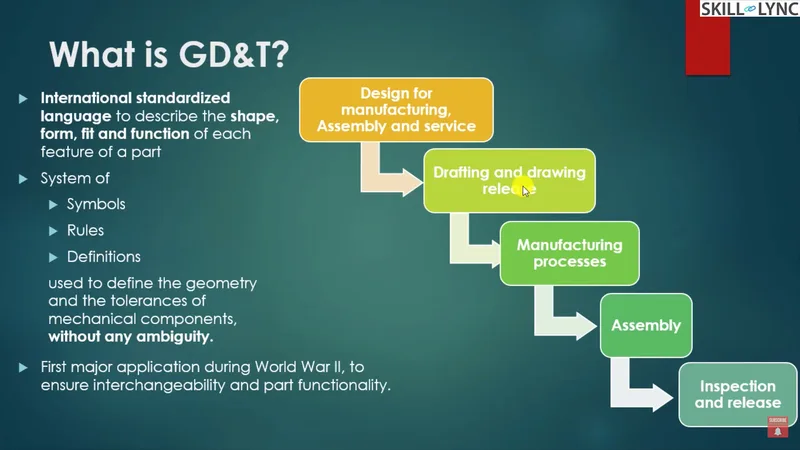

What is GD&T?

Before diving into the details of dimensioning and tolerancing, let's first understand what GD&T is. In simple terms, GD&T is an international standardized language used to define the shape, form, fit, and function of each feature of a part. It helps engineers convey design intent clearly, ensuring that all components, no matter where or by whom they are manufactured, fit and function as intended.

GD&T uses a system of symbols, rules, and definitions to describe dimensions and tolerances. These symbols are universally understood by anyone familiar with CAD software or manufacturing processes, allowing for precise communication without ambiguity.

GD&T came into widespread use during World War II, when the need for interchangeable parts in mass production became critical. The principles of GD&T were applied to ensure that every component produced was functionally interchangeable and could be easily repaired.

Importance of GD&T for Mechanical Engineers

When designing components using AutoCAD or any other CAD software, it’s essential to consider manufacturing, assembly, and serviceability. GD&T allows engineers to ensure their designs are feasible for production and will meet the required specifications when assembled. This is crucial in mechanical engineering, where precision and interchangeability can significantly affect the overall performance and durability of the product.

Dimensioning in GD&T

Dimensioning describes the size and geometry of a part, feature, or assembly. For mechanical engineers, accurate dimensioning is a must. In AutoCAD for mechanical engineers, you use dimensioning to indicate the necessary size of a feature, such as the diameter of a hole or the length of a part. To apply proper dimensioning, you need a solid understanding of engineering judgment, standards, and best practices.

There are two main types of dimensions:

• Size Dimension: Defines the size of a feature, such as the width or height.
• Location Dimension: Defines where features are located on a part.

For instance, in a mechanical AutoCAD drawing of a chain and sprocket system, dimensions like roller diameter, pin diameter, and pitch are critical. These dimensions affect how the system functions, as the rollers and pins must fit perfectly to ensure smooth transmission of power.

Types of Dimensions

In a typical AutoCAD drawing, dimensions can be classified into:

• Functional Dimensions: These control the fit and performance of a part. For example, the roller width in a chain determines how the rollers fit onto the pins.
• Non-functional Dimensions: These do not influence the function but may be necessary for manufacturing.
• Auxiliary Dimensions: These provide additional information and are often enclosed in parentheses. These do not require tolerance specifications.

Tolerancing in GD&T

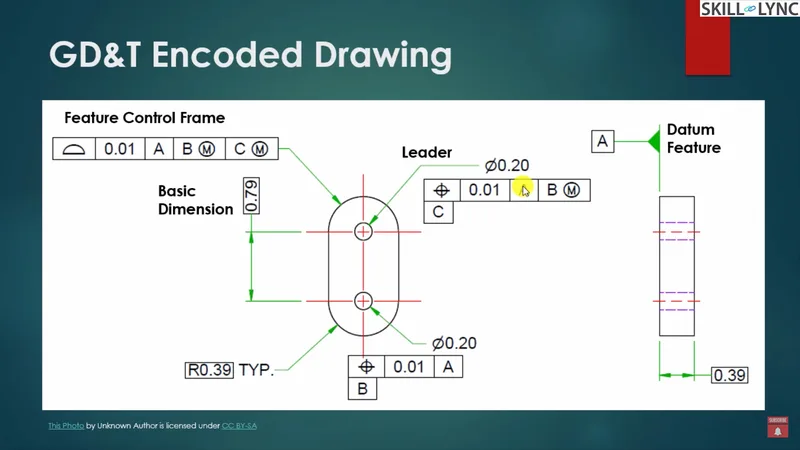

Tolerancing defines the allowable variation in a part’s dimensions. It is a vital aspect of ensuring that the parts fit together and function as expected, even when there are slight deviations in manufacturing. Tolerances are specified using feature control frames in GD&T drawings.

Key tolerancing terms include:

• Size Limits: Maximum and minimum dimensions.
• Allowances and Clearances: The amount of space between mating parts.
• Deviation: The difference between actual and nominal size.

GD&T Symbols and Rules

When applying GD&T in AutoCAD 2D and AutoCAD 3D drawings, you will use a variety of symbols and rules to ensure that your design is clear and unambiguous. Here’s an example of common symbols used in GD&T:

• Diameter (⌀): Specifies the diameter of a circular feature.
• Radius (R): Indicates the radius of a curved surface.
• Counterbore (⌀ with a rectangle): Denotes the counterbore for bolts or screws.
• Depth (⌴): Specifies the depth of a hole.

For a mechanical AutoCAD 2D drawing, it's essential to follow key dimensioning rules:

• Avoid Duplicating Dimensions: Duplicate dimensions can confuse the manufacturer.
• Use Functional Dimensions: Only dimensions critical for the function should be included.
• Attach Dimensions to Appropriate Views: Ensure that dimensions are placed in the most appropriate view to avoid ambiguity.
• Avoid Dimensioning to Hidden Lines: Always dimension to visible features.
• Clear Leader Lines: Use clear and concise leader lines for annotation.

These rules ensure that the drawings are easy to read and understand, reducing errors during production or assembly.

Practical Example: Chain and Sprocket Mechanism

Let’s take a practical example of a chain and sprocket system used in many mechanical assemblies. In a CAD drawing, the roller diameter, pitch, and pin diameter are functional dimensions that must be tightly controlled to ensure proper engagement with the sprocket teeth. Incorrect tolerancing or dimensioning could lead to excessive wear, failure in power transmission, or misalignment in the assembly.

Similarly, non-functional dimensions, such as the plate thickness, may not affect the overall function but are necessary for the production process. Auxiliary dimensions, such as the number of links in the chain, can be included as additional information for different applications.

Standards in GD&T

When creating AutoCAD mechanical drawings, following international standards is essential. Two commonly used GD&T standards are:

• ASME Y14.5: This is the American standard for GD&T.
• ISO 2768: The international standard for general tolerances.

These standards help ensure that drawings can be understood universally and that components produced anywhere in the world will fit and function as intended.

How to Apply GD&T in AutoCAD

Applying GD&T in AutoCAD mechanical drawings involves using dimensioning tools and tolerancing features within the software. Here's how you can do it:

• Use dimensioning tools to create functional and auxiliary dimensions.
• Apply tolerances using feature control frames.
• Include datum references to ensure correct alignment of parts during assembly.

For beginners or those looking to refresh their skills, taking an AutoCAD crash course or an AutoCAD free certification course can help you learn these techniques in a hands-on way.

Conclusion

Understanding GD&T is essential for creating accurate, functional, and manufacturable designs in AutoCAD. By mastering dimensioning, tolerancing, and the use of GD&T symbols, you can ensure that your designs meet industry standards and perform as expected in real-world applications.

Whether you’re a beginner working with AutoCAD 2D drawing for beginners or an experienced engineer using AutoCAD 3D for complex mechanical systems, GD&T is a critical skill. With resources like AutoCAD online courses and free CAD tutorials, mastering GD&T and applying it to your mechanical designs has never been more accessible.

Stay tuned for more insights into AutoCAD essentials for mechanical engineers as we continue to explore advanced dimensioning techniques and practical applications for real-world mechanical systems.
