Navigating Key AutoCAD Commands for Mechanical Engineers: A Practical Guide

Welcome to this blog series on Computer-Aided Drafting using AutoCAD. AutoCAD is an essential tool for mechanical engineers, offering a wide range of commands and features to streamline the design process. In this blog, we'll explore some of the most important commands and functionalities in AutoCAD, such as line drawing, coordinate systems, and circle drawing methods. Whether you're new to AutoCAD or looking to refine your skills, this guide will help you navigate through the interface and execute common tasks with ease.

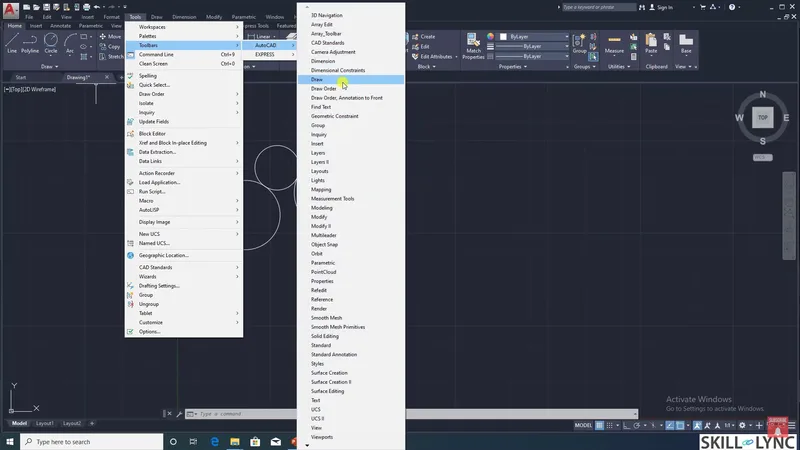

Enabling the Toolbar

Before we dive into the commands, it's important to enable the necessary toolbars in AutoCAD. If you find that the toolbar is not visible, follow these steps:

• Go to the Tools menu.
• Click on Toolbars.
• Select the toolbar you want to work with—let’s start with the Draw toolbar.

Having the Draw toolbar visible will give you quick access to common drawing commands. However, the recommended practice is to rely on the command line for most actions, as it provides a faster and more efficient workflow.

Understanding the Basic Commands: Line, Erase, and Oops

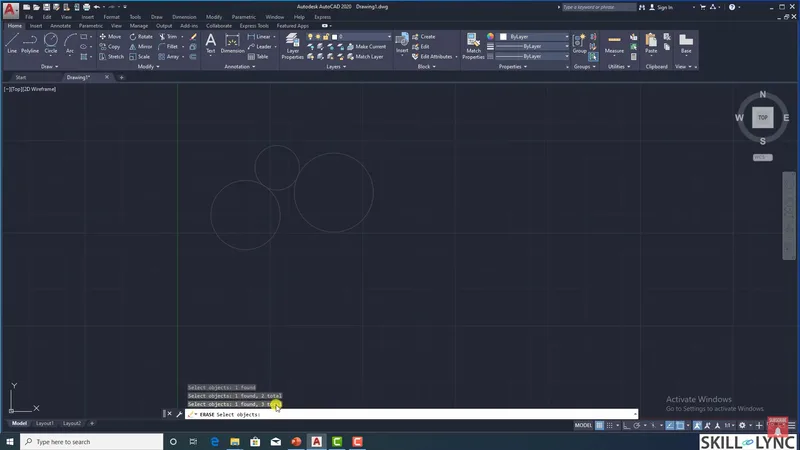

The Erase Command

Let's start with a simple task—erasing objects. AutoCAD allows you to quickly erase objects using the Erase command. Here’s how to do it:

• Type ERASE in the command line and press Enter.
• Select the objects you want to erase. As you select, the number of objects is incremented, and you can see how many items you've chosen.
• Press Enter to execute the erase command.

The Oops Command

If you accidentally erase objects and want to undo the action, you can use the Oops command. Unlike the Undo command, which undoes multiple actions, Oops only restores the most recently erased objects. To use this command:

• Type OOPS and press Enter to bring back the deleted objects.

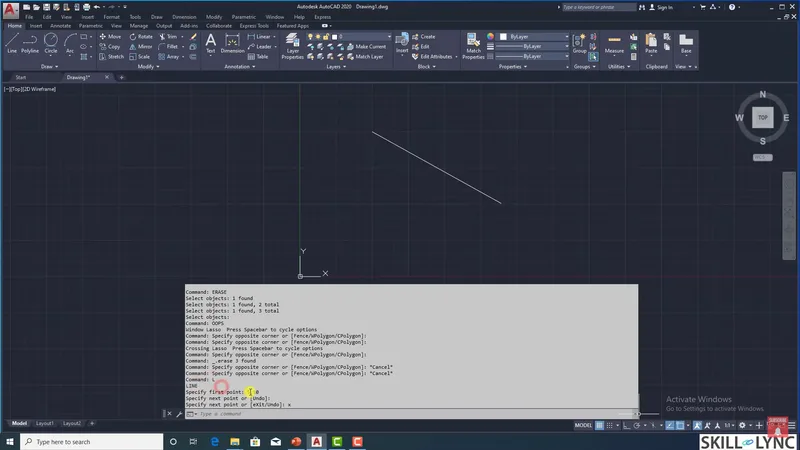

Line Command: Drawing Precision Lines

The Line command is fundamental in AutoCAD 2D drafting. It allows you to create lines by specifying points in your drawing. Here’s how to use it:

1. Type L in the command line and press Enter to start the Line command.
2. AutoCAD will prompt you to specify the first point. For precision, you can enter the coordinates. For example, type 5 for the X-coordinate, press Tab, and then type 10 for the Y-coordinate.
3. After specifying the first point, AutoCAD asks for the second point. You can either pick a point on the screen or enter coordinates to define it numerically.
4. Press Enter to terminate the command.

Using Coordinate Systems in AutoCAD

AutoCAD offers different ways to specify coordinates when drawing lines and shapes. These methods include the absolute coordinate system, relative rectangular coordinates, and relative polar coordinates.

Absolute Coordinate System

In the absolute coordinate system, both X and Y values are fixed. To use this system:

1. Start the Line command (L).
2. Enter the starting point as 5,5 for X and Y coordinates.
3. For the second point, if you want to extend the line by 10 units on the X-axis, type 15,5.

This method requires you to calculate the coordinates of each point based on a fixed origin.

Relative Rectangular Coordinate System

The relative rectangular system allows you to specify points relative to the previous point. To use this method:

• Start the Line command.
• Enter the first point as 5,5.
• For the second point, type @10,0 to extend the line 10 units in the X direction without changing the Y value.
• Continue specifying points using relative distances by adding increments to X or Y.

This method speeds up the drawing process, as you only need to input changes from the last point.

Relative Polar Coordinate System

The relative polar coordinate system uses angles in addition to distances. It is particularly useful for drawing objects with angled edges. Here’s how to use it:

1. Start the Line command.
2. Enter the first point, e.g., 5,5.
3. To draw a line 10 units long at an angle of 0 degrees, type @10<0.
4. For a vertical line, use @5<90 to move 5 units at a 90-degree angle.

In AutoCAD, angles are measured in an anti-clockwise direction, with 0 degrees pointing to the right, 90 degrees pointing upwards, 180 degrees to the left, and 270 degrees downwards.

Circle Command: Drawing Perfect Circles in AutoCAD

AutoCAD offers multiple methods to draw circles, and each method is useful in different scenarios. Let's explore these methods:

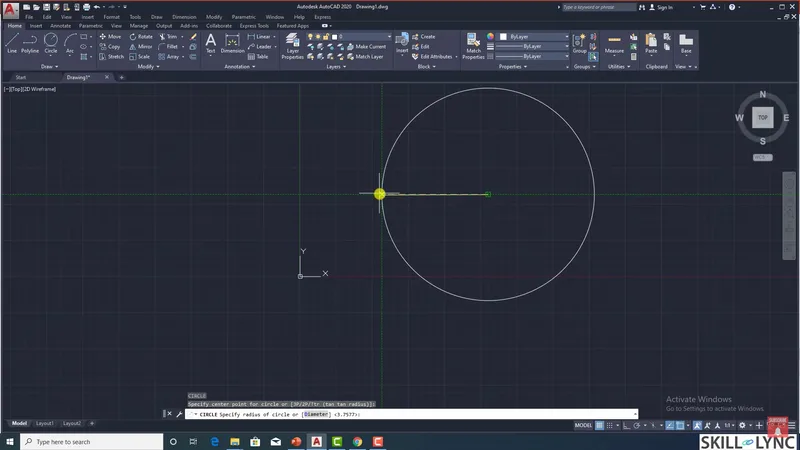

Method 1: Center Point and Radius

The simplest way to draw a circle is by specifying its center point and radius:

• Type C in the command line to invoke the Circle command.
• Specify the center point, e.g., 5,5.
• Enter the radius, e.g., 1.25.

Alternatively, you can press D to switch to diameter input instead of radius.

Method 2: Two-Point Circle

To create a circle by specifying two diametrically opposite points:

1. Invoke the Circle command (C).
2. Type 2P to activate the two-point circle method.
3. Specify the two points—e.g., the first point as 5,5 and the second as 10,5. This creates a circle with a diameter based on these two points.

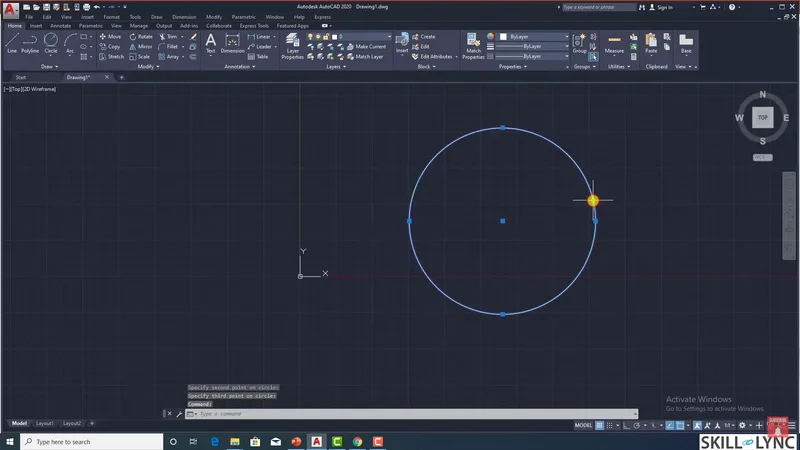

Method 3: Three-Point Circle

In some cases, you may need to draw a circle passing through three points:

• Invoke the Circle command.
• Type 3P for the three-point circle method.
• Select three points on the screen, and AutoCAD will create a circle that passes through all of them.

Method 4: Tangent, Tangent, Radius Circle

This method is useful when you need a circle that is tangent to two existing objects:

1. Draw two lines or curves.
2. Invoke the Circle command.
3. Type TTR to select the tangent, tangent, radius option.
4. Select the two objects you want the circle to be tangent to.
5. Enter the desired radius.

This method is particularly useful in mechanical engineering, where precise alignment with existing parts is necessary.

Conclusion: Mastering AutoCAD Commands

Mastering the AutoCAD interface and its fundamental commands is crucial for mechanical engineers. By understanding how to efficiently use the line, erase, circle, and coordinate systems, you can significantly speed up your workflow and create precise, professional-quality drawings.

Whether you're working on AutoCAD 2D drawing for beginners or more advanced AutoCAD 3D projects, these skills will enhance your ability to design complex components and structures. For those looking to gain formal recognition of their skills, consider enrolling in an AutoCAD free certification course or AutoCAD crash course to deepen your knowledge.

This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
