Welcome back to the AutoCAD Essentials for Mechanical Engineers blog series! In this blog, part of the AutoCAD Essentials for Mechanical Engineers series, we’ll explore the intricacies of the polyline (PL) command in AutoCAD, a crucial tool for creating and modifying complex shapes. Polylines are versatile, as they allow engineers to draw continuous lines made up of both straight and curved segments. Let's dive into the specifics of working with polylines, including their extensions, joints, curves, and more.
Using the Polyline Command

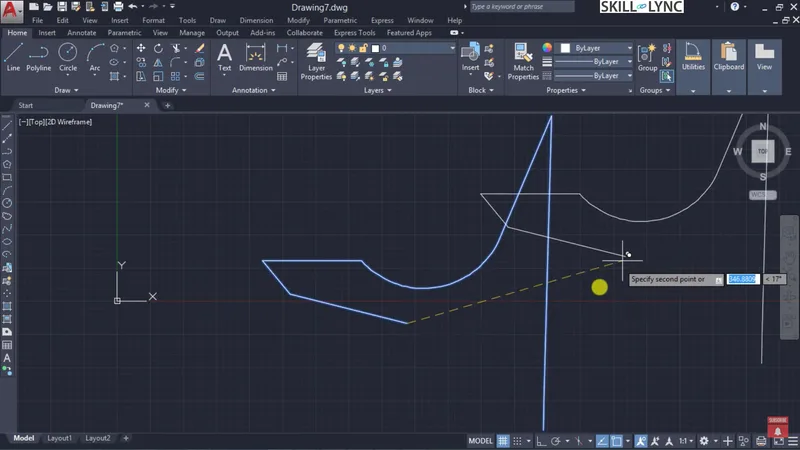

To initiate the polyline command in AutoCAD, type PL and press Enter. The command starts similarly to the line command, asking you to specify a starting point. From there, you can choose between creating straight lines or arc segments by specifying the Arc option. Additionally, you can set the half-width of the next line segment, which controls the width of the line. For example, if you want to draw a thick line, you can adjust the width, creating a visually distinct result.
You can also use the Length option to define the exact length of the next line segment. If the previous segment was an arc, the new segment will be tangent to the arc, creating a smooth transition. This feature makes polylines incredibly useful for creating continuous shapes with a variety of geometric characteristics, such as mechanical AutoCAD 2D drawings.
Understanding the Join Command

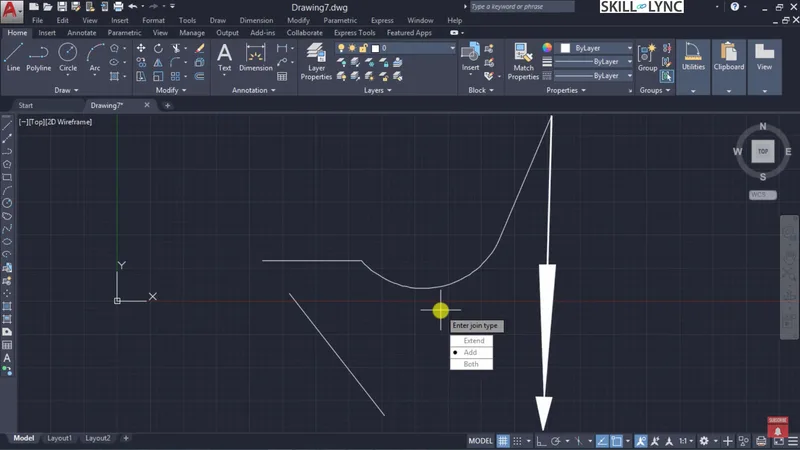

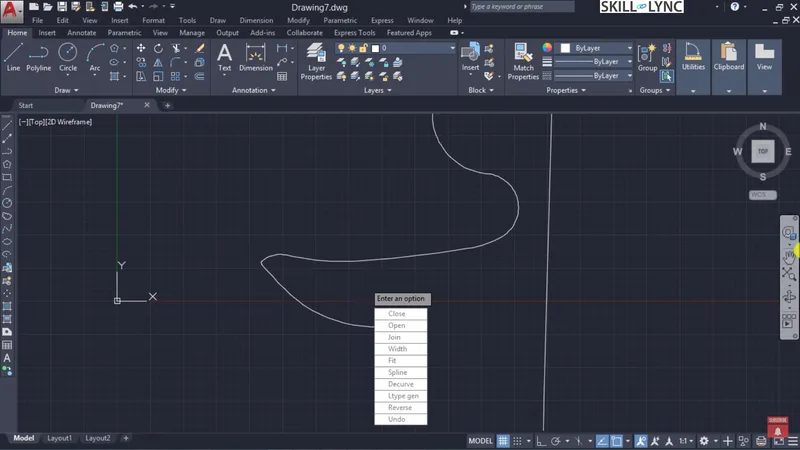

The join command in AutoCAD allows you to join two line segments, arcs, or polylines into a single entity. There are three options for joining:
For instance, if you need to join two polylines that are 100 units apart, the extend option will lengthen one polyline to meet the other. Alternatively, if you want to add a straight segment between two lines that don't intersect, the add option will create the necessary segment to close the gap.
Width Command for Polylines
The width command allows you to set the width of the entire polyline. For example, you can specify a uniform width of 2 mm for all segments. If you want to reset the polyline to AutoCAD’s default width, use Z to revert to the default setting.
For creating a tapered line, you can specify different start and end widths. For example, set the start width to 5 mm and the end width to 1 mm, and AutoCAD will create a tapered polyline with varying thickness—ideal for technical drawings in mechanical engineering.
Fit and Spline Commands
The fit command converts a polyline into a smooth curve by adjusting the tangents of each vertex. It creates arcs between each vertex, which can introduce additional vertices as needed. This feature is especially useful when working with curvilinear designs or profiles in AutoCAD mechanical drawings.
The spline command uses the vertices of a polyline as control points for a smooth curve. Unlike the fit command, a spline doesn't necessarily pass through every vertex, but it will pass through the first and last points. Splines can create either quadratic or cubic Bézier curves, providing flexibility when designing complex curves, such as in 3D CAD designs.
Line Type Generation

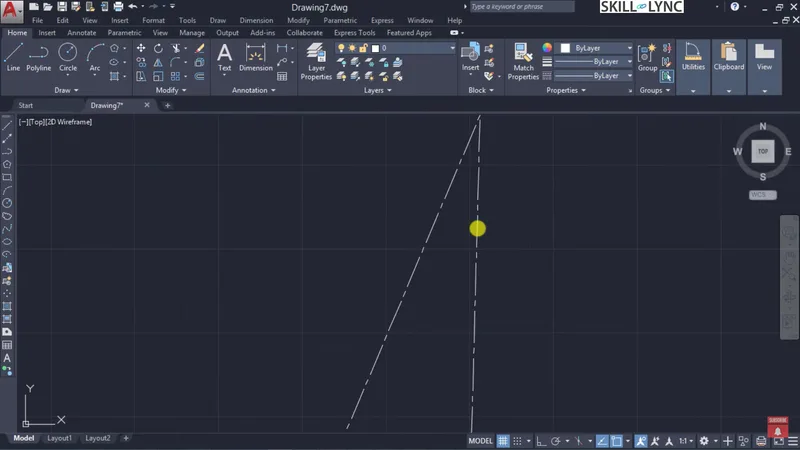

The line type generation command alters how dashed or hidden lines are drawn across vertices in a polyline. When set to Off, each vertex starts with a dash, while On creates a continuous pattern across vertices. This is especially helpful in AutoCAD 2D drawings for beginners, as it ensures a seamless transition between segments when working with dashed line types in engineering drawings.
Reversing the Polyline

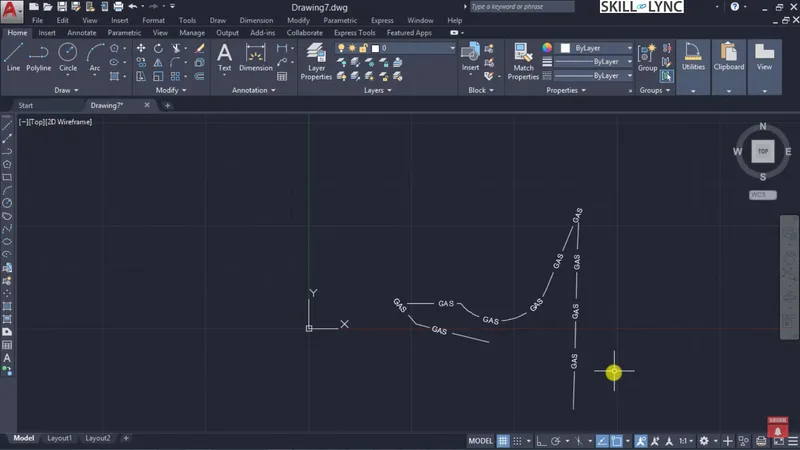

The reverse command changes the direction of a polyline by flipping the start and end points. While this doesn’t change the geometry, it can affect the orientation of text-based line types or line widths. For example, if you’ve applied a text-based line type such as "F-line" (which includes directional text), the reverse command will change the order of the text.
To use this, simply select the polyline, apply a text-based line type, and then use the reverse command. The orientation of the text will change, making this a valuable tool when dealing with annotations or directional indicators in AutoCAD mechanical drawings.
Editing Vertices
The edit vertex command allows you to modify individual vertices of a polyline. You can insert, move, or delete vertices to reshape the polyline without redrawing the entire shape. This feature is useful for adjusting designs, such as modifying the perimeter of a mechanical part in AutoCAD 3D.
If you need to move a vertex, simply select the polyline, choose the vertex to edit, and drag it to the new location. This dynamic control is essential for refining shapes and ensuring accurate designs in mechanical engineering.
Fillet and Chamfer Commands
In manufacturing and mechanical engineering, safety and structural integrity are critical. Sharp corners in a design can lead to stress concentration points, which may cause failure under load. The fillet command solves this problem by rounding corners with an arc, improving both safety and durability.
For instance, to apply a 5 mm radius fillet to a sharp corner, invoke the fillet command, set the radius, and select the two lines you wish to modify. The fillet will create a rounded corner, eliminating sharp edges and reducing stress concentration. Similarly, the chamfer command allows you to trim edges linearly rather than with a curve.
Conclusion
Mastering the polyline command in AutoCAD provides a foundation for creating detailed and accurate mechanical drawings. Whether you're designing 2D CAD parts or working on 3D CAD programs, the ability to control line width, apply joins, fit smooth curves, and adjust vertices allows you to create precision designs. With additional commands like fillet and chamfer, you can optimize designs for safety and structural integrity, key components in mechanical engineering.
By incorporating these tools into your workflow, you'll not only improve your proficiency with AutoCAD but also gain the ability to create professional-grade mechanical drawings. For more advanced techniques, check out our AutoCAD crash courses or consider enrolling in a free certification course to elevate your skills further.
This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
Would you like to have a more interactive experience going through the AutoCAD essentials?
Skill-Lync has released a FREE comprehensive course covering AutoCAD Essentials for Mechanical Engineers in detail! Check it out here.
If you’re looking to go deeper into AutoCAD Essentials check out Skill-Lync’s AutoCAD certification course.
Check out our hands-on course today and add AutoCAD to your list of skills!
Let’s get #IndustryReady together, one skill at a time!
