Mastering the Polyline Command in AutoCAD: A Comprehensive Guide

Welcome back to the AutoCAD Essentials for Mechanical Engineers blog series! In this blog, we’ll dive into the intricacies of the Polyline (PL) command, an essential tool for creating both 2D and 3D drawings. Whether you're an AutoCAD beginner or a seasoned professional, mastering the Polyline command will enhance your drafting skills significantly.

What is a Polyline?

A polyline is essentially a connected sequence of line or arc segments that forms a single object. This is different from individual lines or arcs in AutoCAD 2D drawings, as the polyline retains its properties as one continuous object, making it easier to modify and manipulate. Polylines are incredibly versatile and can be used to create complex shapes, such as closed polygons or even ellipses, making them an indispensable tool for mechanical engineers and civil engineers alike.

Let’s explore the Polyline command and its various options in detail.

Invoking the Polyline Command (PL)

To begin using the Polyline command, type PL in the command prompt. This is similar to the regular line command, but it offers much more flexibility. Once you initiate the command, you will be prompted to specify the starting point.

Key Options in Polyline Command:

• Arc: This option allows you to create curved (arc) segments between points, useful in creating complex curved paths.
• Half Width: This defines half the width of the polyline. You can create thicker lines by specifying a wider half-width, making it a crucial tool when drafting mechanical drawings that require varying line thickness.
• Length: You can specify the length of the next polyline segment. This is especially useful when precision is required in AutoCAD mechanical engineering.
• Undo: This option allows you to reverse the last polyline segment added, ensuring that mistakes are easily rectifiable.
• Width: You can specify both the start and end width of a segment, which is essential for creating tapered lines or shapes.

Creating and Editing Polylines

Polylines are more than just lines; they can be transformed into curves, splines, and even contour profiles for advanced CAD drawings.

Uniform and Non-Uniform Widths:

In some mechanical designs, varying line thickness is required to represent different features of an object. For instance, you can start a segment with a width of 5 units and taper it down to 1 unit over a length of 200 units, achieving a tapered effect. You can also use the Half Width option to specify the midpoint from which the width is calculated, ensuring that symmetrical elements are represented accurately.

Combining Lines and Arcs:

Polyline allows you to combine straight and curved segments seamlessly. By using the Arc option, you can define the center and radius of the arc, following up with straight lines or other arcs. This functionality is particularly helpful in creating complex mechanical autocad 2D drawings or 3D models where curves and straight lines need to coexist.

Closing Polylines

The Close (C) option allows you to close a polyline by connecting the final segment back to the starting point. This is particularly useful when creating polygons or other closed shapes in AutoCAD.

Example:

Let’s say you’ve created multiple connected lines and arcs, and you want to close the shape to form a polygon. Simply type C after the final point, and AutoCAD will automatically connect the last point back to the starting point, transforming your polyline into a closed object.

Polyline Edit (PEDIT) Command

The PEDIT command is a powerful tool for editing existing polylines. Here are some key features of the PEDIT command:

• Open or Close Polylines: If you initially created an open polyline, PEDIT allows you to close it and vice versa. This can be essential when working on CAD drawings where closed shapes are necessary for solid modeling or mechanical simulations.

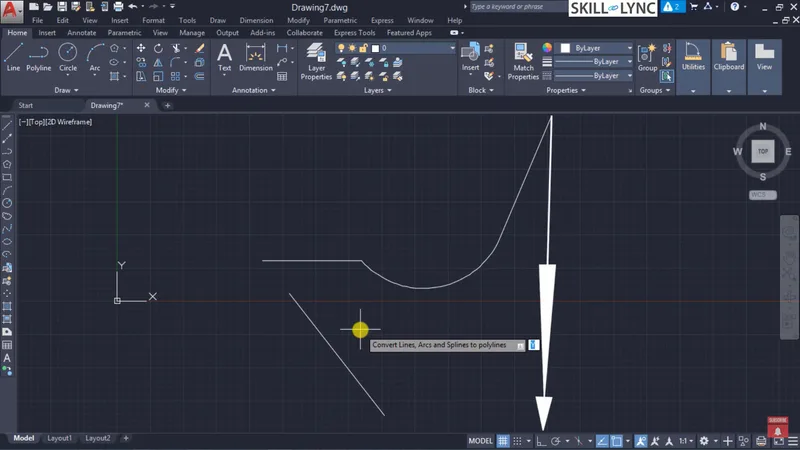

• Join: You can join separate lines, arcs, or other polylines into a single polyline object, provided their endpoints are coincident or close to each other. The Join command extends, trims, or adds segments between them to complete the polyline.
• Width: Modify the width of the entire polyline or specific segments to reflect different dimensions in your drawing, which is particularly useful when creating mechanical AutoCAD drawings with varied line weights.
• Spline Fit: You can turn the polyline into a smooth spline curve. This is helpful when dealing with contour profiles or designing elements that require fluid, continuous curves.
• Reverse: Sometimes, the orientation of a polyline may need to be flipped. The Reverse command allows you to change the direction of the polyline, which can affect how text or dimensions are aligned to the polyline.

Practical Application Example

Let’s walk through a practical example of how to use polylines:

• Start the Polyline Command: Type PL and specify the starting point.

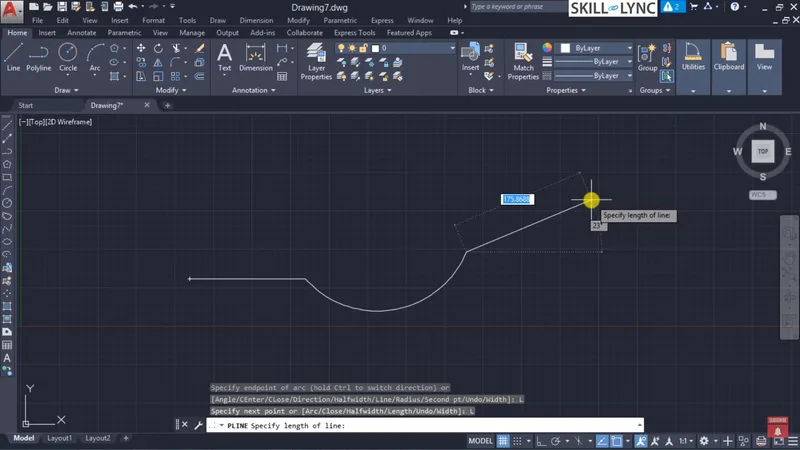

• Create a Line Segment: Specify the next point or use the Length option. For instance, a length of 150 units will create a straight segment.
• Add an Arc Segment: Use the Arc option to switch from line to curve. Define the center of the arc and specify the endpoint.

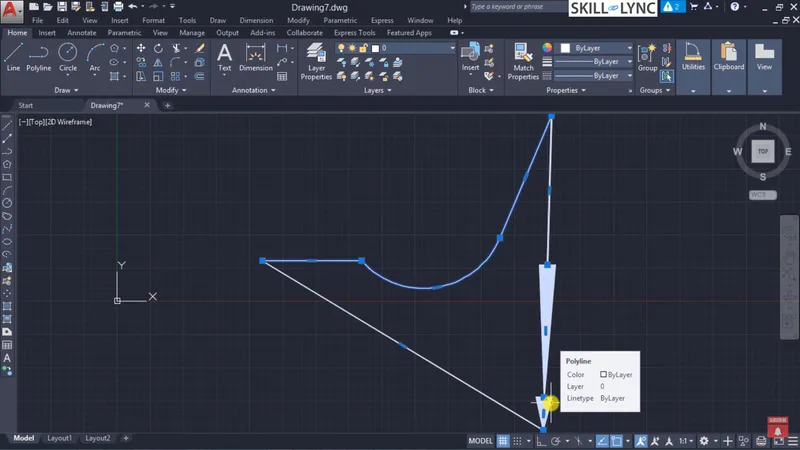

• Change the Line Width: Before proceeding, use the Width command. For example, set the start width to 5 units and the end width to 1 unit to create a tapered effect.
• Complete the Polyline: Use the Close (C) command to create a closed shape.

Once your polyline is complete, you can always go back and use the PEDIT command to join segments, adjust widths, or modify vertex points, making it one of the most versatile tools in AutoCAD for engineers.

Conclusion

The Polyline command in AutoCAD is a versatile and essential tool for anyone working in mechanical engineering or civil engineering. From simple 2D drawings to complex 3D models, understanding how to use polylines will greatly enhance your ability to create precise and efficient designs. Coupled with the PEDIT command, you can make detailed edits to your polylines, turning them into powerful design elements in your CAD programs.

As you continue to explore the world of AutoCAD, mastering the polyline and its associated commands will give you the flexibility and control you need to handle any design challenge that comes your way.

Stay tuned for more posts in our AutoCAD Essentials for Mechanical Engineers series!
