Welcome back to another insightful blog from the AutoCAD Essentials for Mechanical Engineers blog series! In this blog, we will dive deep into the hatch command, how to manipulate it, and its relevance in AutoCAD 2D drawing. We’ll also explore the essential feature of island detection, a powerful tool that can enhance your drafting process, especially when working with complex mechanical AutoCAD drawings.
Understanding Hatch Objects
When you create a hatch object in AutoCAD, you define a pattern that fills an enclosed area of your drawing. This is particularly useful in AutoCAD for mechanical engineers, where representing different materials and cross-sections clearly is key.
In this session, we began by exploring how to adjust the scale and angle of the hatch. For example, by selecting the hatch object and modifying these properties dynamically, you can control the look and feel of the hatch pattern.
Let’s break this process down:
Recreating Hatch Boundaries
There are times when a hatch’s boundary might change or disappear. If this happens, you can recreate the hatch’s boundary using AutoCAD’s recreate boundary feature. This is particularly important in mechanical AutoCAD drawings, where precision is key.
Managing Boundaries in Hatch Objects
Another common task is removing or modifying the boundaries of a hatch. You can easily do this using the remove boundary option. When selected, AutoCAD lets you pick the boundary object you want to remove, without affecting the hatch itself.
This functionality is particularly useful when cleaning up drawings, such as when you're finalizing AutoCAD 2D drawings for beginners or experienced professionals alike.

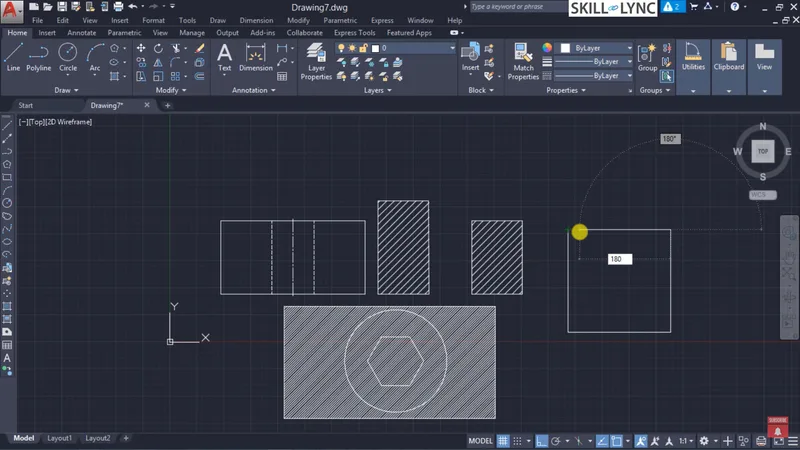

Island Detection in AutoCAD
Island detection is a powerful tool in AutoCAD, helping engineers manage complex drawings where multiple objects intersect. AutoCAD can differentiate between a main boundary and smaller objects (islands) inside it, automatically adjusting the hatch to avoid those areas.

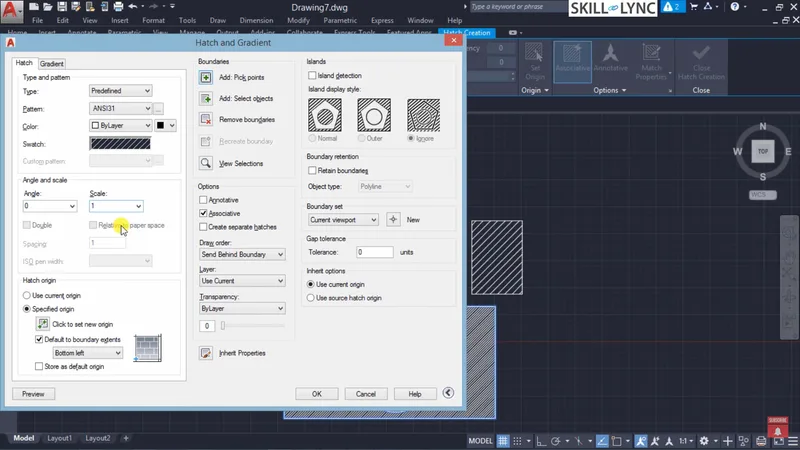

Steps to Enable Island Detection:
1. Enable Island Detection: Go into the hatch settings and activate the island detection option.
2. Select Internal Points: When you use the hatch command, select the internal point where you want the hatch to be applied. AutoCAD will automatically detect the boundaries within this area, ensuring that islands (like holes or inner objects) are excluded from the hatch pattern.
3. Choose the Island Detection Mode: AutoCAD offers three island detection methods:
This is especially useful in mechanical AutoCAD projects, where components often contain holes or cutouts that must remain unhatched.
Working with Open Boundaries
Hatch commands usually require a closed boundary, but sometimes you might be working with open objects. In AutoCAD for beginners and professionals alike, it’s common to encounter open boundaries that need closing before the hatch can be applied. AutoCAD will notify you if it detects any open boundaries, and you can fix them using tools like extend or stretch to close the loop.

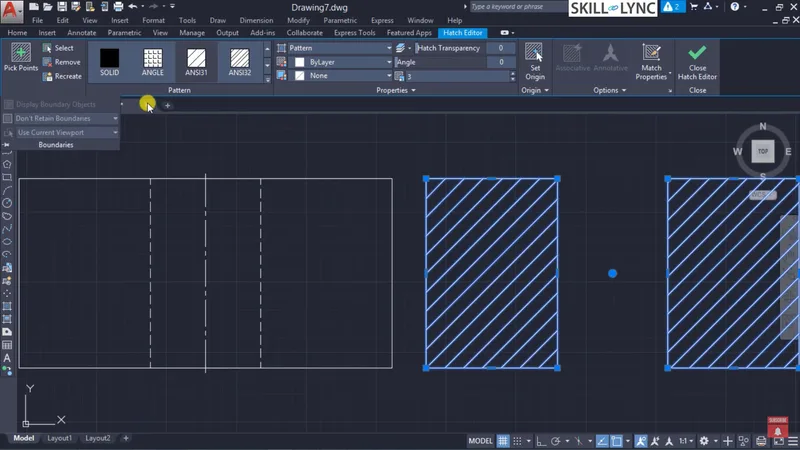

Adjusting Hatch Properties
AutoCAD provides a hatch properties toolbar for quick edits. Through this toolbar, you can modify the hatch angle, pattern scale, and hatch transparency. Additionally, you can set the object origin to control how the hatch is aligned to the drawing.
If you need to match the properties of one hatch to another, AutoCAD also has a match properties option, ensuring uniformity across your designs.
Conclusion
In this blog, we've explored the hatch command and its various properties. From modifying hatch boundaries to enabling island detection in AutoCAD 2D and AutoCAD 3D drawings, we’ve covered essential features that will enhance your drafting efficiency.
Mastering these tools is key for anyone working in AutoCAD mechanical engineering or civil engineering. By understanding how to create, modify, and manage hatches effectively, you'll be better equipped to deliver clear, precise drawings in your projects.
Whether you're working through an AutoCAD crash course or an advanced AutoCAD online course with certification, these tips will ensure you're getting the most out of the software.
