Mastering the Edit Vertex and Fillet Commands in AutoCAD for Mechanical Engineers

Welcome back to the AutoCAD Essentials for Mechanical Engineers blog series! In this blog, part of the AutoCAD Essentials for Mechanical Engineers series, we will explore the use of two vital commands: Edit Vertex and Fillet. These commands are particularly useful when working on complex designs, allowing for precise modifications and improvements in both AutoCAD 2D and AutoCAD 3D drawings. Whether you're just starting with AutoCAD for beginners or advancing through an AutoCAD crash course, mastering these tools will greatly enhance your design capabilities.

The Edit Vertex Option

The Edit Vertex option in AutoCAD allows you to modify individual vertices in a polyline, giving you control over the shape and structure of your design. Here's how you can use it effectively:

• Selecting the Polyline: Begin by selecting the polyline you wish to edit. Once selected, choose the Edit Polyline command (PEDIT). The Edit Vertex option becomes highlighted.

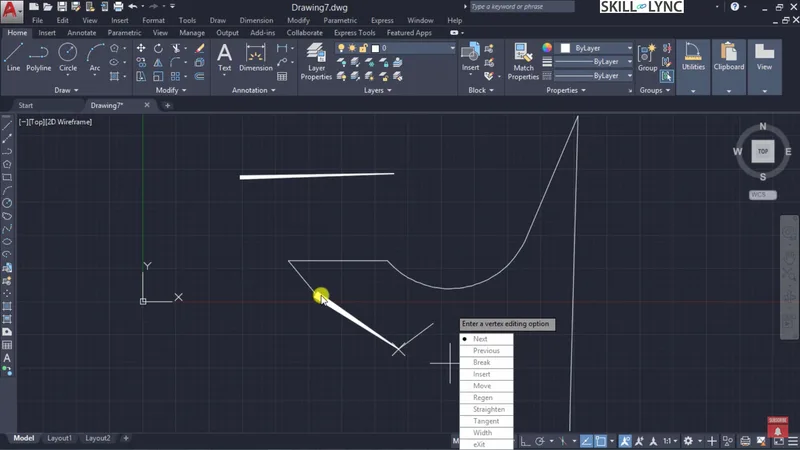

• Navigating Between Vertices: When you select the Edit Vertex option, a submenu appears with various functions. First, you'll see buttons that allow you to cycle between different vertices (marked with an X). You can navigate between them using the Next and Previous commands.
• Breaking the Polyline: The Break command divides the polyline into two separate segments at the selected vertex. This is useful when you need to separate portions of a design.
• Inserting a New Vertex: The Insert Vertex command allows you to add a new vertex into your polyline. After selecting a location, a new vertex is automatically added, and the polyline is adjusted accordingly.
• Moving Vertices: You can also use the Move Vertex command to reposition a selected vertex, altering the shape of the polyline. This is particularly useful when adjusting mechanical part dimensions in AutoCAD mechanical engineering drawings.
• Adjusting Vertex Width: The Edit Vertex Width function lets you modify the width at each vertex independently. For example, you can set the starting vertex width to 1 mm and the next vertex width to 10 mm to create a tapered effect. If the changes are not visible immediately, use the REGEN command to update the polyline.

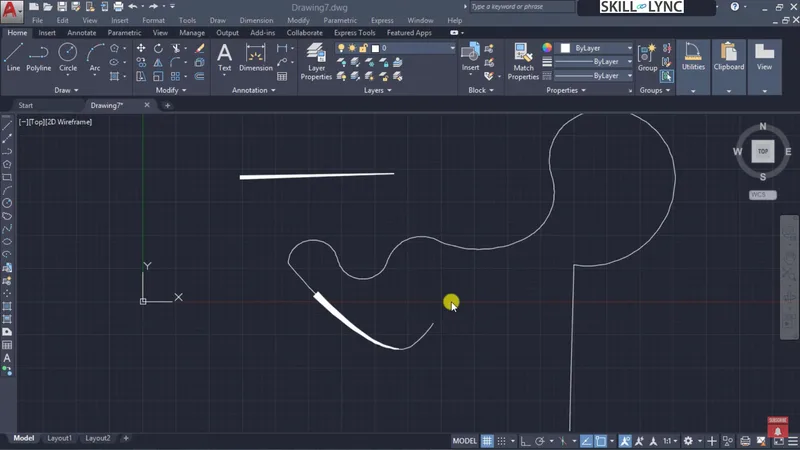

• Straighten Command: The Straighten command allows you to convert a curved polyline segment into a straight line. This can be particularly helpful when you're adjusting the design of mechanical components that require both curved and straight edges.
• Tangent Option: The Tangent option allows you to attach a tangent direction to a vertex. This is useful when fitting curves, as it controls the smoothness of the transition between segments.

The Fillet Command for Enhanced Design

In AutoCAD for mechanical engineers, the Fillet command plays a significant role in improving the structural integrity and safety of designs by rounding sharp edges. Sharp corners often act as stress concentration points, which can lead to material failure, especially in mechanical parts.

Here’s how you can use the Fillet command to enhance your designs:

• Setting the Fillet Radius: The fillet radius defines how rounded the corners will be. For instance, a radius of 5 mm will create a smooth curve at the corner of two connected lines. You can adjust the fillet radius as needed based on your design specifications.
• Applying Fillets to Objects: After setting the desired radius, select the first object (e.g., a line) and the second object. Once done, the fillet will be applied to the selected corner, rounding off the edge.
• Using the Trim Option: The Trim option determines whether the original line segments are trimmed after applying the fillet. When Trim is enabled, the original lines are shortened to accommodate the fillet. If Trim is turned off, the fillet is applied, but the original lines remain untrimmed.
• Practical Use Case: Imagine you're designing a rectangular plate for a machine. Sharp corners on the plate can pose safety risks to operators and increase stress concentration during operation. By applying a 5 mm fillet to each corner, you can both enhance safety and improve the structural durability of the plate. This process is vital in AutoCAD mechanical drawings and for ensuring compliance with industry standards.

Conclusion

The Edit Vertex and Fillet commands in AutoCAD provide the flexibility and precision necessary for professional mechanical designs. By mastering these tools, you can easily refine complex shapes, control the smoothness of curves, and ensure the safety and durability of your designs.

Whether you're pursuing an AutoCAD mechanical engineering course or exploring CAD design software, incorporating these advanced features will elevate the quality of your work. To dive deeper, consider enrolling in an AutoCAD free class or an AutoCAD online course with a certificate. Master these commands today and enhance your expertise in one of the top design software programs available to mechanical engineers.
