AutoCAD Essentials for Mechanical Engineers: Mastering Tangents, Circles, Arcs, and Ellipses

Welcome back to the segment of the AutoCAD Essentials for Mechanical Engineers series, we will focus on some of the core drawing tools in AutoCAD, specifically those related to tangents, circles, arcs, and ellipses. Mastering these tools will enhance your ability to create precise and professional drawings, whether you're working on AutoCAD 2D or AutoCAD 3D designs.

Creating Tangent Circles in AutoCAD

Let's start with how you create tangent circles using the tangent-tangent-radius method in AutoCAD. After selecting the first and second tangent points, AutoCAD prompts you to input a radius. For example, specifying a radius of 5 will draw a circle that is tangent to both objects while maintaining the radius of 5. When you reduce the radius, say to 1.5, the circle shifts accordingly, still maintaining its tangency to both objects.

This functionality is critical when working on AutoCAD mechanical drawings where precision is key. You can visualize how well the tangent function works by extrapolating the lines and trimming unnecessary parts. After trimming, you'll have a neatly structured object, such as a circle tangent to two lines.

This process shows how essential commands like trim and extend are in refining designs. For mechanical engineers, the ability to control these features ensures your AutoCAD 2D drawings maintain clarity and precision.

Using the Arc Command in AutoCAD

The arc command offers several methods to create curves, which are vital in various applications like pipe bends, gear profiles, and more. AutoCAD provides the flexibility to create arcs using different parameters:

• Three-Point Arc: This method requires you to specify the start, second, and third points on the arc. For instance, in mechanical design, you might use this method to draw an arc for structural elements or rounded edges.
• Start, Center, and End: This variation lets you define an arc by its start point, center, and end point. You can also define the arc using the angle or chord length, depending on the requirement. If you specify a 45° angle, AutoCAD will draw the arc accordingly.
• Start and End with Angle: In this method, you specify the start and end points, and AutoCAD prompts for an angle. For example, entering a negative angle of -45° will reverse the direction of the arc.

Mastering the Ellipse Tool

The ellipse tool is another important feature in AutoCAD, especially for mechanical engineers who often work with non-circular shapes like cams or ovals. AutoCAD offers several methods to create ellipses:

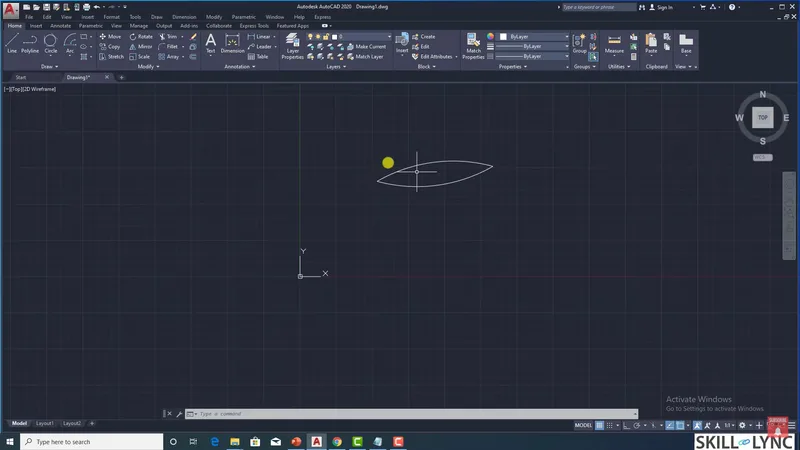

• Ellipse by Center: You start by specifying the center point, the endpoint of the first axis, and the length of the second axis. This is useful in AutoCAD 2D drawing for beginners as it simplifies the process of creating elliptical shapes with precision.
• Elliptical Arc: This method allows you to create only part of an ellipse, which can be useful in designs that don’t require a full ellipse. For instance, engineers might use this to draw arc segments in mechanical components.

Exploring Advanced Commands: Tangent-Tangent-Tangent (Tan-Tan-Tan) Circles

In some instances, you need to create a circle tangent to three objects. While AutoCAD does not have a direct tan-tan-tan command, there’s a workaround using the AI_CIR command. This allows you to select three objects and position a circle tangent to all three.

For example, when designing mechanical components, positioning circles tangent to other shapes is critical for ensuring that parts fit together seamlessly. Understanding how to use these commands efficiently can drastically improve the speed and precision of your design work.

Practical Example: Tangent Circle Adjustment

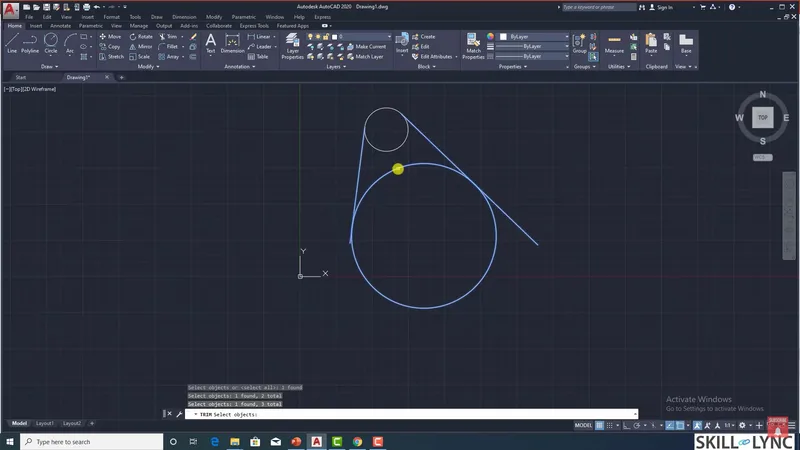

To illustrate how you can adjust and trim lines to create a perfectly structured object, imagine drawing a circle tangent to two lines. Once you create the circle using the tan-tan-radius command, you can extrapolate the lines and trim unnecessary segments using the trim command.

For example, after selecting three objects and trimming off excess parts, you are left with a clean structure that includes the circle and tangent lines. This process is invaluable in AutoCAD mechanical drawing as it allows you to adjust and correct designs in real-time.

Summarizing the Circle and Arc Commands

Here’s a recap of what we’ve covered:

• Tangent-Tangent-Radius: This command allows you to draw a circle tangent to two objects with a specific radius. You can adjust the radius to fit the design requirement.
• Two-Point Circle: By specifying two points, you can define the diameter of a circle.
• Three-Point Circle: This method creates a circle by selecting three points on its circumference.
• Tangent-Tangent-Tangent Circle: Although not a direct command, this can be achieved using the AI_CIR command, enabling you to create a circle tangent to three objects.
• Arc Commands: We explored different arc creation methods, including three-point arcs, start-center-end arcs, and arcs defined by angle and chord length.

Working with Ellipses in AutoCAD

Ellipses are created by specifying two axes: the major and minor axes. In AutoCAD mechanical engineering, this is critical for designing components like gears or cam profiles. You can create ellipses by either defining the center point or the endpoints of the axes.

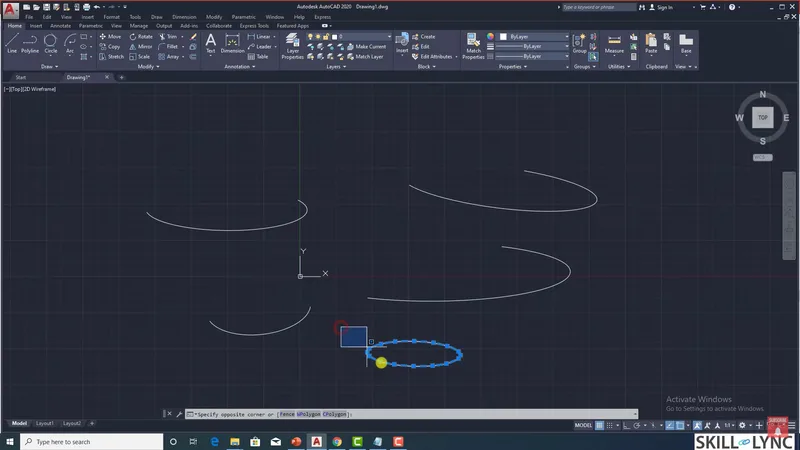

AutoCAD also provides an option for creating elliptical arcs, which are partial ellipses. This method allows you to define the start angle and end angle, effectively creating an arc segment instead of a full ellipse.

Additionally, AutoCAD has a system variable called P_ELLIPSE that can convert a true ellipse into a polyline, allowing you to break the ellipse into individual segments. This is useful for certain design applications where segmented curves are required.

For those looking to further enhance their skills, you can explore advanced AutoCAD features by enrolling in an AutoCAD crash course, AutoCAD free class, or AutoCAD online course. There are many free resources that offer AutoCAD certification, allowing you to gain practical experience while earning valuable credentials.

This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
