AutoCAD Essentials for Mechanical Engineers: Mastering Drafting Settings and Inputs

logo

Skill-Lync

Welcome back to the AutoCAD Essentials for Mechanical Engineers blog series. In the last blog, we introduced the basics of AutoCAD, covering essential commands like line, circle, arc, and ellipse. This blog, we’ll dive deeper into AutoCAD's workspace by exploring the drafting settings, input techniques, and some of the most important tools that will significantly enhance your workflow.


In this blog, we will cover:

  • Drafting settings such as object snap, snap and grid, polar tracking, and quick properties
  • The importance of dynamic inputs
  • How to set limits and units effectively
  • Key editing fundamentals like the move, copy, mirror, array, and offset commands

By mastering these commands, you will be better equipped to perform complex tasks in AutoCAD 2D and AutoCAD 3D, whether you're working on AutoCAD for mechanical engineers or other CAD software applications.


Drafting Settings in AutoCAD

Drafting settings allow you to customize the behavior of AutoCAD, making it easier to align and snap objects in your design. This is particularly important when precision is key, such as in mechanical engineering drawings. Let’s explore some key drafting settings:

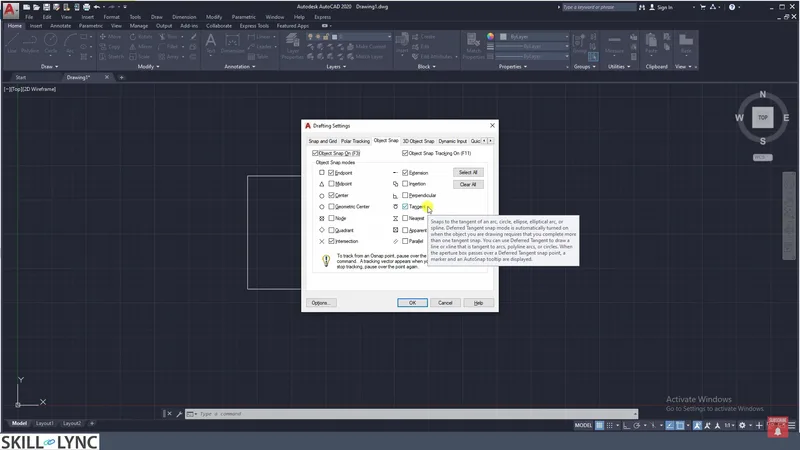

1. Object Snap (OSNAP)

Object Snap ensures precision by automatically snapping to specific points on an object. You can activate OSNAP by using the F3 key or typing DSETTINGS into the command prompt. With OSNAP enabled, you can snap to important points like:

  • Endpoint: Snaps to the end of lines or arcs.
  • Midpoint: Locates the midpoint of any object, perfect for positioning objects symmetrically. Intersection: Snaps to where two objects intersect, an essential feature for creating complex AutoCAD mechanical drawings.
  • Perpendicular: Ensures objects meet at right angles, critical for mechanical autocad 2D drawings.
  • Center: Locates the center point of circles or arcs, useful for tasks like placing holes or components in designs.


For instance, if you're trying to fit a circle within a rectangle, OSNAP can help you pinpoint the rectangle’s exact center, allowing you to draw a perfect inscribed circle without manual calculations.

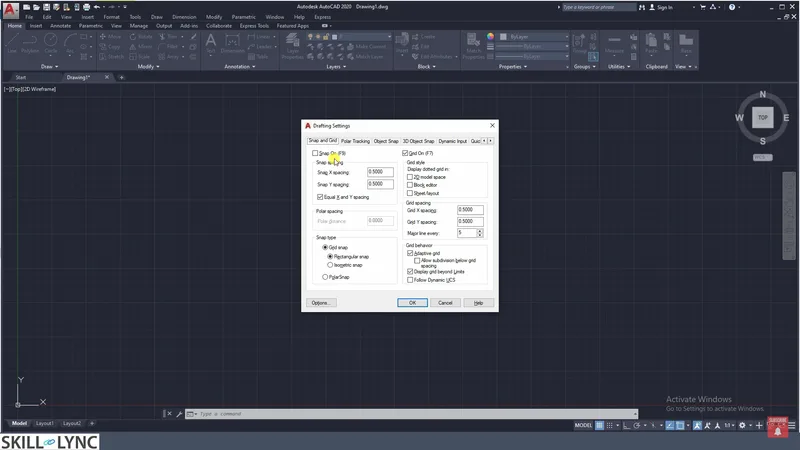

2. Snap and Grid

The snap feature controls how the cursor moves across the screen, allowing it to snap to predefined increments (e.g., every 0.5 units). You can toggle this with the F9 key. The grid provides a visual guide to assist in aligning objects on the screen. You can enable or disable the grid with F7

Snap and grid settings are especially helpful when working on large-scale projects, such as those common in mechanical or civil engineering. They ensure consistent placement of objects and components in both AutoCAD 2D and 3D drawings.

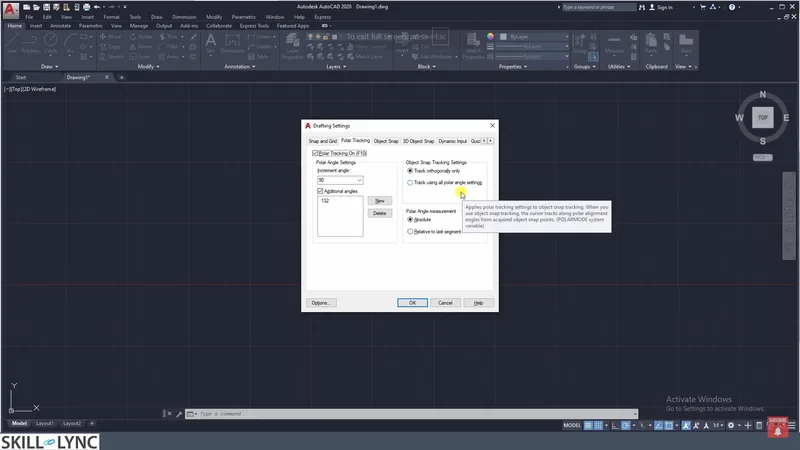

3. Polar Tracking

Polar tracking assists in drawing objects at specific angles (like 45°, 90°, or any custom angle). You can enable polar tracking with the F10 key and set it to snap to specific angles (e.g., every 30° or 45°). This is ideal for projects where angular precision is crucial, such as creating the slanted edges of a machine part or structure.

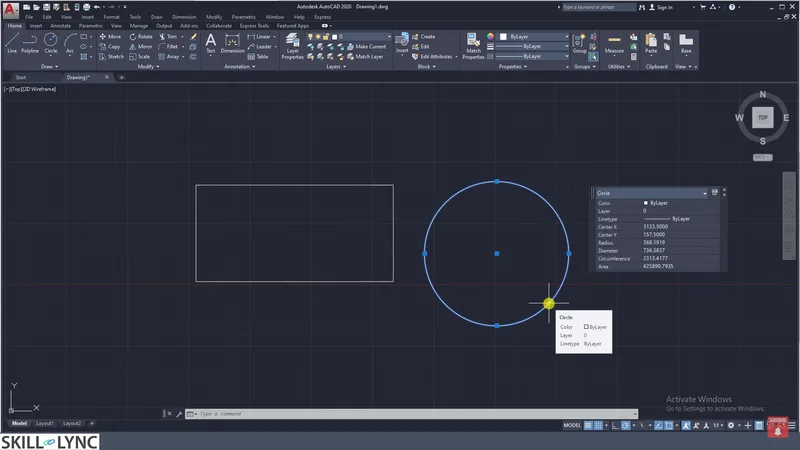

4. Quick Properties

The Quick Properties feature allows you to view and edit the properties of any selected object instantly. Enabling this feature (via CTRL + SHIFT + P) provides a quick summary of key details, such as the object’s layer, color, and dimensions. This can be a major time-saver when reviewing and editing complex designs.


Dynamic Inputs for Precision

Dynamic input is an interactive command-line system that appears near the cursor. It prompts the user for input directly on the screen, simplifying workflows and reducing the need to constantly shift attention between the drawing space and the command line. You can enable dynamic input by pressing F12

For example, when drawing a circle, dynamic input will display prompts for the center point and radius next to the cursor. This feature is particularly useful in AutoCAD for beginners, as it offers a more intuitive way to input data without manually referencing the command line.


Specifying Limits and Units

Setting appropriate limits and units ensures that your drawing is scaled correctly. For AutoCAD mechanical engineers, working with precise measurements (mm, inches, etc.) is essential.

To specify limits:

  1. Type LIMITS in the command prompt.
  2. Enter the lower left corner (e.g., 0,0) and the upper right corner of your drawing area (e.g., 100,100).

To set units:

  1. Type UNITS and set the appropriate unit type (e.g., millimeters or inches) and precision.

This ensures that all your designs in AutoCAD mechanical drawing conform to industry standards.


Essential Editing Commands

Mastering these AutoCAD editing commands will significantly improve your productivity:

1. Move

The move command allows you to reposition objects. Simply type MOVE, select the object, specify a base point, and move it to the desired location.

2. Copy

The copy command (COPY) duplicates objects. It's a quick way to replicate parts in your design, such as bolts or gears in mechanical autocad 2D drawings.

3. Mirror

With the mirror command (MIRROR), you can create symmetrical objects. For example, in mechanical engineering designs, you can mirror one half of a machine part to create a perfectly symmetrical full part.

4. Array

The array command (ARRAY) helps you create multiple copies of an object arranged in a pattern. This is ideal for creating repetitive elements, such as bolt patterns or structural elements.

5. Offset

The offset command (OFFSET) creates parallel copies of lines or curves at a specified distance. This is useful in creating AutoCAD 2D drawings for piping, wiring layouts, or mechanical components.


Undo and Redo Commands

Undo (U) and redo (REDO) are vital commands for rectifying mistakes. These commands are self-explanatory, but they are essential for iterative design processes where adjustments are made frequently.


Conclusion

This blog, we’ve explored the lay of the land in AutoCAD by covering drafting settings, input techniques, and essential editing commands. These features help streamline the design process, making tasks more efficient and precise.

As you continue to develop your skills in AutoCAD 2024 or earlier versions, try applying these commands and features. Practice drawing objects with precise dimensions, using snaps, grids, and the editing tools discussed to create clean, well-organized designs.


Whether you’re just starting out in AutoCAD for mechanical engineers, or you're an experienced professional refining your AutoCAD 3D skills, these tools will help you work faster and more accurately. Continue practicing and soon, AutoCAD will become second nature!

Explore more resources like AutoCAD online courses, or earn an AutoCAD free certificate to showcase your growing expertise in CAD design.


This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
