Mastering AutoCAD Commands: Designing a Latch Plate

Welcome to the AutoCAD Essentials for Mechanical Engineers blog series. In this blog, we will walk through the design of a latch plate using the commands covered in our previous AutoCAD sessions. This design task provides an excellent opportunity to apply various AutoCAD 2D commands that are essential for mechanical engineering applications.

We will explore commands such as trim, offset, mirror, and fillet, helping you develop a solid foundation in AutoCAD for mechanical engineers. Whether you're a beginner or advancing your skills in AutoCAD mechanical engineering, this tutorial offers a comprehensive look into real-world design.

Step 1: Setting Up the Workspace

Before diving into the design, it’s essential to set up your workspace correctly. This ensures that your dimensions are accurate and your design process is seamless. As always, we start by ensuring that millimeters (mm) are set as the unit of measurement.

• Set the Units: To do this, type UNITS in the command line, select millimeters, and confirm.
• Paper Size and Limits: Set the lower-left corner to (0, 0) and the upper-right corner to 420 mm by 297 mm (A3 size). Use the Zoom Extents command to fit the drawing area into view.

Step 2: Drawing the External Dimension of the Latch Plate

The external dimensions of the latch plate are 63 mm in width and 35 mm in height. Let’s draw the rectangular plate that represents the machining area for the latch.

• Rectangle Command: Type RECTANGLE or RECT in the command line. Click to place the first corner, and then specify the opposite corner by entering 63,35 for the dimensions.
• Zoom In: Ensure that the rectangle is visible on the screen, and zoom in if necessary for better precision.

At this point, we have drawn the external boundary of the latch plate, which sets the foundation for the additional features like holes and chamfers.

Step 3: Adding the Circular Holes

The latch plate contains circular holes with a diameter of 5 mm. These holes are positioned using precise measurements, making it important to place them accurately.

• Center Reference Line: Draw a reference line using the LINE command to act as a center axis for the holes. Ensure this line is 15 mm from the plate's center.
• Circle Command: To draw each circular hole, use the CIRCLE command. The center of each hole is located 15 mm from the central axis, and the diameter is 5 mm. Input a radius of 2.5 mm when prompted.
• Array Command: Use the RECTANGULAR ARRAY command to replicate these holes. Set the number of rows and columns to 2 each, with a horizontal distance of 35 mm and a vertical distance of 30 mm between them.

By now, all four holes should be evenly spaced and correctly aligned on the latch plate.

Step 4: Offsetting the Inner Cutaway

Next, we will offset the inner cutaway section. This will be done using the OFFSET command, which allows us to create parallel boundaries at a specified distance.

• Explode the Rectangle: Use the EXPLODE command to break the rectangular boundary into individual lines. This is necessary for the next step.
• Offset Command: Input OFFSET into the command line and specify an offset distance of 9.4 mm. Click on the external rectangle and apply the offset inward.
• Adjusting the Cutaway: Use the MOVE command to adjust the offset to 8 mm from the reference point for further accuracy.

Step 5: Creating the Curve-Linear Elements

We will now create two curved sections: one with a 4 mm radius and another with a 20 mm radius, both aligned along the same axis.

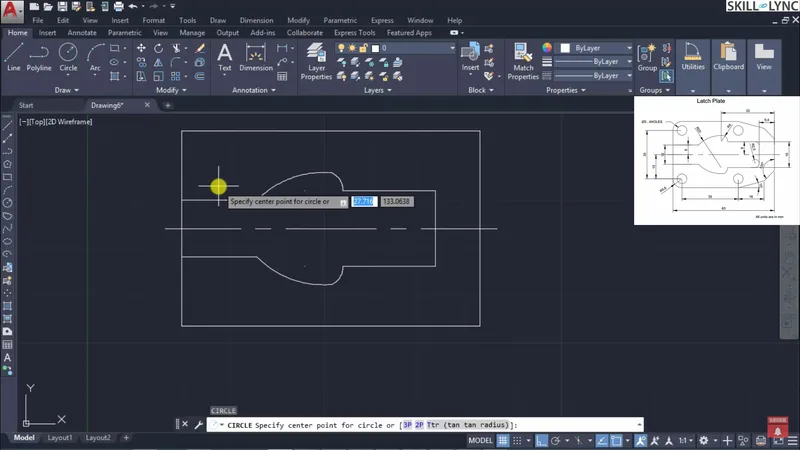

• Smaller Circle: Use the CIRCLE command to draw the first circle with a radius of 4 mm, positioned 33 mm from the plate’s edge. This is done by entering the coordinates and specifying the correct radius.
• Larger Circle: Similarly, draw a second circle with a 20 mm radius at the same center point.
• Trim Command: Use the TRIM command to eliminate any part of the larger circle that extends beyond the plate boundary.

Step 6: Mirroring the Design for Symmetry

Next, we’ll mirror the curved elements to ensure that the design is symmetrical.

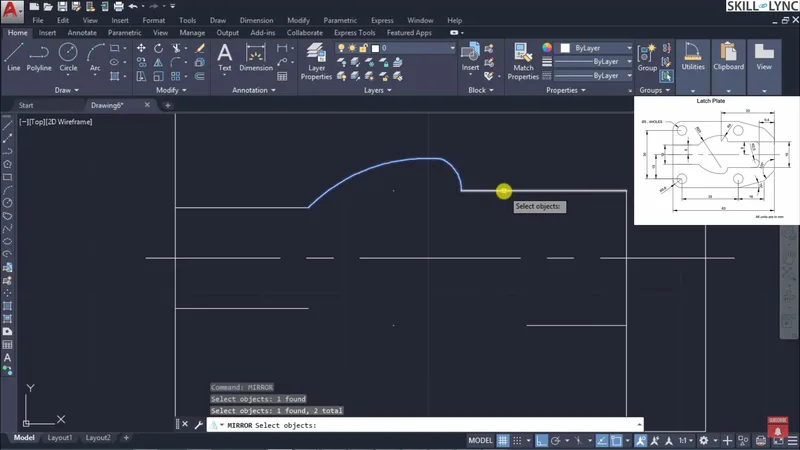

• Mirror Command: Select the curved elements and use the MIRROR command. Specify the central axis as the mirror line, ensuring the elements reflect on both sides.
• Trimming the Excess: After mirroring, use the TRIM command to remove any unnecessary lines or intersections that might interfere with the design.

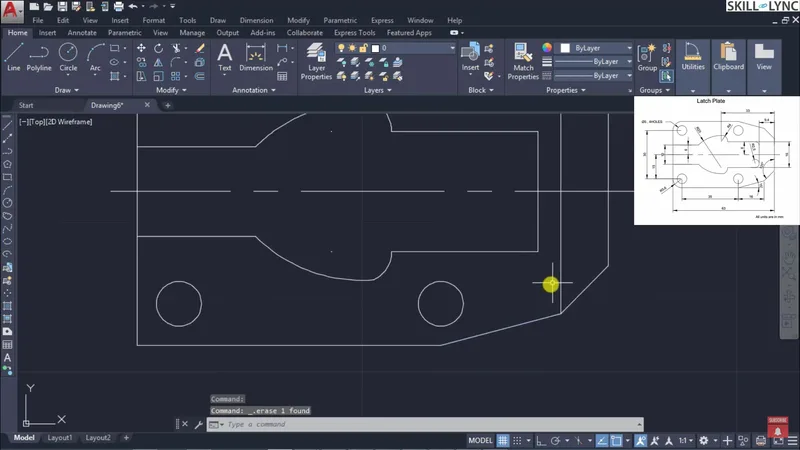

Step 7: Chamfering and Filleting the Edges

Chamfering and filleting are used to smooth out sharp edges in the design, which is crucial for reducing wear and stress in mechanical parts.

• Chamfer Command: Use the CHAMFER command to create a chamfer at a 15° angle. The chamfer length is calculated based on the design requirements.
• Fillet Command: Next, use the FILLET command to smooth out edges with a fillet radius of 5.6 mm for the external edges and 2.5 mm for the internal edges. This ensures the design is both functional and aesthetically pleasing.

Step 8: Final Trimming and Refinement

With most of the latch plate designed, it’s time to refine the drawing and remove any unnecessary elements.

• Fence Option: Use the FENCE option within the TRIM command to select multiple objects simultaneously and clean up the drawing. This makes it easier to remove lines and shapes that are no longer required.
• Final Trims: Complete any additional trimming needed to ensure that the latch plate is free of unwanted lines or artifacts from the drawing process.

Key AutoCAD Commands Used

Throughout this design, we utilized several essential commands in AutoCAD 2D:

• RECTANGLE: To create the external boundary of the latch plate.
• CIRCLE: For adding circular holes and curve-linear elements.
• OFFSET: To create inner cutaways at a specified distance.
• MIRROR: To replicate symmetrical parts of the design.
• CHAMFER and FILLET: To smooth out sharp edges and add curvature.
• TRIM: To refine the design by removing unnecessary parts.

 Conclusion

In this blog, we covered the essential steps to design a latch plate using AutoCAD for mechanical engineers. We explored commands that are fundamental to AutoCAD 2D drawing for beginners, including trim, offset, mirror, chamfer, and fillet. Mastering these commands will enable you to create precise, professional mechanical drawings with AutoCAD.

As you continue learning, focus on refining your use of these commands to increase speed and accuracy. Whether you're working on AutoCAD 2D projects or moving into AutoCAD 3D, these tools will remain essential throughout your journey in CAD software. For those looking to expand their expertise, consider exploring further into AutoCAD crash courses or earning an AutoCAD free certification course to solidify your skills.

This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
