Designing a Latch Plate in AutoCAD: A Comprehensive Guide

Welcome back to the part of our AutoCAD Essentials for Mechanical Engineers blog series, where we will delve into the process of designing a latch plate in AutoCAD using the essential commands covered in our previous sessions. This guide will walk you through each step, ensuring you understand how to apply AutoCAD's tools to create accurate mechanical drawings. This exercise is a practical application of AutoCAD 2D drawing for beginners and is especially helpful for those learning AutoCAD for mechanical engineers.

Step 1: Setting Up the Workspace in AutoCAD

Before we begin drawing, it is crucial to set up the correct units and define the workspace. For this latch plate design, we will use millimeters (mm) as our unit of measurement. This ensures that our dimensions align perfectly with the engineering drawing specifications.

• Units: Ensure the units are set to millimeters. You can set the units in AutoCAD by typing UN and selecting "millimeters" from the list of units.
• Paper Size: The limits of the drawing area (paper size) are set to 420 x 297 mm, which matches a standard A3 sheet. The lower-left corner is set to (0, 0), and the upper-right corner is set to (420, 297).
• Zooming: After setting the limits, use the Zoom Extents command to fit the entire workspace into the viewable area. This helps maintain a proper working range when designing the latch plate.

Step 2: Creating the External Dimensions of the Latch Plate

The next step is to create the outer rectangle representing the latch plate's external dimensions. The latch plate has a width of 63 mm and a height of 35 mm. Here’s how we start:

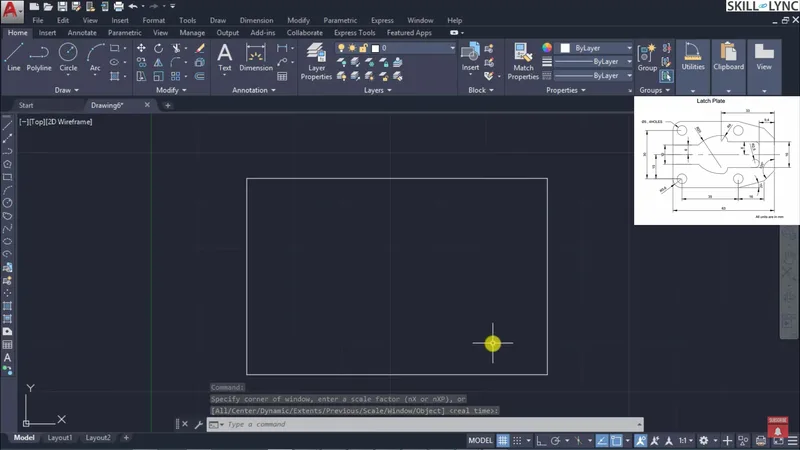

• Rectangle Command: Type RECT and specify the first corner at (0, 0). Then, for the opposite corner, input the coordinates (63, 35). This defines the external boundary of the latch plate.
• Zooming: Zoom into the rectangle to ensure a clear view of the working area.

At this point, we have the basic outline of the latch plate, onto which we will add holes, cutaways, and fillets.

Step 3: Adding the Circular Holes to the Latch Plate

The latch plate features four circular holes, each with a diameter of 5 mm, positioned at specific distances from the edges of the plate. These holes are critical in the design for mechanical fittings.

1. Locating the Holes: The center of each hole is positioned 15 mm from the center axis of the latch plate. To ensure precise placement, we first create a reference line using the LINE command. This reference line will help align the holes correctly.

2. Centerline Command: To make this step more efficient, you can add a centerline using the Annotate tab in AutoCAD or by manually adjusting the line type to centerline in the Properties panel.

3. Circle Command: Next, use the CIRCLE command to create the four holes:

• Start by selecting the center point, 15 mm from the central axis.
• Enter the radius as 2.5 mm (since the diameter is 5 mm).

4. Array Command: After placing the first hole, use the RECTANGULAR ARRAY command to replicate the circular holes into a grid pattern:

• Number of columns: 2
• Number of rows: 2
• Distance between columns: 35 mm
• Distance between rows: 30 mm

This step efficiently places all four holes at precise distances, maintaining symmetry across the latch plate.

Step 4: Offsetting the Inner Cutaway Section

Next, we need to create the inner cutaway section of the latch plate. This involves using the OFFSET command, a vital tool in AutoCAD for creating parallel lines or boundaries at a specified distance.

• Exploding the Rectangle: Before offsetting, we need to explode the rectangle into individual segments using the EXPLODE command. This allows us to manipulate each line independently.
• Offset Command: Now, use the OFFSET command and set the offset distance to 9.4 mm. Apply this offset to the inner boundary to create the cutaway section.
• Adjusting the Offset: Once the offset is complete, adjust the lines using the MOVE command to align the inner cutaway section properly. For example, the inner section's boundary needs to be moved 8 mm from the reference point to ensure accuracy.

Step 5: Adding the Curve-Linear Elements

The latch plate features two curve-linear elements, one small and one large, that intersect with the external boundary. These elements are created using circular arcs.

• Smaller Circle: The smaller circle has a radius of 4 mm and is located 33 mm from the right edge of the latch plate. Use the CIRCLE command to place the center of the circle at (-33, 0) and set the radius to 4 mm.
• Larger Circle: The second circle has a radius of 20 mm and shares the same center point as the smaller circle. Using the CIRCLE command again, set the radius to 20 mm.
• Trimming the Circles: The larger circle intersects the outer boundary of the latch plate. Use the TRIM command to remove unnecessary parts of the circle that extend beyond the plate.

Step 6: Mirroring the Design for Symmetry

Once the curve-linear elements are in place, you can mirror them to maintain symmetry on both sides of the latch plate.

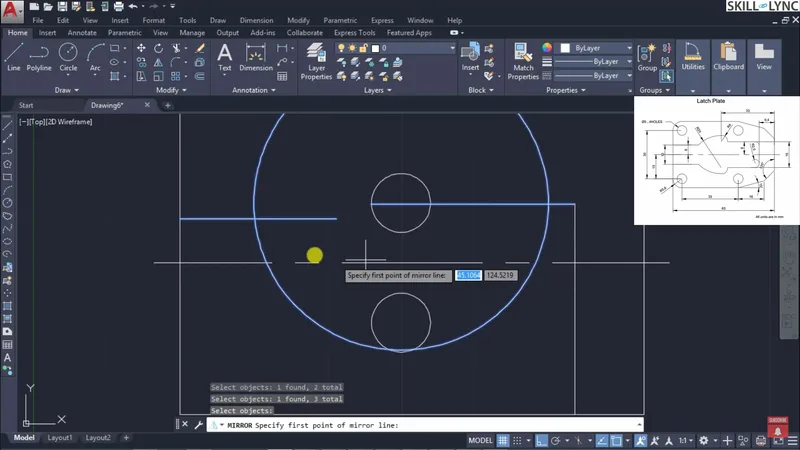

• Mirror Command: Select the circular elements and use the MIRROR command. Choose the central axis as the mirror line to reflect the design onto the other side of the latch plate.
• Completing the Intersection: After mirroring, trim any excess lines or shapes that intersect incorrectly. This ensures the mirrored elements fit perfectly within the design.

Step 7: Chamfering the Edges and Adding Fillets

Chamfering and filleting are essential in mechanical design to smooth out sharp edges and reduce wear. The latch plate requires fillets and chamfers at specific points.

• Chamfer Command: The chamfered edges are drawn at an angle of 15°. Use the CHAMFER command to define the chamfer length and angle, trimming away the excess.
• Fillet Command: To add fillets to the latch plate’s edges, use the FILLET command. The fillet radius for the outer edge is 5.6 mm, while the inner edge radius is 2.5 mm.
• Tangent Circle Option: For fillets that need to be tangent to existing lines, use the Tangent Circle option. This allows you to create circles tangent to two lines, making it easier to fillet specific areas.

Step 8: Final Trimming and Refinement

With the main elements of the latch plate complete, it’s time to refine the drawing and remove any unnecessary lines.

• Trim Command: Use the TRIM command to eliminate lines and circles that intersect or extend beyond the boundaries of the latch plate.
• Fence Option: The FENCE option within the TRIM command allows you to select multiple objects at once, making the trimming process more efficient.

After trimming, your latch plate should look clean and precise, with all unnecessary elements removed.

Key AutoCAD Commands Used in This Drawing:

• RECTANGLE: To create the outer boundary of the latch plate.
• CIRCLE: To add circular holes and curve-linear elements.
• OFFSET: To define the inner cutaway section.
• MIRROR: For symmetry across the central axis.
• CHAMFER and FILLET: For smoothing sharp edges and adding curves.
• TRIM and EXTEND: To refine the design and ensure accuracy.

Conclusion

In this blog, we successfully designed a latch plate by using essential AutoCAD commands like offset, circle, mirror, trim, and fillet. Each command served a specific purpose, allowing us to replicate the mechanical drawing with precision.

By following these steps, you can practice the core AutoCAD 2D skills necessary for mechanical engineering applications. Whether you're pursuing an AutoCAD crash course, a full AutoCAD mechanical engineering course, or simply learning AutoCAD for beginners, mastering these commands is essential for efficient and accurate designs.

Stay tuned for more guides in our AutoCAD Essentials series and continue exploring topics like AutoCAD 3D, CAD software, and top design software for engineers!
