Exploring Multi-line Text Editing and Dynamic Columns in AutoCAD

Welcome back to AutoCAD Essentials for Mechanical Engineers blog series. Today we delve into advanced text editing techniques within AutoCAD, specifically focusing on multi-line text (MText), dynamic columns, and formatting options. These are critical skills for creating clear, structured documentation in both AutoCAD 2D and AutoCAD 3D environments, making it essential for mechanical engineers to master.

Editing Multi-line Text in AutoCAD

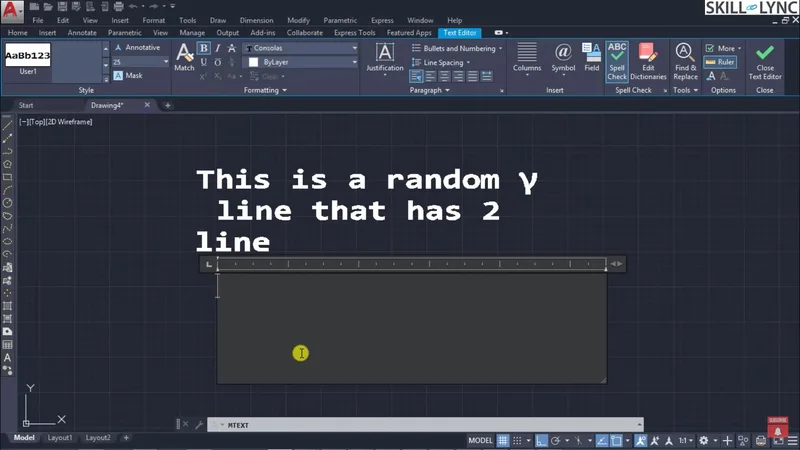

Unlike single-line text, multi-line text (MText) is a versatile tool in AutoCAD for mechanical engineers that allows for more comprehensive editing options. To modify a multi-line text object, simply double-click the text. This action invokes the MText editor, replacing the DDEdit command from earlier AutoCAD versions.

The MText editor offers a graphical user interface (GUI) that provides additional formatting options. By right-clicking within the text box, you can access a range of commands such as inserting fields, which allow you to link text to external data within the AutoCAD environment. For example, you can insert the current date or a specific reference tied to another object in the drawing.

If you’re working with large projects like AutoCAD mechanical drawings and need consistency across annotations, the MText editor is a valuable asset.

Inserting Symbols and Special Characters

When working on detailed engineering drawings, you’ll often need to insert special characters, such as degree symbols or Greek letters. AutoCAD offers two ways to do this:

• Control Codes: For example, typing %%C inserts a degree symbol (°) and %%P inserts a plus-minus sign (±). This method is faster for frequent commands.

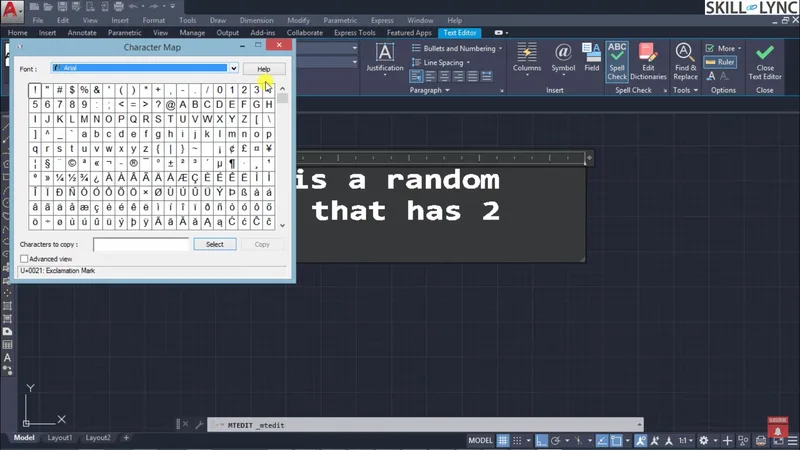

• Unicode Symbols: You can also insert symbols by selecting from the character map. For instance, to insert the Greek letter gamma (γ), you would use the Unicode U+03B3.

These methods are invaluable for maintaining precision and clarity in AutoCAD mechanical engineering projects.

Justifying and Aligning Multi-line Text

Text alignment is essential in creating readable and well-organized documentation. In AutoCAD, you can justify your multi-line text to positions such as top left, middle center, or bottom right. Unlike single-line text, multi-line text does not allow individual left, center, or right alignments—it uses a combination of these for greater control.

To adjust text height, use the H option. If you set the text height to 25 units for single-line text, this will carry over to the multi-line text by default. However, you can adjust it further depending on your project’s needs.

Managing Line Spacing

Line spacing is another vital element in creating structured documents. AutoCAD allows you to specify the exact distance between lines or set it as a factor. For instance, setting the spacing factor to 2X doubles the default spacing, ensuring clear separation between lines in your AutoCAD drawing.

Rotating and Styling Text

Text rotation in AutoCAD 2024 follows the same principle as in single-line text. You can rotate the text along a specified axis, which is particularly useful in AutoCAD for civil engineers and mechanical engineers when annotating diagrams with various orientations.

Moreover, text style commands in multi-line text allow you to select from different predefined styles, or you can create your own. This flexibility is crucial when working on large projects that require consistent formatting across multiple annotations.

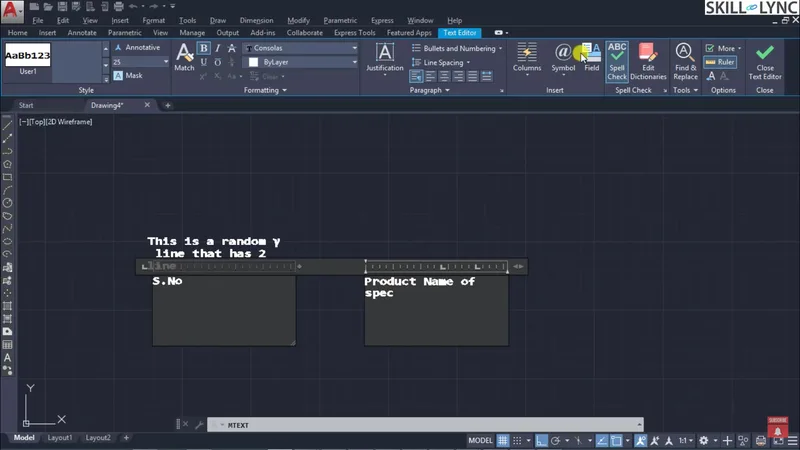

Working with Columns in Multi-line Text

A standout feature of multi-line text is the ability to format it into columns. This is particularly beneficial in AutoCAD mechanical engineering projects where structured data presentation—such as part lists or component descriptions—is necessary.

AutoCAD provides three types of column settings:

• Dynamic Columns: These adjust automatically based on the content. For example, if you’re listing part numbers alongside descriptions, dynamic columns ensure that text wraps neatly within the column.
• Static Columns: In contrast, static columns allow you to manually set the column width and height. This is useful when you need precise control over the text layout.
• No Columns: If your project does not require multiple columns, you can opt for no columns, keeping the text in a single block.

In dynamic columns, you can specify the column width (e.g., 750 mm), the gutter width (e.g., 125 mm), and the height (e.g., 250 mm). These settings ensure that your data is presented in a clean, organized manner.

Additional Tools and Commands

The MText editor in AutoCAD also includes tools for:

• Bullets and numbering: Useful for creating lists, similar to those found in word processing software.
• Find and replace: Helps you quickly locate and update text across large drawings.
• Spell check: Ensures that all annotations are free of spelling errors, an essential feature for maintaining professionalism in CAD programs.

AutoCAD’s MText command also supports a What You See Is What You Get (WYSIWYG) interface, which ensures that text remains legible even when viewed at different angles or layers. This is particularly beneficial when placing text on angled surfaces in 3D CAD models.

Conclusion

Understanding and mastering the multi-line text features in AutoCAD is essential for mechanical engineers working on complex designs. From adjusting text height and alignment to managing dynamic columns and inserting special characters, these tools streamline the process of creating professional, well-organized drawings.

Whether you’re pursuing an AutoCAD free certificate or enrolling in an AutoCAD crash course, these skills will enhance your ability to create detailed, accurate mechanical drawings. As you continue your journey with AutoCAD essentials, the ability to efficiently use multi-line text and dynamic columns will become an indispensable part of your engineering toolkit.
