Understanding Annotative Text and Multi-line Text in AutoCAD

Welcome back to AutoCAD Essentials for Mechanical Engineers blog series. In this blog, we will explore the intricacies of annotative text and multi-line text in AutoCAD, two powerful features that can significantly enhance your drawings and streamline your workflow. Whether you’re working on AutoCAD 2D drawings for beginners or advanced projects, mastering text commands is essential for creating clear and professional documentation.

Annotative Text: A Dynamic Solution

In AutoCAD for engineers, annotative text is a feature that ensures your text objects remain consistent in size regardless of the drawing’s scale. This is particularly useful in mechanical drawings where dimensions need to be clear, irrespective of the zoom level or plot scale. For example, when you apply an annotative style to your text, it remains legible even as you zoom in or out on your AutoCAD drawing.

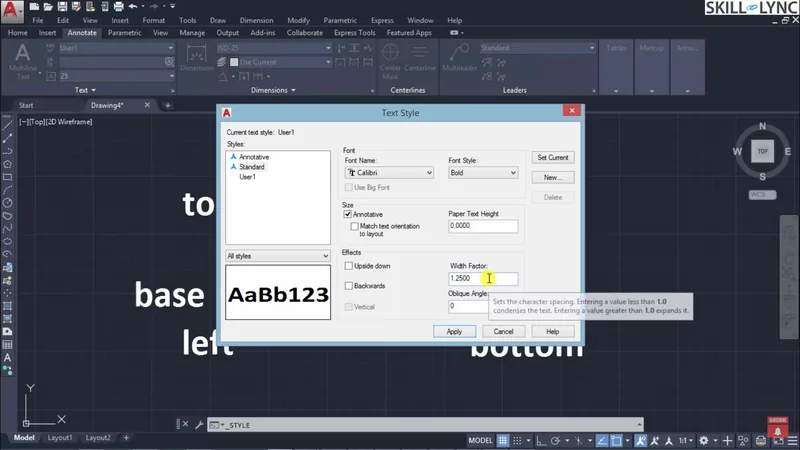

To apply annotative text, you can simply enable the annotative format in the text style settings. You’ll know the style is active by a small icon indicating the text's annotative nature. By default, the text size adjusts according to the paper space. If you prefer a specific height, set a positive number greater than zero to define the text size manually.

It’s important to note that some properties, like width factor and oblique angle, don’t affect single-line text. These are more applicable when working with multi-line text, which we will cover later. This distinction is key for AutoCAD mechanical engineers working on intricate designs where precise text formatting is crucial.

Applying Text Styles to Existing Drawings

What if you open an existing document created by someone else, and the text styles don’t match your current preferences? Don’t worry! AutoCAD offers a simple way to update text styles.

Here’s a quick method:

• Select the text object.
• Right-click and choose "Quick Properties" to see the settings applied to the object.
• Modify the text style to your desired one.

If you need to apply this change across multiple objects, use the Q Select command, a powerful tool in AutoCAD for mechanical drawings. This filter allows you to select objects by their type (e.g., text or multi-line text) and update their properties in bulk, saving you significant time, especially in large AutoCAD mechanical engineering projects.

Text Editing Commands in AutoCAD

Editing text in AutoCAD 2024 is simple and efficient. You can either double-click the text object to enter the text edit mode, or use the DDEdit command. Both options let you modify the text content easily.

If you need to add special characters, such as degree symbols or plus-minus signs, AutoCAD provides handy control codes. For instance, typing %%C will insert a degree symbol (°), while %%P will insert a plus-minus symbol (±). These quick shortcuts enhance your productivity, especially in technical documentation where such symbols are frequently required.

You can also underline or overscore text using control codes like %%U for underlining or %%O for overscoring. These formatting options are essential in ensuring your annotations are clear and meet industry standards.

Using the QTEXT Command for Improved Performance

While working on complex AutoCAD 3D or AutoCAD 2D projects, the screen can get cluttered with numerous annotations. To focus on specific parts of your drawing, use the QTEXT command to hide the text and replace it with boxes representing the text boundaries. This improves performance and helps you focus on essential design elements without distractions.

To bring the text back into view, simply disable the QTEXT command and refresh the image using the regen command.

Mirroring Text in AutoCAD

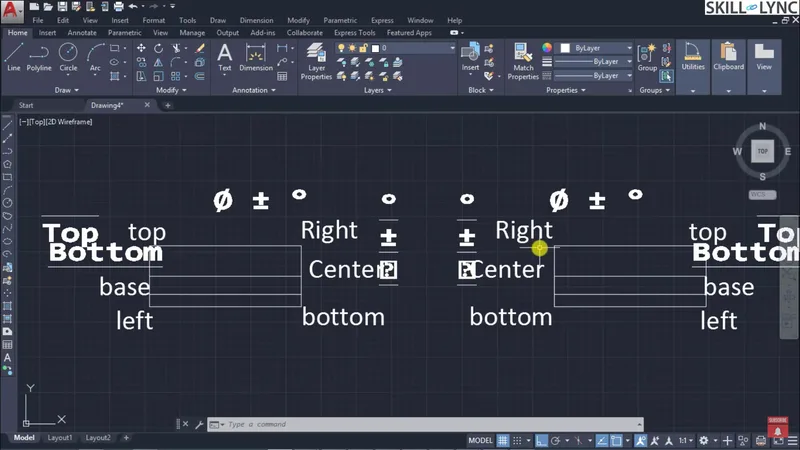

Mirroring objects is a common task in CAD programs. However, by default, mirrored text remains oriented in its original direction. If you want the text to mirror as well, AutoCAD offers a system variable called MIRRTEXT. Set this value to 1, and your text will flip along with the objects.

For example, if you are mirroring a mechanical AutoCAD 2D drawing, such as a part diagram, and you need the annotations to mirror as well, this command ensures that everything—including the text—flips correctly.

Multi-line Text: Enhanced Formatting Control

Now let’s delve into the multi-line text (MText) feature. This command allows you to create text blocks that span multiple lines, offering more flexibility than single-line text. You can invoke the MText command by typing MText into the command line or selecting it from the toolbar.

Multi-line text is ideal for CAD courses for mechanical engineers where you need to include detailed descriptions or annotations. Unlike single-line text, multi-line text treats all the lines as a single object, making it easier to manage and edit.

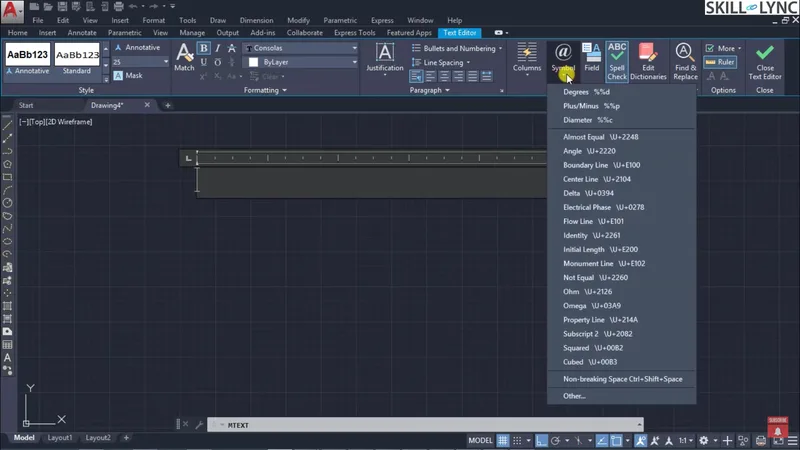

Once you create an MText object, you will notice a text editor ribbon that provides several formatting tools, similar to what you’d find in Microsoft Word. You can adjust the text height, apply bold or italic formatting, and even insert special symbols—all within the graphical interface. Additionally, AutoCAD allows you to spell-check your text, ensuring that your documentation is free of errors.

Dynamic and Static Columns in MText

In AutoCAD essentials, columns are a great way to organize your multi-line text. AutoCAD offers two types of columns: dynamic and static.

• Dynamic Columns: These automatically adjust based on the text’s content. For example, if you are listing part numbers and descriptions, dynamic columns ensure that everything fits neatly within the specified width.
• Static Columns: With static columns, you set the column width and height manually. This is useful when you have specific layout requirements for your text.

Conclusion

Mastering text commands in AutoCAD for mechanical engineers is crucial for producing professional, well-organized drawings. Whether you are working with single-line text, multi-line text, or applying text annotations, knowing how to leverage these tools will save time and improve the clarity of your drawings.

From setting annotative text to creating dynamic columns, AutoCAD offers powerful features to manage text effectively. As you continue to explore the world of CAD software, these skills will become essential in delivering high-quality, precise engineering drawings.

Stay tuned for more insights and tips in the AutoCAD Essentials for Mechanical Engineers series, where we will cover more advanced features and commands to further enhance your expertise in AutoCAD 2D and 3D environments.

This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
