Exploring Fillet, Chamfer, and Dynamic Grips in AutoCAD

Welcome back to the AutoCAD Essentials for Mechanical Engineers blog series! In this part of the AutoCAD Essentials for Mechanical Engineers series, we will cover some key features that are critical for refining designs: Fillet, Chamfer, and Dynamic Grip Editing. Whether you're new to AutoCAD or honing your skills, these commands are essential to producing professional mechanical designs. They not only improve the usability of the final product but also enhance safety and structural integrity.

Applying Fillet to Polylines

Let's start by understanding how the Fillet command works when applied to polylines in AutoCAD 2D. The Fillet command helps create rounded edges between two line segments, which is crucial in eliminating sharp corners that may pose risks during manufacturing.

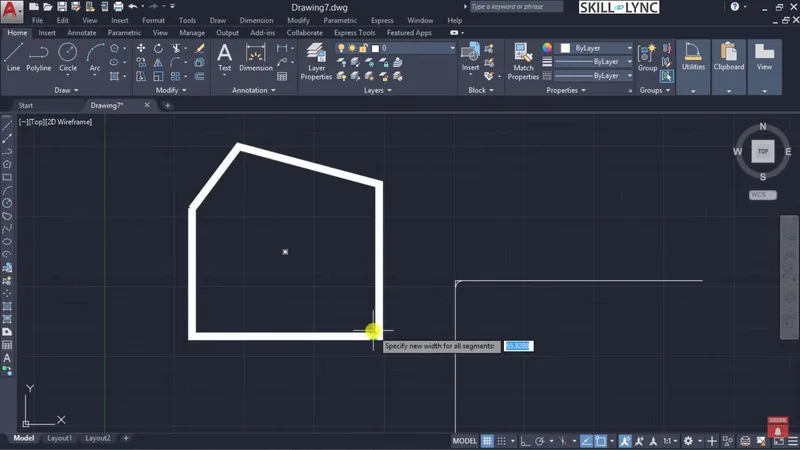

In our example, after drawing a polyline with a specific width (say 2 mm), you can adjust or edit this using the PEDIT command. To apply a Fillet with a specific radius, select the polyline, and set the desired fillet radius (for instance, 150 mm). If the radius is greater than the shortest segment, the system will prompt that the operation is invalid. However, by holding the "Shift" key, you can override this and temporarily set the fillet radius to zero, allowing for more control over the results.

When using AutoCAD, keeping segments on the same layer ensures that the filleted line remains on the same drawing plane, maintaining clarity in your AutoCAD drawing.

Filleting Multiple Surfaces

The Fillet command also allows you to apply it to multiple surfaces at once. By increasing the fillet radius and selecting multiple objects, you can apply the command across all selected lines, enhancing efficiency when dealing with complex shapes. This becomes particularly useful in AutoCAD mechanical drawing, where you might need to smoothen out multiple intersections.

If the trim command is enabled, the fillet will trim back the lines to meet at the specified radius. Without the trim, the fillet will be applied without altering the original lengths of the segments.

Chamfer: A Straight Alternative to Fillet

The Chamfer command is similar to Fillet, but instead of rounding off corners, it applies a straight edge cut, removing sharp corners. This command is especially relevant when you're dealing with assembly components like shafts and holes, which require beveled edges for easy insertion or assembly.

In AutoCAD mechanical engineering, chamfers are a key element in reducing stress concentrations at sharp edges, which can lead to failures under load.

To apply a Chamfer, you can specify the chamfer distance (say 15 mm) or angle (typically 45°). Chamfers, like fillets, are critical when working with CAD for mechanical engineers because they remove stress points in the material and improve assembly ease.

Dynamic Grip Editing: Faster Design Adjustments

Now, let’s dive into the Dynamic Grip Editing feature. Grips are small squares that appear when you select an object in AutoCAD 2024. They allow you to perform common tasks like moving, rotating, scaling, or stretching the object without needing to invoke separate commands.

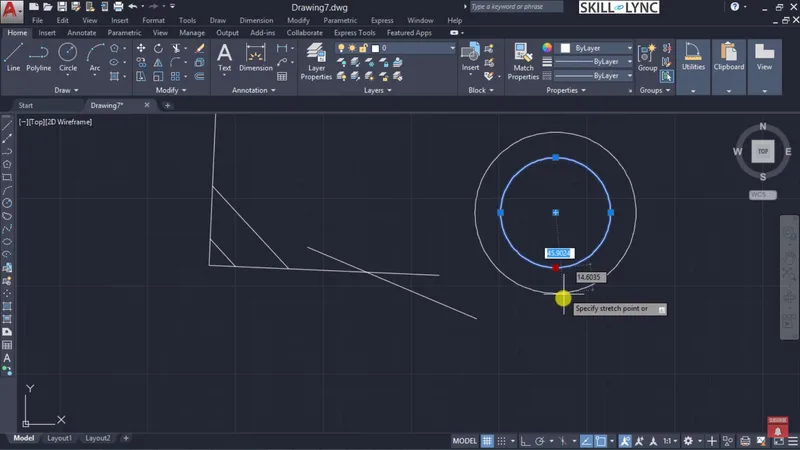

For instance, selecting a corner grip allows you to stretch or lengthen the object dynamically, which is highly efficient for quick modifications. You can cycle through different options, such as moving or rotating the object, by pressing the space bar. This can also be applied to circular elements, where quadrant grips allow you to extend the diameter of a circle from its geometric center. Grips are indispensable in speeding up design adjustments in AutoCAD mechanical drawing.

Inquiry Tools: Investigating Your Design

Finally, let’s cover some important inquiry tools, like the ID and LIST commands, which are essential for analyzing your design’s specifics.

• ID Command: The ID command is used to find the coordinates of a specific vertex or point in your drawing. This is particularly helpful when auditing or editing complex designs, where knowing the exact location of a point can help in alignment or further design refinement.
• LIST Command: The LIST command provides a detailed description of any selected object, including properties like layer, perimeter, and area. For example, selecting a circle will return its radius, circumference, and area, which can be useful for calculating materials or checking design constraints in CAD programs.

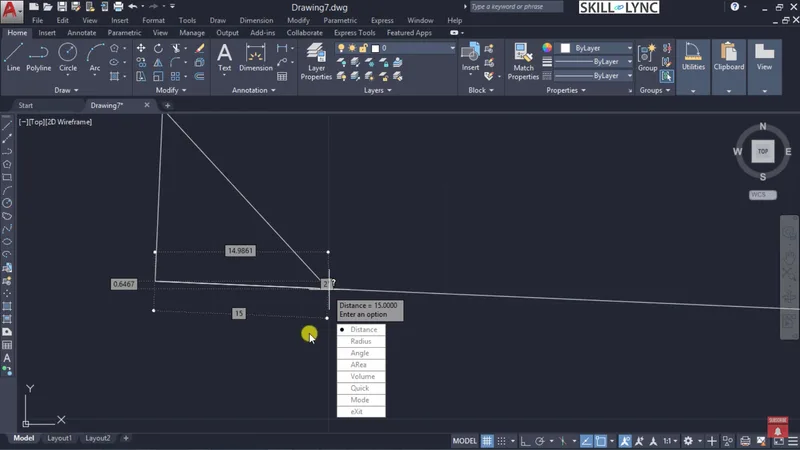

• Distance Command: The Distance command allows you to measure the distance between two points, giving you the delta values in the X, Y, and Z directions. This is a quick way to verify dimensions or measure gaps between components in your AutoCAD 2D drawing for beginners or even advanced designs.

Conclusion

Understanding and mastering these commands, such as Fillet, Chamfer, and Dynamic Grips, is crucial for any engineer working in AutoCAD for mechanical engineers. These tools ensure your designs are functional, safe, and optimized for manufacturing, especially when you move into AutoCAD 3D or more advanced CAD software.

With features like grip editing and inquiry tools, you’ll not only speed up your design workflow but also maintain precision, which is essential in mechanical AutoCAD 2D drawing and mechanical AutoCAD 3D crash courses.

Whether you’re just getting started with AutoCAD for beginners or looking for ways to improve your design process, mastering these tools will enhance your capabilities in CAD design software for mechanical engineers.

For those looking to gain certification, exploring AutoCAD online courses with certificates, or completing an AutoCAD free certification course, these commands will give you a competitive edge and prepare you for more complex mechanical engineering projects.

Stay tuned for the next installment of our AutoCAD Essentials series, where we will dive deeper into more advanced tools and tips tailored for mechanical engineers. Happy designing!
