AutoCAD Essentials for Mechanical Engineers: Arrays, Pathing, and Key Editing Commands

Welcome back to our AutoCAD Essentials for Mechanical Engineers series. In this session, we will dive into advanced techniques like polar arrays, path arrays, and essential editing tools such as break, mirror, and offset commands. These tools will greatly enhance your ability to create precise designs, whether you are working in AutoCAD 2D or AutoCAD 3D.

Let’s break it down step by step so you can fully master these key functions for more efficient and productive AutoCAD drafting.

Creating Polar Arrays in AutoCAD

The polar array tool allows you to create multiple copies of an object arranged in a circular pattern. This is especially useful for mechanical engineers working on components like gears or bolt arrangements where precision spacing around a central point is key.

How to Create a Polar Array

1. Select the object you want to array.
2. Type ARRAYPOLAR in the command prompt or use the ribbon interface to select the polar array tool.
3. Specify the center point around which the objects should revolve.
4. Enter the number of items to be replicated.
5. Adjust the angle between each object as needed.

For instance, if you're replicating a bolt pattern around a circular flange, you can adjust the number of rows, the spacing between items, and whether the objects should rotate as they are copied. These parameters can be controlled in real-time, making the AutoCAD drawing process much more interactive and accurate.

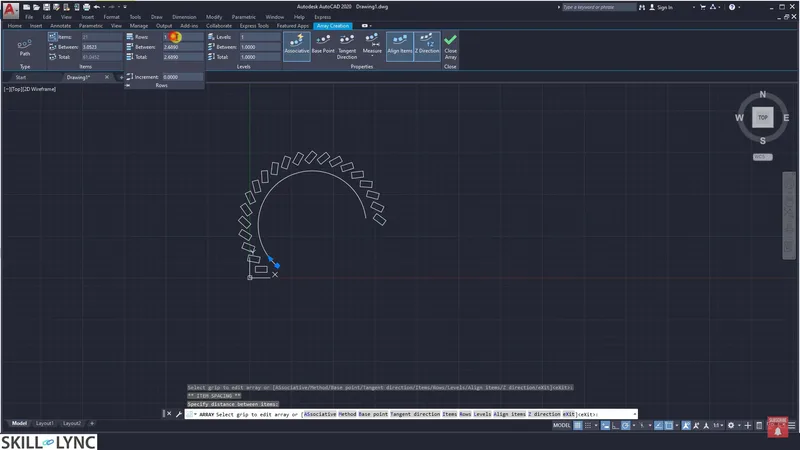

Using Path Arrays for Complex Geometries

A path array is another powerful tool that allows you to replicate objects along a curve or spline. This is particularly useful for creating patterns or designs along irregular paths, such as placing bolts along the edge of a custom-shaped plate or mechanical part.

Steps to Use Path Arrays

1. Draw a path, such as an arc or spline, that defines where the objects should be placed.
2. Select the object you wish to replicate.
3. Type ARRAYPATH and choose the path to follow.
4. You can then control the number of objects, spacing, and whether they should align to the curve.

For example, if you need to place holes along a custom-designed spline for a mechanical part, the path array tool allows you to easily create evenly spaced instances of the object along the curve.

Pro Tip: You can use the align items option to ensure that the replicated objects follow the curve’s orientation, which is especially useful for AutoCAD mechanical drawings involving detailed pathing requirements.

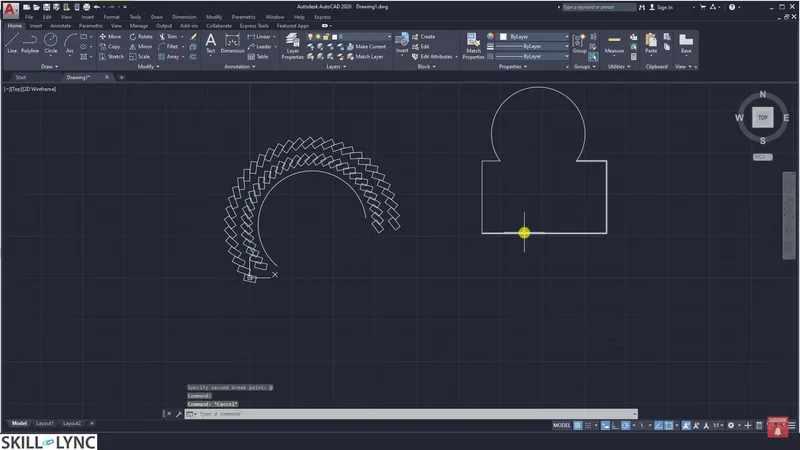

Breaking Objects in AutoCAD

The break command allows you to split objects into separate segments, which is useful when you need to remove only part of an object without deleting the whole thing.

How to Use the Break Command

1. Select the object you want to break (e.g., a line or circle).
2. Type BREAK into the command line.
3. Specify the first point and second point where you want to break the object.

For instance, if you have a rectangle intersecting a circle and want to remove the portion of the rectangle within the circle, the break command can isolate that section, removing only the unnecessary part. You can also break an object into multiple components without deleting any sections, a handy tool when working on detailed AutoCAD mechanical engineering projects.

The Mirror Command for Symmetrical Designs

Many mechanical components are symmetrical, and recreating both sides manually can be time-consuming. The mirror command allows you to quickly replicate objects across a mirror line, making it much easier to create balanced designs.

Steps for Using the Mirror Command

1. Select the objects you want to mirror.
2. Type MIRROR or select the mirror command from the ribbon.
3. Specify the mirror line—the axis around which the objects will be mirrored.
4. Choose whether or not to erase the original object.

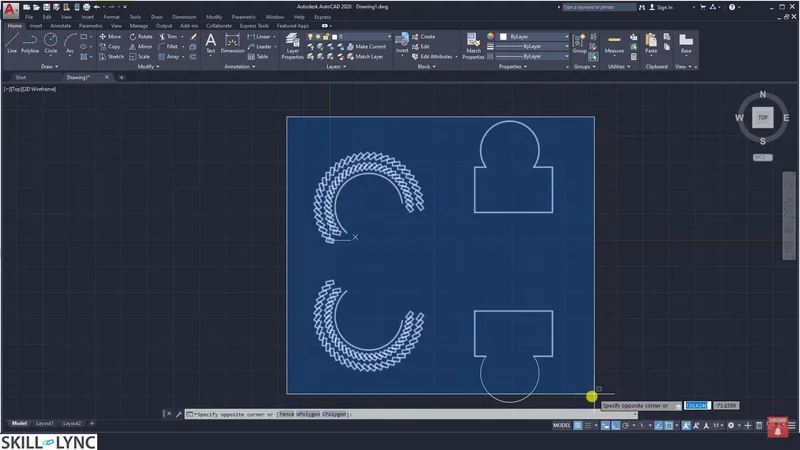

For example, if you’re designing a symmetrical part like a mechanical bracket, you only need to draw half of it. You can then use the mirror command to replicate the design across a central axis, saving both time and effort.

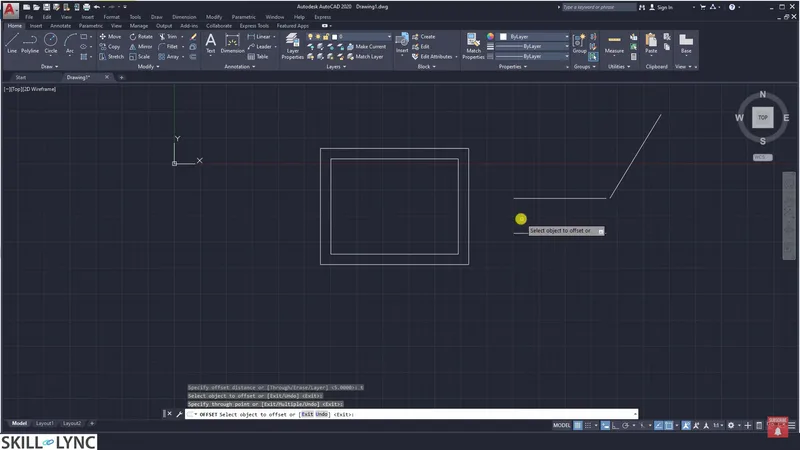

Offset Command: Creating Duplicates with Precision

The offset command allows you to create parallel copies of lines, arcs, circles, or other objects at a specified distance. This is particularly useful when designing structures like fences, boundaries, or layers within a mechanical part.

How to Use the Offset Command

1. Type OFFSET or select the tool from the ribbon.
2. Enter the offset distance.
3. Select the object you want to offset.
4. Choose whether to offset it inside or outside the original object.

For example, if you're designing a mechanical component that requires precise concentric layers, such as bushings or gaskets, the offset command ensures that you maintain accurate dimensions without needing to manually draw each layer.

Arrays, Pathing, and Editing: Putting it All Together

Once you have mastered these commands, you can combine them to create complex and efficient designs. For instance, you might use a polar array to evenly space bolts around a circular flange, a path array to place fasteners along a custom curve, and the mirror command to quickly duplicate symmetrical features of a part.

These tools not only make drafting in AutoCAD faster but also more precise, especially for mechanical engineering designs that require a high degree of accuracy and efficiency.

Conclusion and Further Learning

In this session, we've explored the use of polar arrays, path arrays, and important editing commands like break, mirror, and offset in AutoCAD. These tools are vital for creating detailed mechanical engineering drawings and ensuring that your designs are efficient and professional.

As you continue to develop your skills in AutoCAD for mechanical engineers, make sure to practice these commands and integrate them into your workflow. Whether you're working on AutoCAD 2D or transitioning to AutoCAD 3D, mastering these functions will significantly enhance your design capabilities.

If you’re just starting with AutoCAD 2D drawing for beginners, these commands will form the foundation of your drafting skills. For advanced users, applying these techniques in AutoCAD 3D crash course\s can push your design proficiency to new levels.

Explore more by enrolling in AutoCAD essentials or a free AutoCAD certification course to continue growing your expertise in this essential design software.
