Welcome to the AutoCAD Essentials for Mechanical Engineers blog series. In this blog, we will focus on Design for Manufacturability (DFM) techniques, emphasizing how to create efficient designs that can be manufactured effectively. We'll look into various AutoCAD tools that streamline the design process and ensure accuracy in terms of dimensions and features. Additionally, we'll discuss inquiry tools that help us verify design specifications, ensuring that we stay on the right track during the drawing process.
Key Topics in Drafting for Manufacturability
1. Hatching
The hatch command in AutoCAD is essential for representing the internal cross-sections of mechanical components or civil structures, such as RCC structures, roofs, or basements. This tool allows you to fill an area with a specific pattern or gradient, providing a visual representation of internal details.

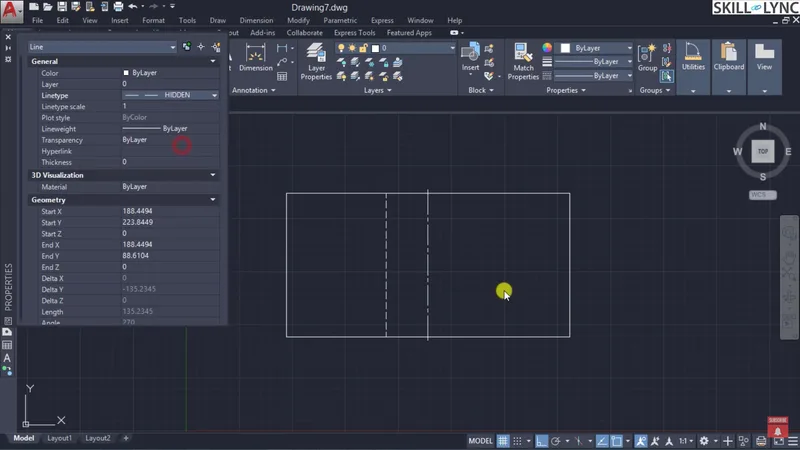

Let's begin by drawing a cross-section of a rectangular block with a through-hole. To do this:
Once this is done, use the hatch command (HCH) to fill the designated areas with the desired pattern. AutoCAD provides several predefined hatch patterns that suit different materials, which can be selected from the hatch panel.
For mechanical engineers working on AutoCAD 2D drawing for beginners, this is a critical step to represent internal features clearly.
2. Polyline Commands
Polylines allow you to draw continuous line segments, including curvilinear segments. This command is particularly helpful when creating complex paths or profiles, common in AutoCAD for mechanical drawing. With polylines, you can also edit individual segments later on, which makes it easier to modify features like arcs and straight lines.
3. Chamfer and Fillet
The chamfer and fillet commands are essential for creating smooth edges or angled cuts at the intersection of two objects:
These tools are vital in AutoCAD mechanical crash courses because they allow designers to model parts that are manufacturable and meet industry standards.
4. Grip Edit Command
The grip edit command enables quick modifications of objects by selecting their key points, known as grips. You can move, stretch, or rotate the object without entering commands, making it an efficient way to tweak your design.
5. Inquiry Tools in AutoCAD
Understanding the specifications of your design is critical to ensuring manufacturability. AutoCAD offers several inquiry tools to help:
These tools are crucial for AutoCAD for engineers, enabling you to ensure that your designs meet the required specifications.
6. Hatch and Gradient Settings

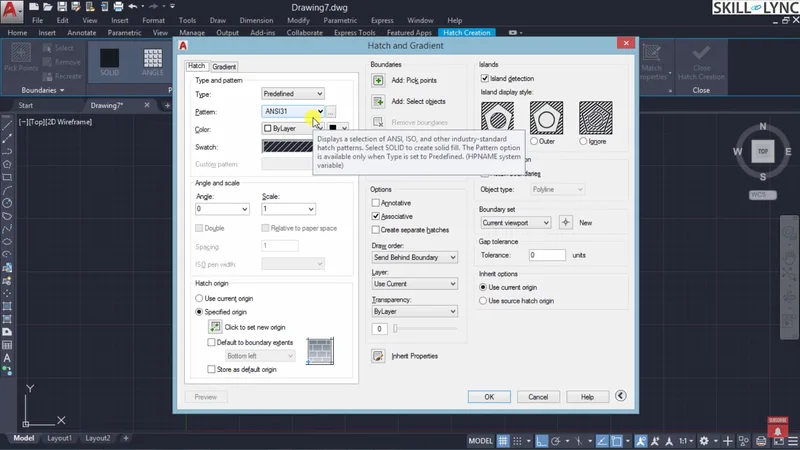

Let's dive deeper into the hatch command. To invoke the command, type HCH, which will bring up a panel allowing you to choose between hatch and gradient. The hatch tool fills an area with a pattern or texture, while the gradient tool applies a color fill that fades from one hue to another.
AutoCAD offers three types of hatching:
For instance, the NC31 pattern with black stripes is commonly used in AutoCAD mechanical drawings to represent sections of materials like steel.
Angle and Scale Settings
You can adjust the angle and scale of the hatch pattern relative to the X-axis, which is useful when you need to align the pattern with specific geometries in your design. For example, if you’re working on AutoCAD 3D drawings or CAD programs, setting an appropriate scale ensures the pattern is accurately represented.
7. Editing Hatch Patterns
After applying a hatch, you can edit it using the hatch edit command. This is useful if you need to:
Incorporating hatches is crucial when working on design software for mechanical engineers, as it visually represents the internal details of components.
8. Advanced Hatch Features
AutoCAD also offers more advanced hatch features, such as:
These features are especially useful in CAD training for engineers who need precise control over their designs.
Conclusion:
This blog, we have seen the key drafting techniques and commands that help ensure manufacturability in your designs:
Understanding these commands and techniques is crucial for anyone pursuing AutoCAD mechanical engineering courses or working towards becoming proficient in CAD design software. Stay tuned for the next blog as we continue to expand your knowledge of AutoCAD’s capabilities!
This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
Would you like to have a more interactive experience going through the AutoCAD essentials?
Skill-Lync has released a FREE comprehensive course covering AutoCAD Essentials for Mechanical Engineers in detail! Check it out here.
If you’re looking to go deeper into AutoCAD Essentials check out Skill-Lync’s AutoCAD certification course.
Check out our hands-on course today and add AutoCAD to your list of skills!
Let’s get #IndustryReady together, one skill at a time!
