Wiring harness routing & packaging Rules Week 3 Challenge

Here Saw The P clamp,Backshell and Different types of Corrugated tubes

In a week 3 we saw a p clamp to define electrically and here are some pictures of that

first of all we have cad data which shown in video anddownload from there and open in catia sofwere

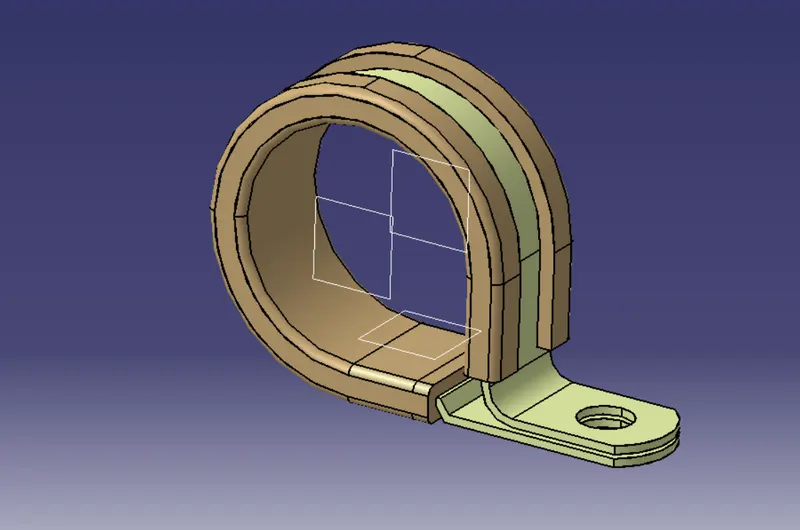

P-CLAMP:-

p clamp is using for supporting in wiring harness roouting.as define electrically first of all p clamp open in part design and define that point ,planes .

facing issue with point definition, point selection, Right-click on the point definition window and use the reset option as mention note.

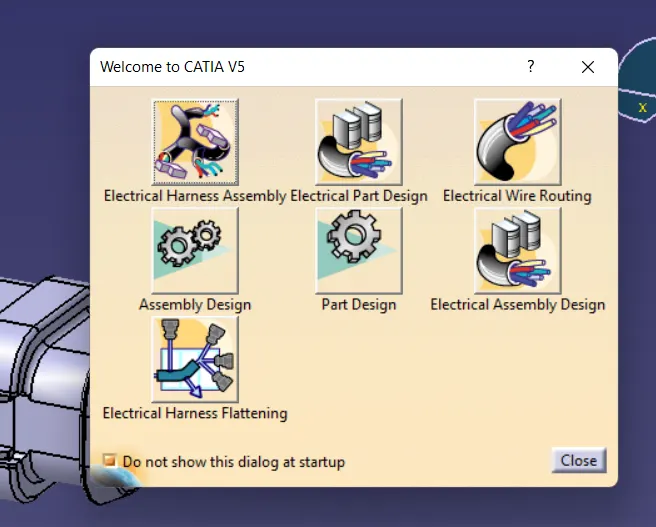

After that switching the workbench to electrical part design and after doing that p clamp define as support.

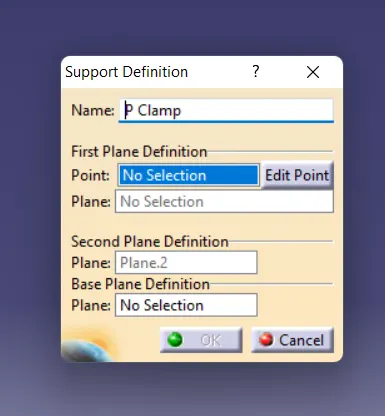

After opening in electial workbench and define as a support and suddenly open this type of popup window which called as support defination in this window select point then after selet plane and select opposite and base plane.

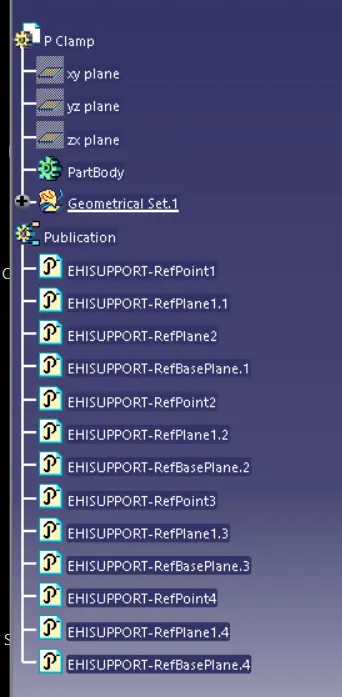

same process repeat and second time the selection of point is quite difficult.after complete all peocess save the file as a P clamp.properties of p clamp look like this manner which is publication define electrical properties.

Answer 2 :-

Backshells

Downloadnig Backshell parts from given link and dong same process which we doing in defineing the connector.but in this backshell we define different points.

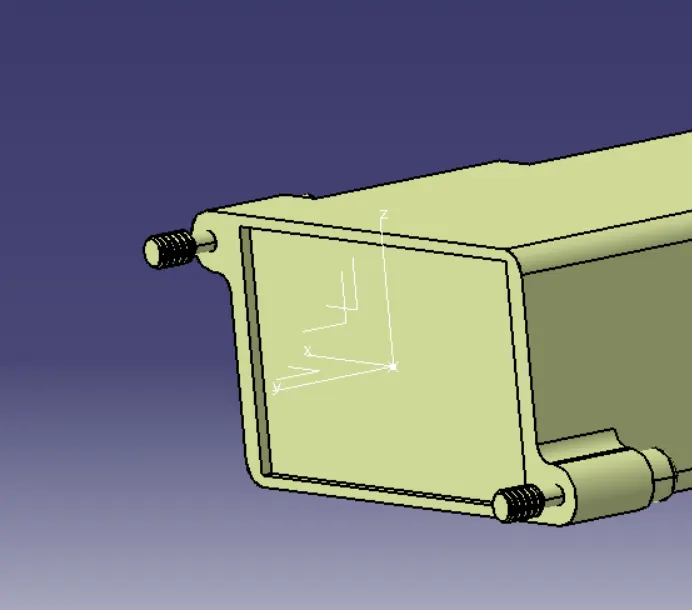

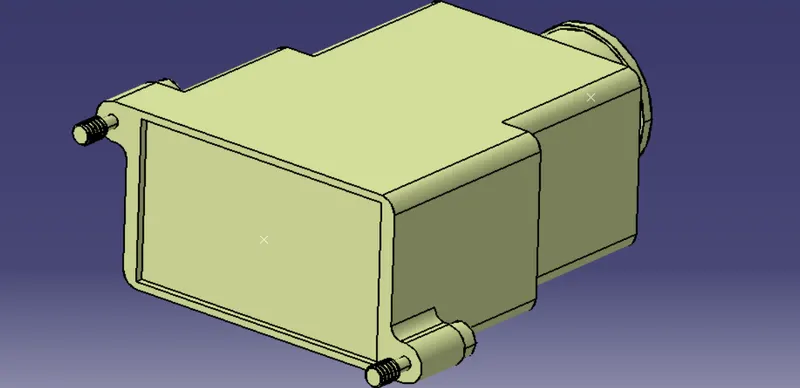

here show the define Backshell support symbol.

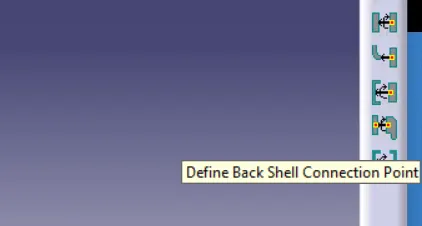

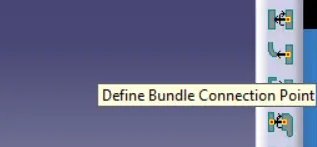

After define the axis and define some electrical properties like backshell point and define bundle connection point.

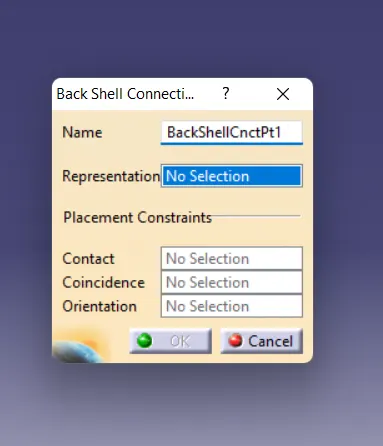

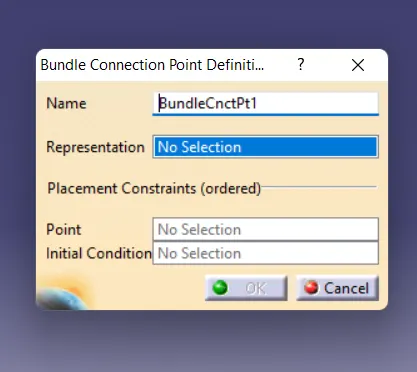

after define open this popup window and doing same process which shown in videos.

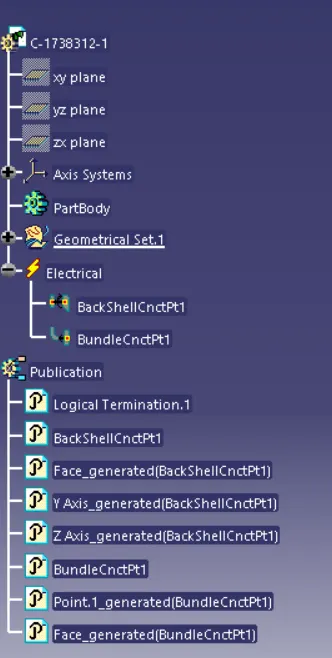

In above image the backshell electical propeties shown.

Answer:-3

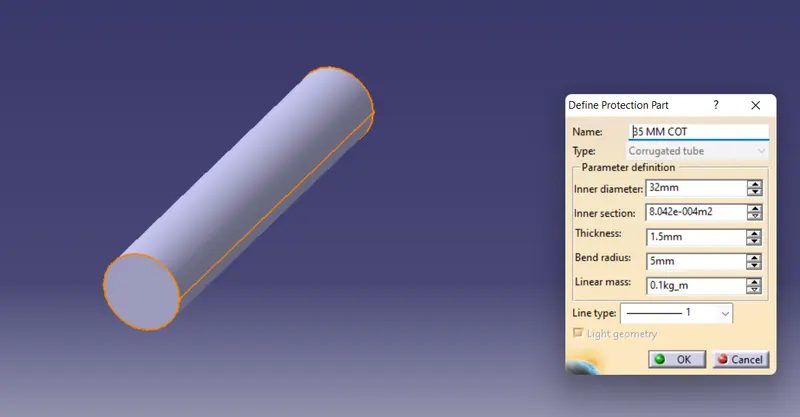

Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

there are some different images shown as corrugated tubes and its catalougae making process.

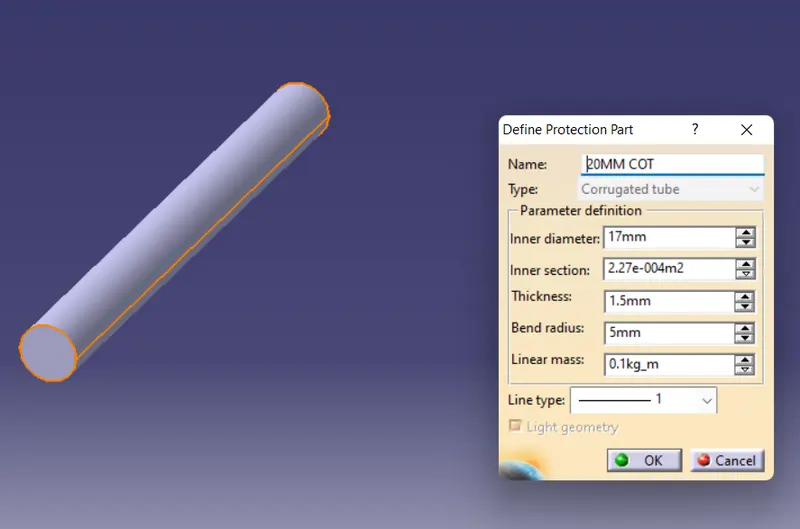

this is also called protection part below image represent it.

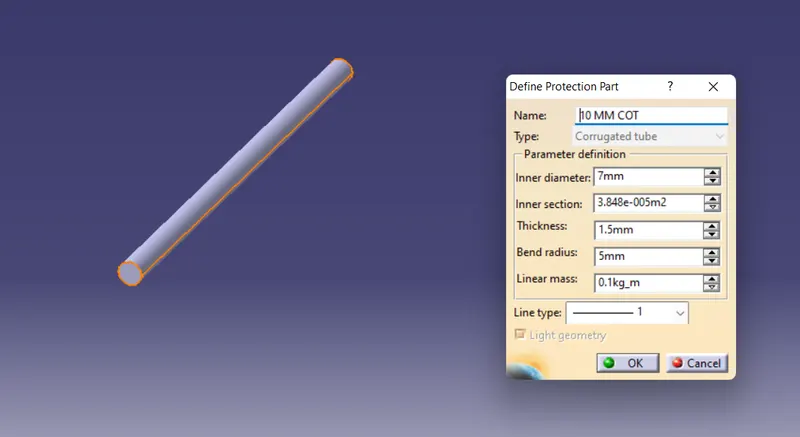

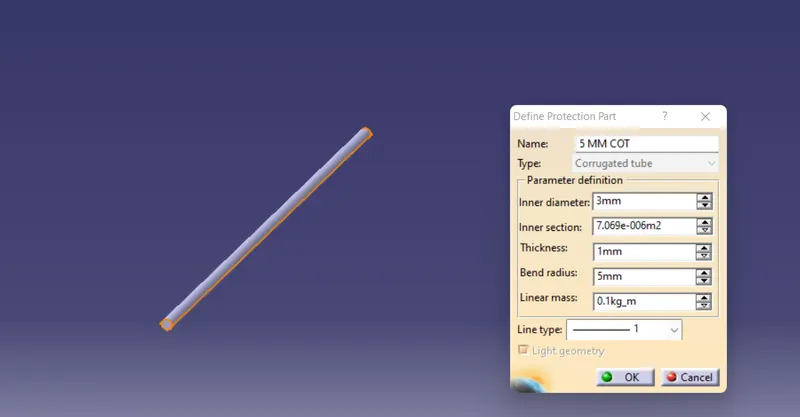

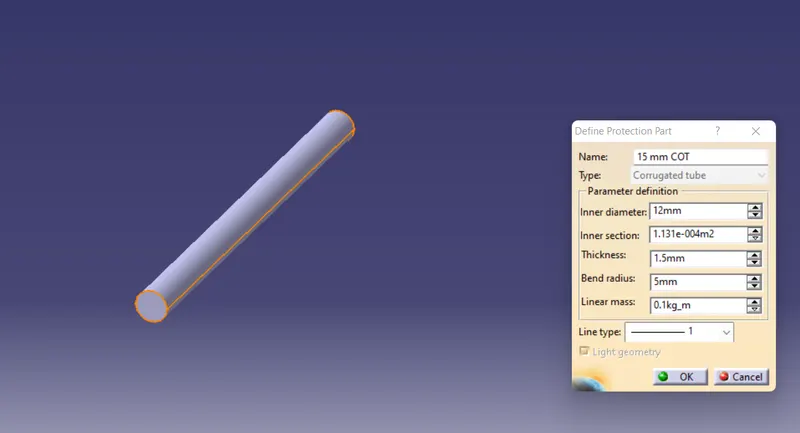

there are differet type of corrugated tube and its catalogue shown in below.

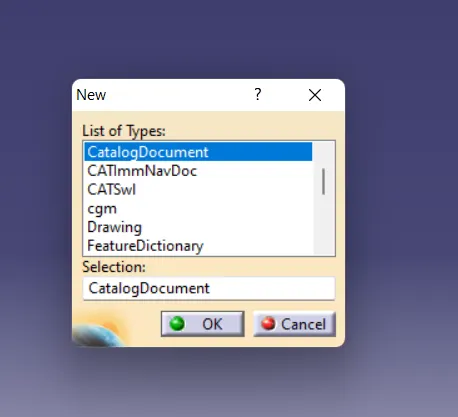

After making this all type of cot tubes which is stroe in one single catalouage .the catalouge making as shown in video.

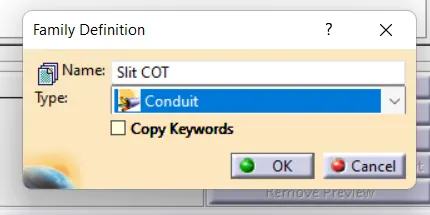

name save as slitcot and the type of this is called conduit.

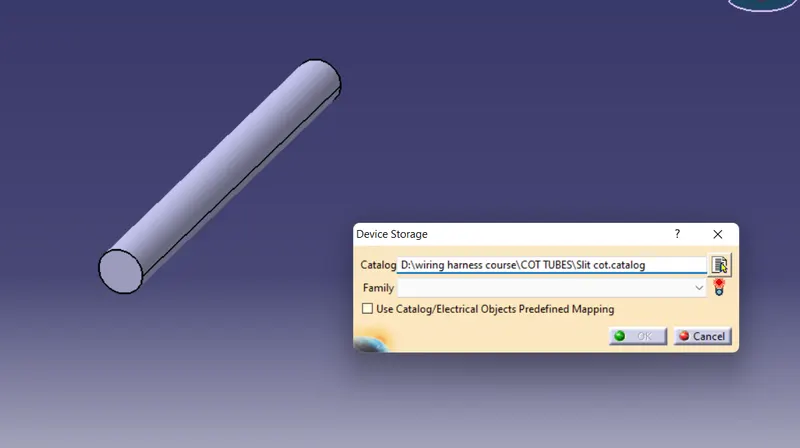

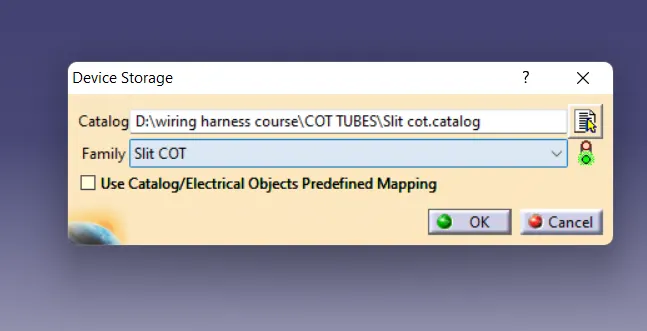

the above two images shows that how to add tubes in slitcot catalouage which made by us.

After family name which Slit cot which we save previously.

This is all process we follow in this challage and complete it.

some attachments file as follow.
