Wiring harness routing & packaging Rules Week 3 Challenge

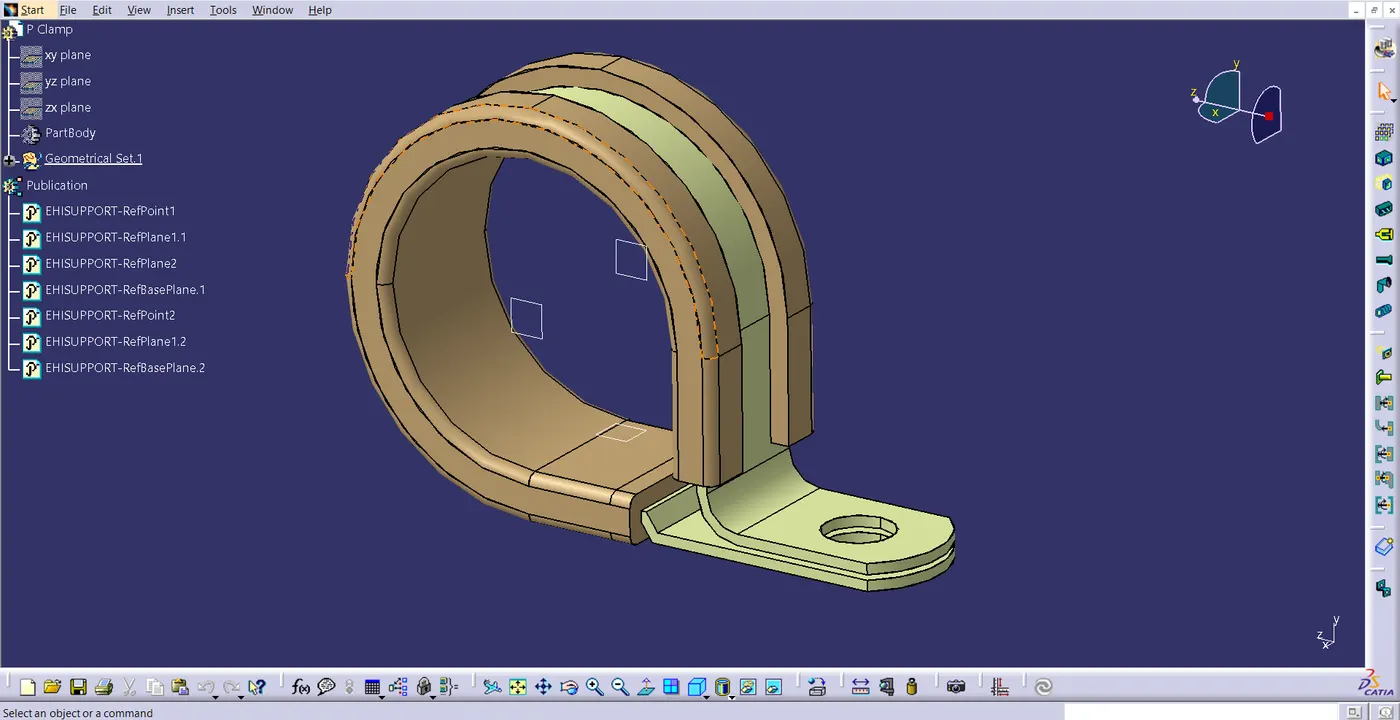

1. P Clamp

• As a portion file, the provided clip was downloaded and opened.
• I need to specify the two locations that will serve as the entry and departure points.
• The next step is to define a plane at the locations.
• It is necessary to define a foundation plane 2mm or 3mm away from the clip.
• again, the entering point is defined as the exit point at the initial definition.
• I therefore have two places of entry and exit.

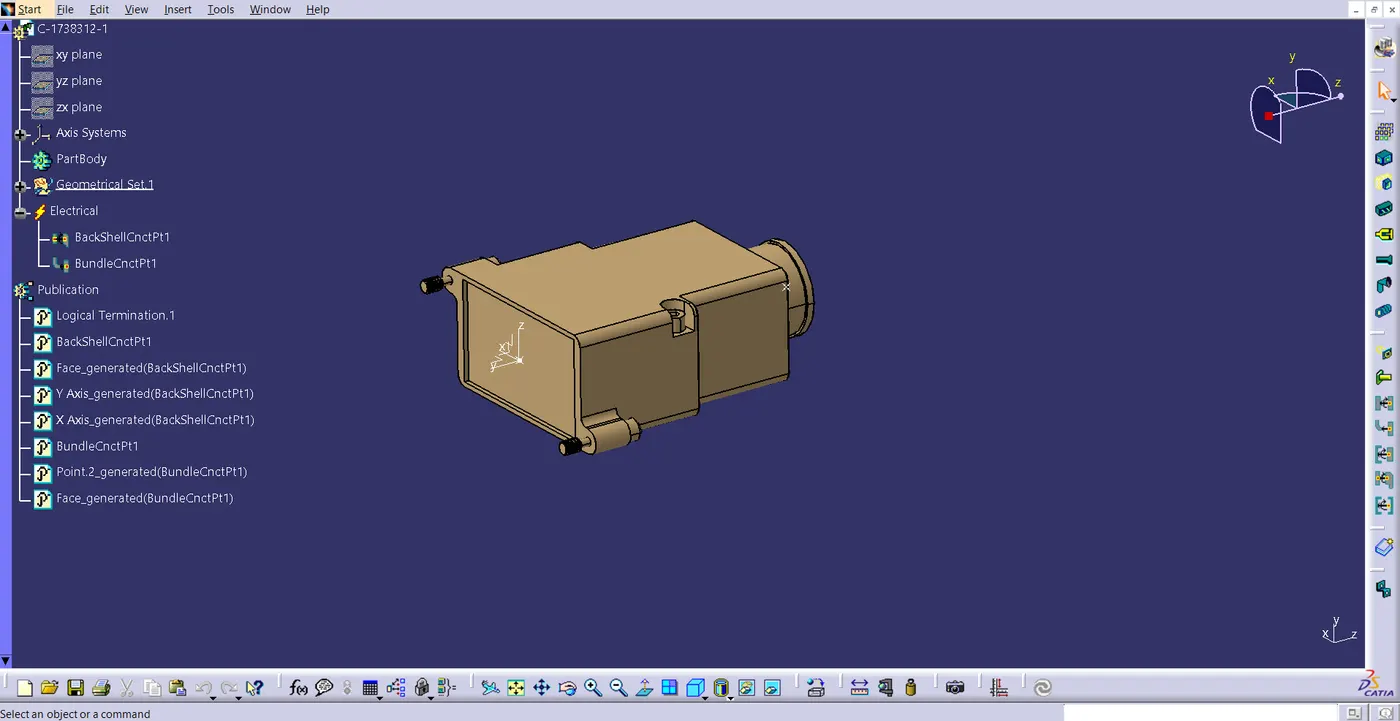

2. Back shell

• Data from the back shell was downloaded.
• The points are defined part workbench.
• At the back shell connection point, an axis system with the proper axis orientation is inserted.
• The back shell connection and bundle connection points need to be specified for the points.

3. Corrugated Tubes

• We define the cot tubes in the electrical component workbench .
• The inputs are the inner diameter and thickness.
• A catalog for the cot tubes was made.
• The catalog had all of the cot tubes.

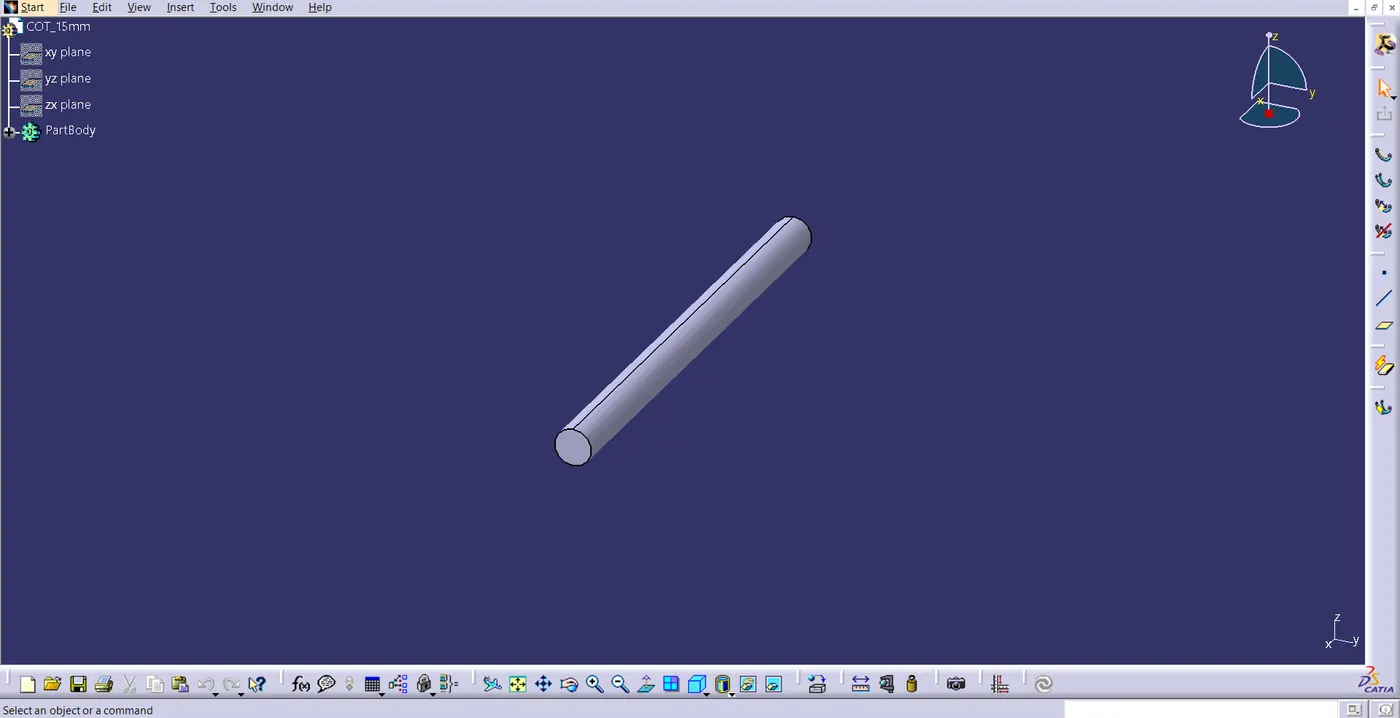

15mm(below depicted image)

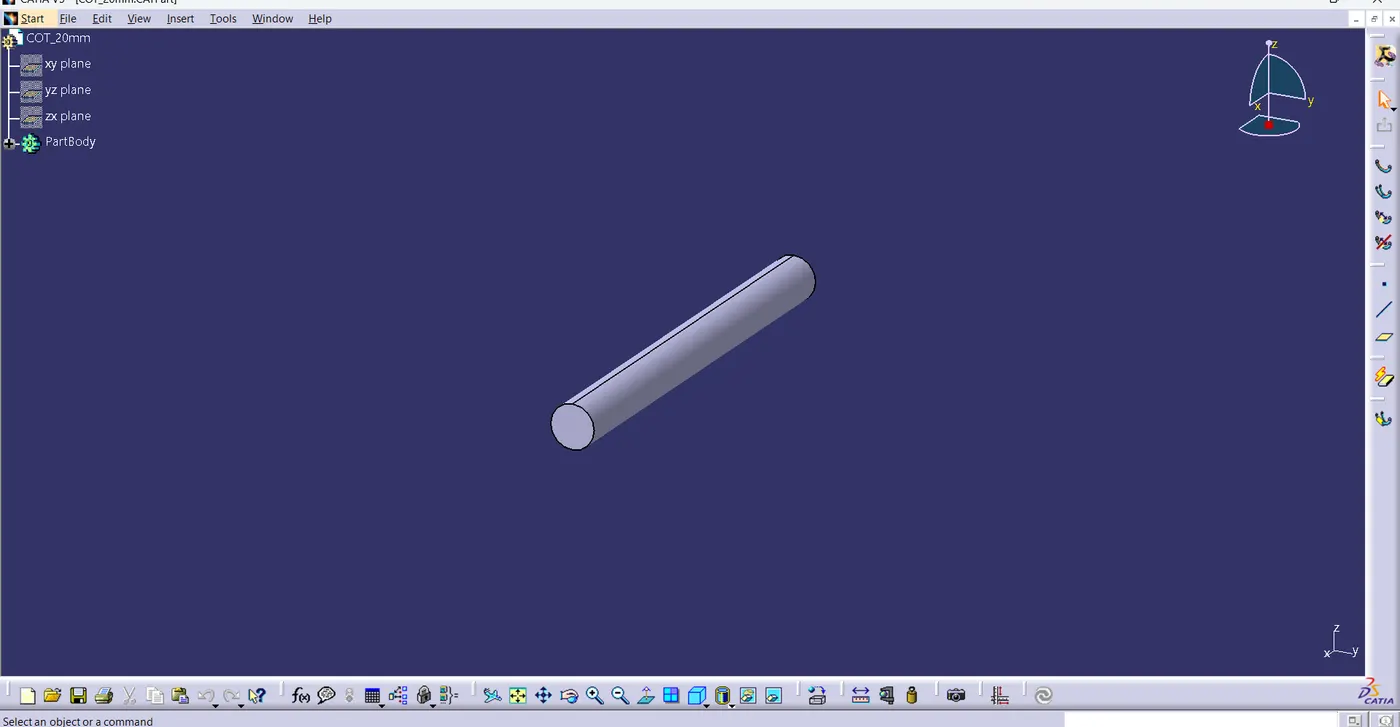

20mm(below depicted image)

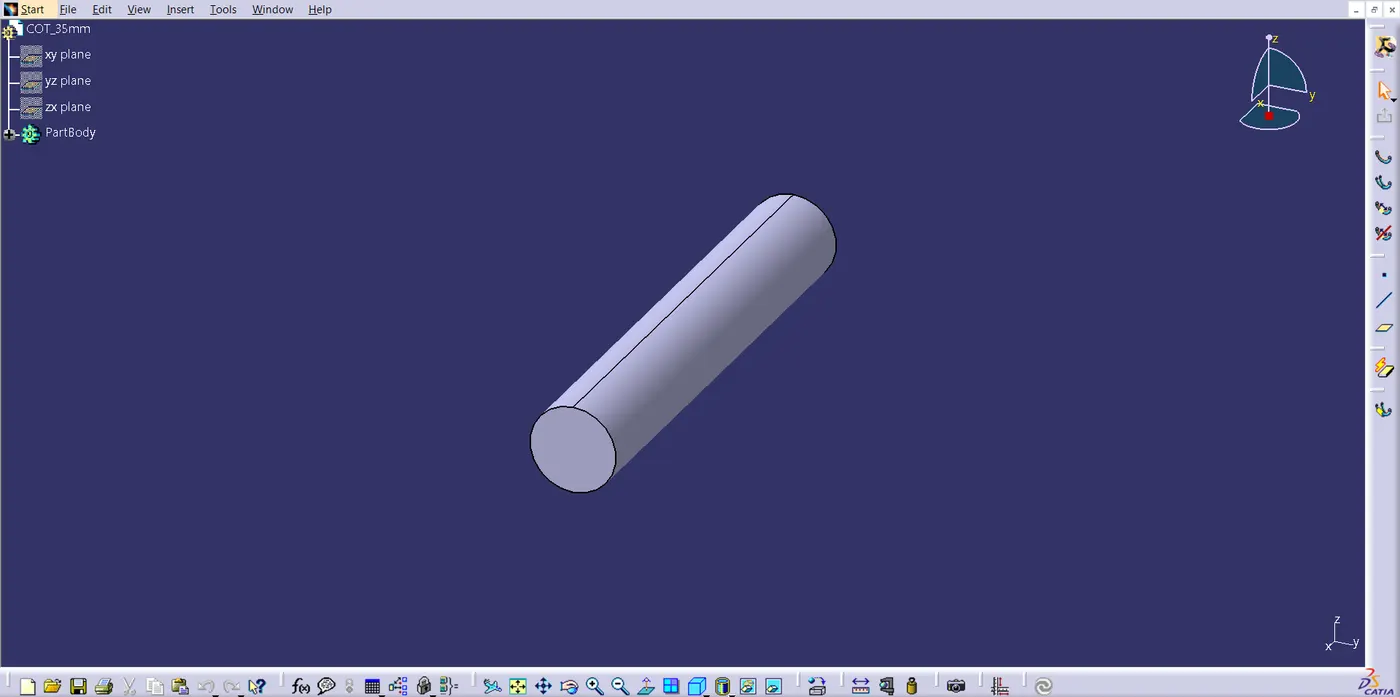

35mm(below depicted image)

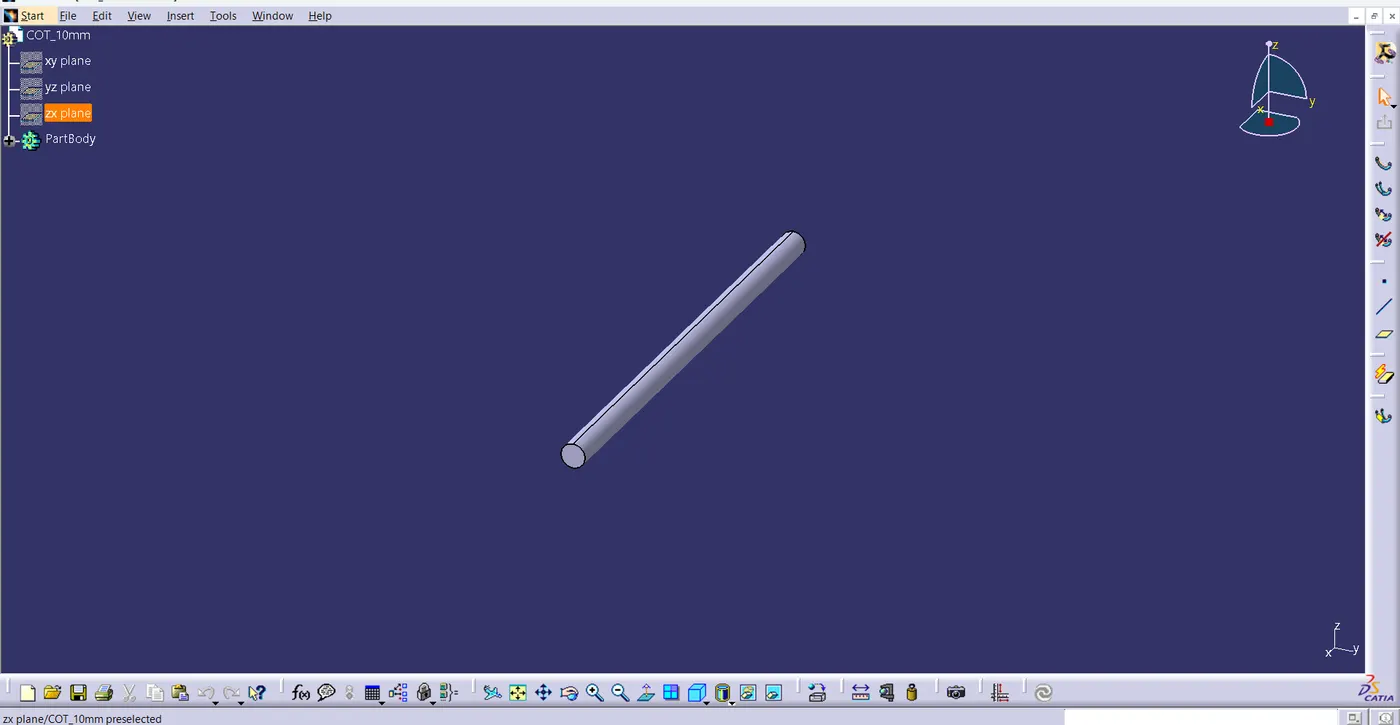

10mm(below depicted image)

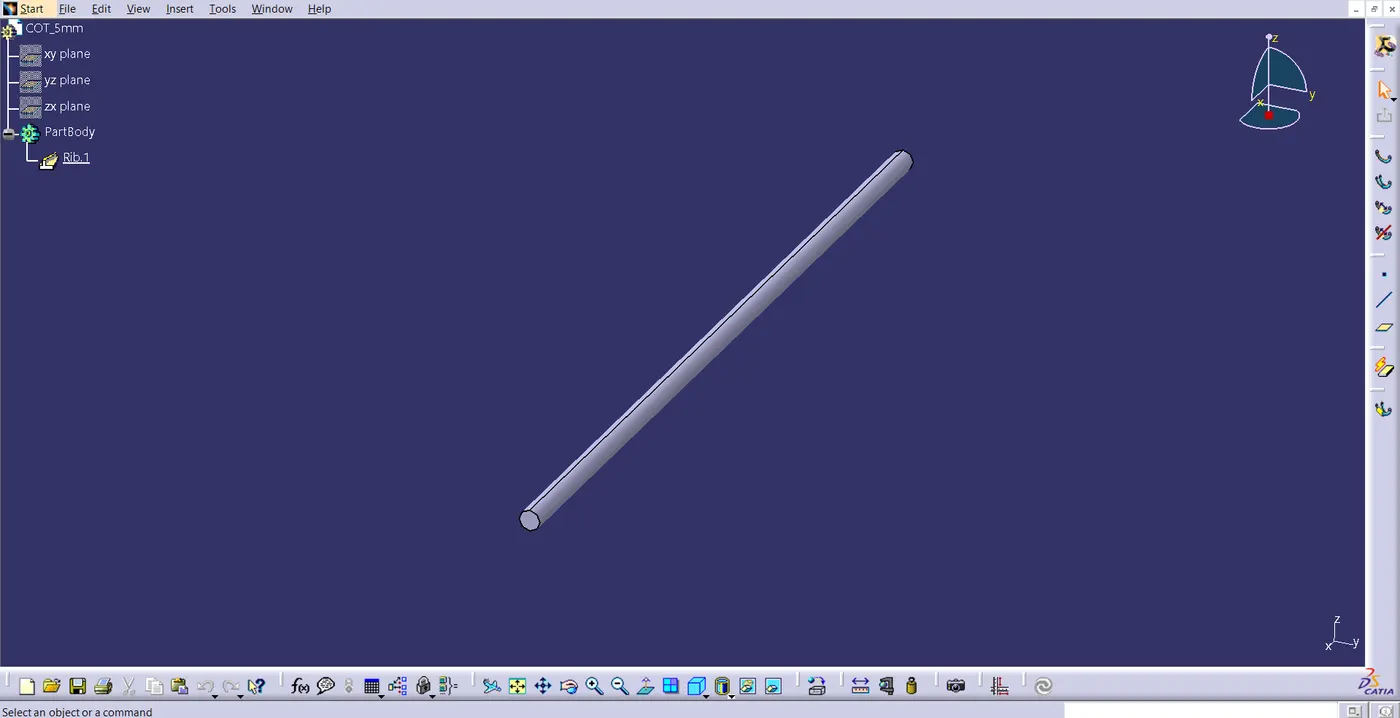

5mm(below depicted image)
