Wiring harness routing & packaging Rules Week 3 Challenge

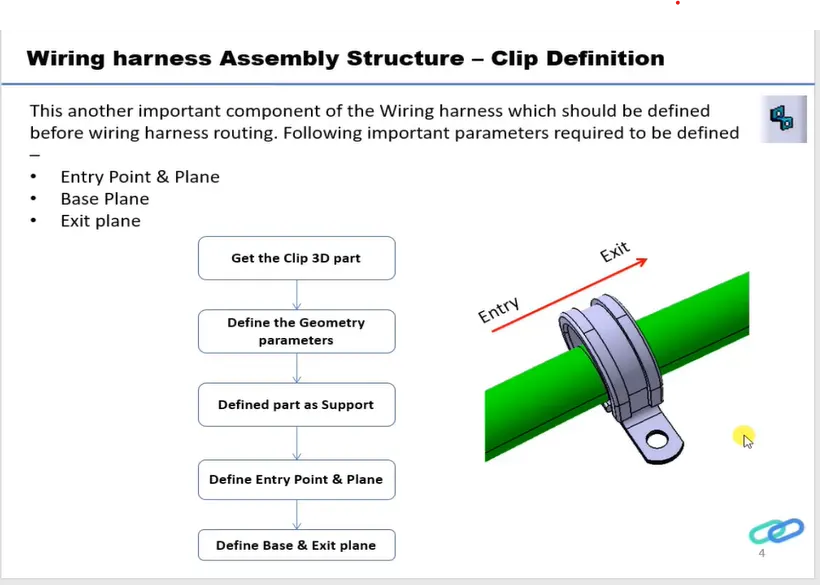

Q1. Download the following CAD data & define it as Electrical support using the Electrical Part design Workbench. Define all the necessary properties.

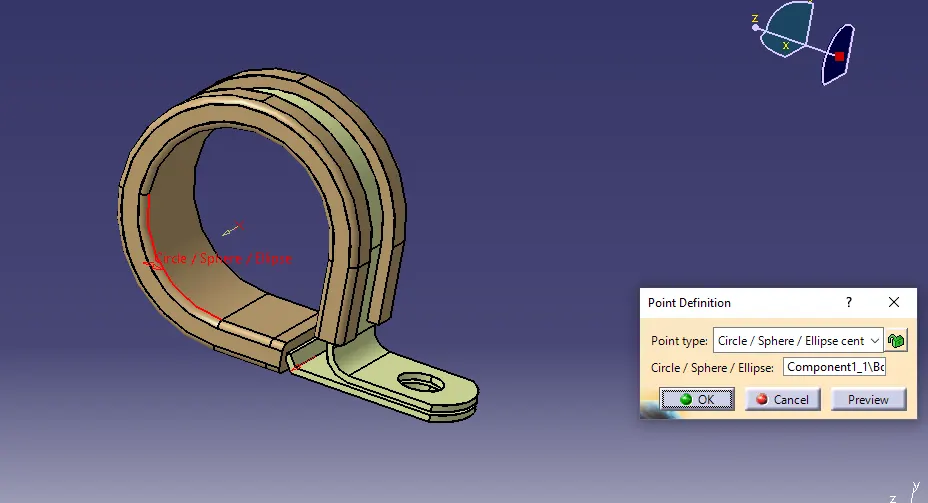

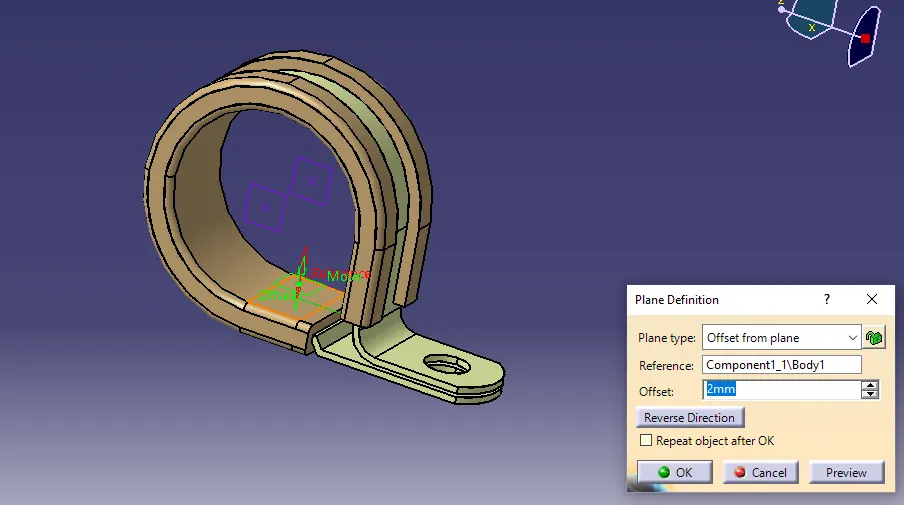

Create the Points and Planes in the Part Design Work Bench.
Define the part as support in the Electrical Part Design Workbench.

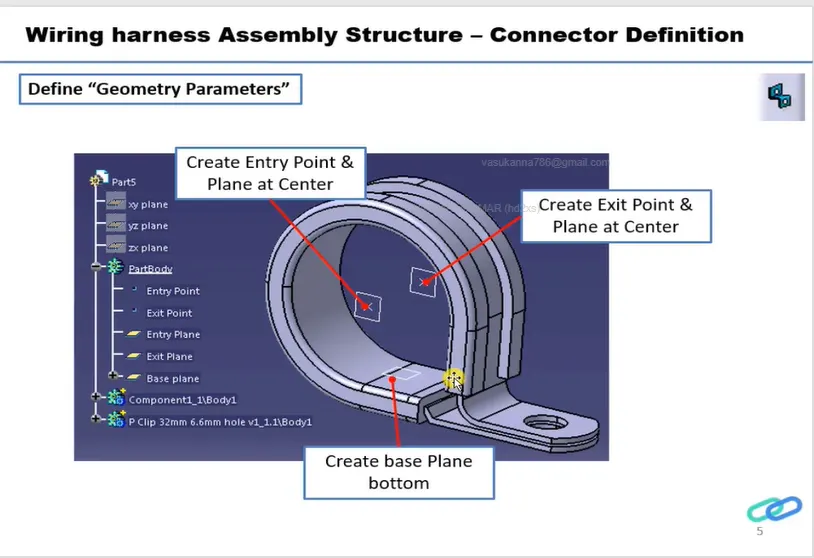

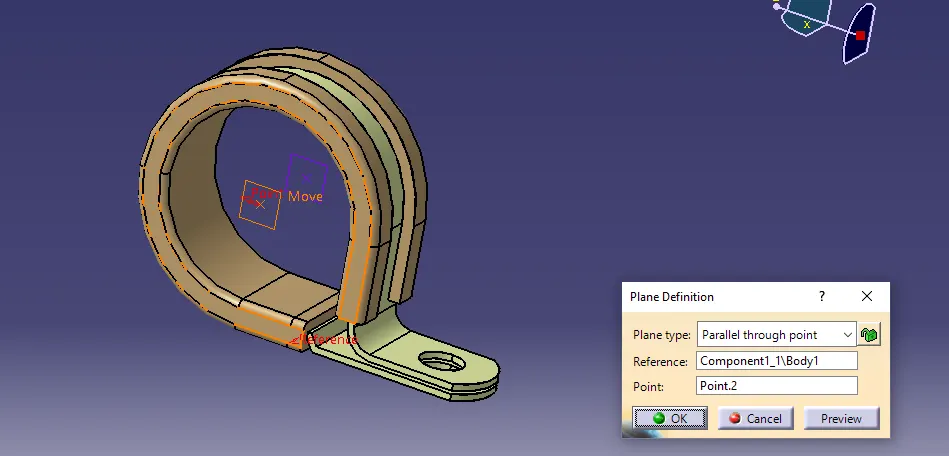

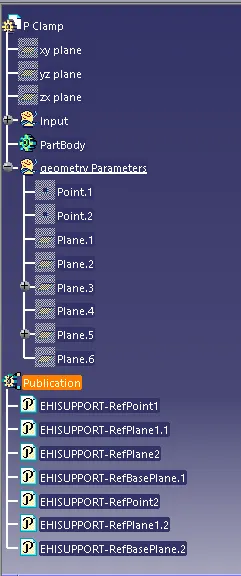

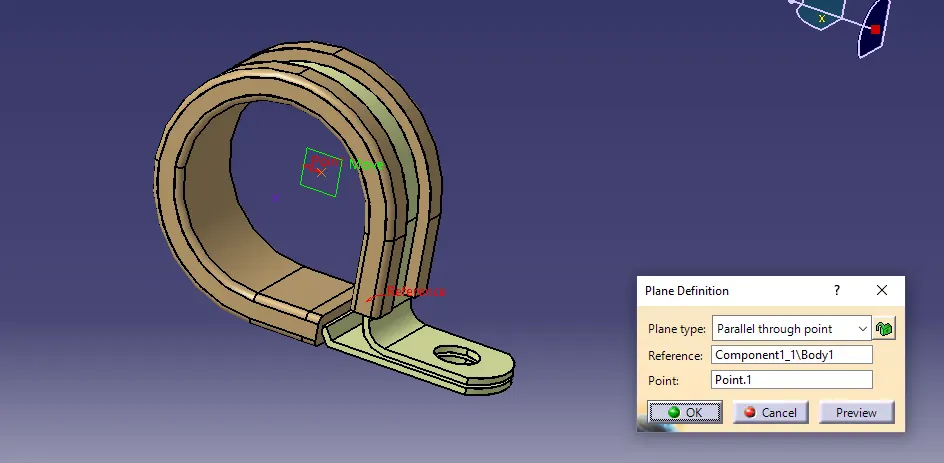

Select the point and Plane for the First entry point and Select the exit plane and base plane.
Similarly, Select the point and Plane for the Second entry point and the exit plane will be automatically selected and base select plane.

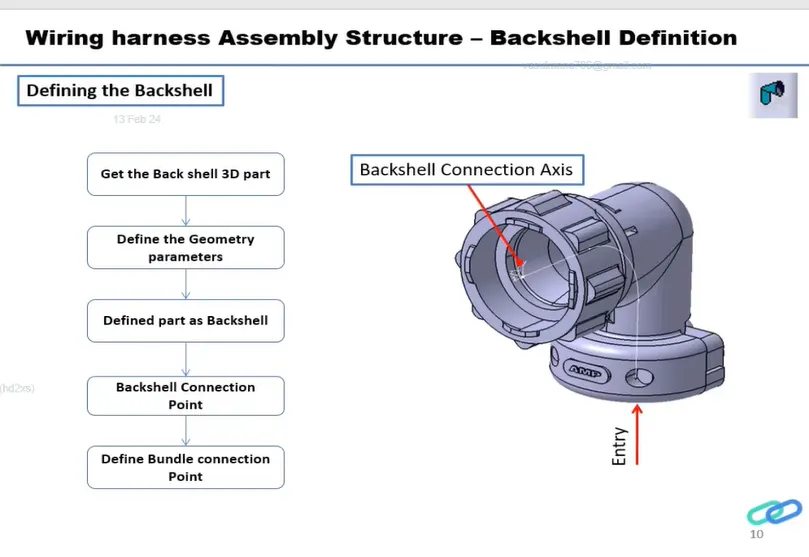

Q2. Download the following Back shell CAD data & define it as an Electrical back shell using an Electrical Part Design Workbench. Define all the necessary properties.
- The backshell data was downloaded from the website.

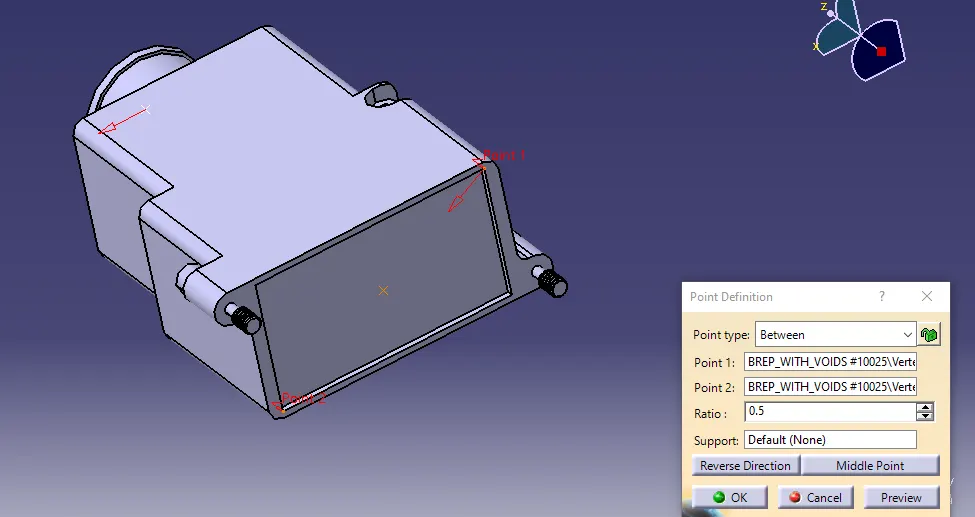

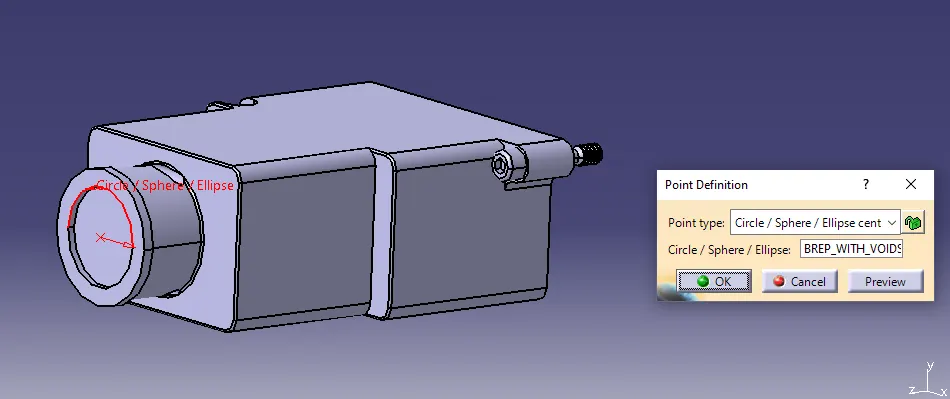

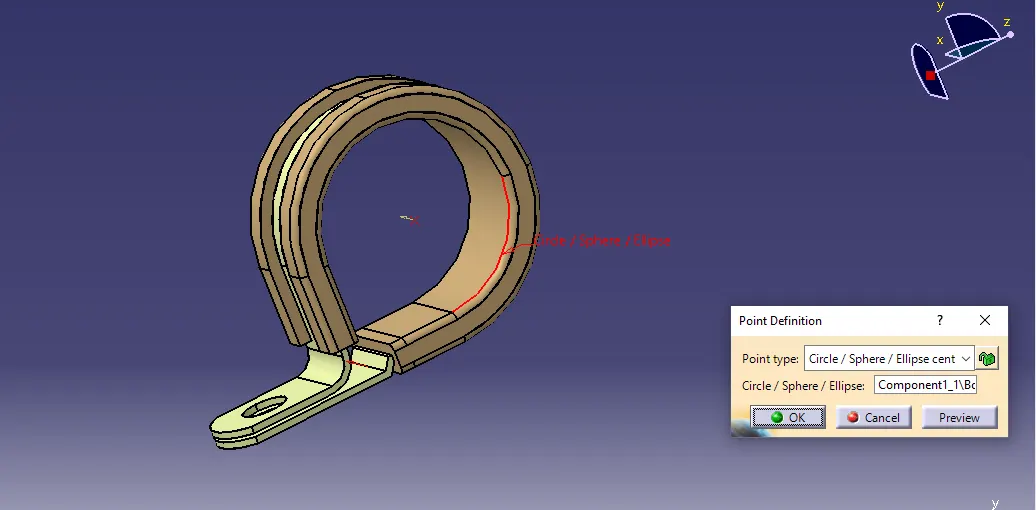

- We define the points in the part workbench.

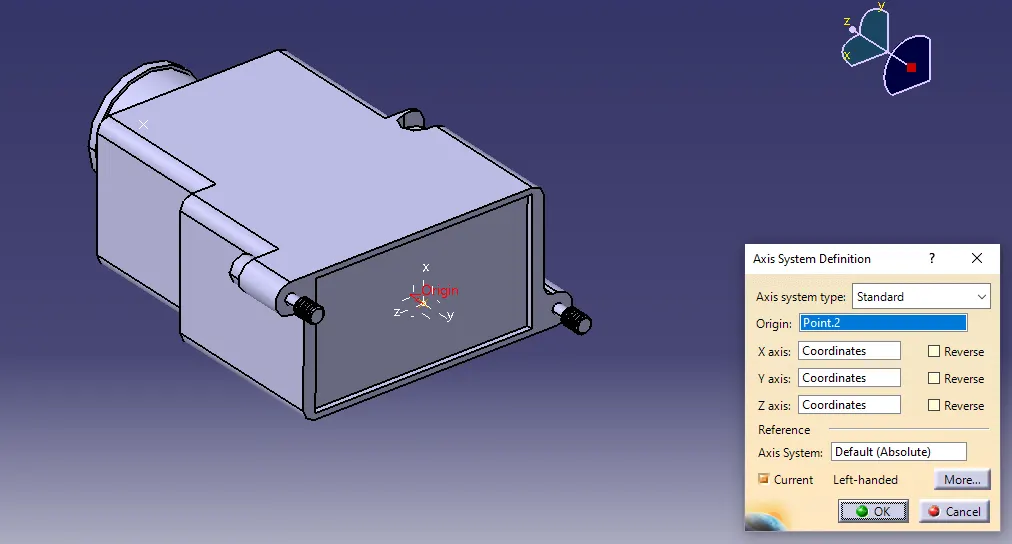

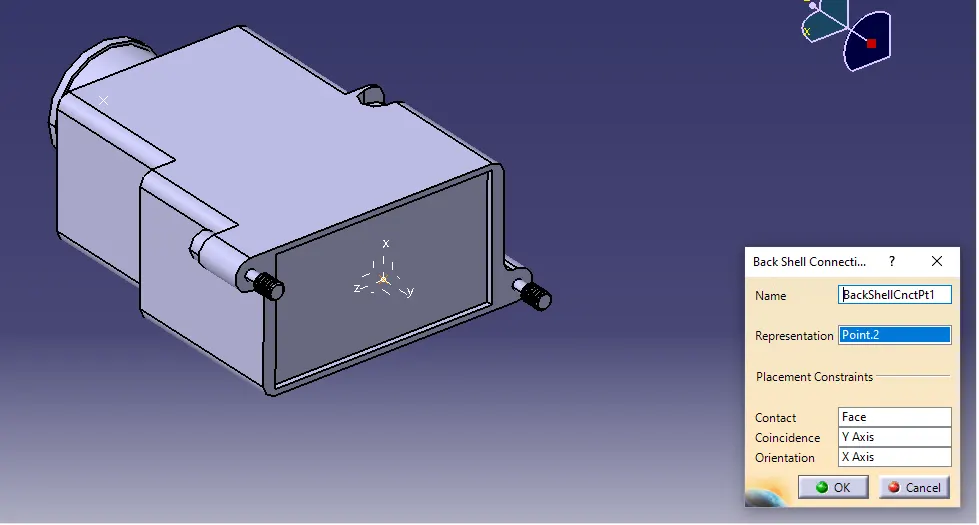

- An Axis system with the correct axis orientation is placed at the backshell connection point.

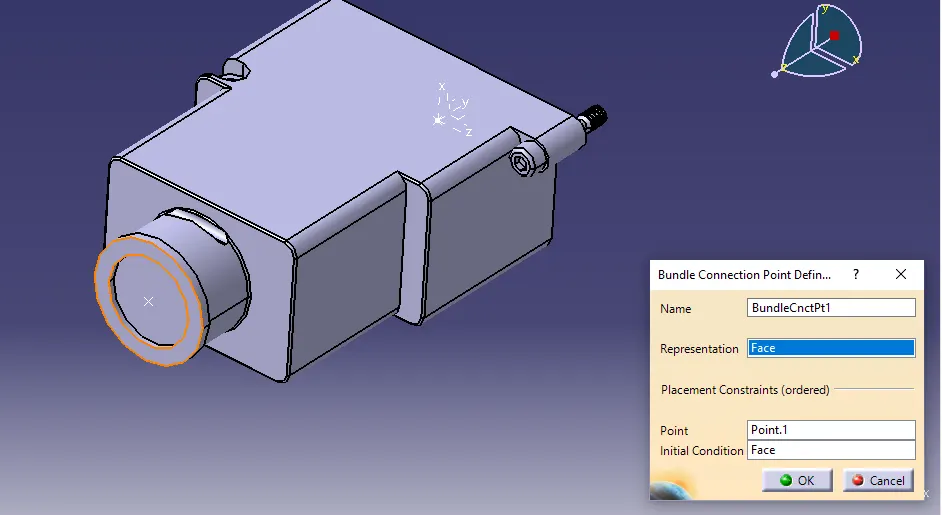

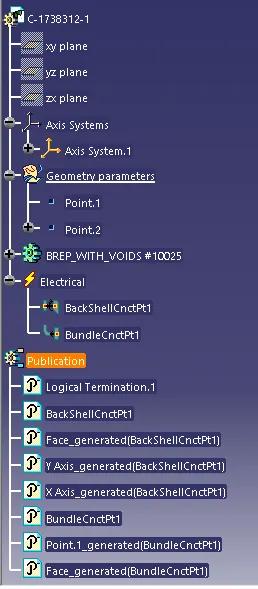

- The points have to be defined as the backshell connection and bundle connection points.

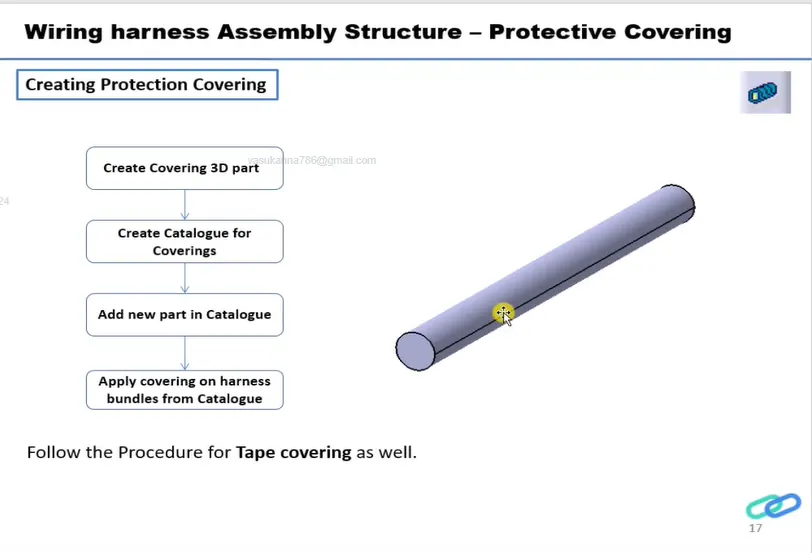

Create the Following Corrugated tubes & Add them to Catalogue under the “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

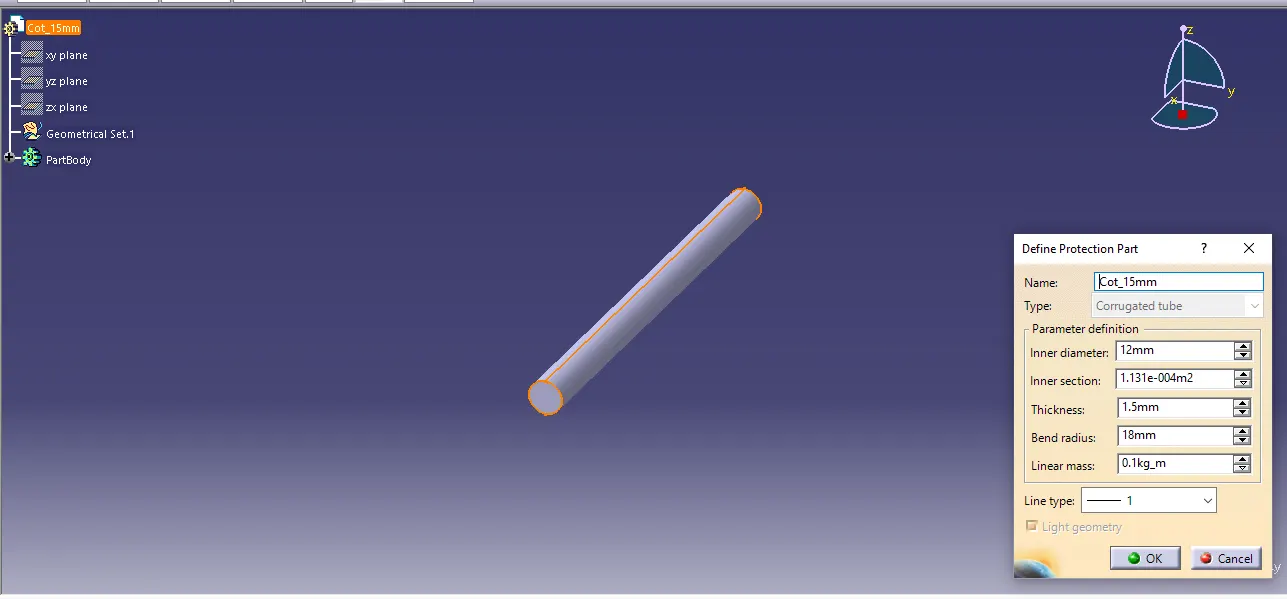

Create a new Part - switch to the Electrical Part Design work bench.

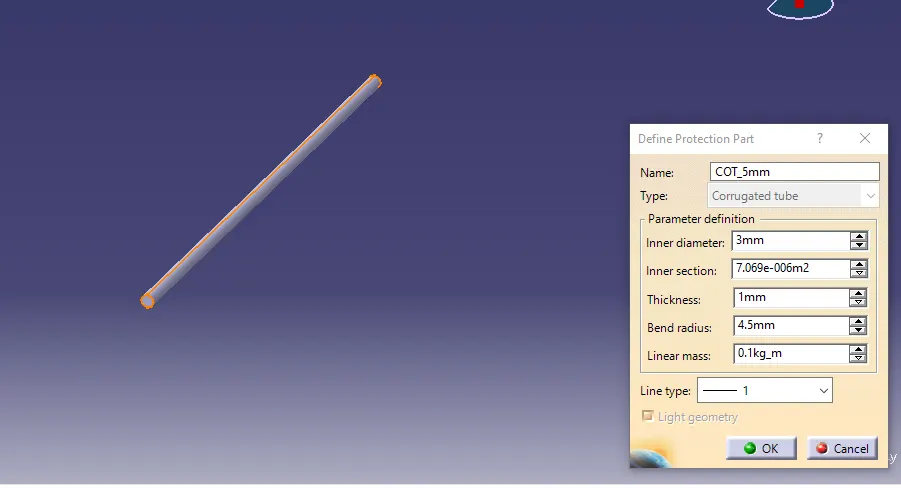

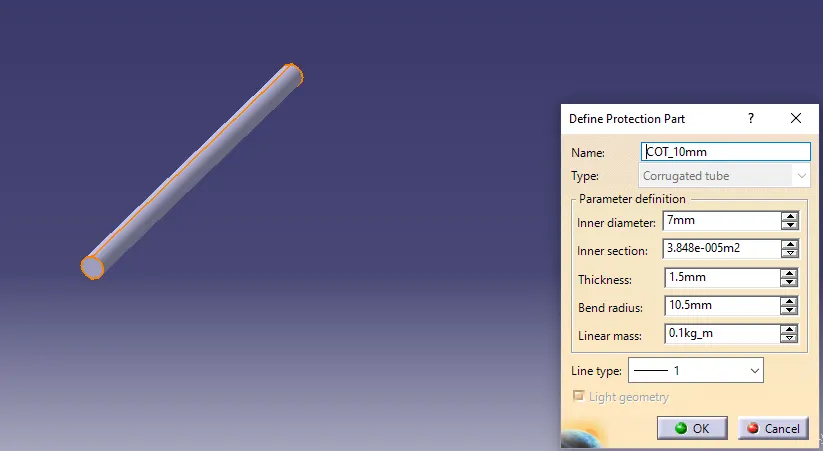

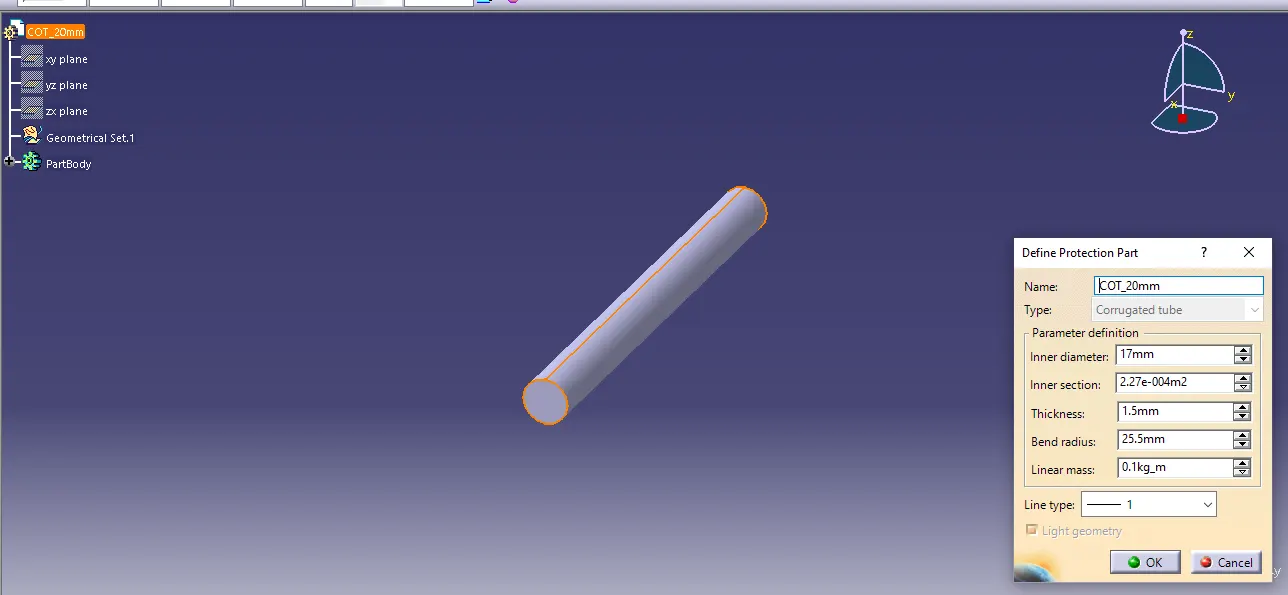

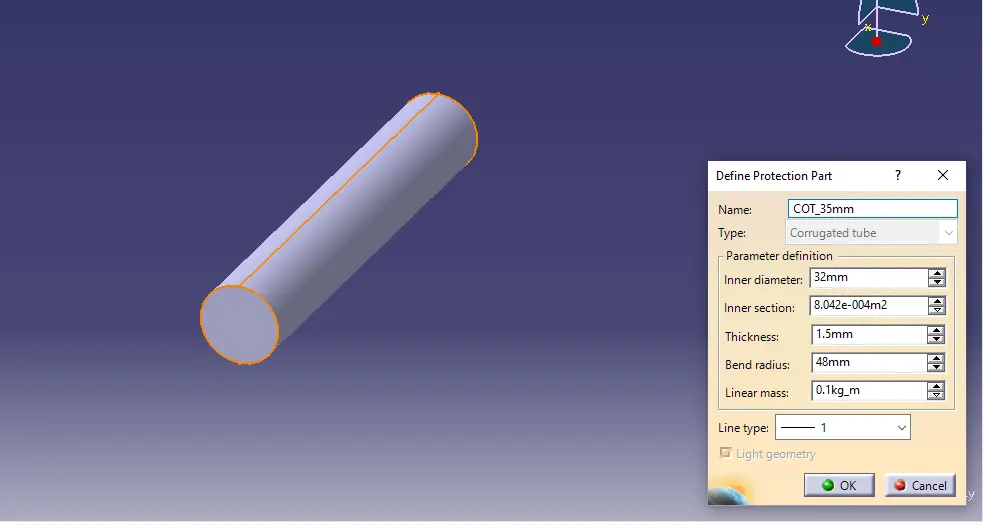

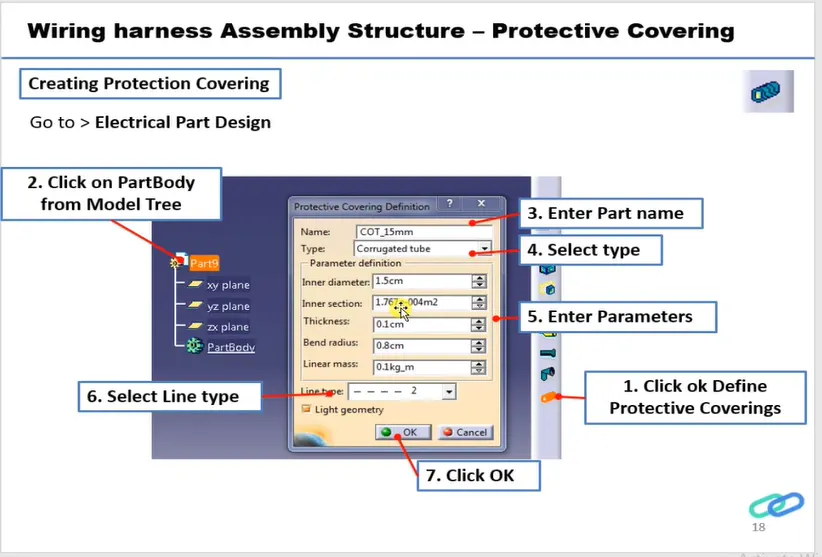

Define Protection Part
Provide the parameter as given in the chart and the bend radius to be kept as 1.5 times the diameter.

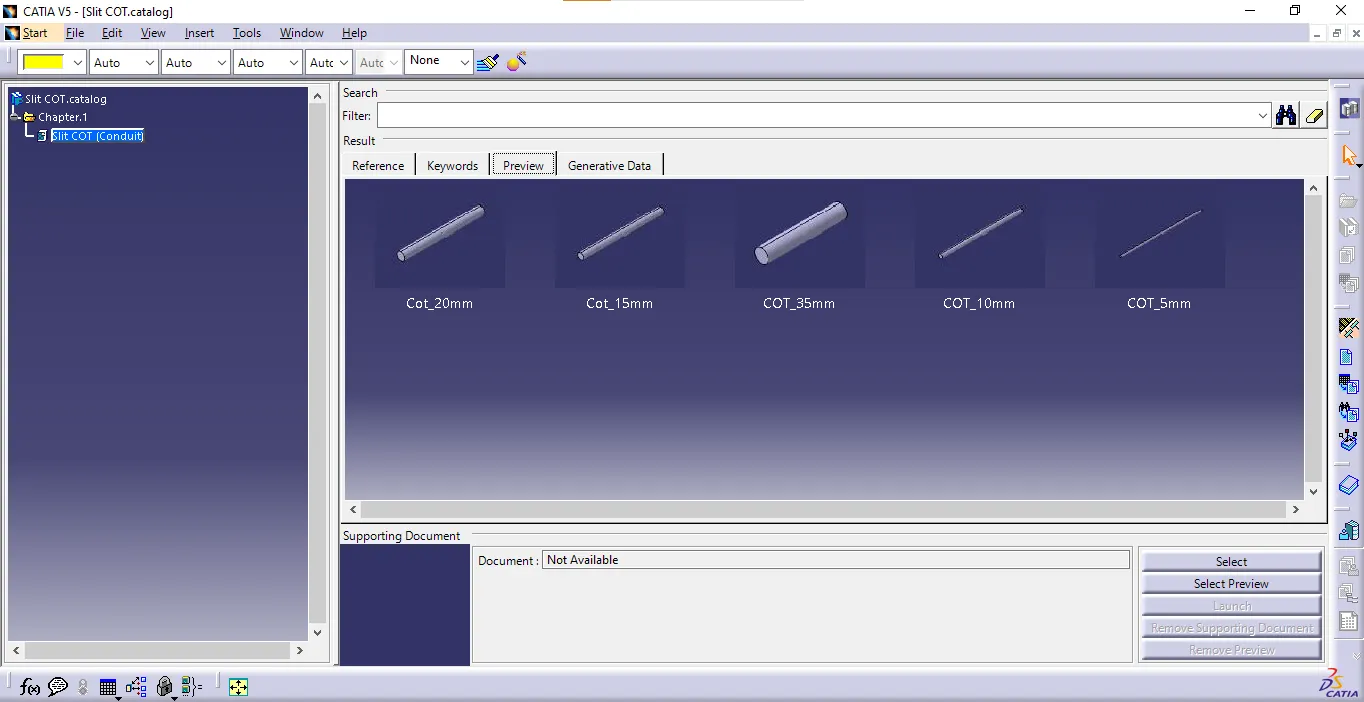

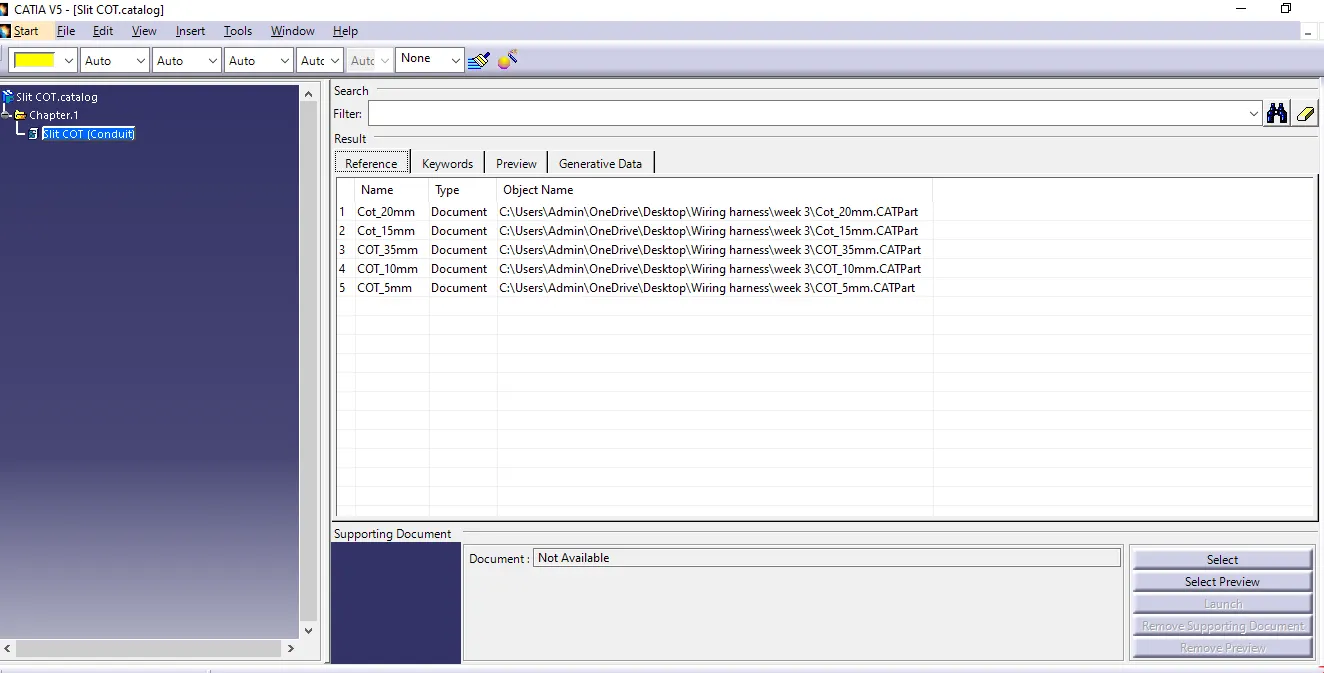

Catalogue creation:
File - New Part - catalogue document
Add Family - Provider Name
Select Type - as Conduit and Save
Then Goto Part (COTs Created) - Store Device Command - Select Catalogue family - and select the part
