Wiring harness routing & packaging Rules Week 3 Challenge

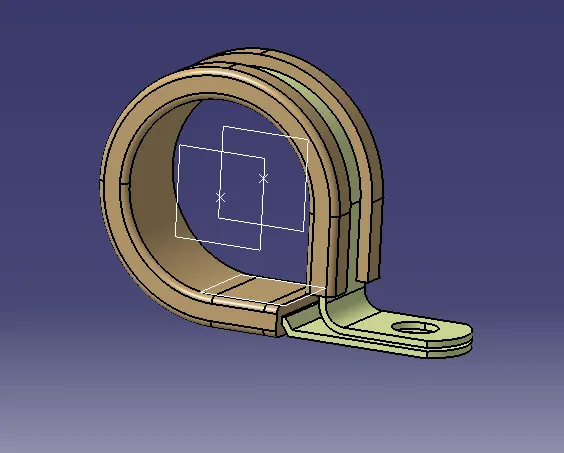

P-clamp:

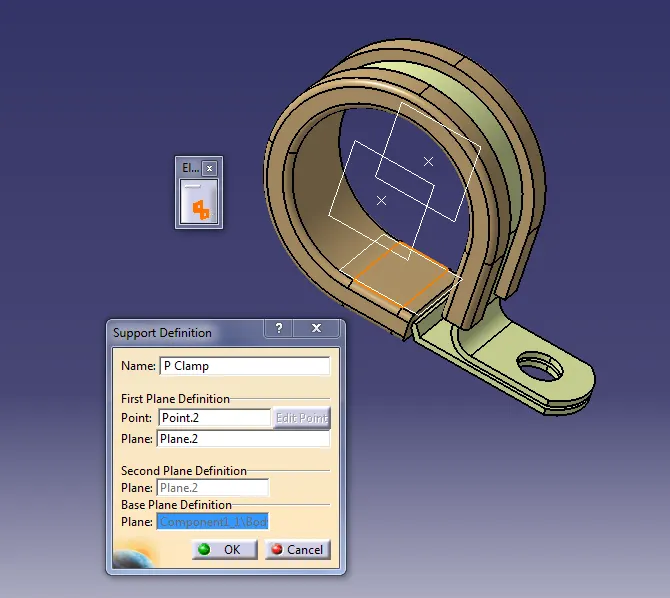

After creating the required points and planes for entry and exit points for p clamp, define it as support in an eletrical part design.

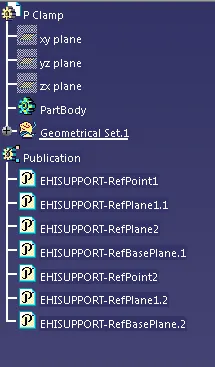

Properties of P-clamp

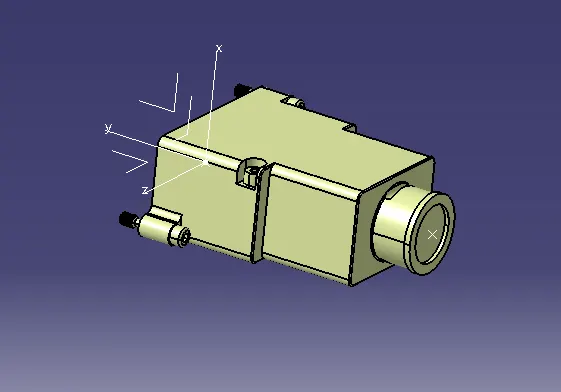

BACK SHELL

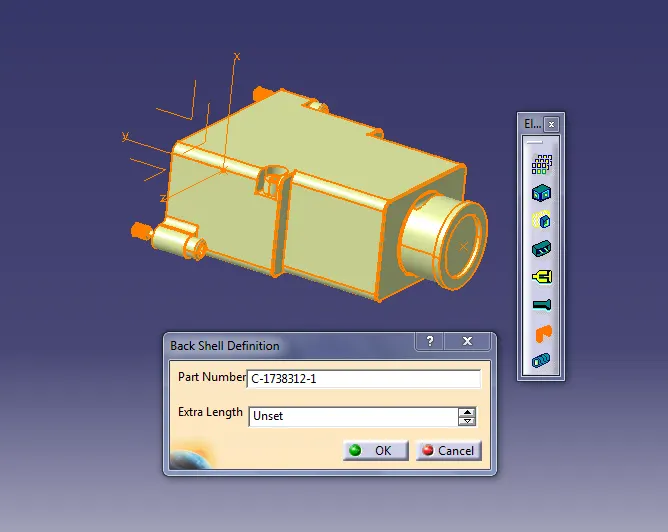

After creating the required geometrical parameters in part module, defie it as backshell in electrial part module.

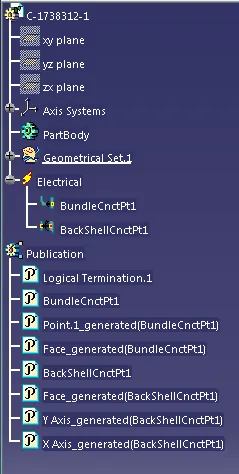

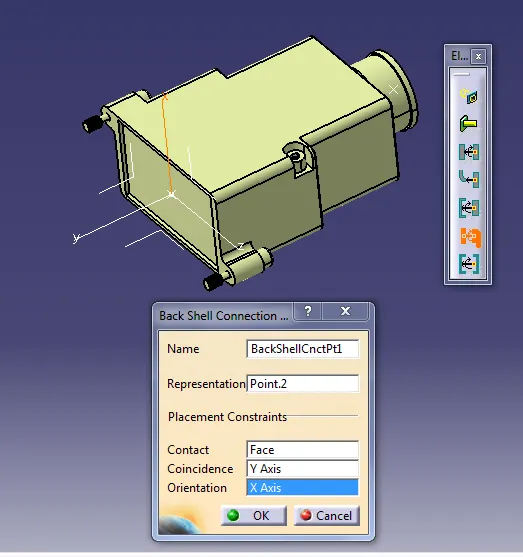

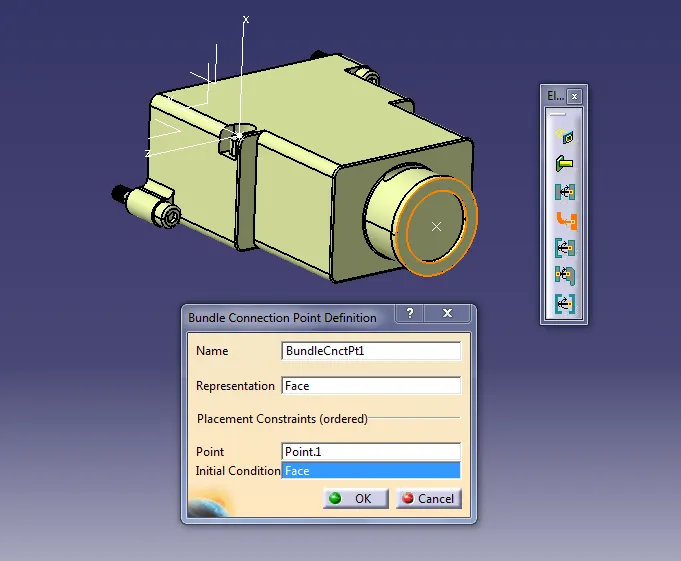

Defining bundle connection point and back shell connection point in back shell

Properties of back shell

creation of covering tubes by using the command "Define protection part".

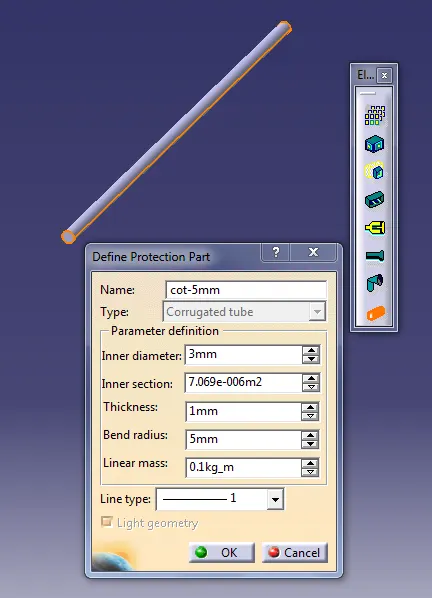

cot-5mm

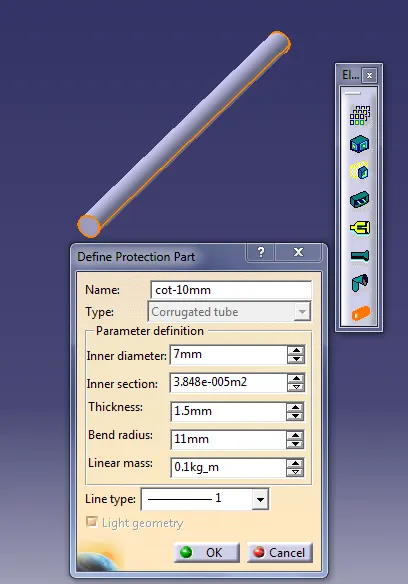

cot-10mm

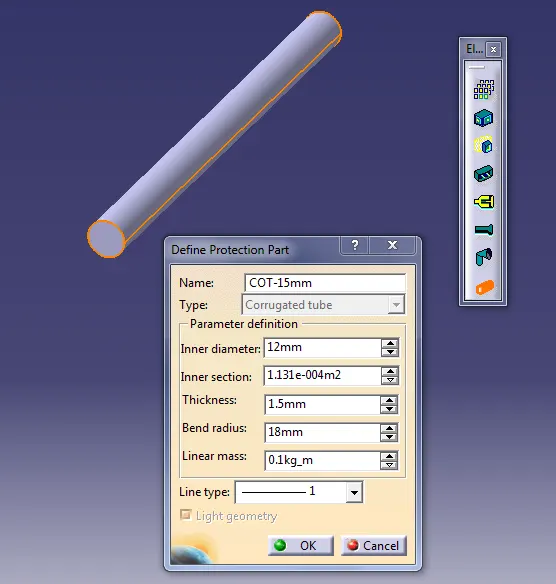

cot-15mm

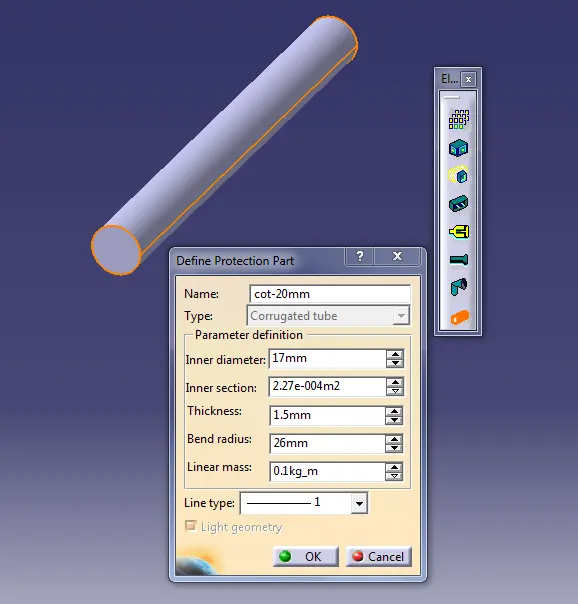

cot-20mm

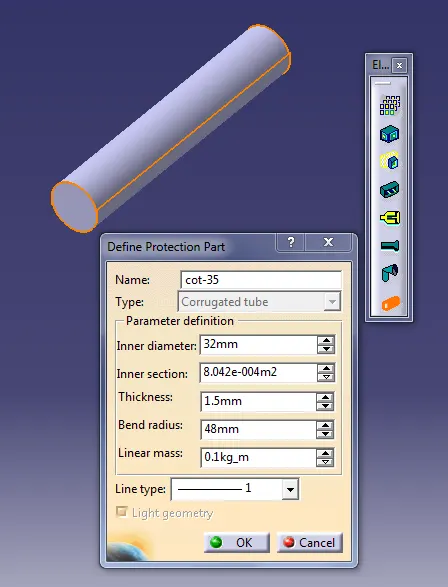

cot-35mm

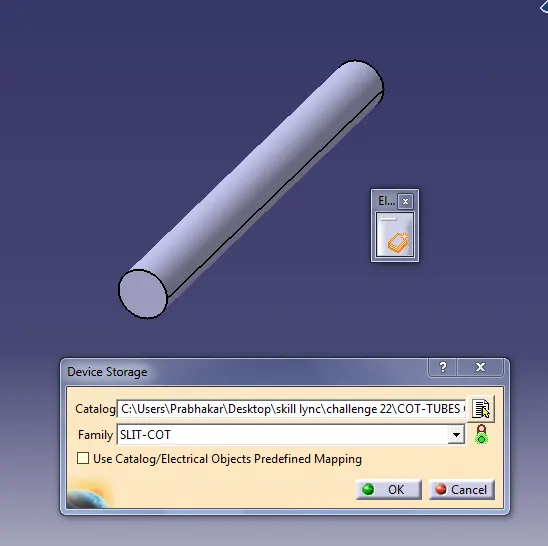

After creating all covering tubes saving them to a catalogue document under the family of slit cot by using the command "store device".
