Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

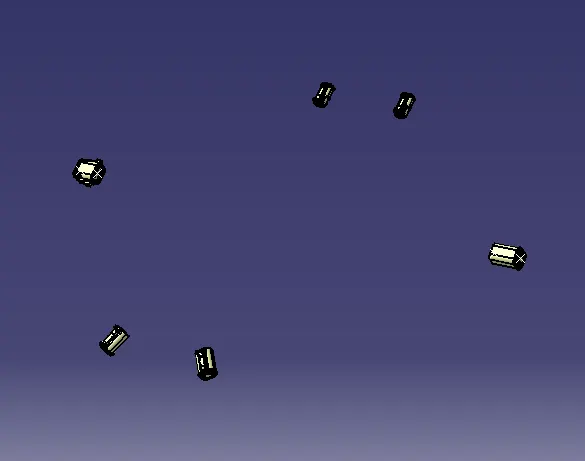

After definig the parts as eletrical cnnectors in eletrical part design work bench added them to catlogue under week 4 family and added them to assembly by using command catalogue browser.Arrange them in required position by using move tool bar.

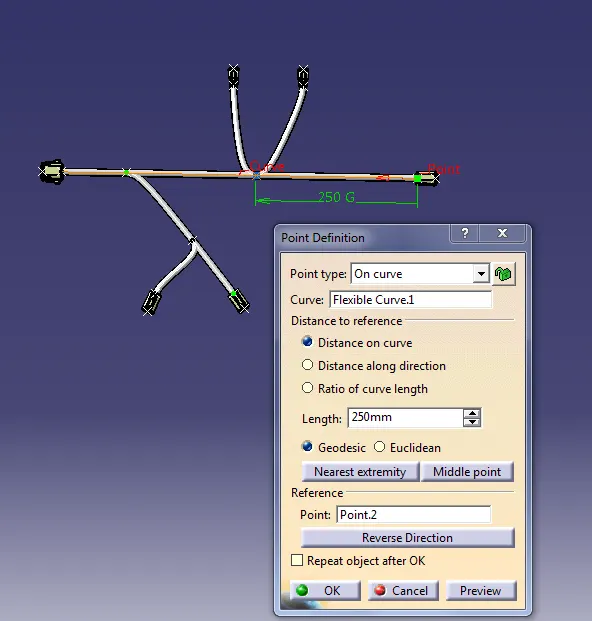

after arranging the connecters in assembly in desired position. conversion of this assembly to electrical assembly by using command geometrical bundle.adding the branch points by using the  command  add branch point.

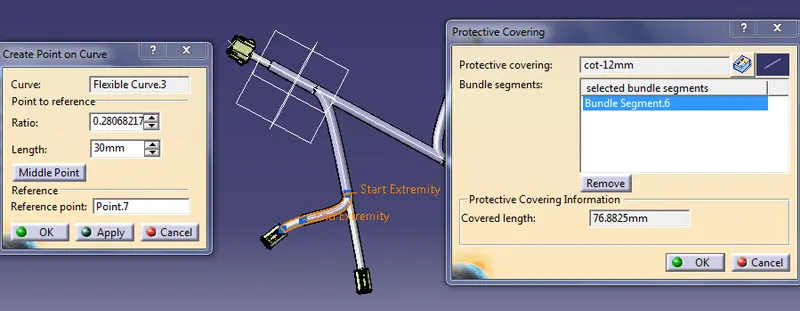

   Adding the protective covering

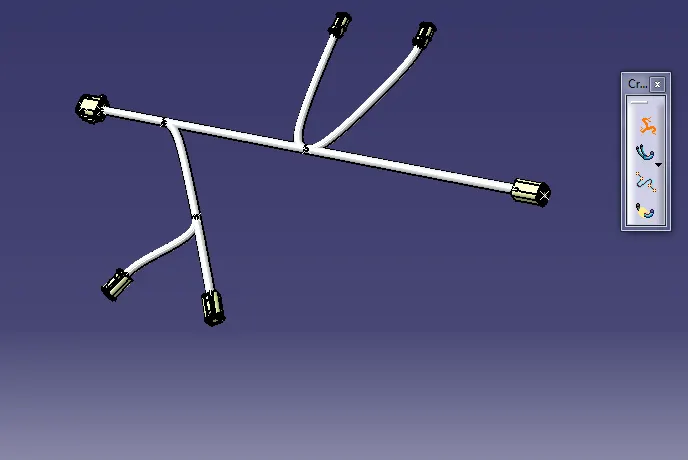

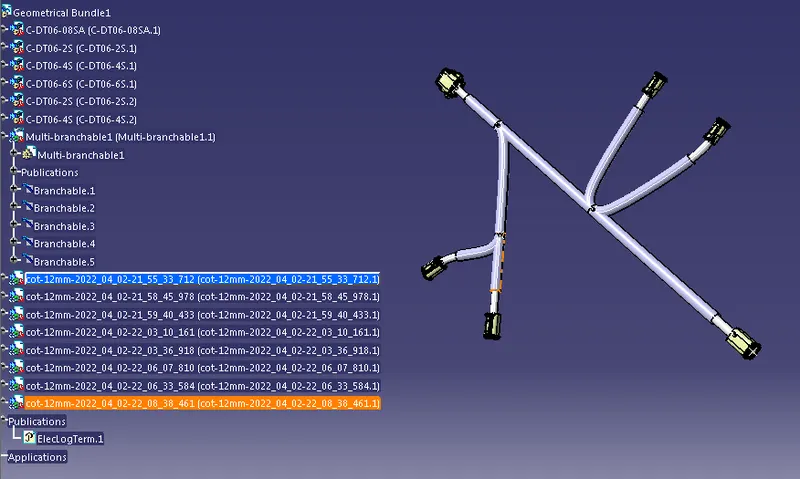

 Final product and properties
