Wiring harness routing & packaging Rules Week 3 Challenge

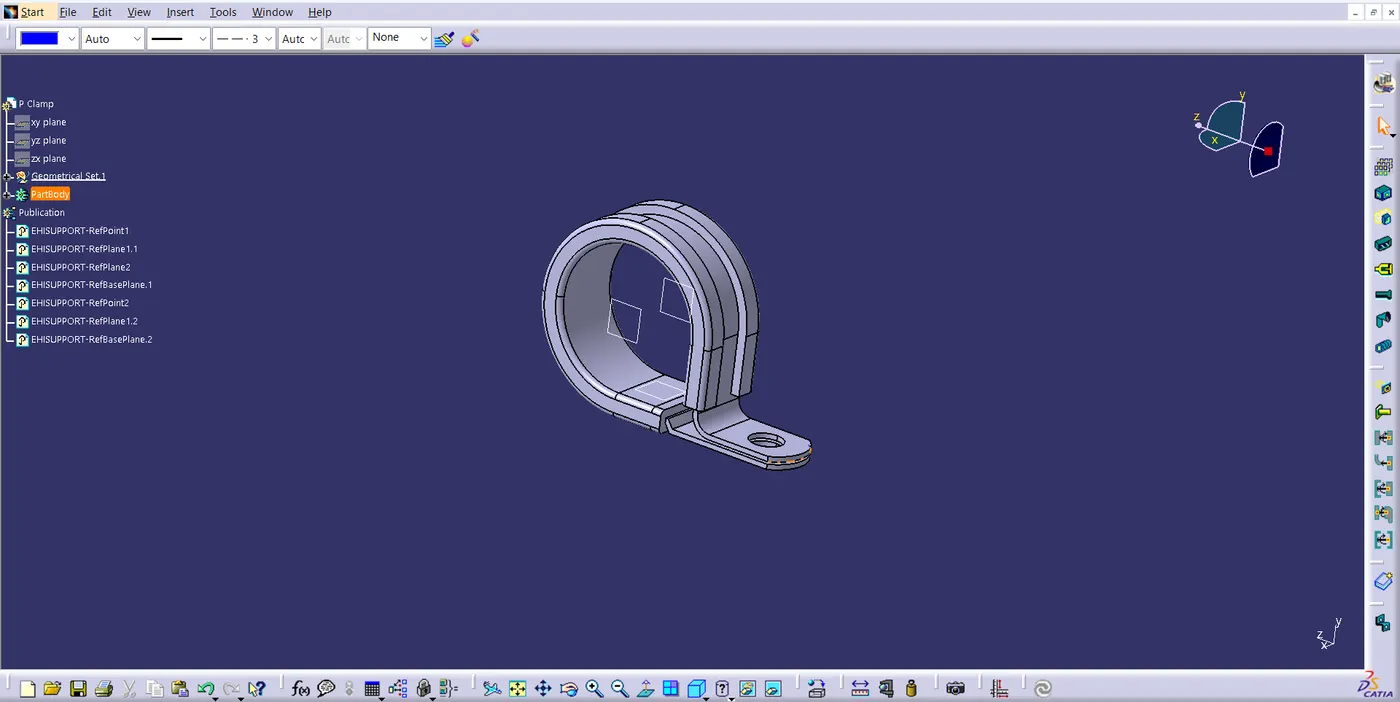

Q1. Download the following clip cad data & define it as Electrical support using the Electrical Part Design Workbench. Define all the necessary properties.
Hellarmann Tyton - 21160129
Process:

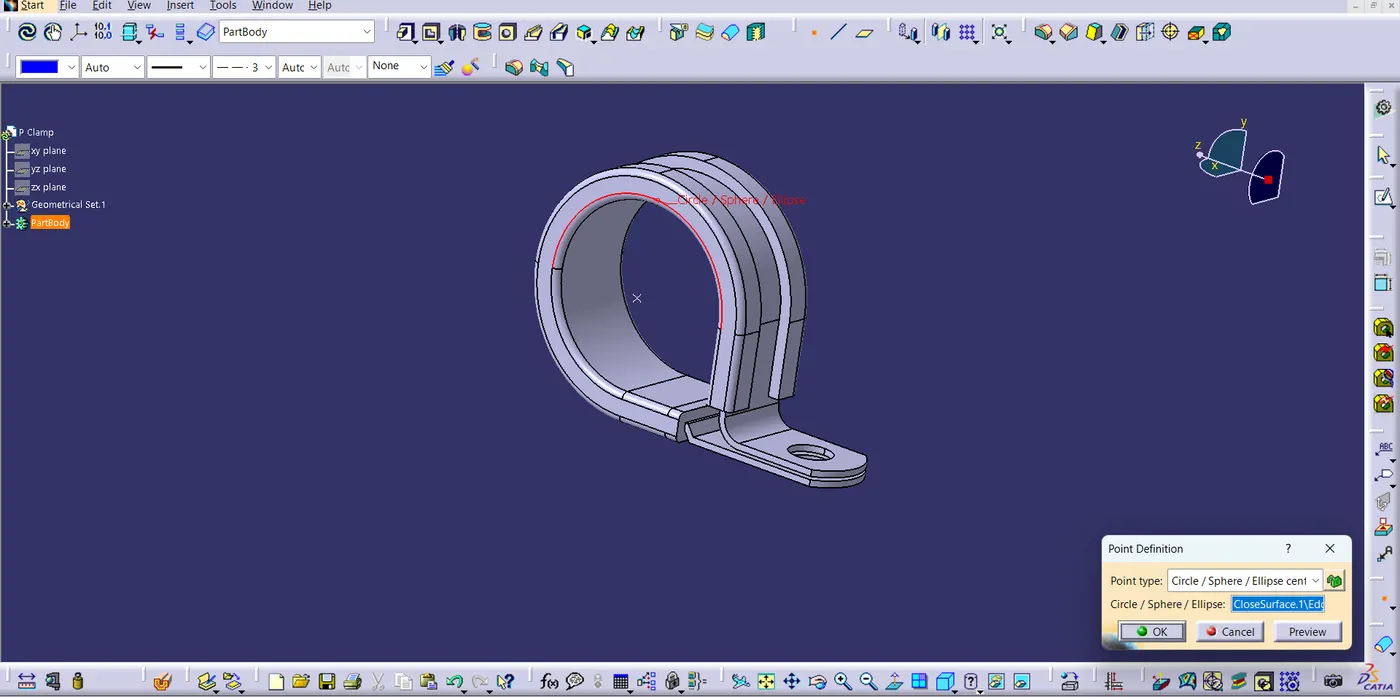

Create two points one as an entry and the other as an exit point.

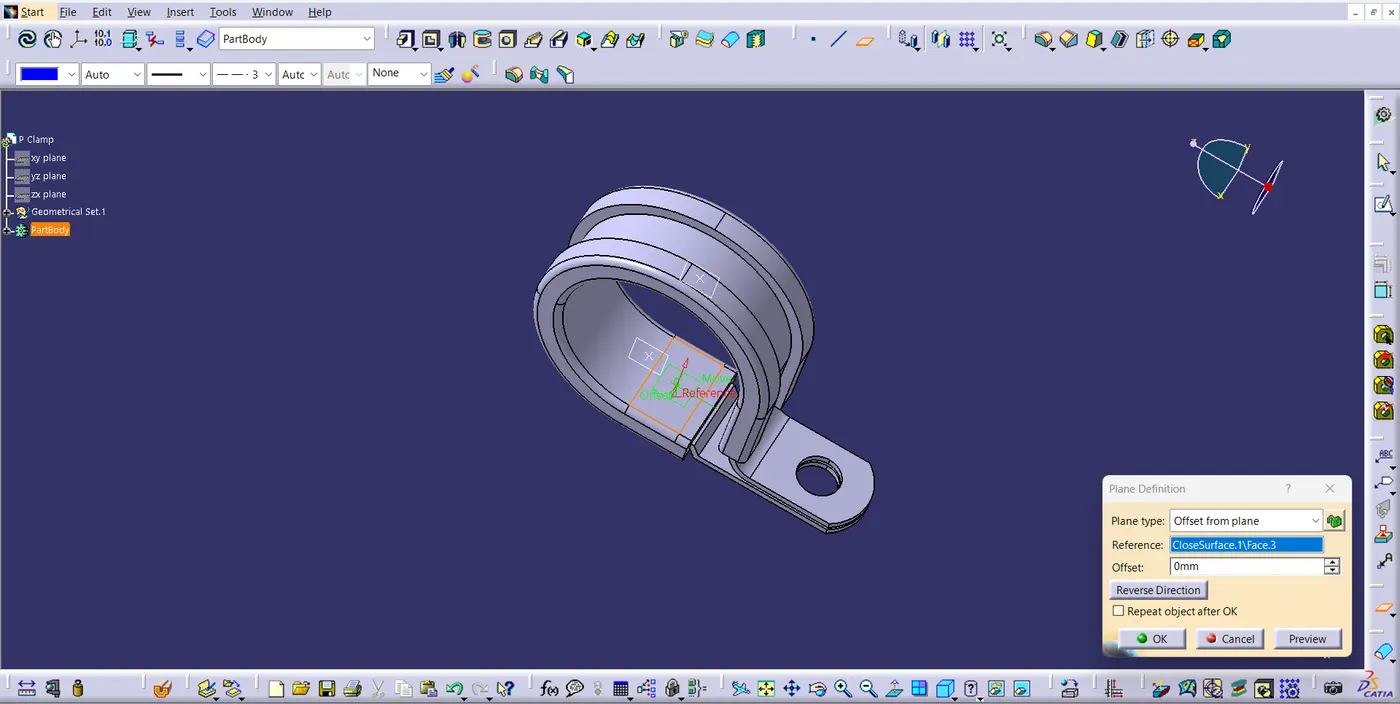

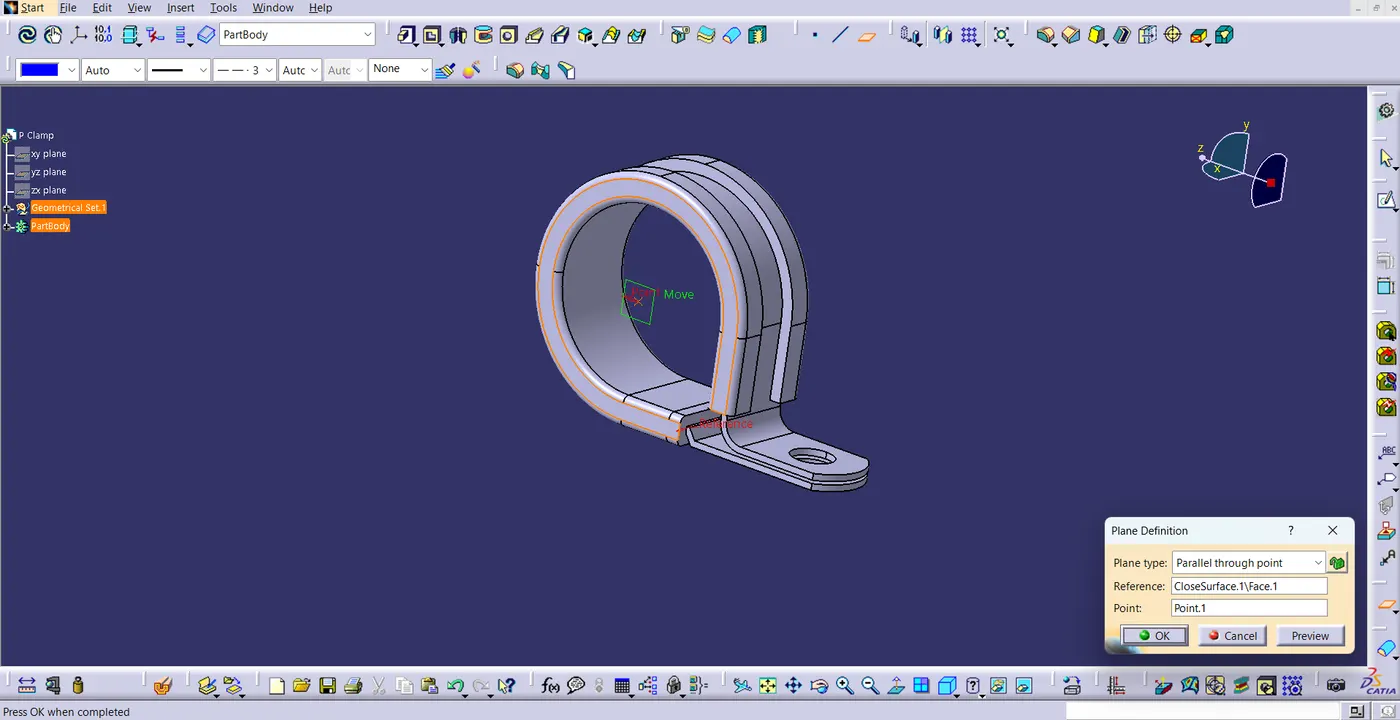

Create planes at two points and another at the base.
Switch to Electric part design.

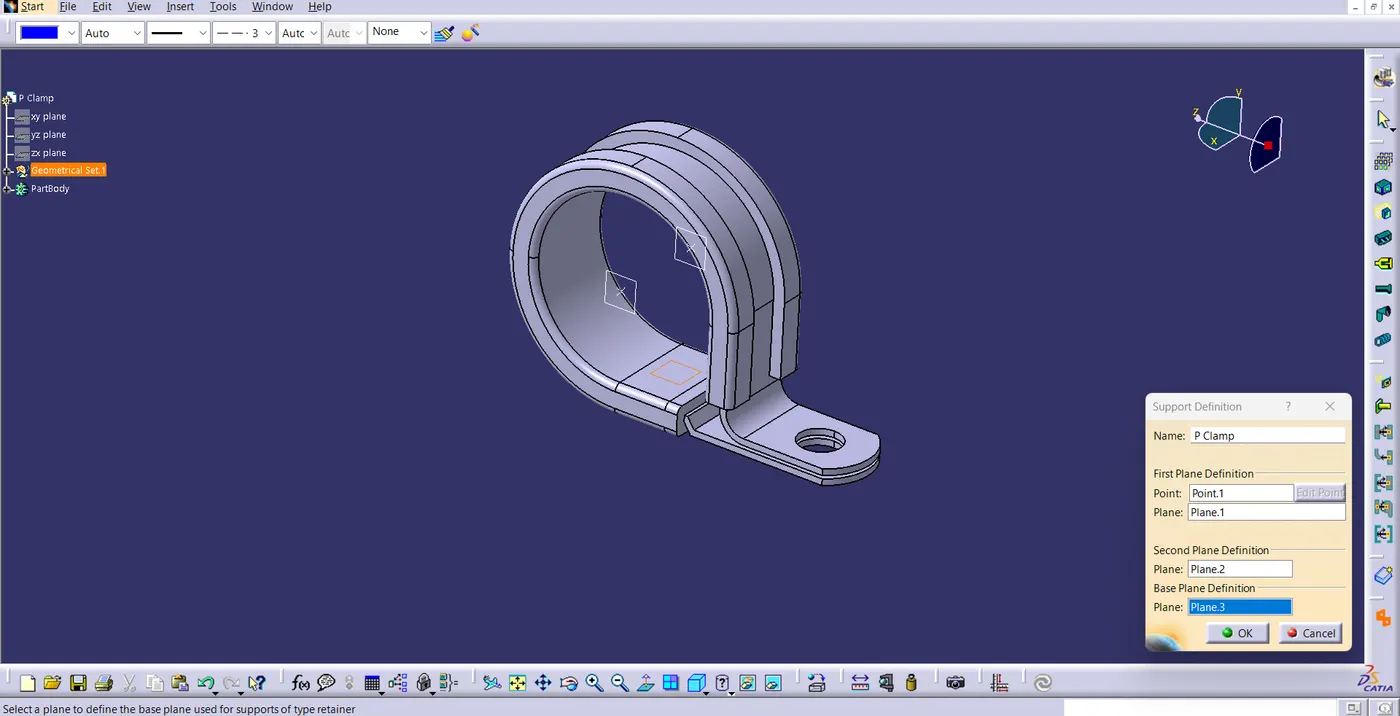

Click on support definition - select part - and select entry point - select entry plane, exit, and base plane.
Again Click on support definition - select part - select exit point - select exit plane and base plane as the secondary plane is automatically taken.

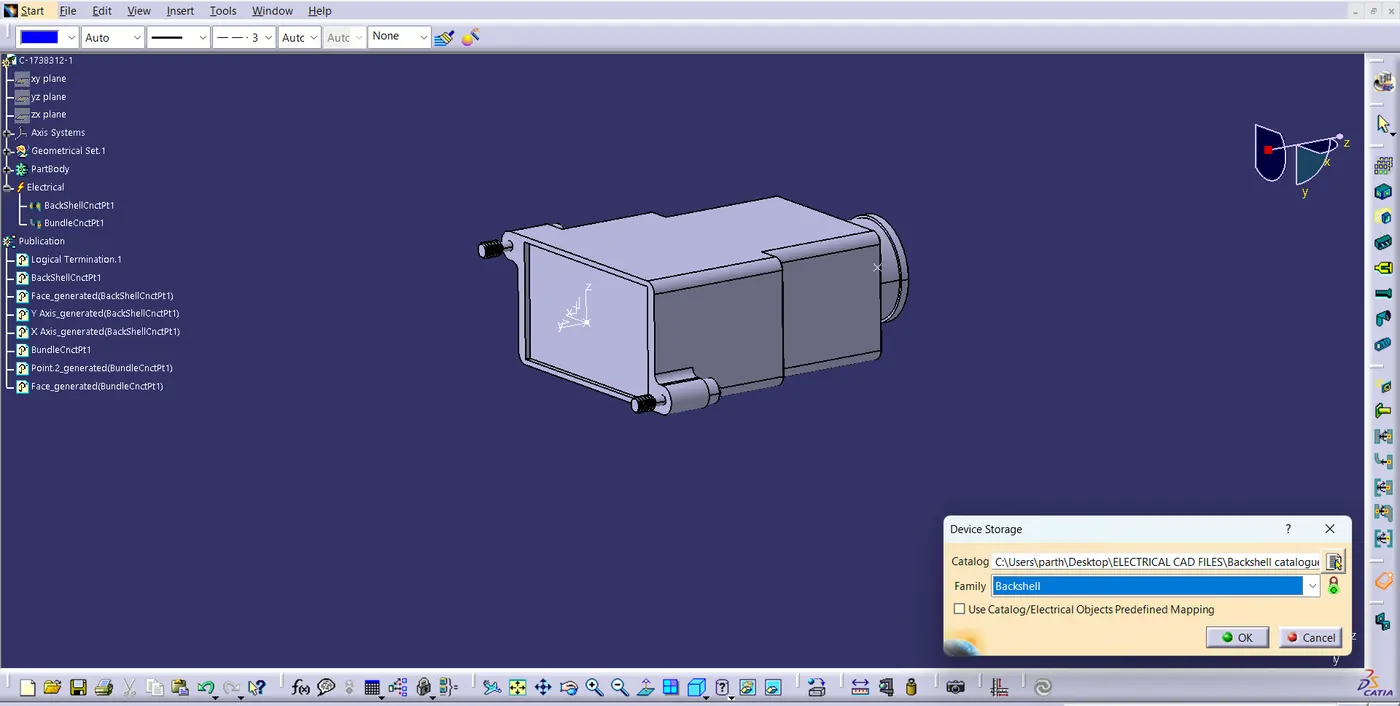

Q2. Download the following Back shell cad data & define it as an Electrical back shell using the Electrical Part Design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
Process:

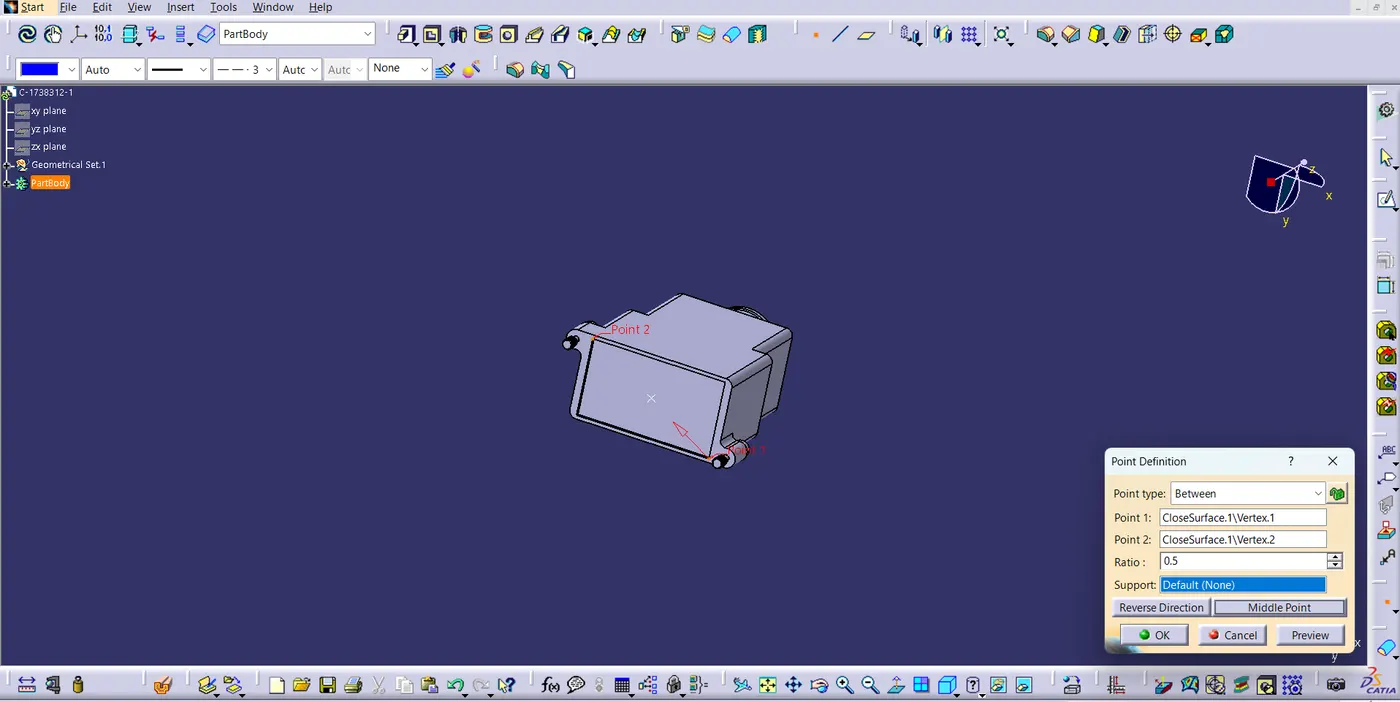

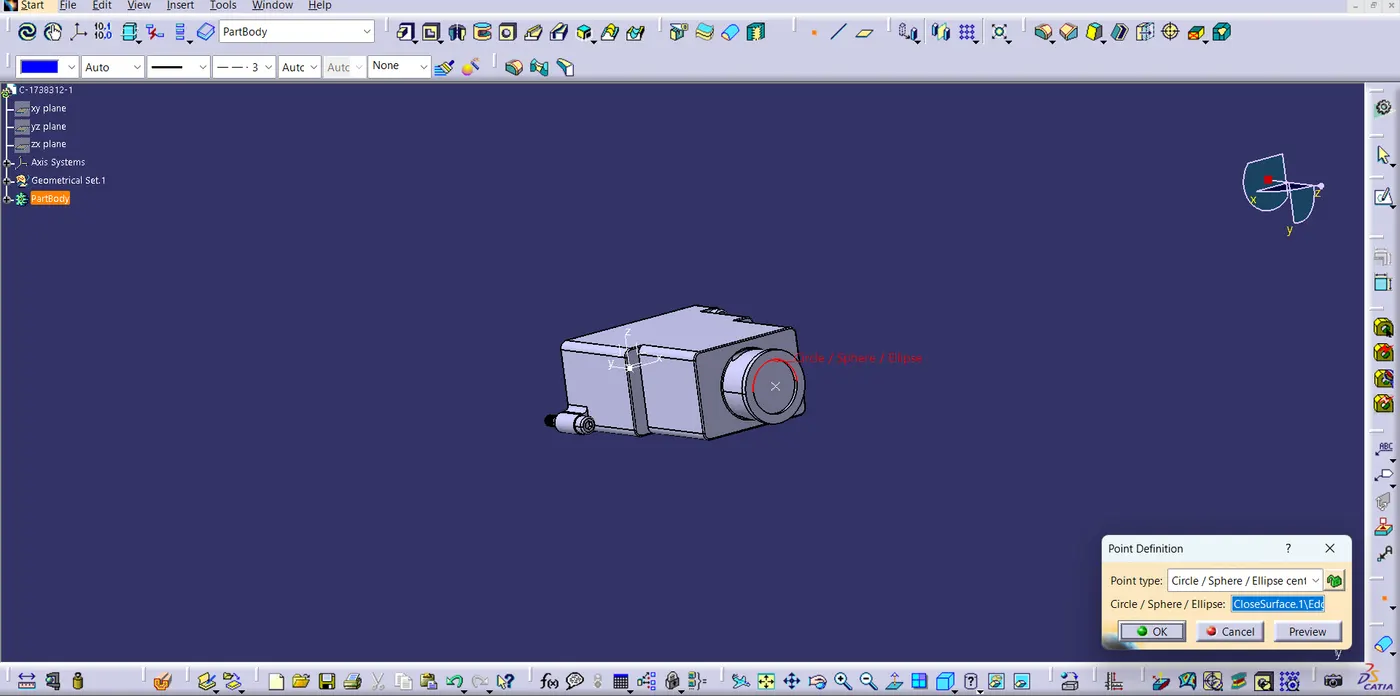

Create a BackShell entry point.

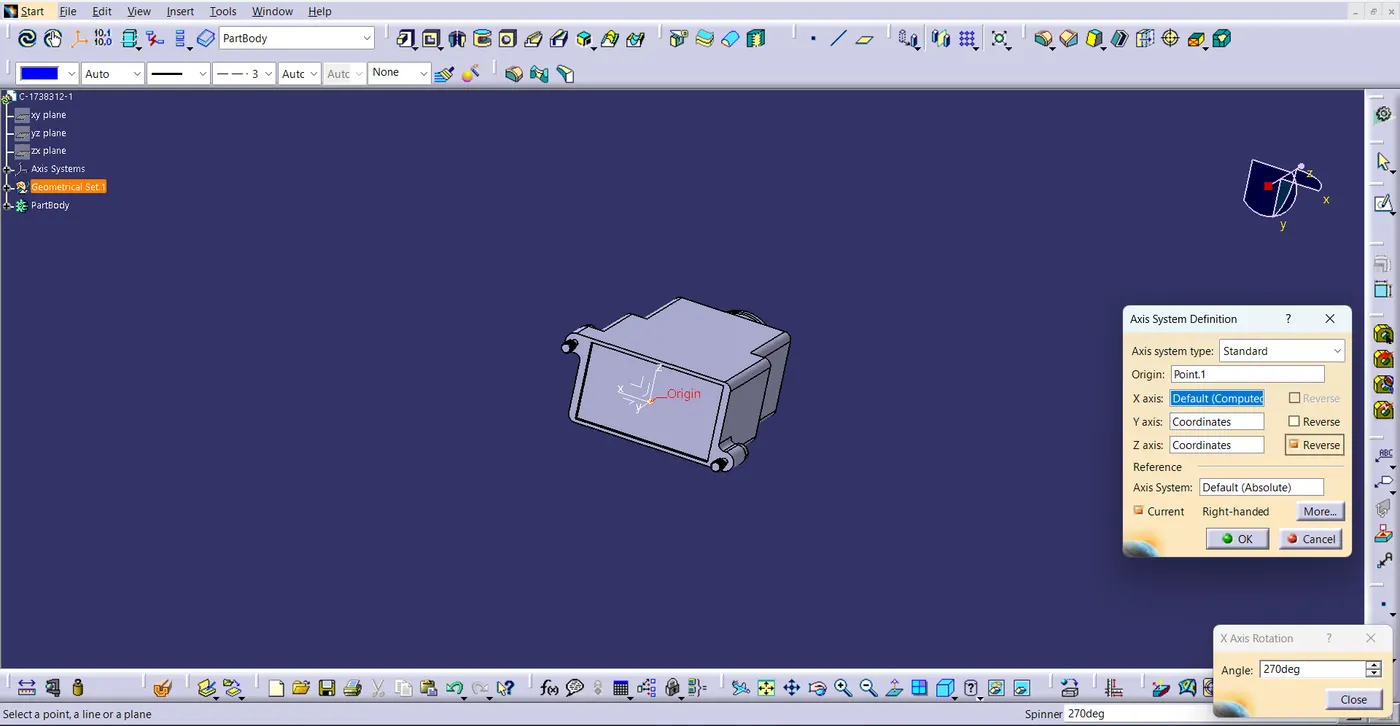

Create an axis system for backshell entry.
Create bundle connection point.
Switch to Electrical part design.

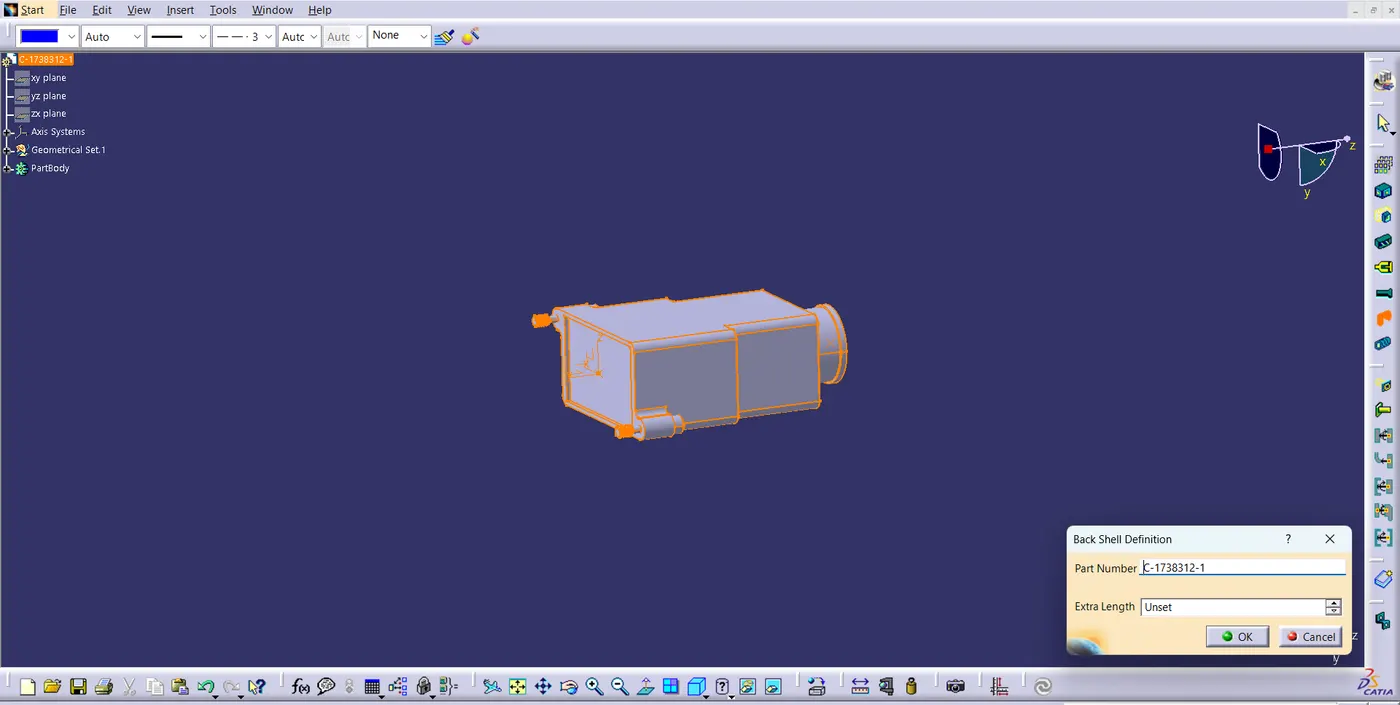

Define part Electrically as backshell.

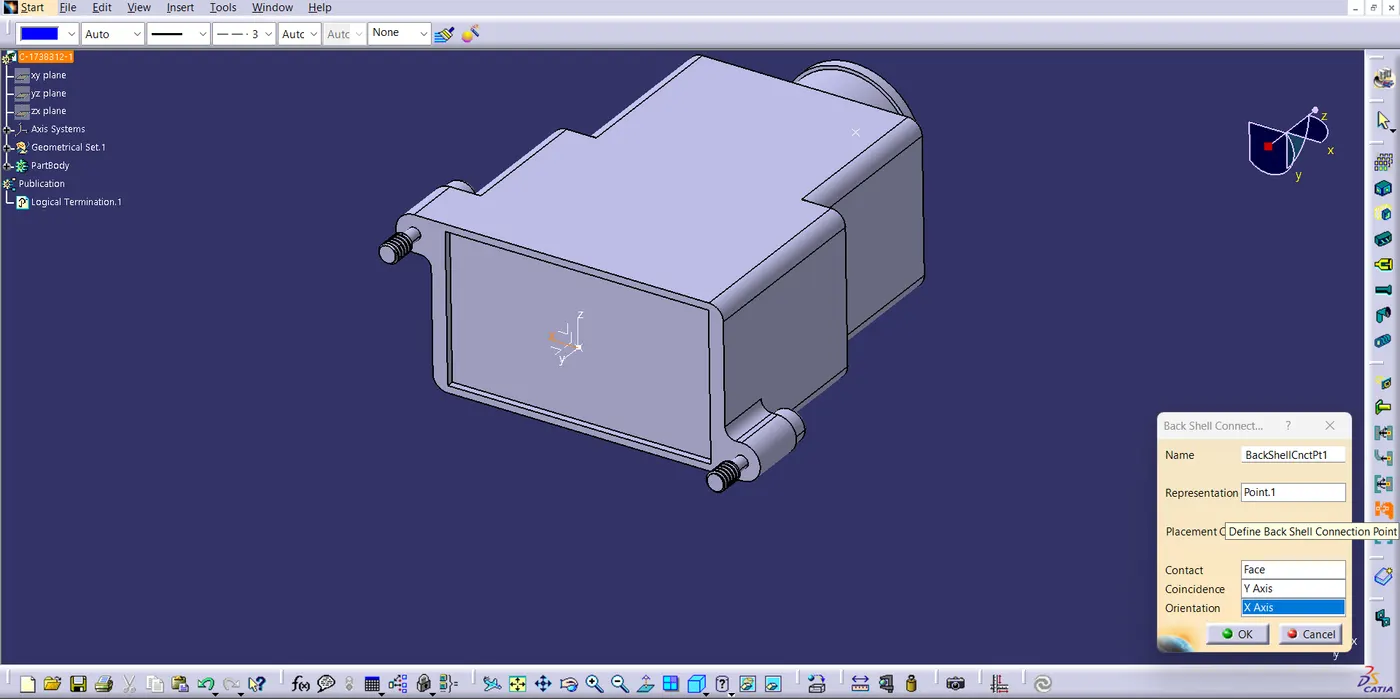

Then define the Backshell connection point.

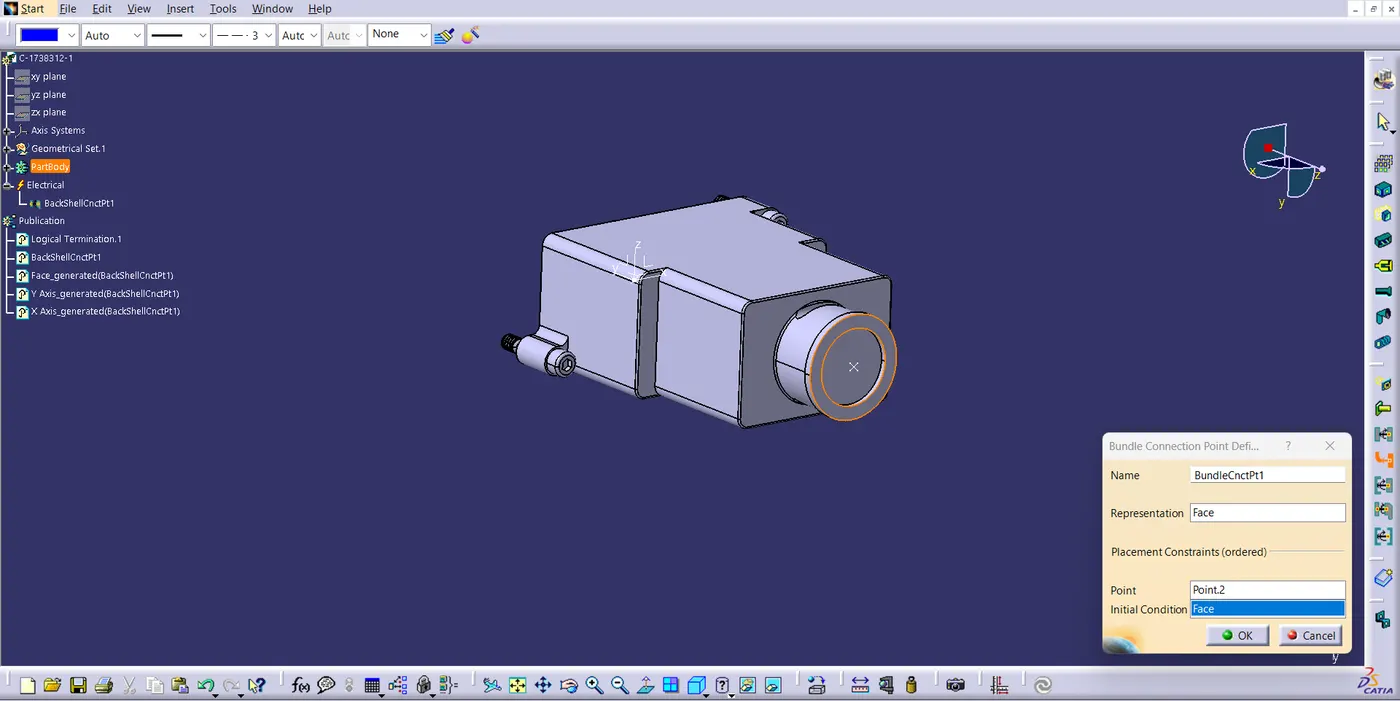

Define Bundle connection point.
Q3. Create the Following Corrugated tubes & Add them to Catalogue under the "Slit COT" Family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

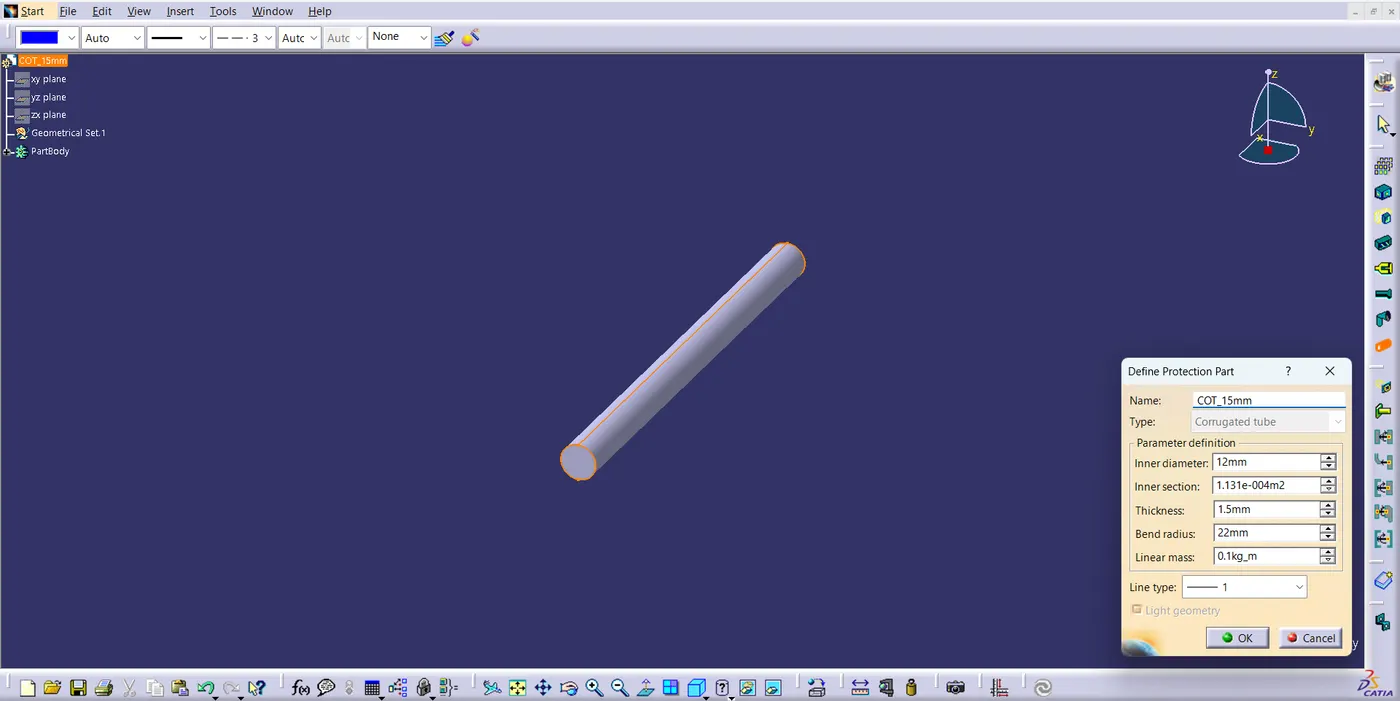

Process:
- Switch to Electrical part design.

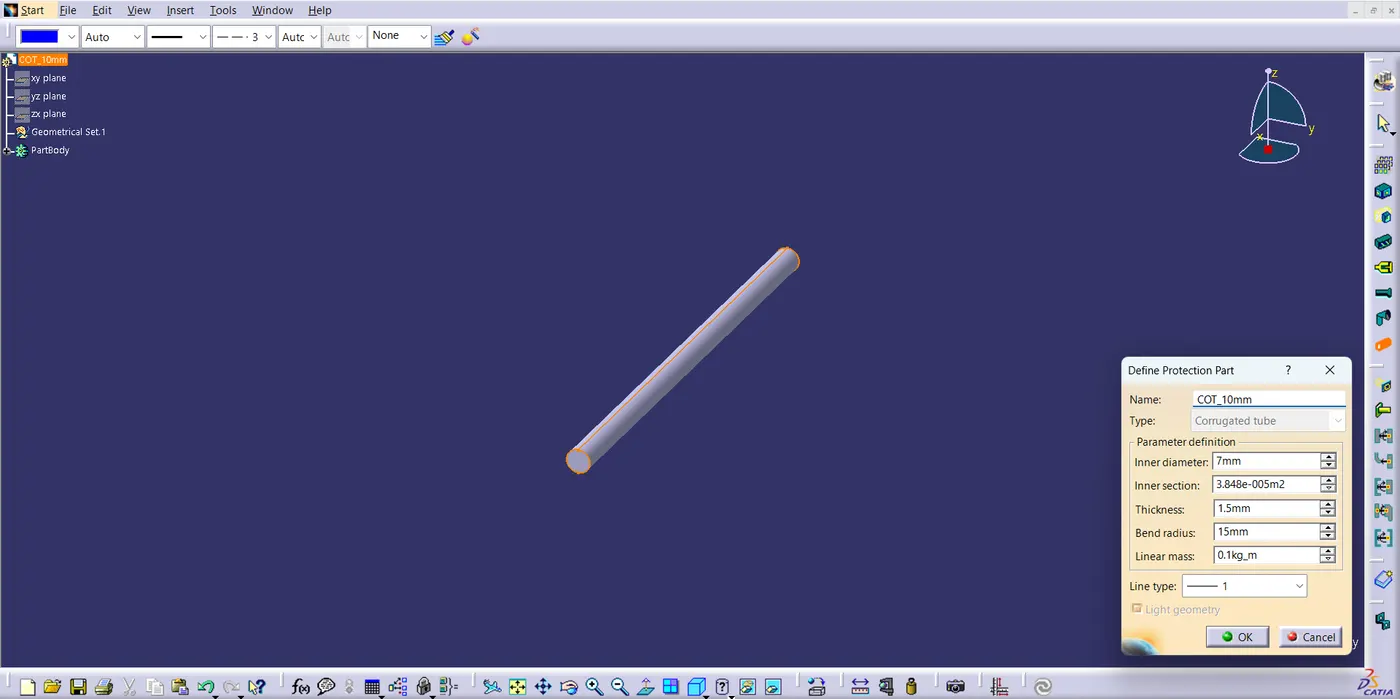

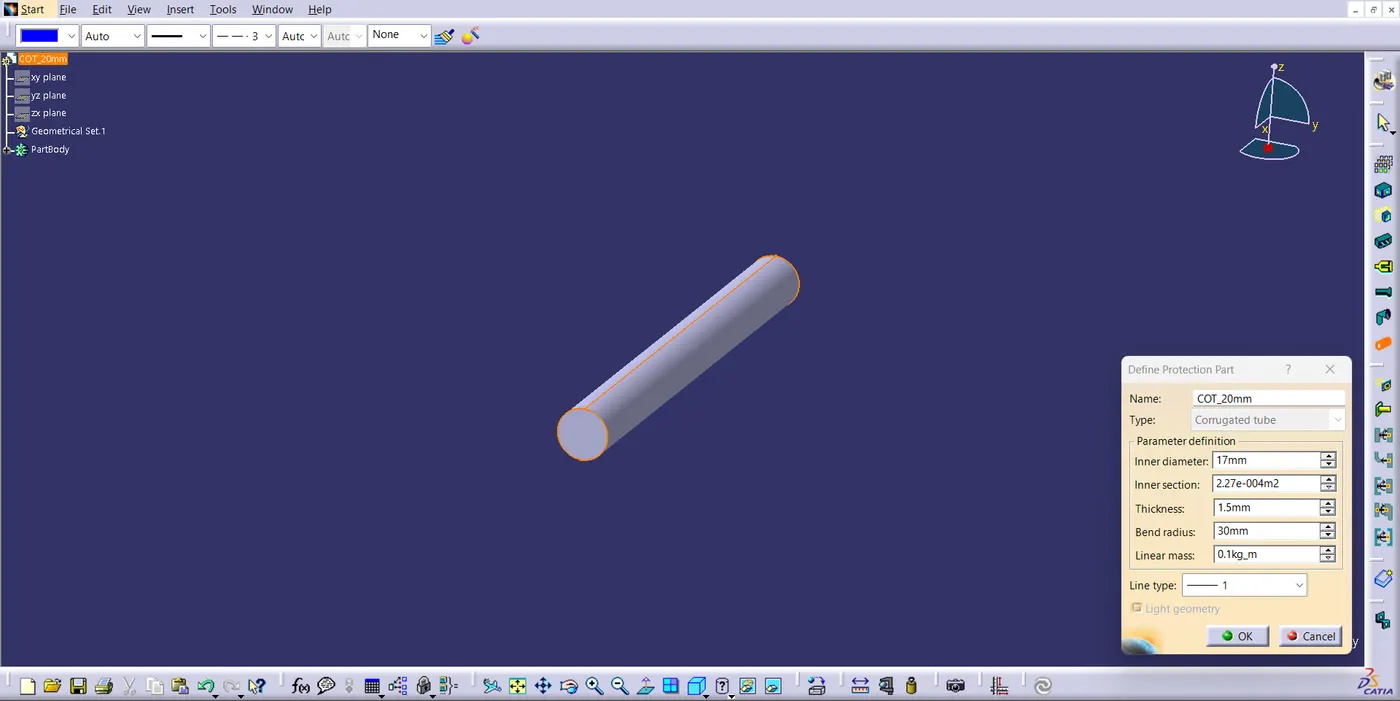

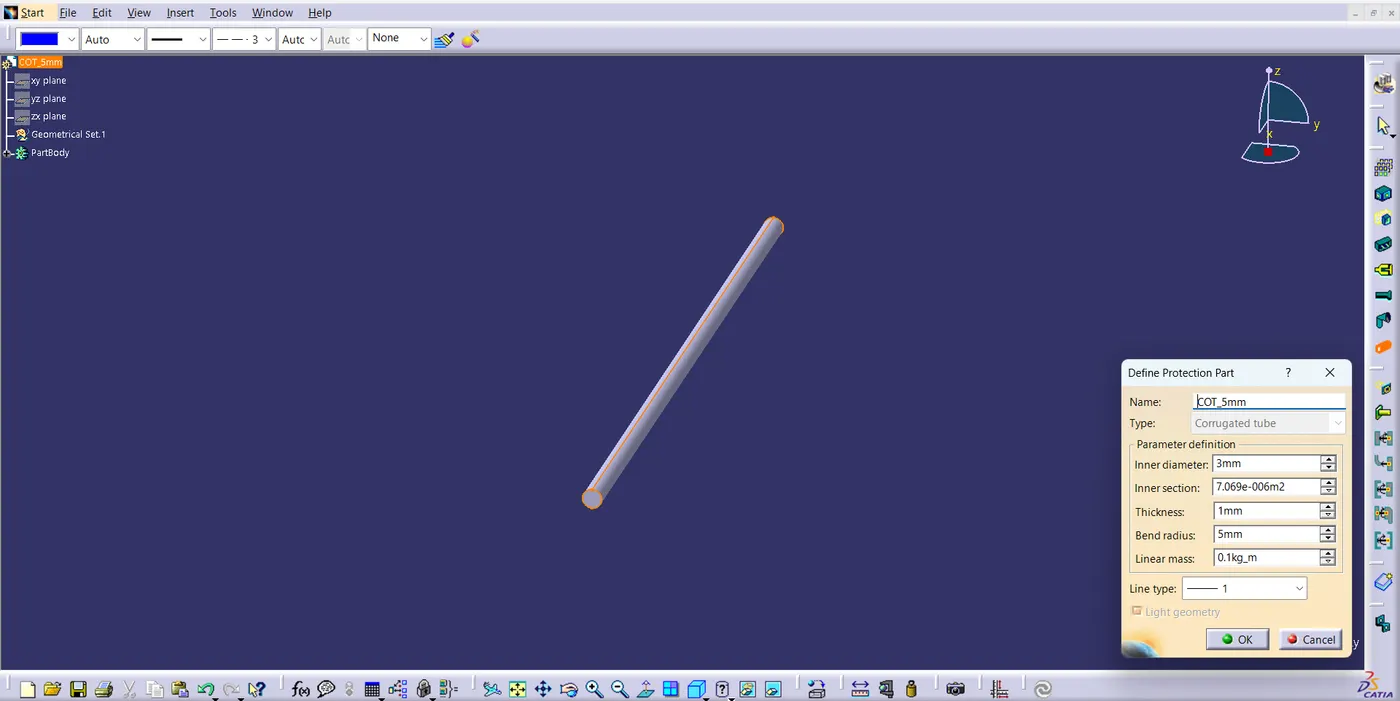

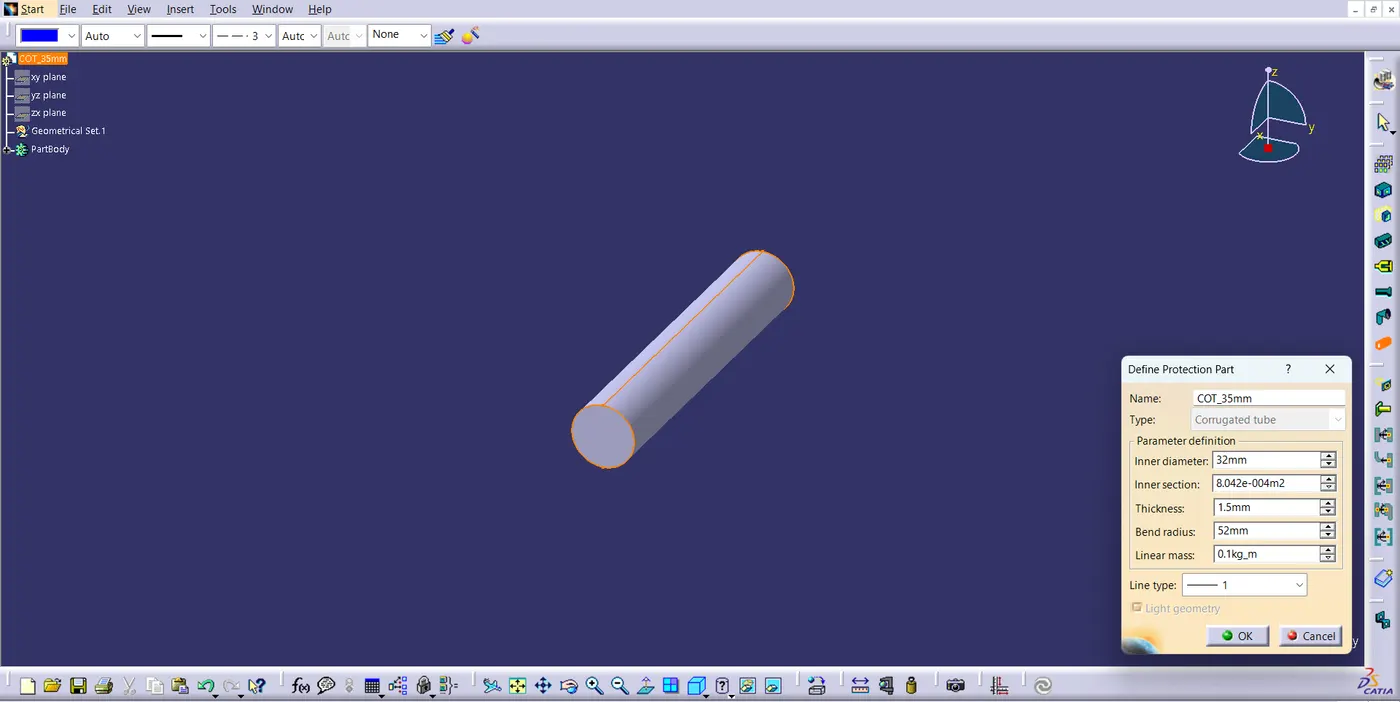

- Select the Define protection part.
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia.'
Catalogue Creation:
- New part - catalogue document - add family - type - select conduit - save.

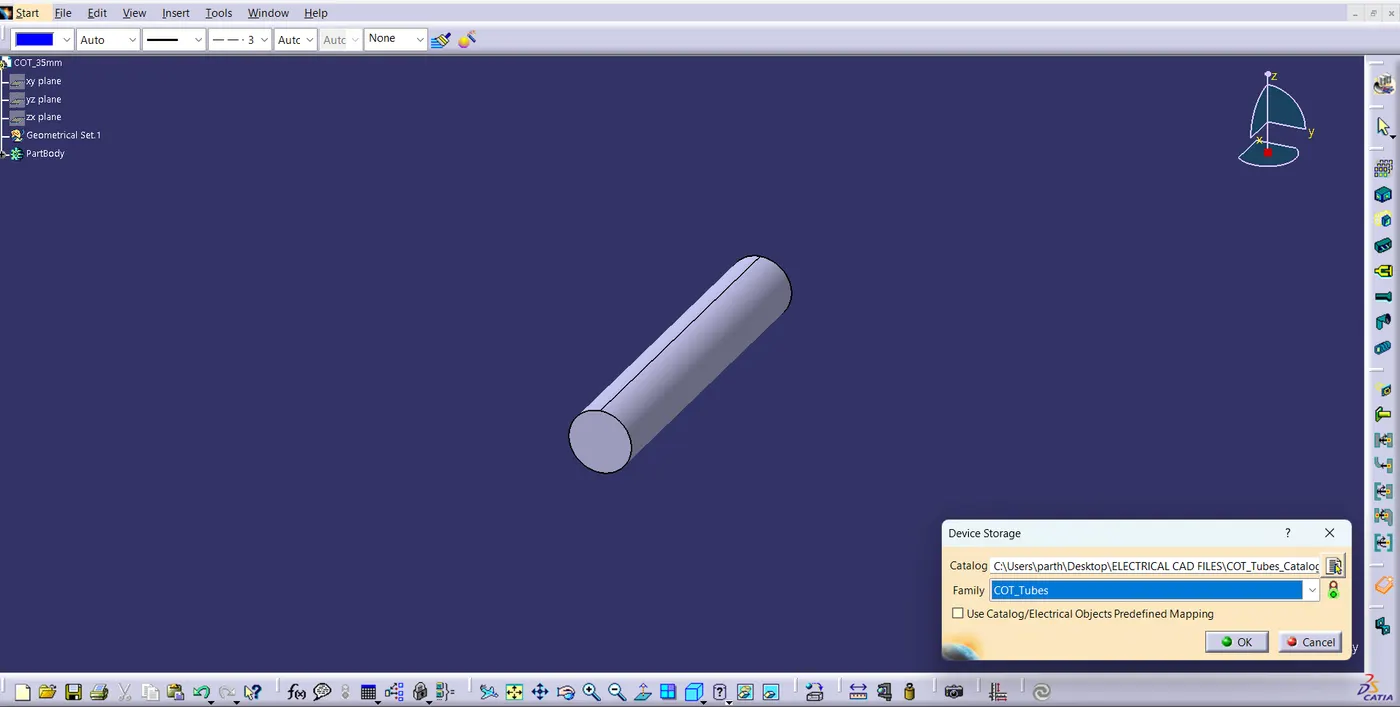

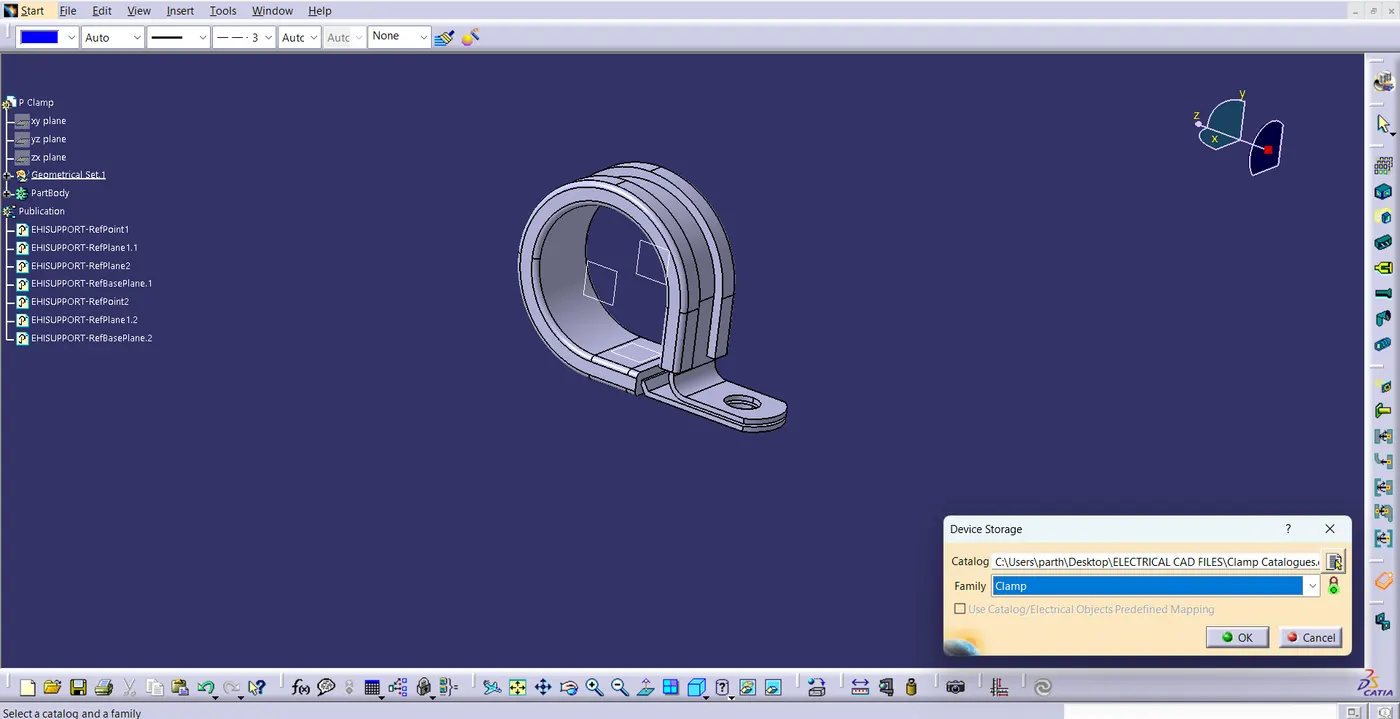

- Open part to add catalogue - store device command - select catalogue - family - COT_Tubes - OK.
