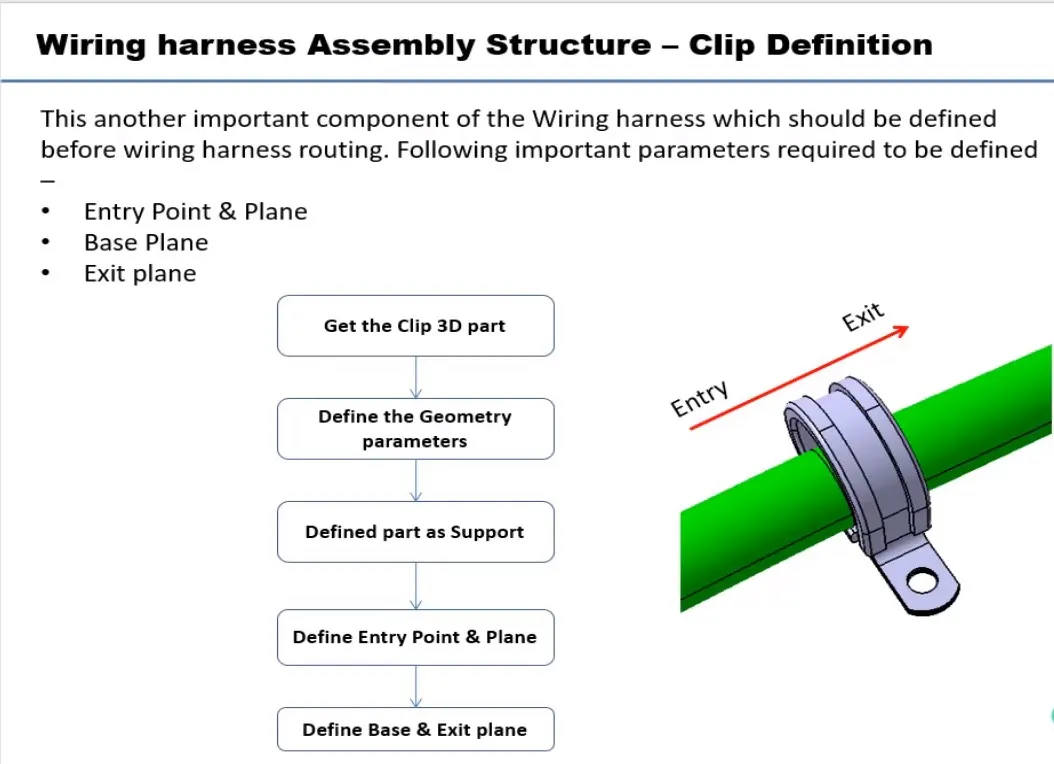

Download following clip cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
P clamp
Process:

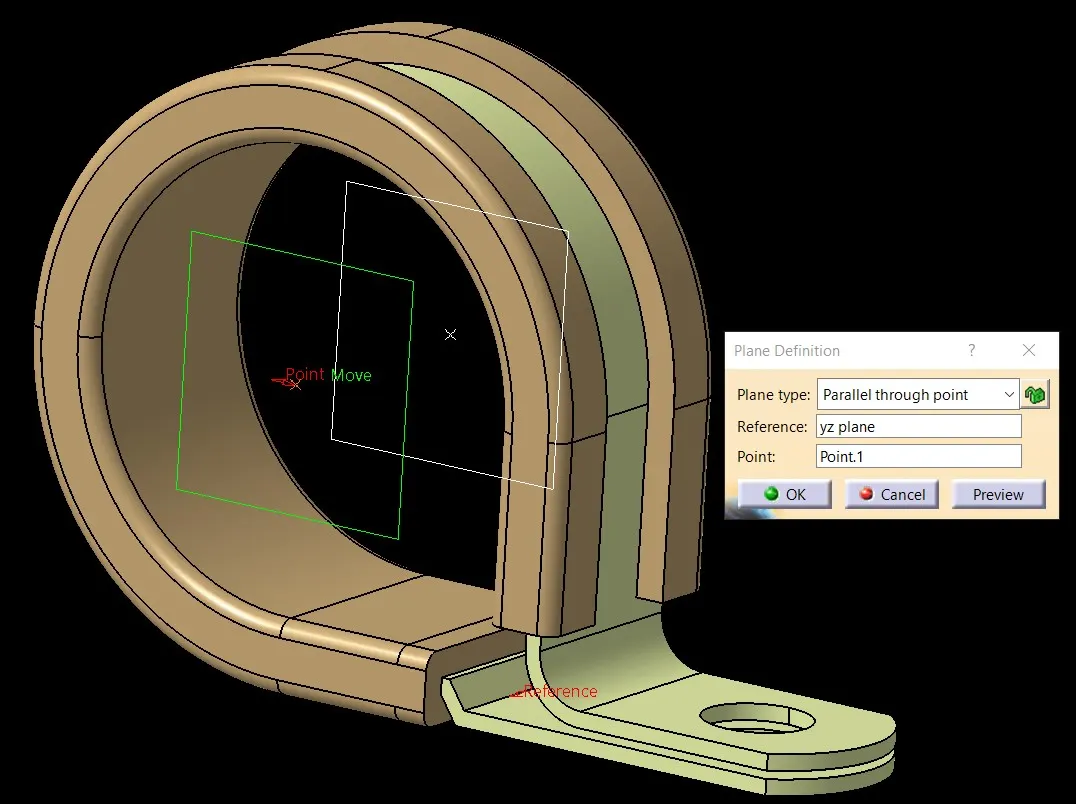

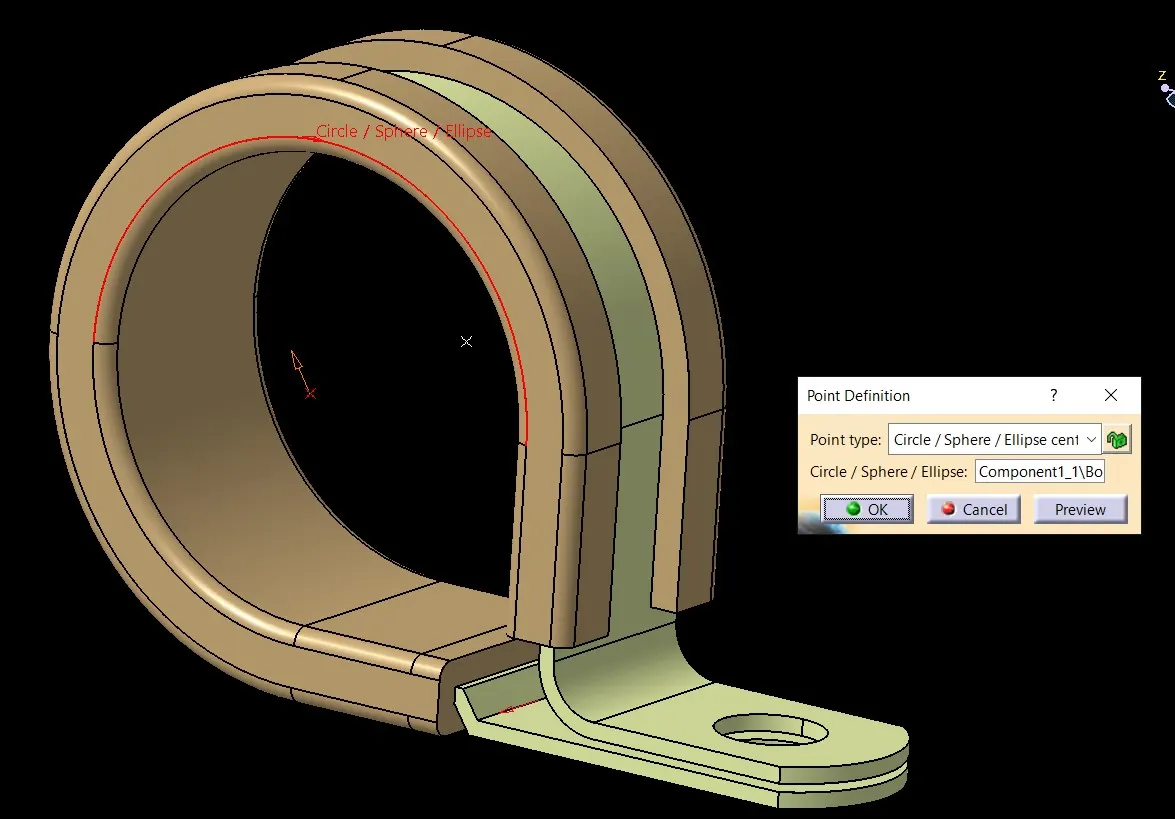

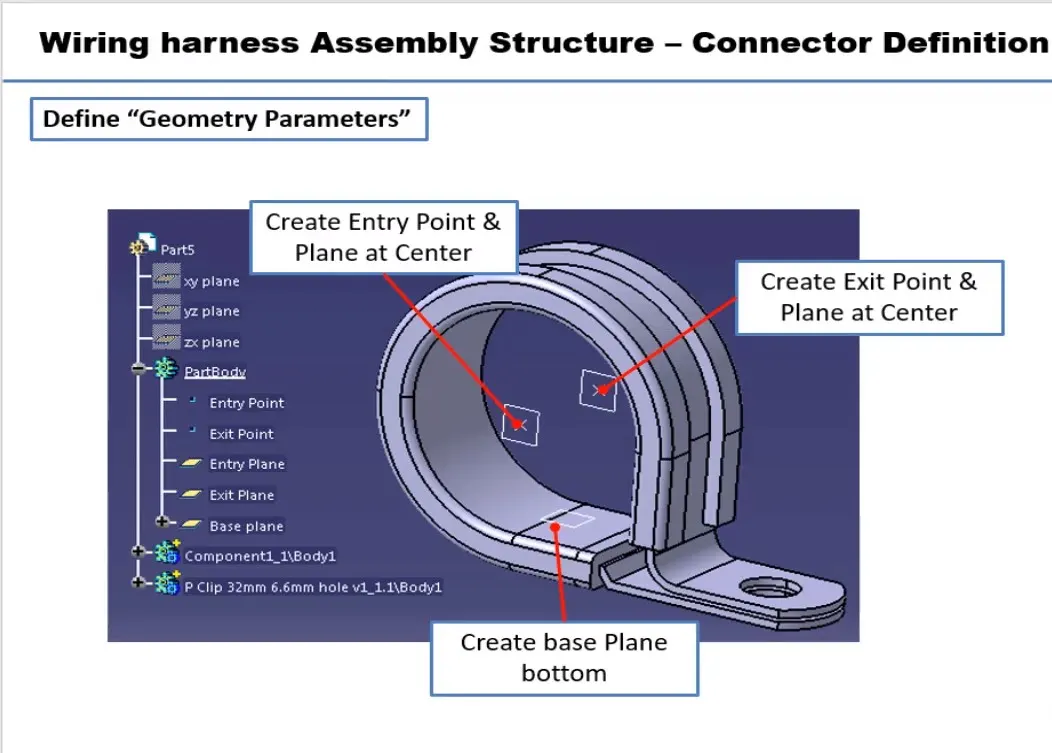

Create two points at center as shown below one as entry and another as exit point.

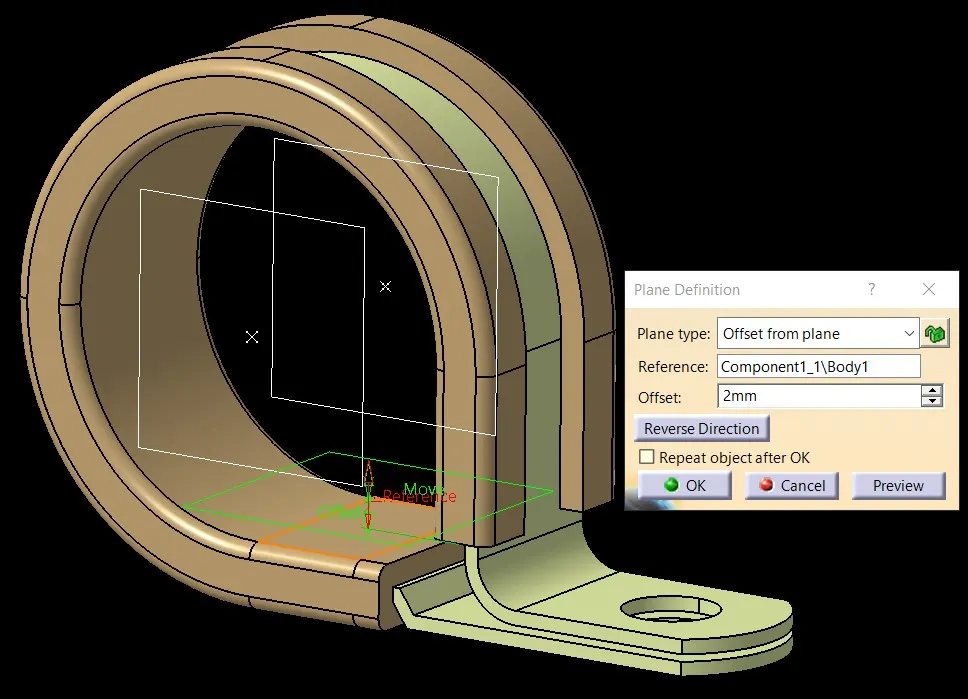

Create planes at the above two created points and another at base.
Switch to Electric part design

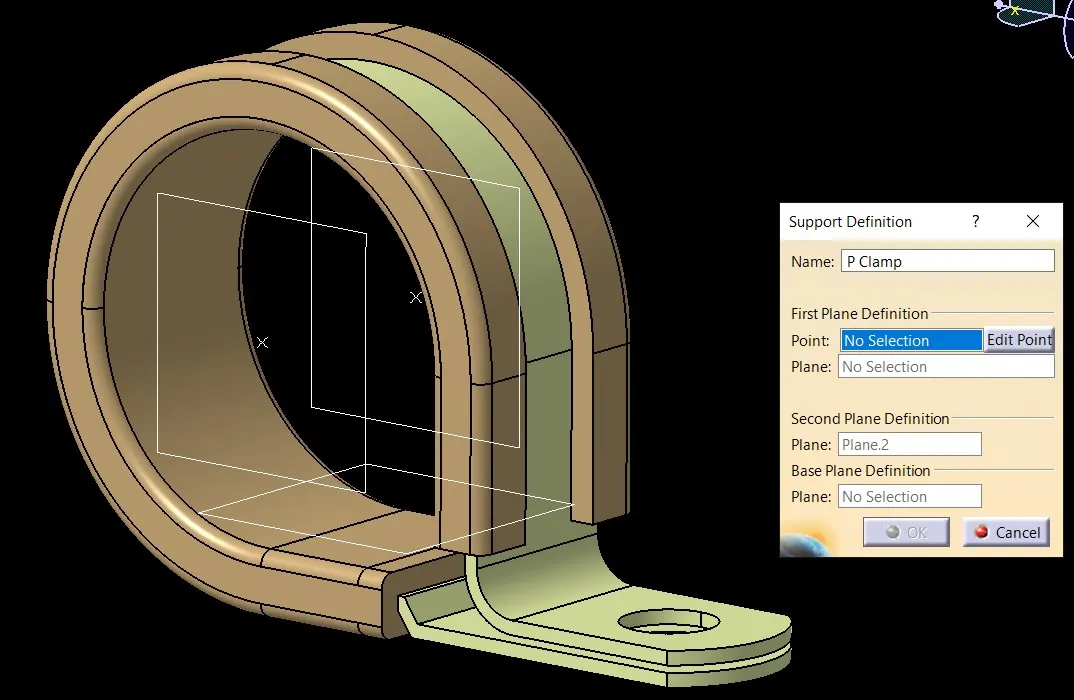

Click on support definition - select part - select entry point - select entry plane, exit and base plane.
Since there is two entry and exit possible so need to define the support again
Again Click on support definition - select part - select exit point - select exit plane and base plane and secondary plane is automatically taken.
Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html

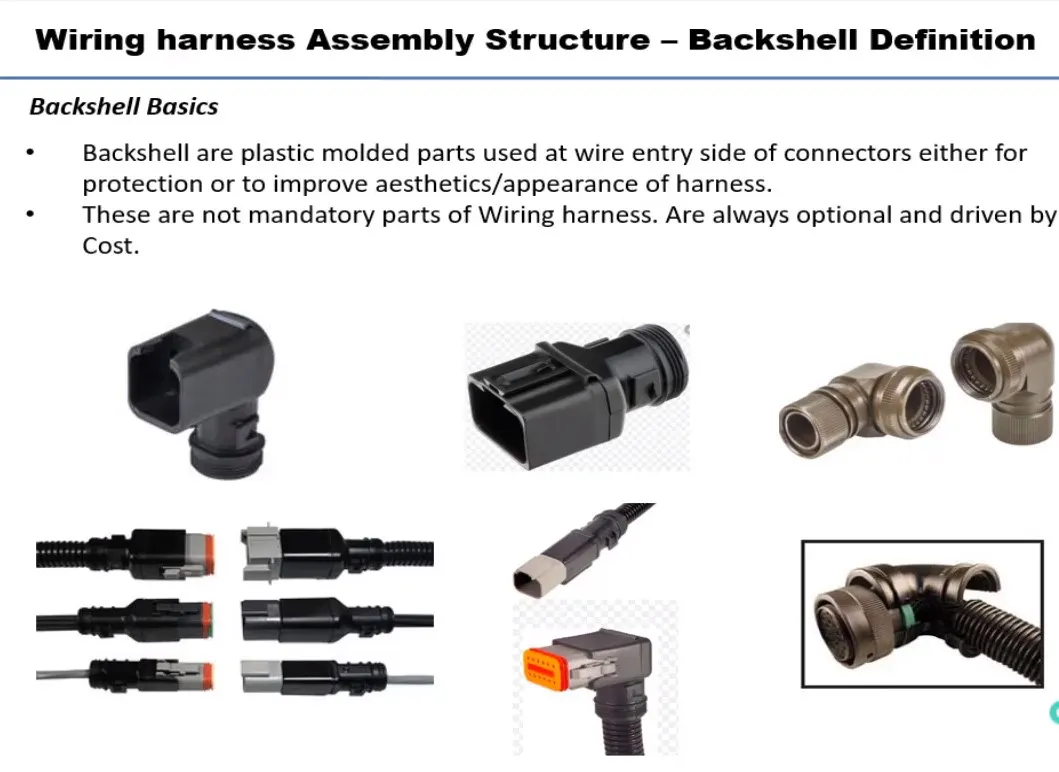

BACKSHELL
Process:

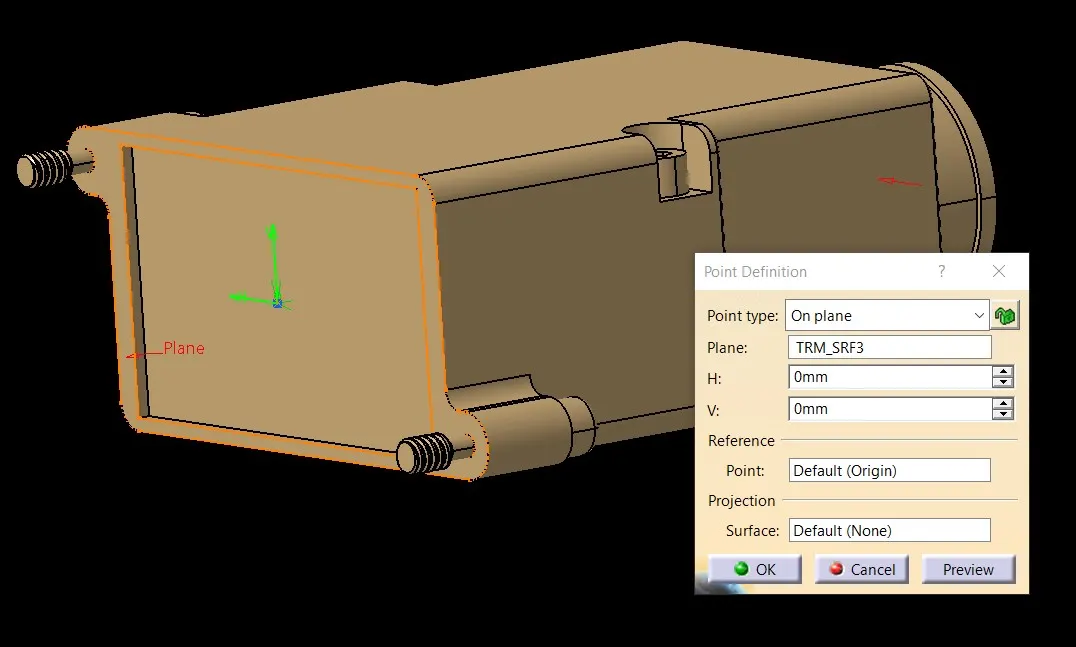

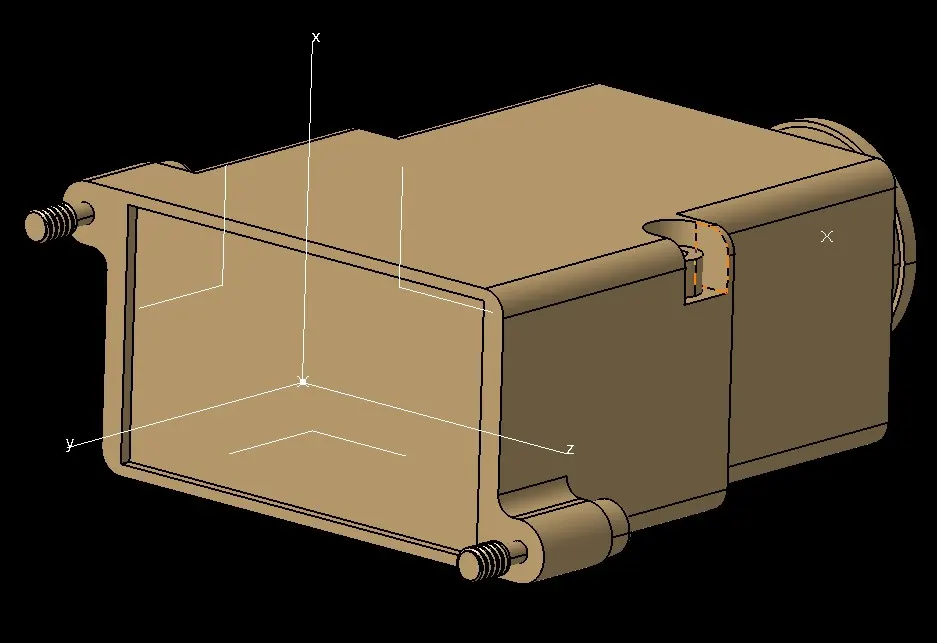

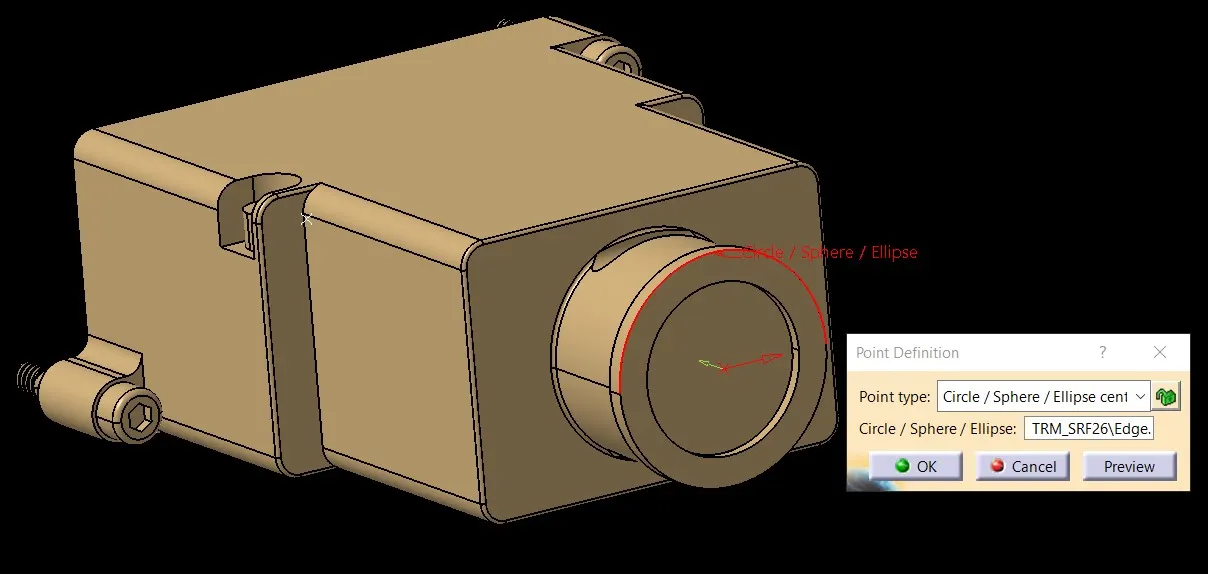

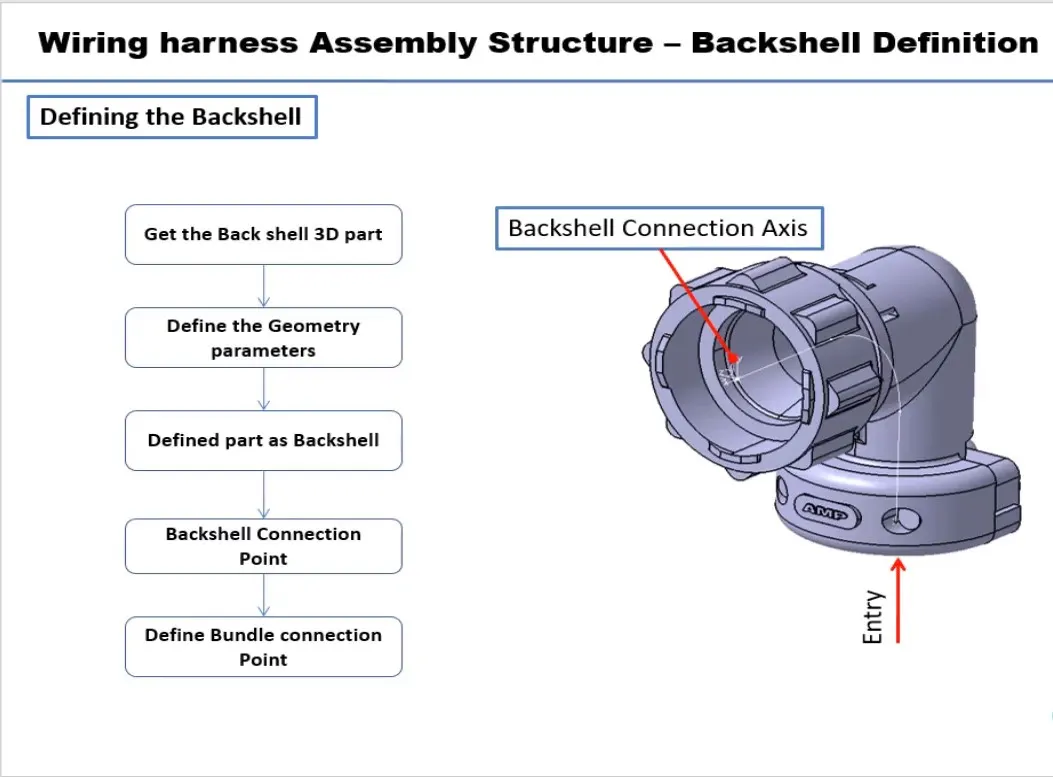

Create Back shell entry point at the center of matting surface as shown below
Create axis system for back shell entry.
Create bundle connection point.
Switch to Electrical part design.
Select command define back shell – select back shell – give part no and extra length
Here extra length is selected as unset but we can change in case we need to run the bundle ahead of back shell

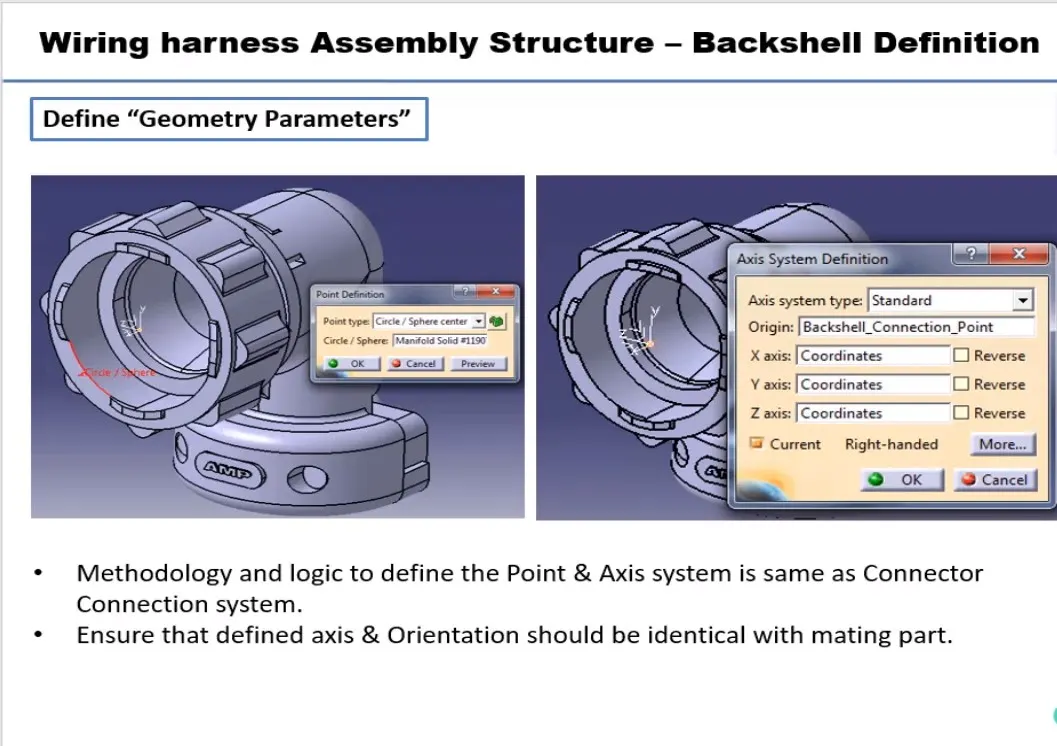

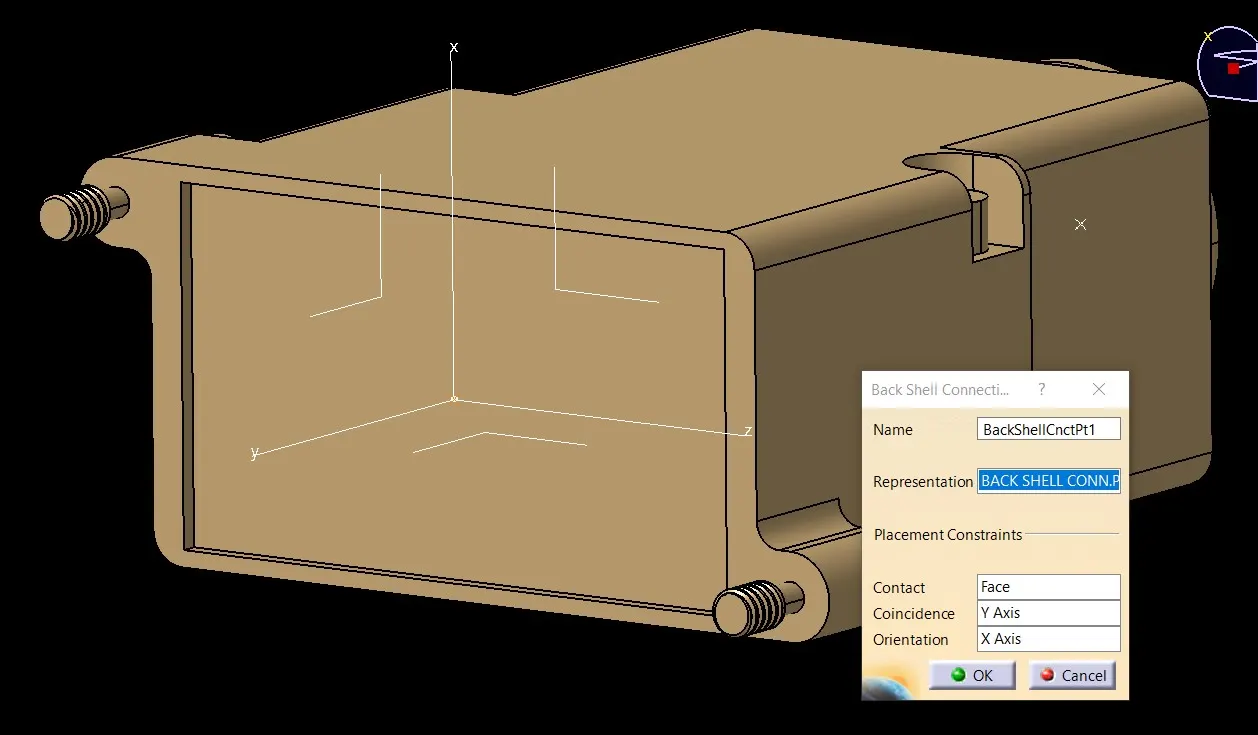

Define Back shell connection point.

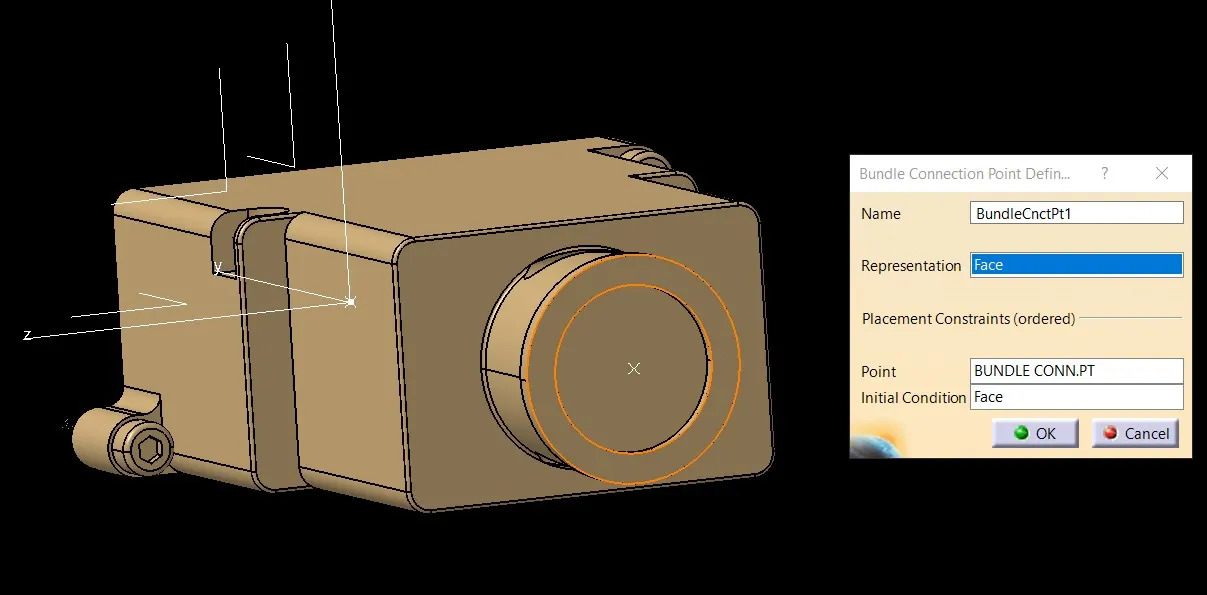

Define bundle connection point.
Create Following Corrugated tubes & adds them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness(mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Process:
Switch to Electrical part design
Select Define protection Part
Click on part (on file name in specification tree)

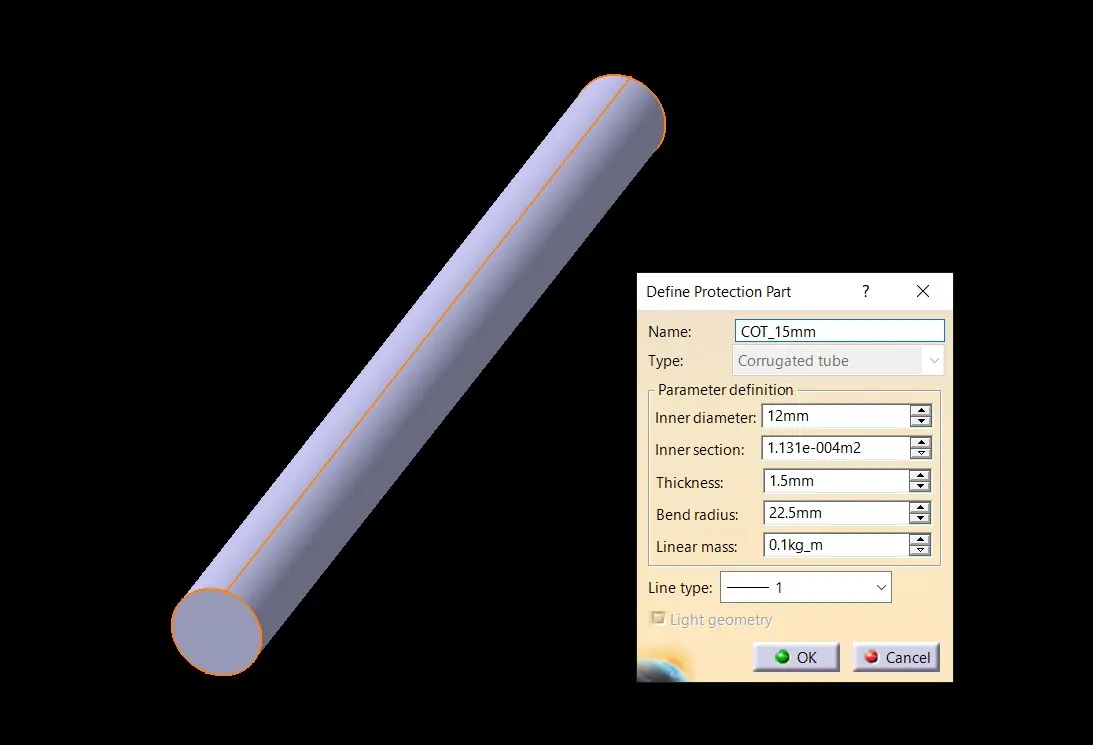

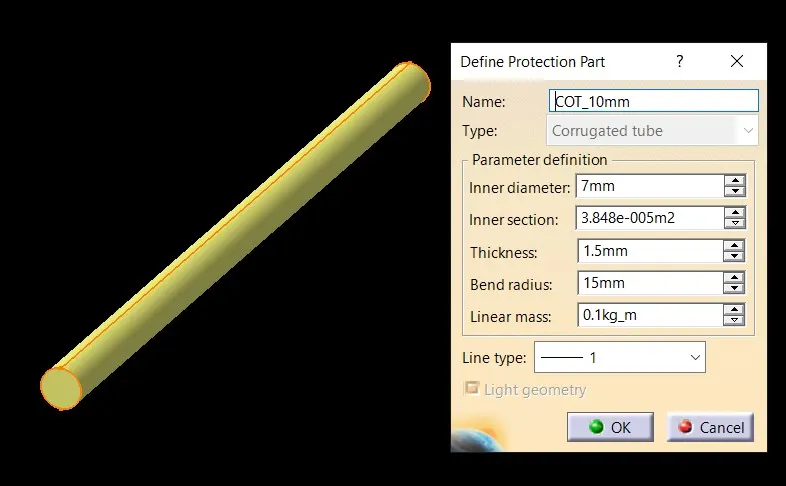

Provide given parameters and bend radius as '1.5 x Outer Diameter
COT_15mm

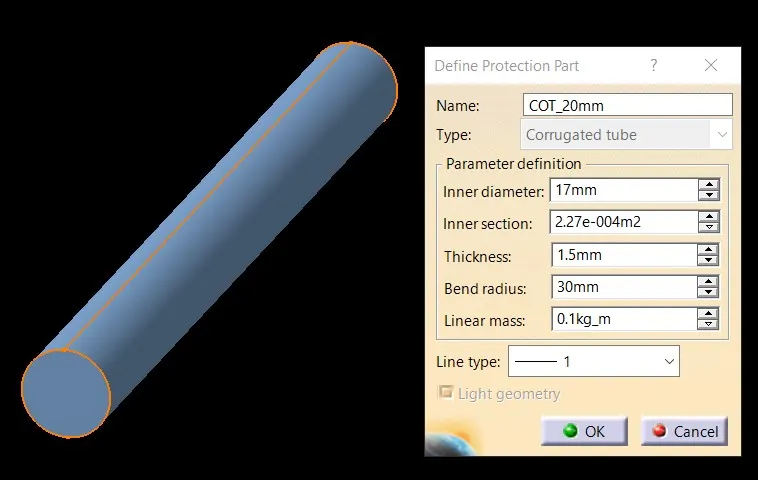

COT_20mm

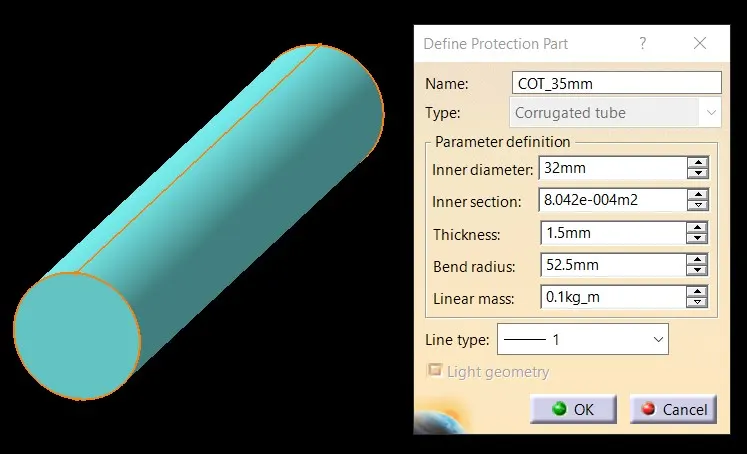

COT_35mm
COT_10mm

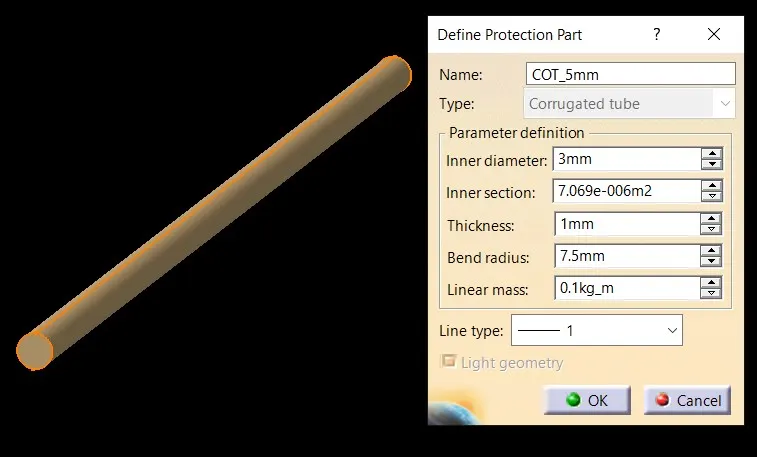

COT_5mm
Catalog Creation:

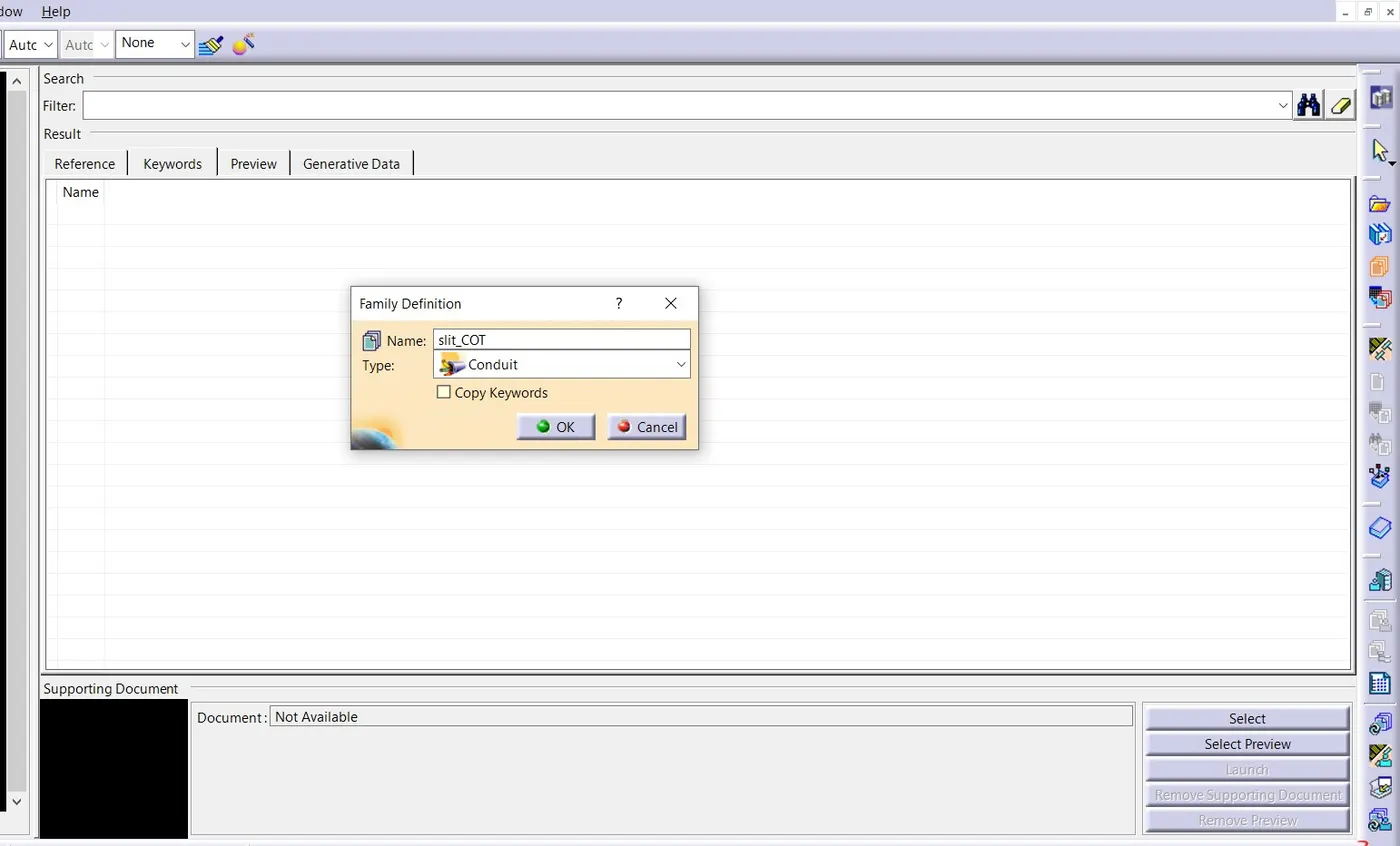

File – New - catalog document - add family - give name - type - select Conduit - save.
Open part to add catalog - store device command - select catalogue - family - Slit_COT - ok
