Wiring harness routing & packaging Rules Week 3 Challenge

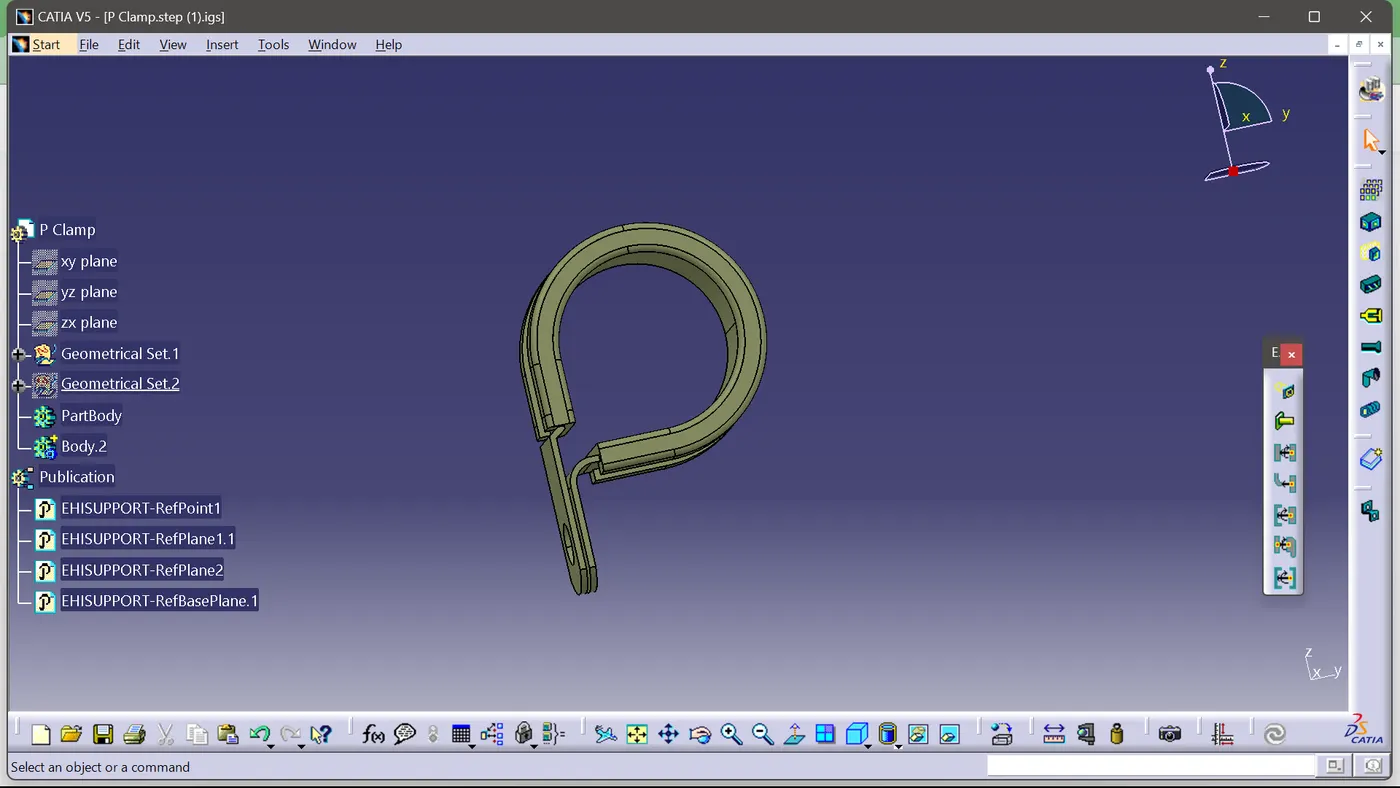

Created the two points and three planes and defined it using the tool define support part in electrical workbench

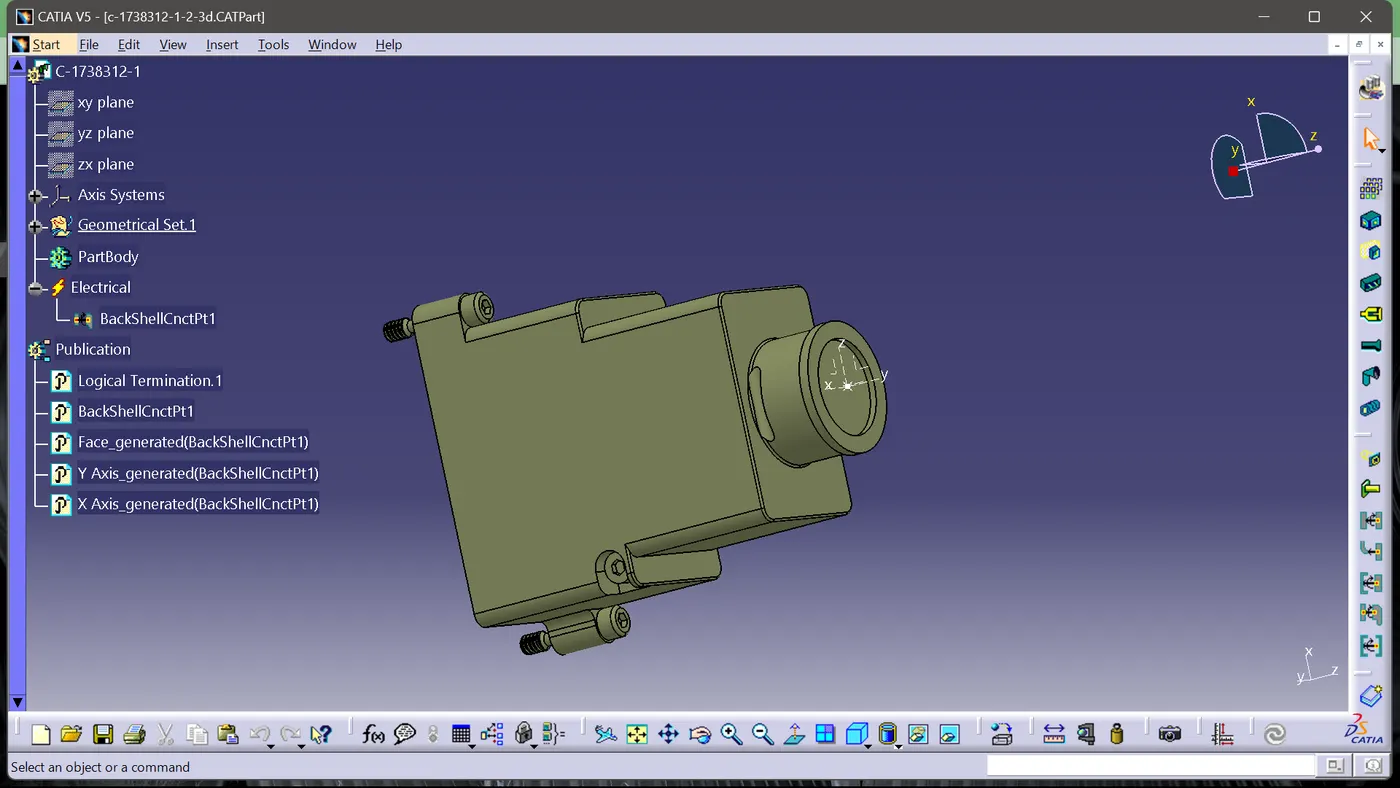

In back shell connector at the starting created the point and axis systems and y axis seted towards the mating part.And defined it using define back shell , backshell connection point in electrical workbench

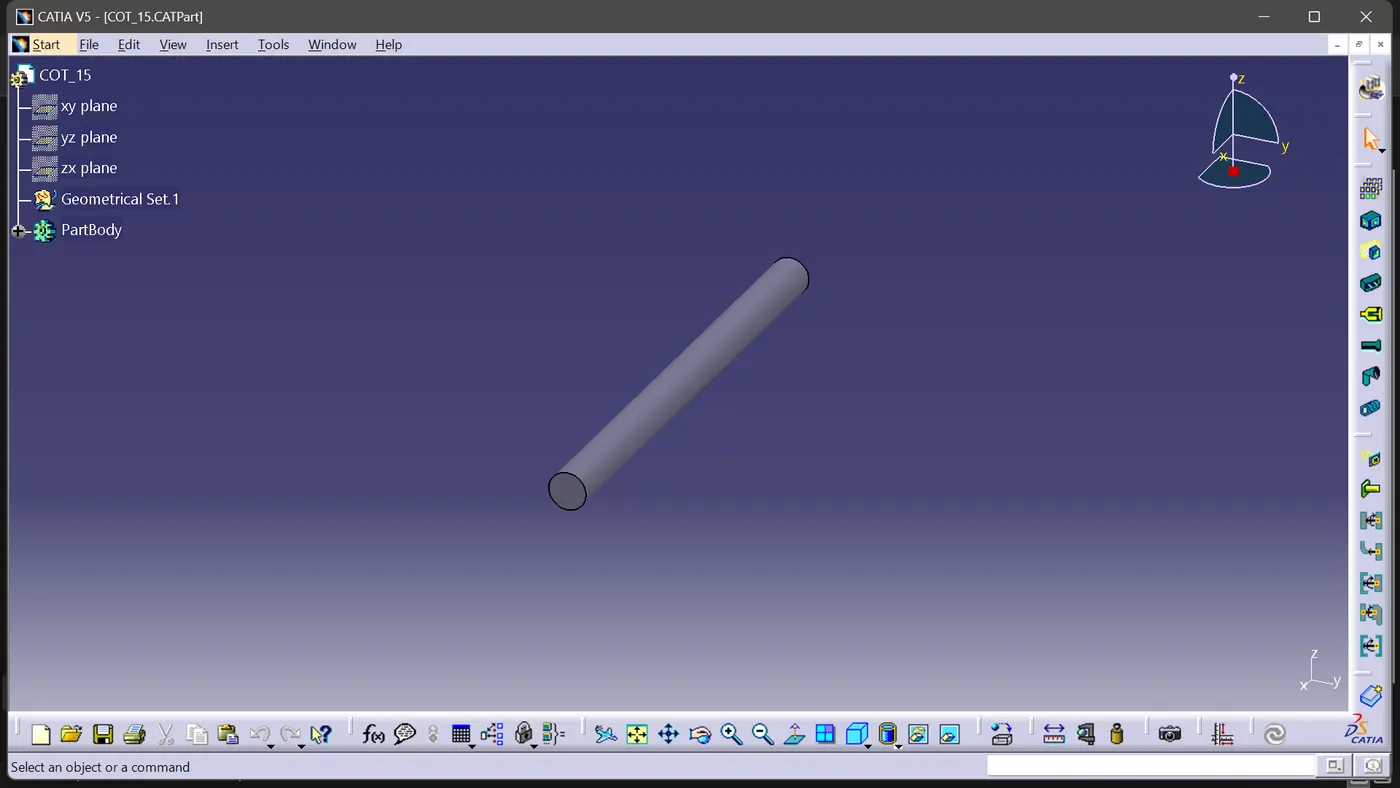

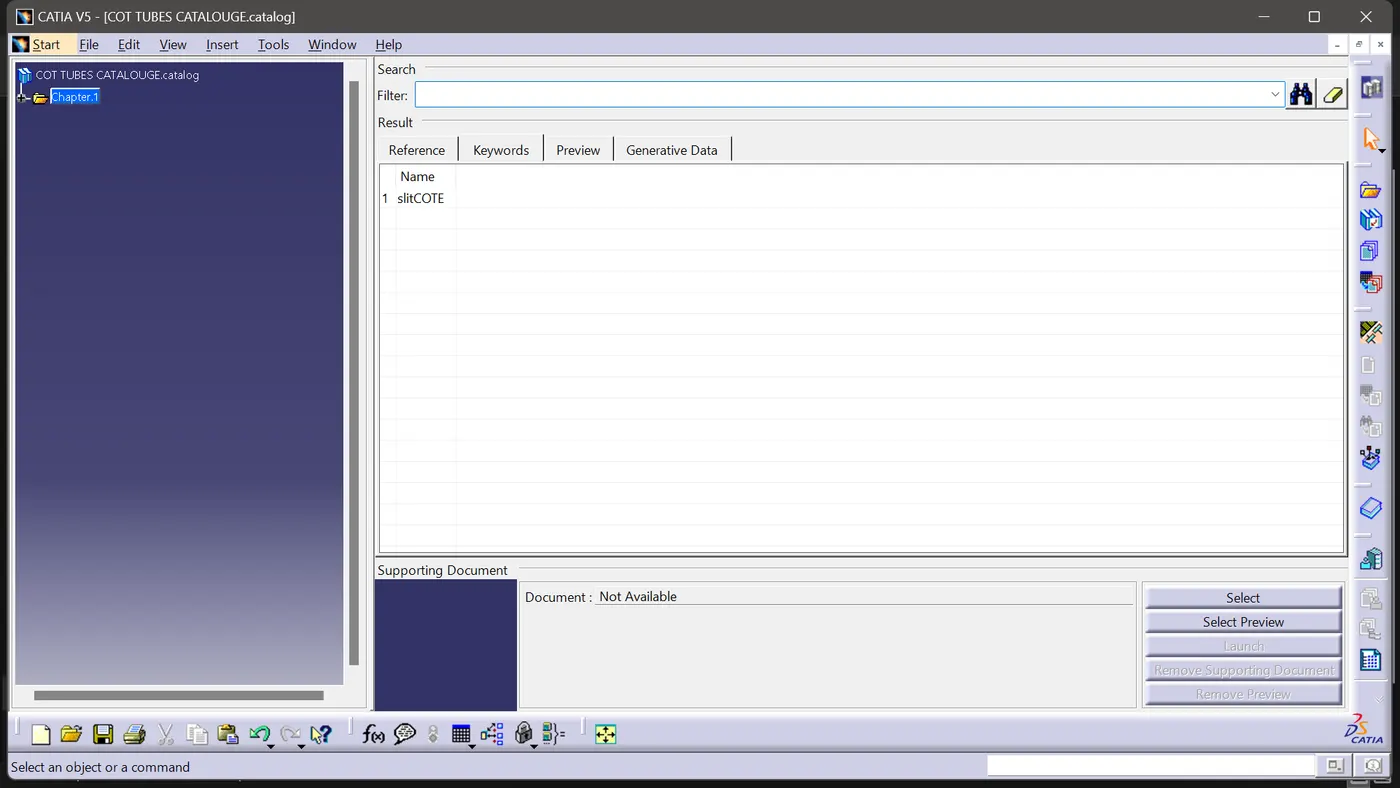

Created the cot tubes of dieeferent diameters and created a catalouge then added a family.

after that added the parts to the family.
