Week 9 - Challenge 2 - Switch Bezel Design

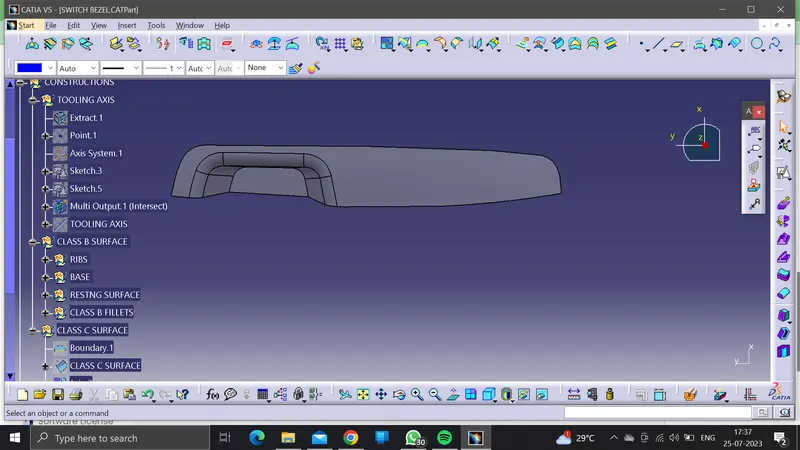

TOOLING AXIS

• A point was created on the base from which two planes perpendicuar to x and y axes were created.
• The A surface was then intersected by the plane parallel to the y dierction
• The two inclined lines were taken and bisected along the first point to create the tooling axis in y direction.
• Then the lines intersected by the other plane was used to create one line and another line was created manually with an angle such that the inclined surface had a draft of minimum 3 degree.
• These 2 lines then were bisected to create the tooling axis in x direction.Further these 2 tooling axes in x and y directions were bisected to get the actual tooling axis.

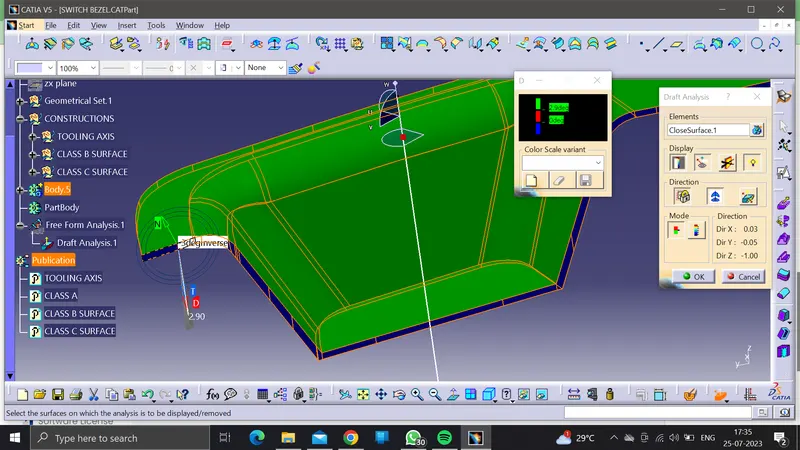

DRAFT ANALYSIS FINAL PRODUCT

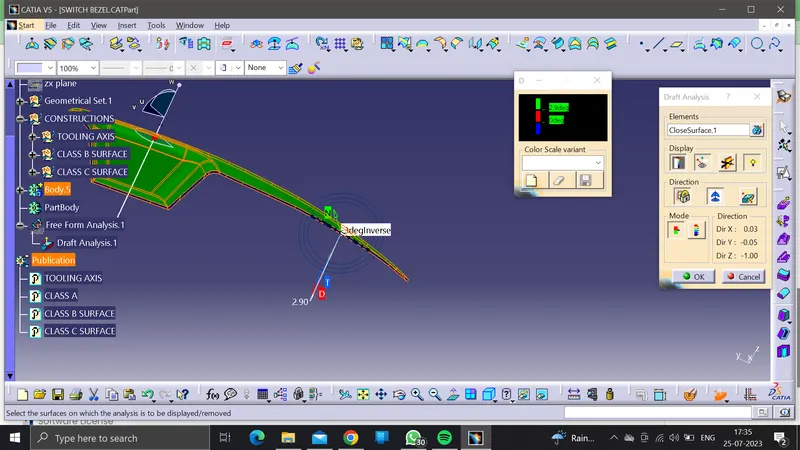

• After the final product was created, draft analysis was carried out again.
• The compass was again aligned with the main tooling axis and color code was taken.

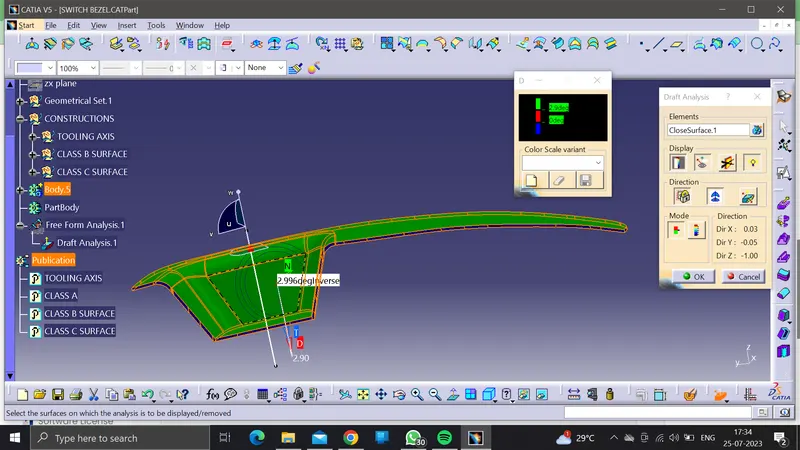

• Since the class c surface was not at the 3 degree mark and varied between 2.9 and 3, the required angle was reduced to 2.9 degrees.

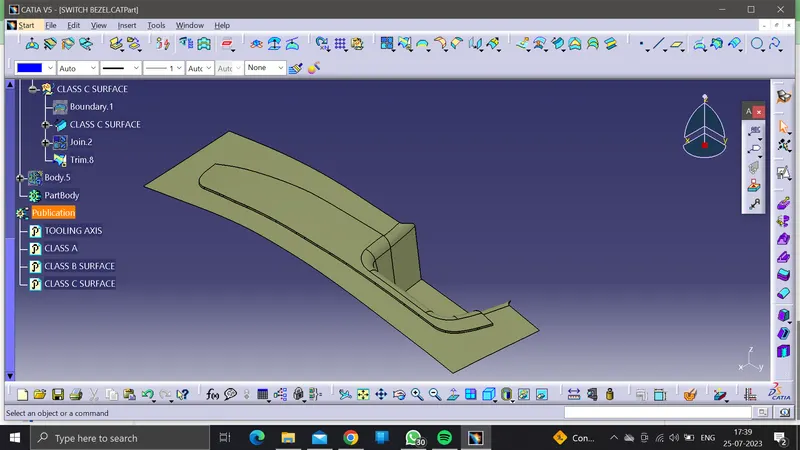

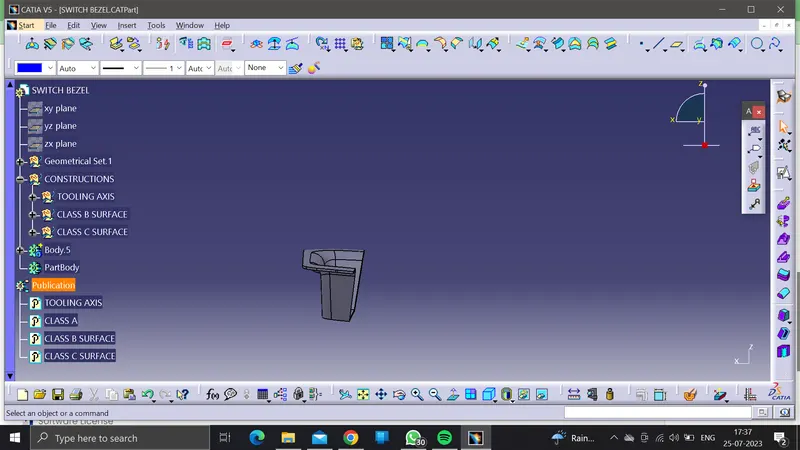

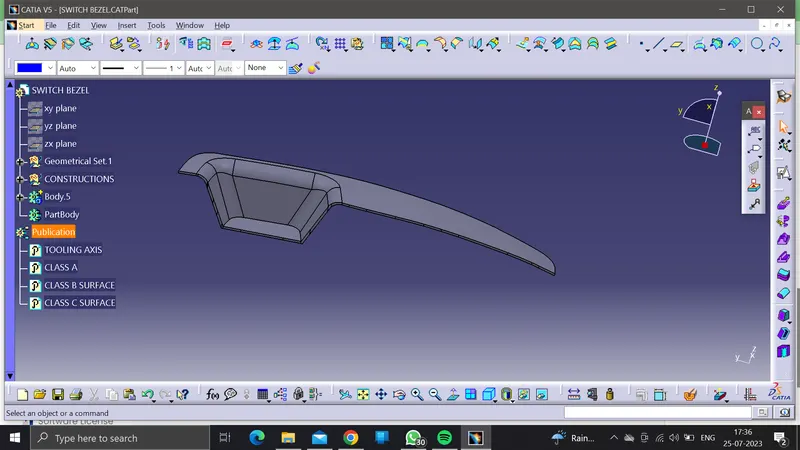

3D VIEW
