Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

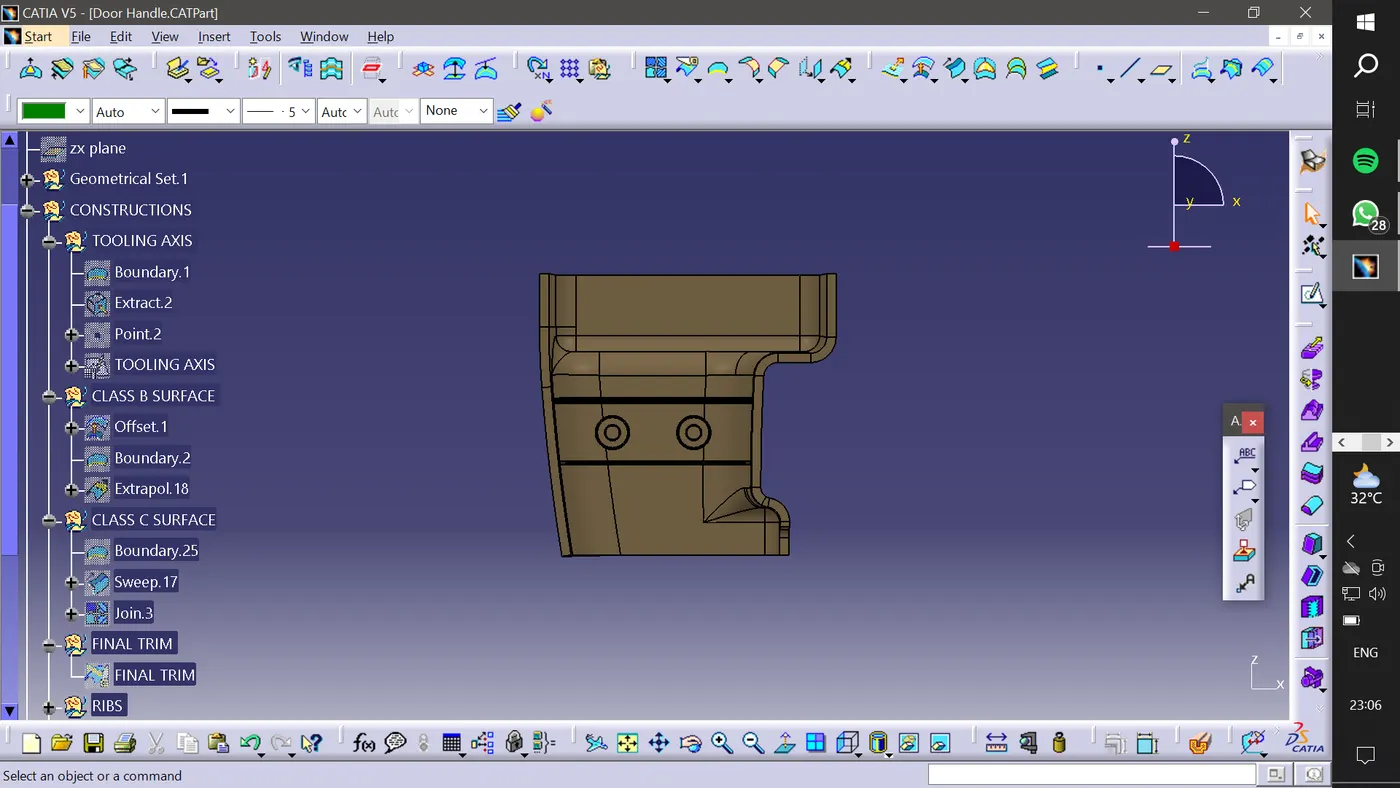

TOOLING AXIS

At the first created a dummy tooling axis
After analysing thought it will not be work better for future drafting
So tooling axis was made by using the bisecting method by taking the two edges as my refernce

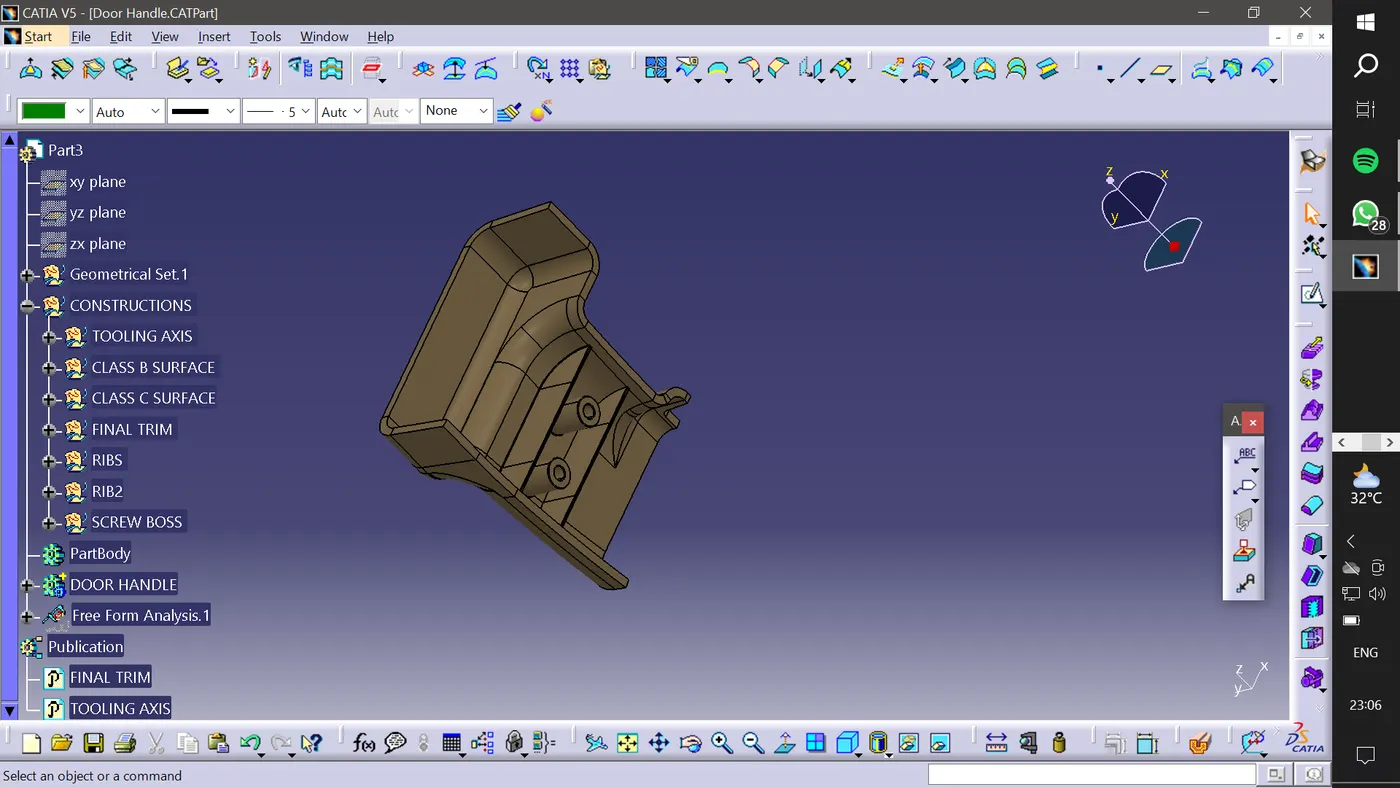

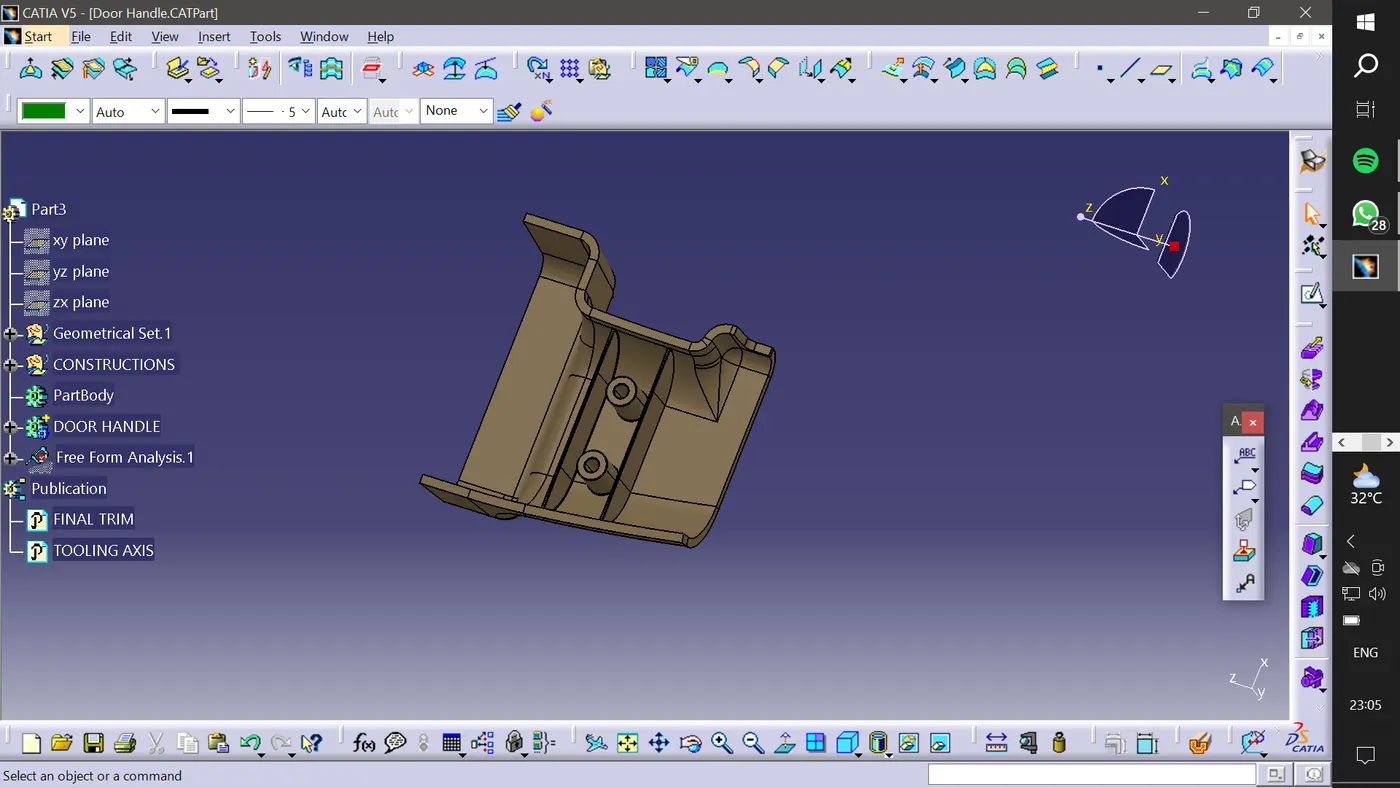

3D PART MODEL

Clss B surface created using the offset method
Class C surface  created using the sweep tool and joined the class A and C togather
The joind part body trimmed with the Bclass.

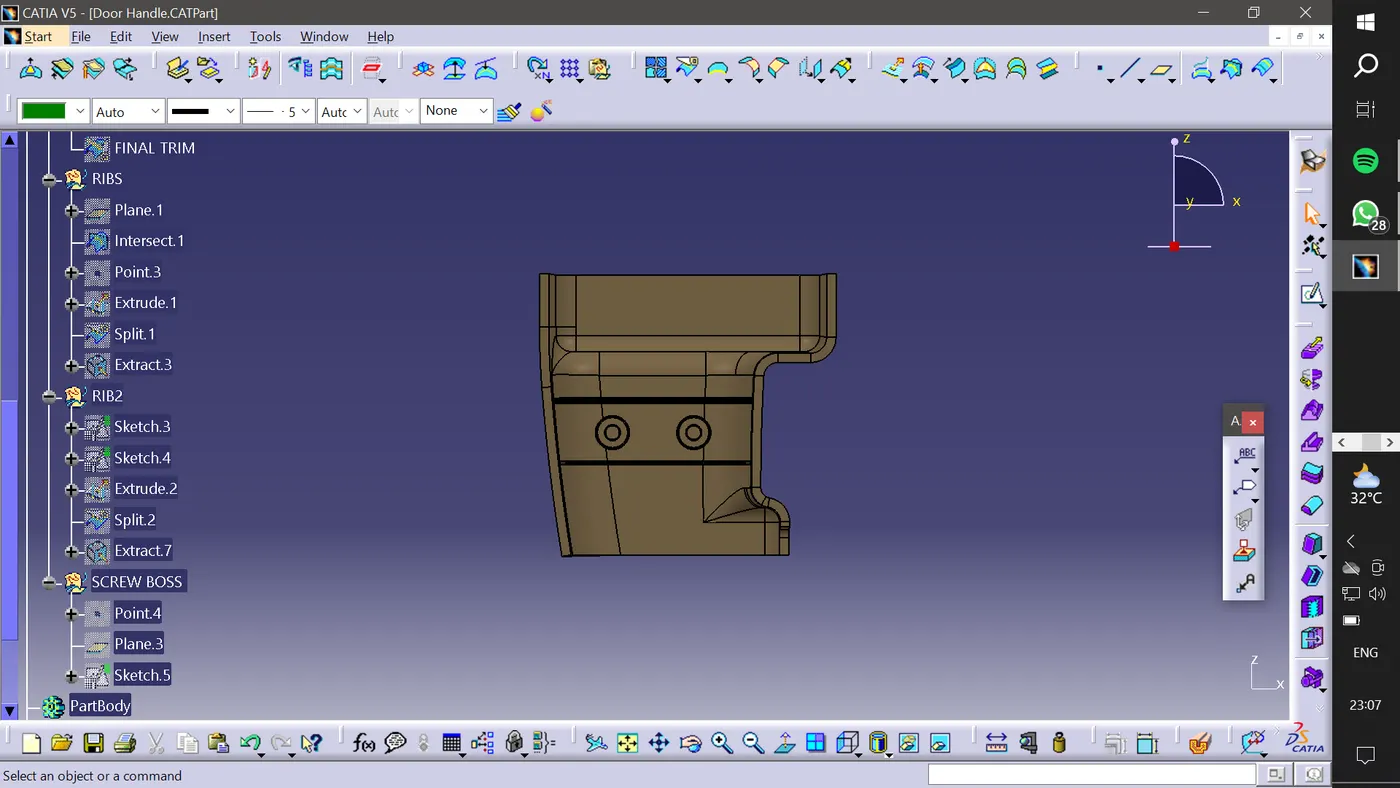

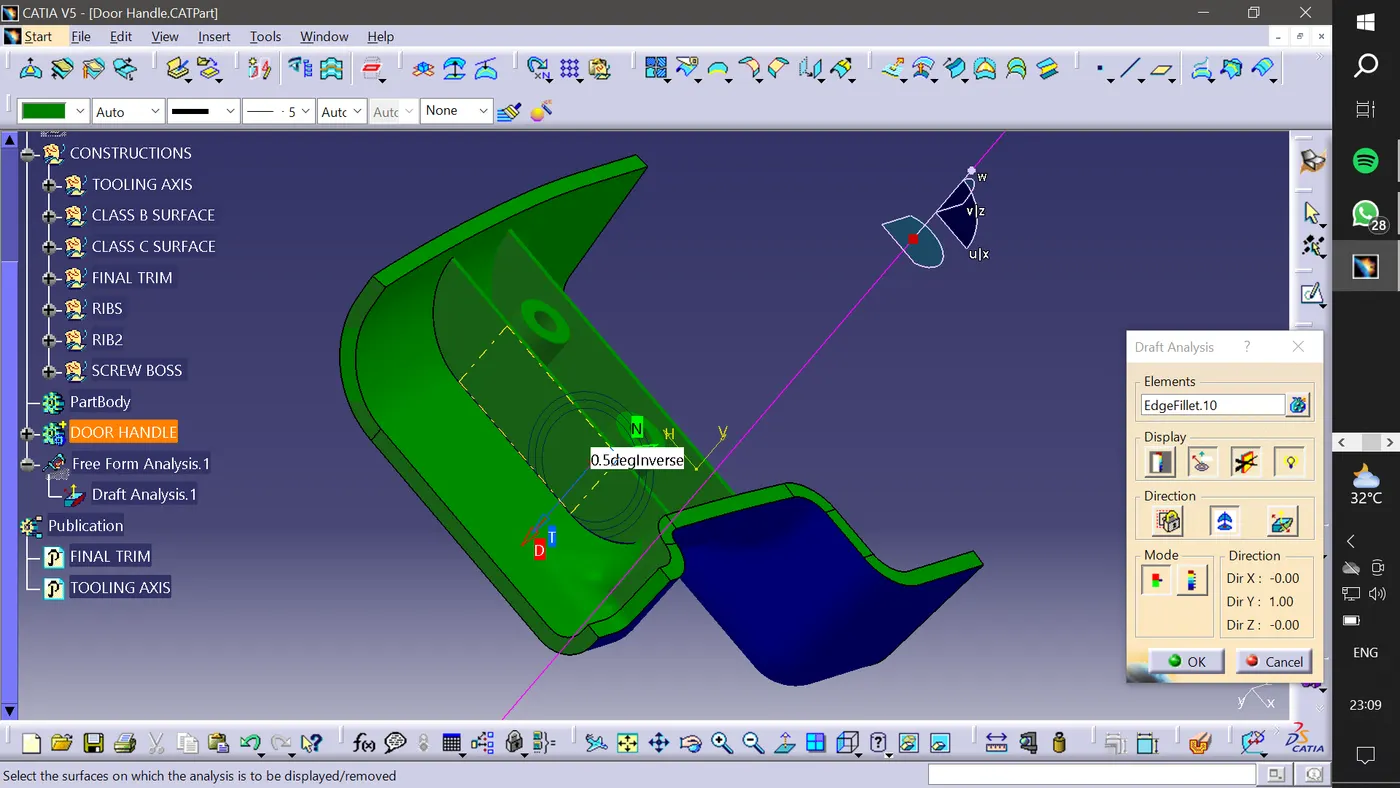

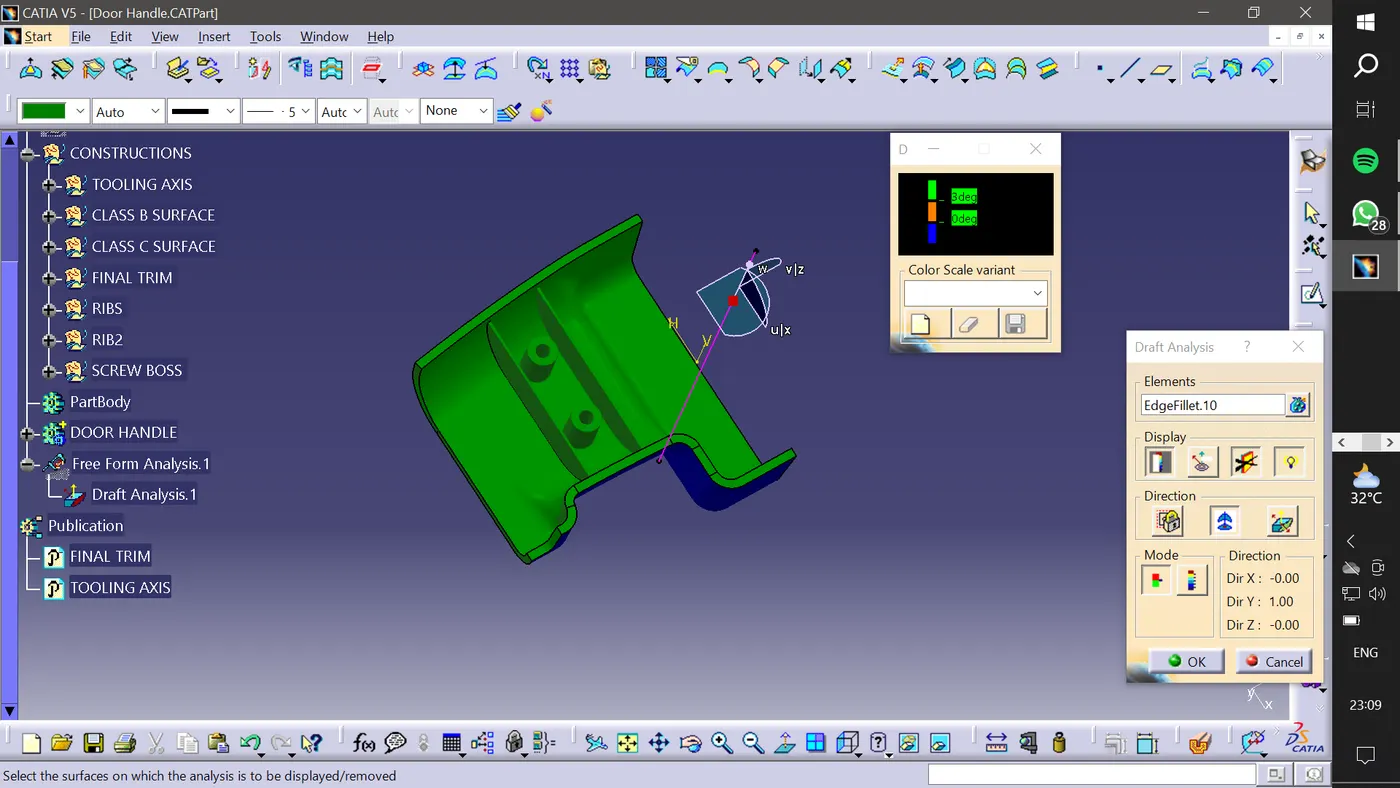

Then ribs are made and gave 0.5 as the draft value and  0.25 to the fillets
The height was calculated wusing 5*thickness
And the thickness of rib calculated using 0.4*thickness
Then the bosses are created as per the rule
